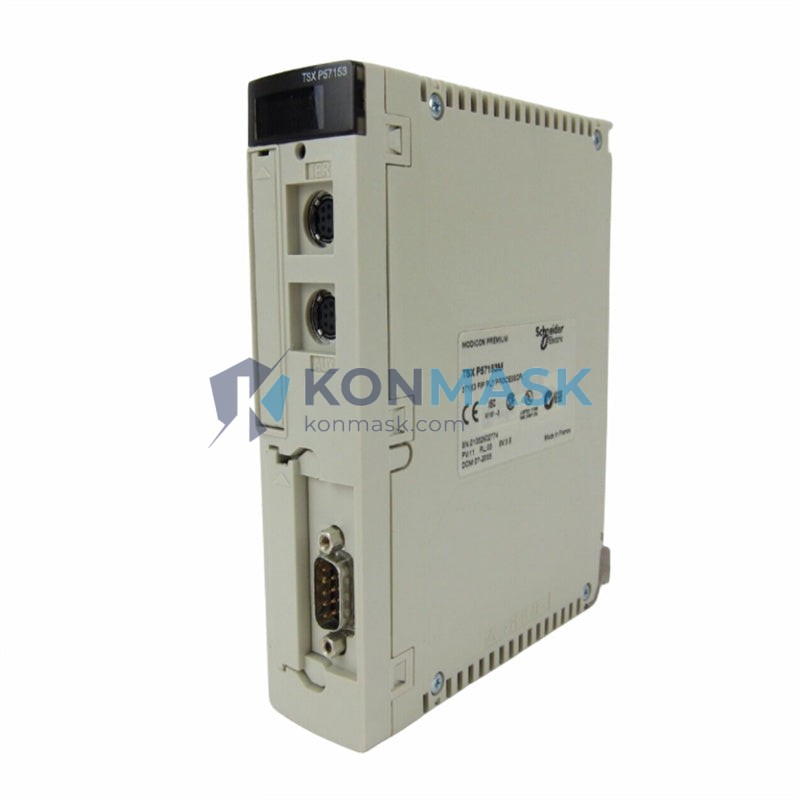

Schneider TSXP57153M Processor | Replacement, Equivalent & Selection Guide
Technical Specifications
- Part Number: TSXP57153M
- Brand: Schneider Electric (Modicon)
- Series: TSX Premium
- Type: PLC CPU / Processor Module
- Program Memory: 256 KB (application)
- Data Memory: 128 KB
- I/O Capacity: Up to 1,024 discrete I/O; up to 128 analog channels
- Communication Ports: Uni-Telway / Modbus (RS-485), Ethernet-ready via extension
- Scan Time: ~0.1 ms / 1,000 instructions (Boolean)
- Operating Temperature: 0 °C to +60 °C
- Power Supply: 5 VDC (rack-supplied)
- Mounting: TSX Premium rack (TSX RKY series)
- Programming Software: PL7 Pro / Unity Pro (compatibility mode)
- Certifications: CE, UL, cUL
- Weight: ~200 g
Compatible Replacement & Equivalent Models
The following models are commonly used as direct or functional replacements for the TSXP57153M. Always verify firmware and rack compatibility before substitution.
- TSXP57203M – Higher memory (384 KB), same rack/bus, drop-in upgrade
- TSXP57253M – Extended I/O capacity, same TSX Premium platform
- TSXP57303M – Enhanced performance, backward-compatible with PL7 Pro projects
- TSXP57353M – Top-tier TSX Premium CPU, suitable for large-scale migration
- BMXP342020 (Modicon M340) – Next-generation platform; requires project migration via Unity Pro
- BMEP582040 (Modicon M580) – Modern Ethernet-native replacement; full re-engineering required
Note: Cross-platform replacements (M340/M580) require hardware re-wiring and software migration. Contact our technical team for migration support.
Why Choose the Original Model
- Proven Reliability: TSXP57153M has a long field track record in demanding industrial environments.
- Direct Drop-In: No rack modification required — slots directly into any TSX RKY rack.
- PL7 Pro Compatibility: Existing PL7 Pro programs run without modification.
- Cost-Effective Maintenance: Extending the life of existing TSX Premium installations avoids costly system overhauls.
- Spare Parts Availability: Konmask.com maintains stock of tested, genuine, and refurbished units.
Typical Applications
- Automotive assembly line control
- Water and wastewater treatment plant automation
- Packaging and material handling systems
- Building management and HVAC control
- Oil & gas process control panels
- Pharmaceutical batch processing
- Machine tool and CNC integration
System Compatibility
- Racks: TSX RKY4, TSX RKY6, TSX RKY8, TSX RKY12
- Power Supplies: TSX PSY2600M, TSX PSY5500M, TSX PSY8500M
- I/O Modules: All TSX Premium discrete, analog, and specialty I/O modules
- Communication Modules: TSX ETY110, TSX SCY21601, TSX SCM2116, TSXFPP20
- Programming Software: PL7 Pro v4.5+, Unity Pro (legacy import mode)
- HMI: Magelis XBTG/XBTGT series via Uni-Telway or Modbus
Selection Guide
Use the table below to select the right TSX Premium processor for your application:
- Small systems (<512 I/O, <128 KB program): TSXP57103M
- Medium systems (512–1,024 I/O, ~256 KB program): TSXP57153M ← This model
- Large systems (>1,024 I/O, >256 KB program): TSXP57253M / TSXP57303M
- High-availability / redundancy required: TSXP57353M with hot-standby module
- New project / Ethernet-native required: Migrate to Modicon M340 or M580
Not sure which model fits your system? Send us your existing PL7 Pro project file or rack configuration — our engineers will recommend the optimal solution.
Quality Assurance & Sourcing
- Source: Genuine Schneider Electric OEM units and certified refurbished stock
- Testing: Each unit undergoes power-on self-test (POST) and functional I/O verification before shipment
- Condition Options: New (sealed), Refurbished (tested), and As-Is (for parts) — specify at order
- Warranty: 12-month warranty on all tested units; 90-day warranty on as-is units
- Traceability: Batch records and test reports available upon request
- Export Compliance: All shipments comply with applicable export control regulations
How to Order
- Step 1: Confirm your part number: TSXP57153M
- Step 2: Specify required condition (New / Refurbished / As-Is)
- Step 3: Indicate required quantity and delivery timeline
- Step 4: Add to cart or contact us directly for bulk/urgent orders
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Payment: T/T, PayPal, credit card, and trade credit (approved accounts)
- Shipping: DHL, FedEx, UPS — worldwide delivery with tracking
Replacement & Compatibility FAQ
Q: Can I replace TSXP57153M with TSXP57203M without changing the rack?
A: Yes. Both use the same TSX Premium rack and bus. The TSXP57203M is a direct upgrade with more memory — no hardware changes required.
Q: Will my existing PL7 Pro program run on a replacement unit?
A: Yes, provided the replacement is within the TSX Premium family. Cross-platform migration (M340/M580) requires Unity Pro and project conversion.
Q: Is the TSXP57153M still in production?
A: This model has reached end-of-life (EOL) by Schneider Electric. Konmask.com supplies genuine spare and refurbished units to support installed base maintenance.
Q: Can I use a TSXP57153M in a hot-standby configuration?
A: Hot-standby requires the TSXP57353M with the TSXHSY100 module. The TSXP57153M does not support redundancy natively.
Q: Do you provide a test report with the unit?
A: Yes. A functional test report is included with all refurbished units. New sealed units include the original Schneider factory documentation.
