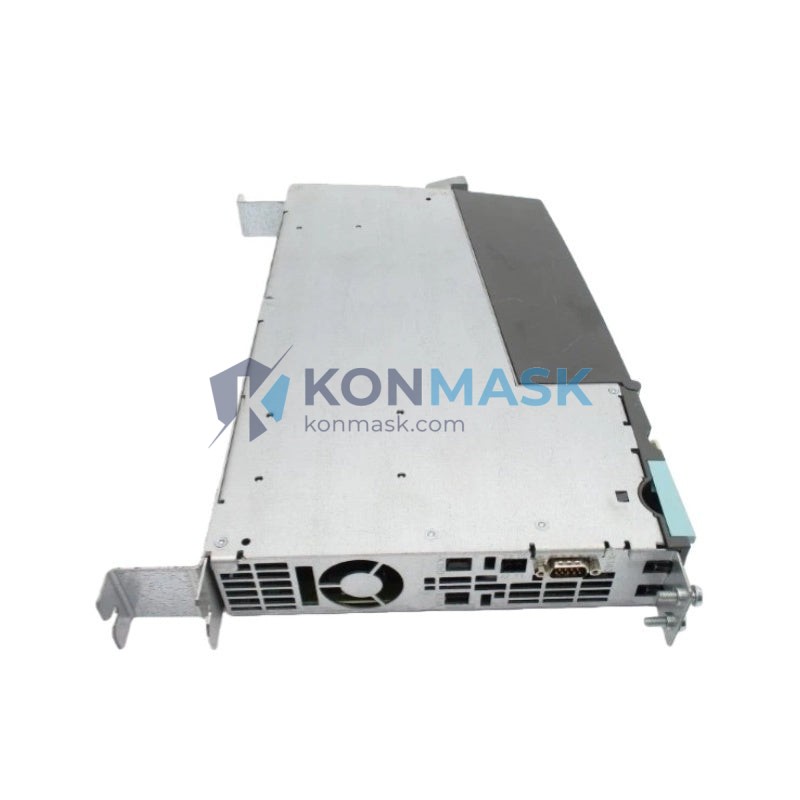

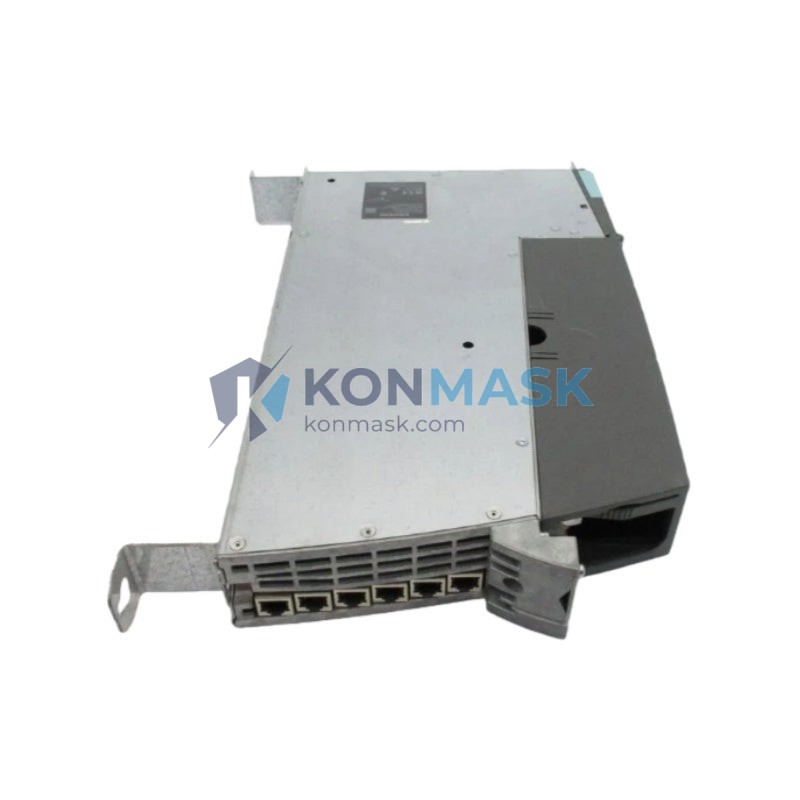

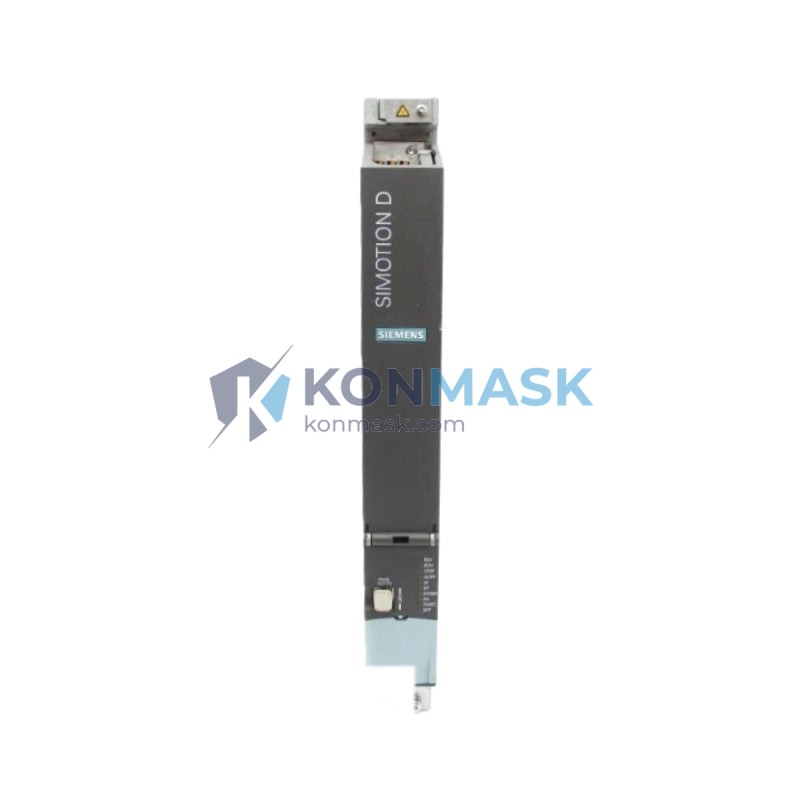

Siemens 6AU1435-2AD00-0AA0 Motion Control Unit – SIMOTION D435-2 DP/PN Series
When a high-speed production line loses its motion controller, the consequences are immediate and costly: servo axes fall out of synchronization, cam profiles collapse, and the entire machine grinds to an unplanned halt. Every minute of downtime in a modern packaging, printing, or converting plant can cost thousands of dollars in lost output. The Siemens 6AU1435-2AD00-0AA0 is the precision nerve center that prevents exactly this scenario — coordinating up to 32 servo axes with deterministic real-time performance that keeps your process running at full speed.
Within the SIMOTION D series, the D435-2 DP/PN occupies the high-performance tier, offering a dual-port PROFINET interface alongside PROFIBUS DP for maximum topology flexibility. It integrates seamlessly with SINAMICS S120 drive systems and is trusted by machine builders across Europe, Asia, and the Americas for demanding multi-axis applications where microsecond-level synchronization is non-negotiable.
Technical Specifications
- Part Number: 6AU1435-2AD00-0AA0
- Series: SIMOTION D435-2 DP/PN
- Manufacturer: Siemens AG
- Function: Motion Control Unit (MCU)
- Max. Controllable Axes: Up to 32 servo axes
- Communication Interfaces: PROFINET IRT (2-port), PROFIBUS DP Master/Slave
- Drive Integration: SINAMICS S120 (CU320-2 compatible)
- Programming Environment: SIMOTION SCOUT (IEC 61131-3: ST, LAD, FBD; MCC; DCC)
- Onboard Memory: Integrated RAM + CompactFlash slot for project storage
- Real-Time Clock: Yes, battery-backed
- Operating Temperature: 0 °C to +55 °C
- Protection Class: IP20
- Power Supply: Via SINAMICS S120 Control Unit interface
- Weight: Approx. 3.7 kg
- Firmware: SIMOTION V4.x compatible
Key Features & Benefits
- Deterministic Multi-Axis Synchronization: Isochronous PROFINET IRT ensures all axes receive commands within the same clock cycle, eliminating jitter in cam and gearing applications.
- Dual-Protocol Flexibility: Simultaneous PROFINET and PROFIBUS DP support allows integration into both modern Ethernet-based architectures and legacy fieldbus topologies without additional gateways.
- Scalable Motion Functions: Supports electronic cam, electronic gearing, path interpolation, and flying saw — all configurable via SIMOTION SCOUT without custom code.
- Integrated Safety: Compatible with SINAMICS Safety Integrated for STO, SS1, SLS, and SOS safety functions, reducing external safety relay hardware.
- Compact Drive-Based Design: Mounts directly onto the SINAMICS S120 booksize chassis, minimizing cabinet footprint and wiring complexity.
- High-Speed I/O: Fast digital inputs for encoder zero-mark capture and registration mark detection in printing and labeling applications.
Industry & Equipment Applications
- Packaging Machinery: Flow wrappers, cartoners, case packers — precise multi-axis coordination for film feeding, sealing, and cutting.
- Printing & Converting: Web tension control, register mark synchronization, and flying splice in offset and flexographic presses.
- Textile Machinery: Warp beam control, rapier loom synchronization, and yarn tension management.
- Woodworking & Panel Processing: CNC routing, edge banding, and multi-head drilling centers.
- Automotive Assembly: Transfer lines, welding positioners, and press-feed automation.
- Food & Beverage: Filling, capping, and labeling lines requiring hygienic design and high-speed throughput.
System Integration & Compatible Parts
- Drive System: SINAMICS S120 Booksize (e.g., 6SL3120-1TE21-0AA3, 6SL3120-1TE23-0AA3)
- Control Unit: CU320-2 DP/PN (6SL3040-1MA01-0AA0)
- Engineering Software: SIMOTION SCOUT V4.4 / V4.5 / V5.x
- HMI: SIMATIC HMI TP700, TP900, TP1200 Comfort Panels
- I/O Modules: SIMATIC ET 200SP, ET 200MP via PROFINET
- Encoder Interface: SMC30, SME20/25 sensor modules
- Complementary MCUs: 6AU1432-0AA00-0AA0 (D425-2), 6AU1437-2AD00-0AA0 (D445-2)
Our Quality Assurance Process
- Authenticity Verification: Every unit is cross-referenced against Siemens factory serial number databases before shipment.
- Functional Inspection: Power-on test and firmware version check performed on all stocked units.
- Anti-Static Packaging: Shipped in ESD-safe bags with foam cushioning inside double-wall cartons.
- Documentation: Original Siemens datasheet and CE declaration of conformity included upon request.
- Traceability: Batch and serial number recorded for every order for full supply chain transparency.
How to Order
- Submit your inquiry via the Contact Us form or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm the order and receive a proforma invoice for payment processing.
- Track your shipment with a dedicated logistics reference number.
Why Choose Konmask.com?
- Specialized Industrial Focus: We stock only automation and control components — no consumer electronics, no distractions.
- Global Shipping: DHL, FedEx, and UPS express options to 150+ countries with full customs documentation support.
- Technical Pre-Sales Support: Our engineers can verify compatibility with your existing SIMOTION project before you commit to a purchase.
- Competitive Lead Times: In-stock units ship within 2 business days; sourced units typically within 7–15 business days.
- After-Sales Assurance: 12-month warranty on all verified genuine parts with RMA support.
Frequently Asked Questions
Q: Is the 6AU1435-2AD00-0AA0 compatible with SIMOTION SCOUT V5.x?
A: Yes. The D435-2 DP/PN supports SIMOTION firmware V4.1 through V4.5 and is backward-compatible with projects created in SCOUT V4.x. For V5.x projects, a firmware upgrade may be required — contact us for guidance.
Q: Can this unit replace a 6AU1435-2AD00-0AA0 with a different firmware version?
A: The hardware is identical across firmware revisions. You can update the firmware via CompactFlash card or SIMOTION SCOUT. We recommend confirming the target firmware version before ordering.
Q: What is the maximum number of axes this controller supports?
A: The D435-2 supports up to 32 axes in total, combining servo, vector, and positioning axes depending on the SINAMICS S120 drive configuration.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoices, packing lists, and certificates of origin. We do not provide HS code classification advice — please consult your customs broker.
Q: What is your minimum order quantity (MOQ)?
A: MOQ is 1 unit. We welcome both single-unit emergency replacements and bulk OEM orders.
