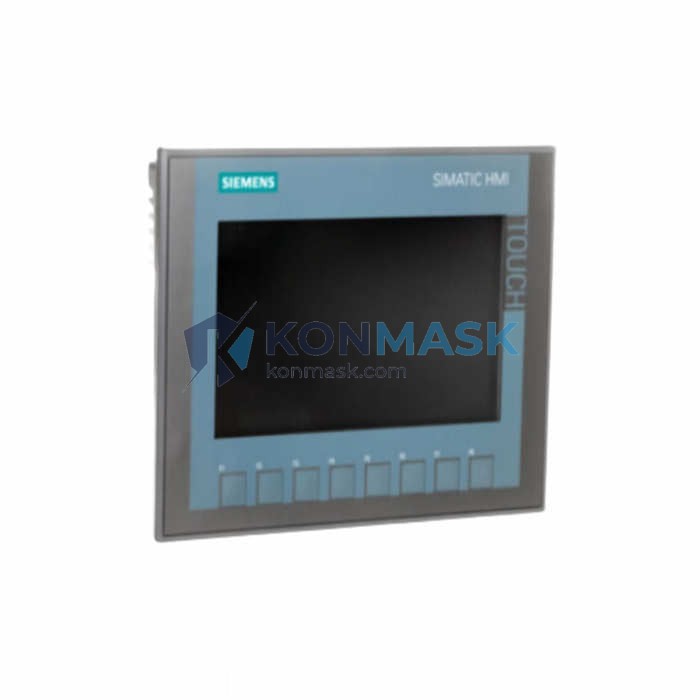

Siemens 6AV2123-2GB03-0AX0 – 7″ Multi-Touch HMI Operator Panel | SIMATIC KTP700 Basic
Engineering Background
The SIMATIC KTP700 Basic series represents Siemens’ entry-level HMI platform engineered for machine-level visualization in discrete manufacturing, process control, and OEM automation. The 6AV2123-2GB03-0AX0 is the 7-inch widescreen variant featuring capacitive multi-touch technology, replacing the legacy KTP700 Basic PN (6AV2123-2GB03-0AX0) with enhanced display brightness and TIA Portal V13+ integration. It is the de-facto standard panel for SIMATIC S7-1200 and S7-1500 PLC pairings across global machine builders.
Product Positioning
Designed for procurement engineers sourcing reliable, spec-verified HMI hardware for new builds, retrofits, or MRO replacement. Konmask supplies this unit from authenticated industrial channels with full traceability — suitable for regulated environments requiring documented provenance.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6AV2123-2GB03-0AX0 |
| Series | SIMATIC HMI KTP700 Basic |
| Display Size | 7.0″ Widescreen TFT |
| Resolution | 800 × 480 px (WVGA) |
| Color Depth | 16-bit (65,536 colors) |
| Brightness | 350 cd/m² |
| Touch Technology | Capacitive Multi-Touch (5-point) |
| Function Keys | 8 configurable function keys |
| Communication Interface | PROFINET (1× RJ45, 10/100 Mbit/s) |
| USB Interface | 1× USB 2.0 Type-A (host) |
| Supply Voltage | 24 V DC (20.4 – 28.8 V) |
| Power Consumption | Typ. 6 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Protection Rating | IP65 (front panel) / IP20 (rear) |
| Degree of Protection | NEMA 4X (front) |
| Mounting | Panel cutout, portrait or landscape |
| Panel Cutout (W × H) | 214 × 158 mm |
| Dimensions (W × H × D) | 225 × 170 × 46 mm |
| Weight | Approx. 0.9 kg |
| Configuration Software | TIA Portal WinCC Basic V13 SP1 or higher |
| Certifications | CE, UL, cULus, RCM, KC |
| MLFB / Order Number | 6AV2 123-2GB03-0AX0 |
Proven Application Environments
- Discrete Manufacturing: Machine tool HMI replacement, conveyor line control panels, press and stamping machine interfaces
- Food & Beverage: IP65 front seal suitable for washdown zones; paired with S7-1200 for recipe management
- Water & Wastewater: Pump station local control with PROFINET to remote I/O
- Building Automation: HVAC unit controllers, BMS local operator stations
- OEM Machine Builders: Standard panel for global machine variants requiring TIA Portal-based HMI
- MRO / Retrofit: Drop-in replacement for KTP700 Basic PN (6AV2123-2GB03-0AX0) with identical cutout dimensions
Engineering Advantages
- Capacitive Multi-Touch: 5-point touch enables gesture-based navigation (pinch-zoom, swipe) — superior to resistive predecessors
- TIA Portal Native Integration: Single-engineering-framework configuration; no separate HMI software license required for Basic panels
- PROFINET IRT Ready: Supports isochronous real-time communication for motion-synchronized HMI feedback
- IP65 Front Seal: Dust-tight and jet-water resistant — compliant with IEC 60529 for industrial enclosure mounting
- Wide Supply Voltage Range: 20.4–28.8 V DC tolerates unstable 24 V bus conditions common in legacy panel wiring
- Compact Depth (46 mm): Fits shallow enclosures; reduces panel depth requirements vs. prior-generation units
- USB Host Port: Enables project backup, firmware update, and recipe data transfer via USB stick without network access
System Architecture & Signal Flow
[S7-1200 / S7-1500 PLC]
│
PROFINET (RJ45)
│
[6AV2123-2GB03-0AX0 KTP700 Basic]
├── 7" Capacitive Touch Display
├── 8× Function Keys → PLC Tag Mapping
├── USB Host → Recipe / Project Backup
└── 24 VDC Supply ← Panel Power Bus
The panel operates as a PROFINET IO controller or device depending on network topology. In standard machine configurations, the PLC acts as IO controller and the HMI connects as an additional PROFINET node. Tag communication is handled via the TIA Portal-generated HMI connection — no additional driver or OPC layer required.
Sourcing & Quality Verification
- Origin: Sourced from authorized Siemens distribution channels and verified industrial surplus with full documentation
- Inspection: Each unit undergoes visual inspection, label verification (MLFB cross-check), and power-on functional test prior to dispatch
- Packaging: Ships in original or equivalent ESD-safe anti-static packaging with foam cushioning
- Documentation: Certificate of conformity and test report available upon request for regulated procurement
- Warranty: 12-month Konmask operational warranty; DOA replacement within 7 days of receipt
Procurement Process
- Confirm Part Number: Verify 6AV2123-2GB03-0AX0 against your BOM or existing panel nameplate
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation
- Place Order: Add to cart and proceed to checkout — or request a formal proforma invoice for PO-based procurement
- Shipping: DHL / FedEx express available; EXW Shenzhen or CIF destination port options for freight orders
- Customs & HS Code: HS 8537.10 (Boards, panels, consoles for electric control); Konmask provides commercial invoice and packing list
Technical FAQ
Q: Is this panel compatible with S7-300 / S7-400 PLCs?
A: Yes, via PROFINET. However, TIA Portal V13+ is required for configuration. Legacy STEP 7 projects require migration to TIA Portal first.
Q: Can this replace a 6AV2123-2GB03-0AX0 (older firmware)?
A: Yes — the panel cutout dimensions and PROFINET interface are identical. Firmware can be updated via USB or TIA Portal after installation.
Q: What is the maximum number of tags supported?
A: KTP700 Basic supports up to 500 process tags (power tags) in TIA Portal WinCC Basic.
Q: Is a runtime license required?
A: No. WinCC Basic runtime is embedded in the panel hardware — no separate runtime license purchase is needed.
Q: What is the display backlight lifespan?
A: Rated at 50,000 hours MTBF at 25 °C ambient — approximately 5.7 years of continuous operation.
Q: Can I connect multiple PLCs to one panel?
A: KTP700 Basic supports connection to one PLC controller at a time via PROFINET in standard configuration.
