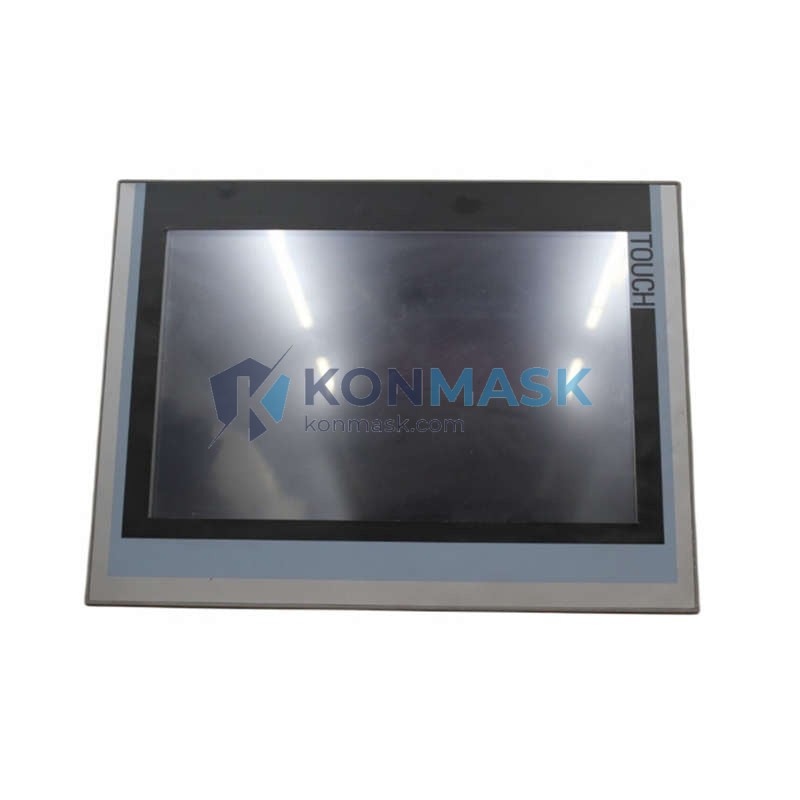

SIEMENS 6AV2124-0QC02-0AX0 HMI Touch Panel | Replacement, Equivalent & Selection Guide
The SIEMENS 6AV2124-0QC02-0AX0 is a high-performance HMI (Human-Machine Interface) touch panel from the SIMATIC TP1200 Comfort series. Designed for demanding industrial environments, it delivers precise process visualization, intuitive operator control, and seamless integration with SIMATIC S7 PLCs and third-party controllers. Whether you need the original unit, a verified equivalent, or a compatible replacement, Konmask.com provides sourcing support and technical guidance.
Technical Specifications
- Model: 6AV2124-0QC02-0AX0
- Series: SIMATIC TP1200 Comfort
- Display: 12″ Widescreen TFT, 1280 × 800 px
- Touch Type: Resistive single-touch
- Processor: 1 GHz ARM Cortex-A8
- RAM / Flash: 128 MB RAM / 24 MB user memory
- Operating System: Windows CE 6.0
- Communication Interfaces: 2× PROFINET/Ethernet (RJ45), 1× RS-422/485, 2× USB 2.0, 1× SD card slot
- Supply Voltage: 24 V DC (20.4–28.8 V)
- Power Consumption: Approx. 25 W
- Protection Rating: IP65 (front panel)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Dimensions (W × H × D): 365 × 280 × 54 mm
- Weight: Approx. 2.5 kg
- Certifications: CE, UL, cULus, ATEX Zone 2
Compatible Replacement & Equivalent Models
If the 6AV2124-0QC02-0AX0 is unavailable or you are evaluating alternatives, the following models offer compatible or equivalent functionality:
- 6AV2124-0QC02-0AX1 – Successor revision with identical form factor and improved firmware support
- 6AV6648-0CC11-3AX0 (SIMATIC TP1200 Basic) – Lower-cost alternative with reduced feature set; suitable for basic visualization tasks
- 6AV2124-0MC01-0AX0 (TP1200 Comfort, 12″ Multi-Touch) – Upgraded multi-touch variant for advanced interaction requirements
- Weintek MT8121iE – Third-party 12″ HMI with PROFINET/Modbus support; cost-effective for non-SIMATIC environments
- Proface GP4501T – Industrial-grade 12″ panel with broad PLC compatibility including SIMATIC S7
Note: Always verify firmware version, communication protocol, and mounting cutout dimensions before substituting models. Contact Konmask.com for pre-sales compatibility verification.
Why Choose the Original Model
- Native SIMATIC Integration: Full compatibility with TIA Portal, WinCC, and STEP 7 without additional drivers or configuration overhead
- Proven Reliability: Designed and tested to IEC 61131 standards for continuous industrial operation
- Long-Term Support: SIEMENS provides firmware updates, spare parts, and technical documentation for the full product lifecycle
- Regulatory Compliance: CE, UL, and ATEX certifications ensure compliance in regulated industries including food & beverage, pharmaceutical, and energy
- Resale & Maintenance Value: Original part numbers maintain asset value and simplify maintenance documentation
Typical Applications
- Machine tool control and CNC operator panels
- Process visualization in chemical and pharmaceutical plants
- Water treatment and utilities SCADA front-ends
- Packaging line HMI stations
- Building automation and energy management systems
- Oil & gas field control panels (ATEX Zone 2 rated)
System Compatibility
- SIMATIC S7-1200 / S7-1500: Full TIA Portal V13+ integration via PROFINET
- SIMATIC S7-300 / S7-400: Compatible via MPI/PROFIBUS adapter or Ethernet CP modules
- Third-Party PLCs: Supports Modbus TCP/RTU, Mitsubishi MC Protocol, Allen-Bradley DF1/EtherNet/IP via optional drivers
- SCADA Systems: OPC UA server built-in; compatible with WinCC, Ignition, and InTouch
Selection Guide
Use the following criteria to confirm the 6AV2124-0QC02-0AX0 is the right choice for your application, or to identify the best alternative:
- Display Size Required: 12″ → TP1200 series; 10″ → TP1000; 7″ → TP700
- Touch Technology: Single-touch resistive (this model) vs. multi-touch capacitive (6AV2124-0MC01-0AX0)
- Communication Protocol: PROFINET standard; add RS-485 for legacy Modbus RTU devices
- Environment Rating: IP65 front for wash-down; IP20 rear — ensure cabinet sealing
- Budget Tier: Original OEM → this model; cost-optimized → TP1200 Basic or Weintek equivalent
- Software Ecosystem: TIA Portal users → stay with SIMATIC series for zero-friction engineering
Quality Assurance & Sourcing
- Authenticity: All units sourced from authorized distributors or verified surplus channels with traceable documentation
- Inspection: Each unit undergoes visual inspection and functional power-on verification before shipment
- Packaging: Original or equivalent ESD-safe packaging with anti-static foam inserts
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 business days
- Documentation: Datasheet, CE declaration, and test report available upon request
How to Order
- Step 1: Confirm part number: 6AV2124-0QC02-0AX0
- Step 2: Specify quantity and required delivery timeline
- Step 3: Contact us via email or phone for a formal quotation (RFQ)
- Step 4: Submit purchase order — payment via T/T, PayPal, or trade assurance
- Step 5: Receive tracking number within 1–2 business days of payment confirmation
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Is 6AV2124-0QC02-0AX1 a direct drop-in replacement for 0AX0?
A: Yes. The -0AX1 revision shares the same hardware form factor and mounting cutout. Firmware and TIA Portal project files are fully compatible with minor version update.
Q: Can I use this panel with a non-SIEMENS PLC?
A: Yes, via Modbus TCP/RTU or third-party communication drivers. However, native SIMATIC protocols offer the most seamless integration.
Q: What is the panel’s cutout dimension for cabinet installation?
A: 339 × 254 mm. Verify against your enclosure drawing before ordering.
Q: Do you supply refurbished units?
A: We supply both new and certified-refurbished units. Refurbished units are clearly labeled and carry a 6-month warranty.
Q: How long does shipping take?
A: Standard international shipping: 5–10 business days. Express DHL/FedEx: 2–4 business days. Contact us for urgent requirements.
