HMI Visualization Solution – SIEMENS 6AV6545-0BC15-2AX0 | TP 170B Color Series

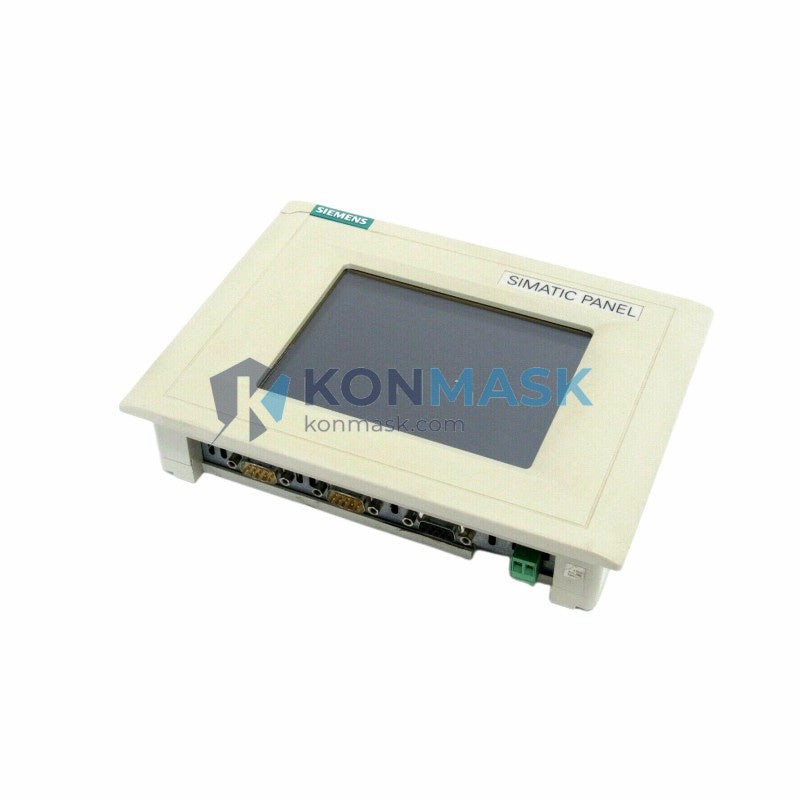

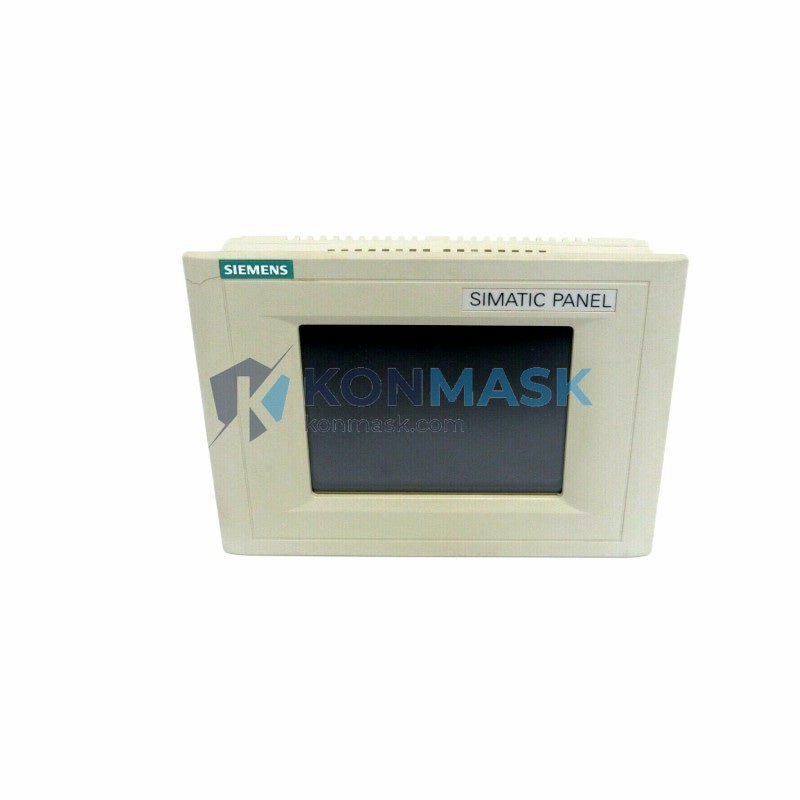

The SIEMENS 6AV6545-0BC15-2AX0 TP 170B Color is a compact, high-performance Human-Machine Interface (HMI) panel engineered for demanding industrial visualization tasks. With a 5.7″ TFT color display and seamless integration into SIMATIC automation architectures, this panel is the preferred choice for engineers who need reliable, real-time process visibility on the factory floor.
Where This Product Is Used
The TP 170B Color is deployed across a wide range of industrial environments where operators require intuitive, color-coded process monitoring and control:
- Discrete Manufacturing: Machine tool control panels, assembly line status displays, and cycle-time monitoring stations.
- Process Industry: Chemical dosing systems, water treatment SCADA front-ends, and batch process visualization.
- Building Automation: HVAC control interfaces, energy management dashboards, and access control panels.
- Food & Beverage: Filling line HMI, CIP (Clean-In-Place) sequence displays, and temperature monitoring.
- Packaging Machinery: Servo-driven packaging line operator panels and fault-alarm displays.
- OEM Control Cabinets: Embedded into custom control enclosures as the primary operator interface for SIMATIC S7-200/300/400 systems.
Technical Specifications
- Part Number: 6AV6545-0BC15-2AX0
- Series: SIMATIC TP 170B Color
- Display Type: 5.7″ TFT Color LCD
- Resolution: 320 × 240 px (QVGA)
- Colors: 256 colors
- Touch Screen: Resistive analog touch panel
- Processor: 32-bit RISC
- Memory: 512 KB user memory (project data)

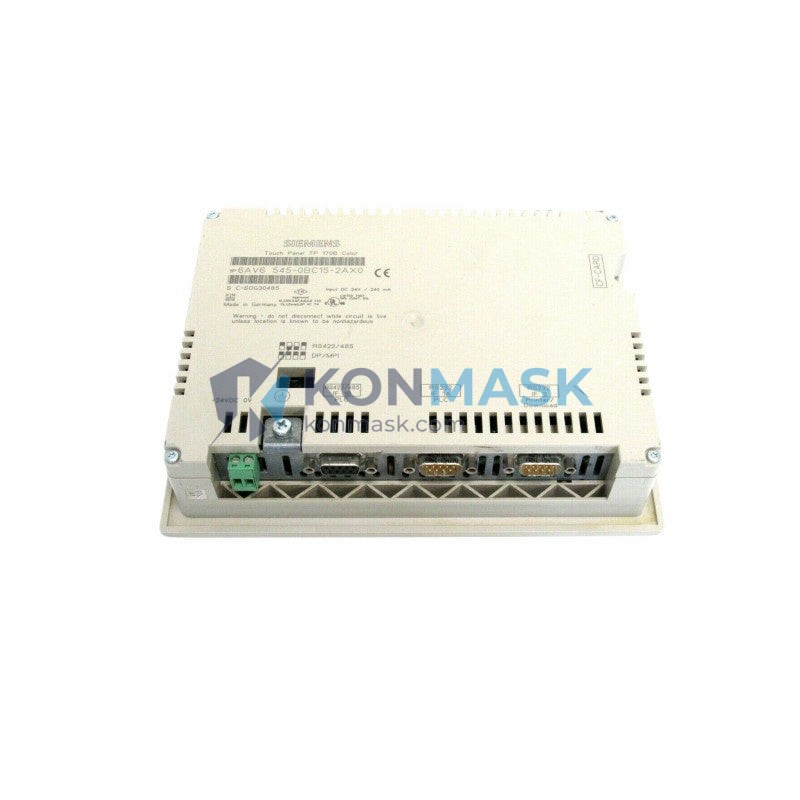

- Communication Interfaces: RS-422/485 (MPI/PROFIBUS DP), RS-232
- Compatible PLCs: SIMATIC S7-200, S7-300, S7-400; also supports Allen-Bradley, Mitsubishi via protocol adapters
- Operating Voltage: 24 V DC (±15%)
- Power Consumption: Approx. 8 W
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Protection Rating: IP65 (front panel)
- Dimensions (W × H × D): 196 × 141 × 52 mm
- Weight: Approx. 800 g
- Configuration Software: ProTool / WinCC flexible 2004 or later
- Certifications: CE, UL, cULus
Why Engineers Specify This Model
- Proven SIMATIC Ecosystem Compatibility: Native MPI/PROFIBUS DP integration eliminates gateway hardware and reduces commissioning time.
- IP65 Front Panel Sealing: Withstands coolant splash, dust ingress, and wash-down environments without additional enclosure protection.
- Color Alarm Differentiation: 256-color display enables engineers to implement color-coded alarm states (red/yellow/green) for faster operator response.
- Compact Panel-Cut Footprint: Fits standard 192 × 137 mm cutouts, enabling retrofit into existing enclosures without structural modification.
- Long Field Service History: Widely documented in SIEMENS service bulletins; spare parts and replacement units remain available through authorized distributors.
- ProTool / WinCC Flexible Support: Existing project files can be migrated to newer SIMATIC panels with minimal rework.
Complete System Bill of Materials
For a fully operational TP 170B Color installation, engineers typically specify the following components:
- SIEMENS 6AV6545-0BC15-2AX0 – TP 170B Color HMI Panel (this item)
- SIEMENS 6ES7 972-0CB20-0XA0 – MPI/PROFIBUS DP Bus Connector (90° cable exit)
- SIEMENS 6XV1830-0EH10 – PROFIBUS DP Cable (sold per meter)
- SIEMENS 6EP1332-1SH43 – SITOP PSU100S 24 V / 5 A Power Supply
- Panel mounting hardware: M4 × 10 mm stainless steel screws + SIEMENS mounting clamps (included in panel packaging)
- ProTool CS v6.0 SP2 or WinCC flexible 2004 – Configuration software license
- PC adapter USB (6ES7 972-0CB20-0XA0) – For project download via MPI
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
- UL / cULus Listed: Recognized for use in North American industrial control panels per UL 508.
- PROFIBUS International: Certified PROFIBUS DP slave device.
- RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances).
- EMC: Tested to EN 61000-4 series for industrial electromagnetic environments.
- Vibration / Shock: Meets IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock) test standards.
Quality Assurance & Sourcing
- Verified Origin: Units sourced from authorized SIEMENS distribution channels or certified industrial surplus with full traceability documentation.
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label verification (part number, date code, country of manufacture), and power-on functional test where applicable.
- Packaging: Shipped in original or equivalent anti-static ESD packaging with foam cushioning to prevent transit damage.
- Documentation: Certificate of conformity and test report available upon request for quality-critical procurement.
- Warranty: 90-day return-to-base warranty against manufacturing defects. Extended warranty options available — contact us for details.
How to Source This Part
- Add to Cart directly on this page for standard lead-time fulfillment.
- Request a Quote for volume orders (5+ units) to receive tiered pricing and priority allocation.
- Urgent Requirement? Contact our team at support@konmask.com or +0086 19859288691 for same-day stock confirmation and expedited shipping options.
- Cross-Reference Check: If you are unsure whether this part number matches your application, share your existing panel label photo or PLC configuration — our engineers will verify compatibility before shipment.
Application-Specific FAQ
Q: Is the 6AV6545-0BC15-2AX0 compatible with SIMATIC S7-1200 or S7-1500?
A: The TP 170B Color communicates via MPI/PROFIBUS DP and RS-232. It does not natively support PROFINET or Ethernet/IP. For S7-1200/1500 integration, a PROFIBUS DP communication module (e.g., CM 1242-5) is required on the PLC side, or consider upgrading to a SIMATIC KTP700 Basic PN panel.
Q: Can I reuse my existing ProTool project on this panel?
A: Yes. Projects created in ProTool CS v6.0 SP2 are directly compatible. Projects from WinCC flexible 2004 and later can also be downloaded after migration using the WinCC flexible Migration Wizard.
Q: What is the panel cutout dimension?
A: The required panel cutout is 192 mm (W) × 137 mm (H). Ensure a minimum enclosure depth of 60 mm behind the cutout for cable routing and connector clearance.
Q: Is this panel suitable for outdoor installation?
A: The front panel is rated IP65, but the rear housing is IP20. Outdoor deployment requires an additional NEMA 4X or IP66-rated enclosure with appropriate ventilation or climate control.
Q: What is the typical lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock situations, lead time is typically 2–4 weeks depending on sourcing channel. Contact us for real-time availability.
Q: Do you provide a test report or certificate of conformity?
A: Yes. Documentation is available upon request at the time of order. Please specify your requirement in the order notes or contact us directly.
