PROFIBUS-DP Distributed I/O Solution — SIEMENS 6ES7153-2BA02-0XB0 | ET 200M Series
Where This Product Is Used

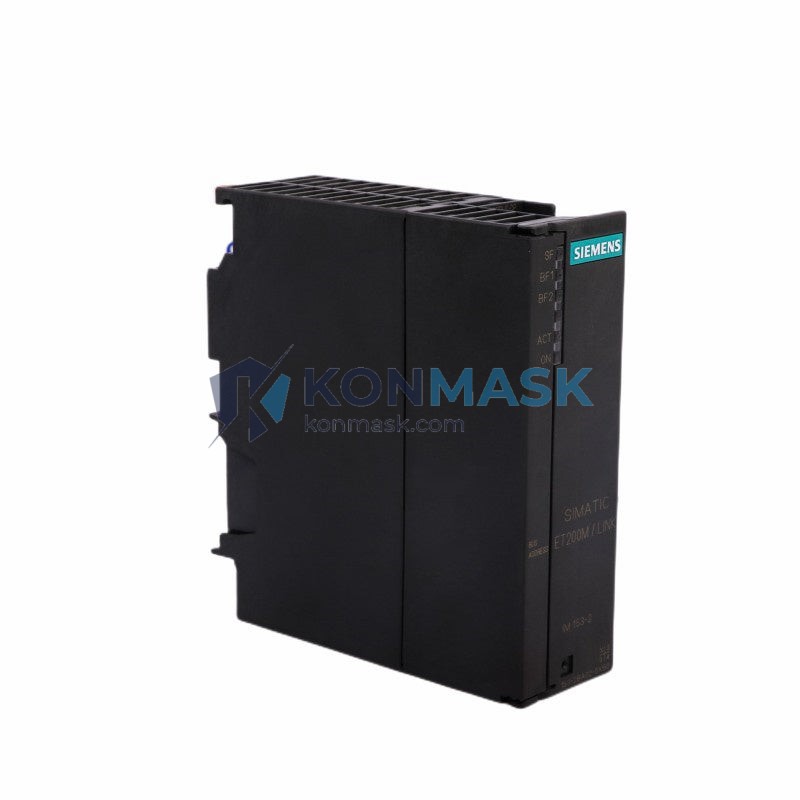

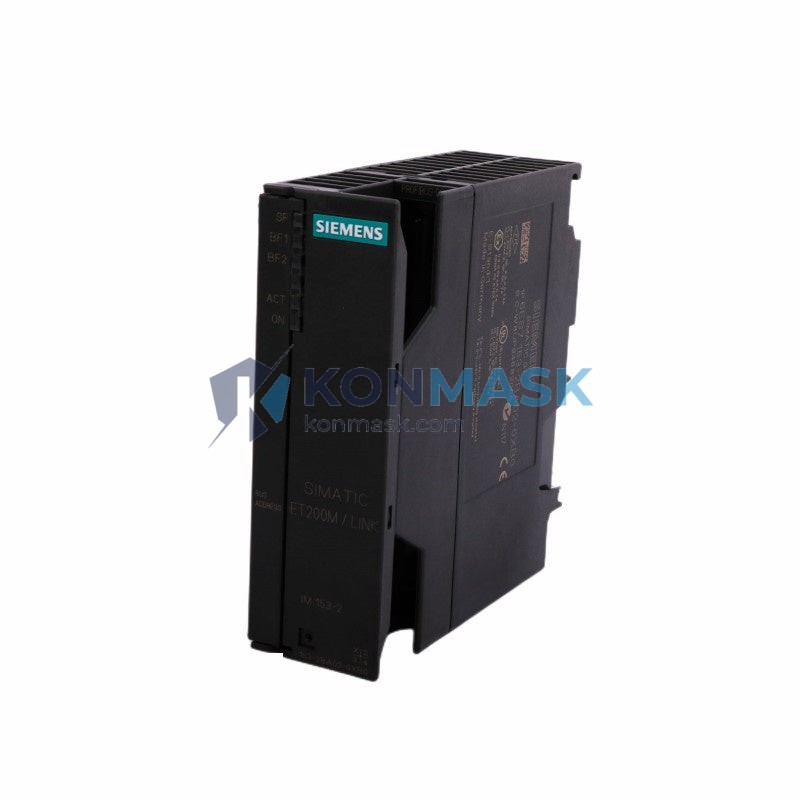

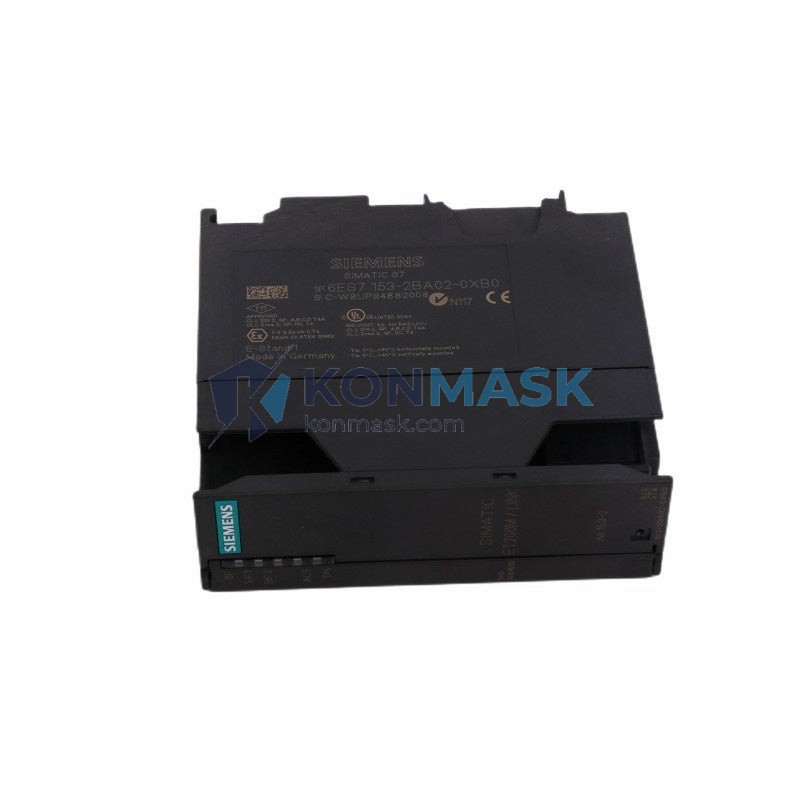

The SIEMENS 6ES7153-2BA02-0XB0 IM153-2 DP Slave High Feature Header Module is the communication backbone of the ET 200M distributed I/O station. It is deployed wherever a PROFIBUS-DP network must interface with modular signal modules (SMs) in a remote rack — eliminating the need to run individual signal cables back to the central PLC cabinet.
Typical deployment environments include:
- Automotive body-in-white lines — coordinating welding robots, clamp actuators, and vision sensors across multi-station transfer lines via a single PROFIBUS trunk.
- Chemical & pharmaceutical batch plants — providing redundant DP communication to field I/O racks in hazardous or classified areas, with hot-standby switchover in under 10 ms.
- Water & wastewater treatment facilities — connecting remote pump stations and valve islands to a central SIMATIC S7-300/S7-400 controller over distances up to 1,200 m (with repeaters).
- Food & beverage packaging lines — supporting isochronous mode for precise, cycle-synchronous control of servo drives and high-speed conveyors.
- Power generation & utilities — integrating ET 200M racks into redundant PROFIBUS rings for uninterrupted process control in turbine and switchgear rooms.
- Machine tool & press shops — enabling modular I/O expansion without rewiring, reducing commissioning time on multi-axis CNC cells.
Technical Specifications
| Order Number | 6ES7153-2BA02-0XB0 |
| Product Family | ET 200M — IM153-2 High Feature |
| Interface | PROFIBUS-DP (IEC 61158 / EN 50170) |
| DP Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Max. I/O Modules per Station | Up to 8 signal modules (SM) |
| Redundancy | Active DP slave redundancy (Y-Link compatible) |
| Isochronous Mode | Supported (equidistant DP cycle) |
| Diagnostic Functions | Module status, channel-level diagnostics, process interrupts |
| Supply Voltage | 24 V DC (via backplane bus) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +70 °C |
| Degree of Protection | IP20 |
| Dimensions (W × H × D) | 40 × 125 × 117 mm |
| Weight | approx. 250 g |
| Mounting | DIN rail (35 mm) on ET 200M rack |
| GSD File | SI029610.GSD (SIEMENS standard) |
Why Engineers Specify This Model
- High Feature designation — supports active redundancy, isochronous mode, and extended diagnostics not available on the standard IM153-1, making it the preferred choice for safety-critical and high-availability applications.
- Seamless S7-300/S7-400 integration — configured entirely within SIMATIC STEP 7 or TIA Portal; no third-party GSD customization required for standard deployments.
- Redundant DP master compatibility — works with SIMATIC S7-400H and H-System CPUs for 1-out-of-2 redundant architectures, meeting SIL 2 system-level requirements when combined with appropriate F-modules.
- Isochronous application support — enables cycle-synchronous I/O updates for motion control and high-speed process applications, reducing jitter to <1 µs.
- Hot-swap module replacement — signal modules can be replaced under power without interrupting the DP communication, minimizing unplanned downtime.
- Proven field reliability — MTBF >500,000 hours; widely deployed in global process and discrete manufacturing since 2002.
Complete System Bill of Materials
A fully operational ET 200M station based on the IM153-2 typically requires the following components:
- 6ES7153-2BA02-0XB0 — IM153-2 DP Slave High Feature Header Module (this item)
- 6ES7195-1xx00-0XA0 — ET 200M rack (UR1 or UR2, 4- or 8-slot)
- 6ES7321-xxxx-xxxx — Digital Input Modules (DI 16×DC 24V or DI 32×DC 24V)
- 6ES7322-xxxx-xxxx — Digital Output Modules (DO 16×DC 24V/0.5A or relay variants)
- 6ES7331-xxxx-xxxx — Analog Input Modules (AI 8×12-bit or AI 8×16-bit)
- 6ES7332-xxxx-xxxx — Analog Output Modules (AO 4×12-bit)
- 6ES7390-1xxxx-0AA0 — DIN rail for rack mounting
- 6ES7972-0BA52-0XA0 — PROFIBUS connector (90° or 35° cable exit)
- 6ES7195-7HD10-0XA0 — Active bus module for Y-Link redundancy (if required)
- 24 V DC power supply — SITOP PSU100S or equivalent, sized to rack load
Contact support@konmask.com for a complete BOM quotation tailored to your application.
Compliance & Industry Standards
- PROFIBUS-DP: IEC 61158 / EN 50170
- CE Marking: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL Listed: UL 508 (Industrial Control Equipment)
- ATEX / IECEx: Suitable for use in Zone 2 / Class I Div. 2 when installed per SIEMENS Ex documentation
- RoHS: Compliant with EU Directive 2011/65/EU
- IEC 61131-2: Programmable controllers — equipment requirements and tests
- SEMI E10 / ISA-88: Compatible with batch and semiconductor process control architectures
Quality Assurance & Sourcing
Konmask.com sources the 6ES7153-2BA02-0XB0 exclusively through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Visual inspection — housing, connector pins, label integrity, and firmware version verification.
- Functional power-on test — DP communication link established and diagnostic LEDs confirmed.
- Authenticity check — serial number cross-referenced against SIEMENS product traceability database where accessible.
- ESD-safe packaging — anti-static bag, foam insert, and double-wall carton for international shipment.
All products are supplied with a 90-day Konmask warranty covering defects in materials and workmanship. Extended warranty and on-site commissioning support are available upon request.
How to Source This Part
- Add to cart — click the purchase button above to place an order directly.
- Request a quote — for quantities ≥5 units or project BOM pricing, email support@konmask.com with your project details.
- Lead time — in-stock units ship within 1–3 business days; ex-stock orders ship same day if placed before 14:00 CST.
- Export & customs — we handle HS code documentation (HS 8537.10) and commercial invoices for cross-border shipments to EU, US, SEA, and Middle East.
- Technical pre-sales support — our engineers can review your STEP 7 / TIA Portal hardware configuration before you order. Contact us via WhatsApp/WeChat: +0086 19859288691.
Application-Specific FAQ
Q: Can the 6ES7153-2BA02-0XB0 replace an IM153-1 (6ES7153-1AA03-0XB0) in an existing ET 200M rack?
A: Yes — the IM153-2 is mechanically and electrically compatible with the same ET 200M rack. The DP slave address and GSD file must be updated in STEP 7/TIA Portal. No rack or signal module changes are required.
Q: Does this module support PROFINET?
A: No. The IM153-2 is a PROFIBUS-DP slave only. For PROFINET connectivity to an ET 200M rack, use the IM153-4 PN (6ES7153-4AA01-0XB0) instead. Contact us if you need assistance selecting the correct interface module.
Q: What is the maximum cable length on a PROFIBUS segment with this module?
A: At 12 Mbps, the maximum segment length is 100 m. At 1.5 Mbps it extends to 200 m, and at 93.75 kbps up to 1,200 m. Use SIEMENS RS485 repeaters (6ES7972-0AA02-0XA0) to extend beyond one segment.
Q: Is redundancy configuration supported with a standard S7-300 CPU?
A: Active DP redundancy requires a redundant DP master (e.g., S7-400H with CP 443-5 Extended or IM467). Standard S7-300 CPUs support the IM153-2 in non-redundant mode only.
Q: Can I use this module in an SIL 2 safety application?
A: The IM153-2 itself is not an F-module. However, it can host SIMATIC S7 F-modules (e.g., SM 326 F-DI) in a standard ET 200M rack as part of a PROFIsafe-compliant safety architecture. Consult SIEMENS Safety Integrated documentation for system-level SIL validation.
