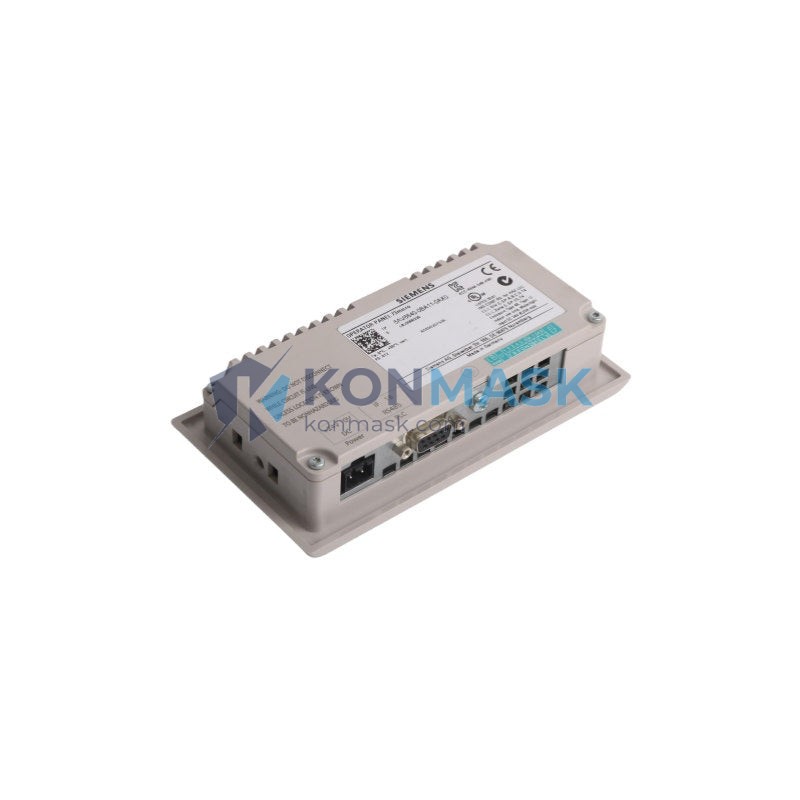

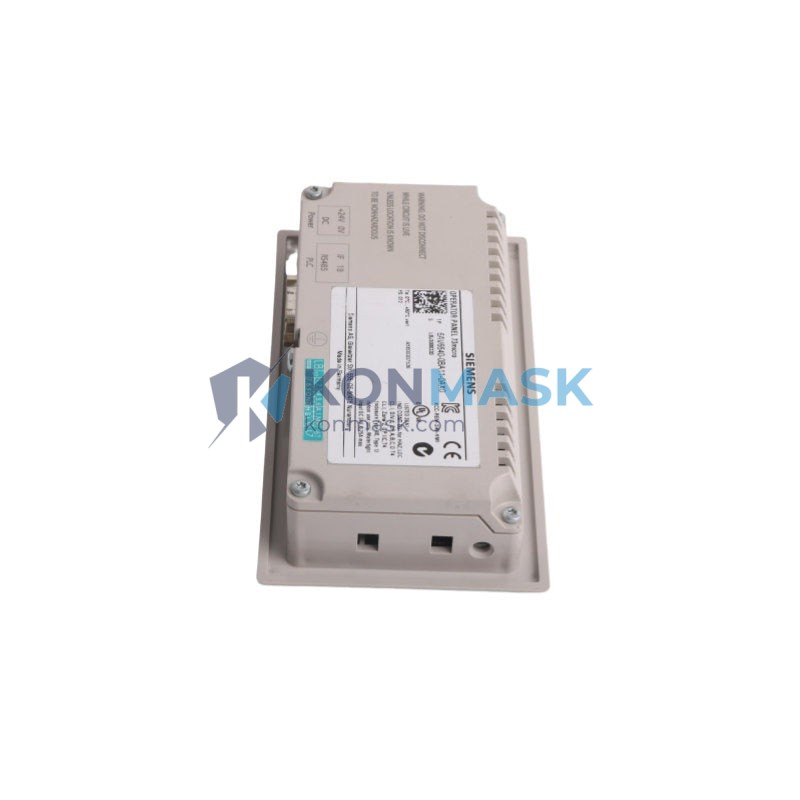

Siemens 6AV6640-0BA11-0AX0 – Compact HMI Touch Panel for Machine-Level Visualization | SIMATIC KTP200 Basic
Engineering Background
The SIMATIC HMI KTP200 Basic (6AV6640-0BA11-0AX0) is Siemens’ entry-level human-machine interface designed for cost-sensitive machine applications requiring reliable local visualization and operator control. Engineered within the SIMATIC HMI Basic Panel family, it bridges the gap between simple text displays and full-featured panel PCs — delivering essential HMI functionality in a compact, rugged form factor.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant engineers who need a dependable, low-footprint HMI for conveyor systems, packaging lines, pump stations, and small automation cells. The KTP200 Basic integrates seamlessly with SIMATIC S7-1200/S7-300/S7-400 PLCs via PROFINET or MPI/PROFIBUS, and is configured exclusively through TIA Portal — ensuring a unified engineering workflow.
Complete Technical Specifications
| Order Number (MLFB) | 6AV6640-0BA11-0AX0 |
| Series | SIMATIC HMI KTP200 Basic |
| Display Type | TFT LCD, 2.0″ (50.8 mm diagonal) |
| Resolution | 176 × 220 px |
| Color Depth | 64 colors |
| Backlight | LED, non-replaceable |
| Touch Screen | Resistive touch (single-touch) |
| Function Keys | 4 configurable function keys |
| Communication Interface | PROFINET (RJ45) / MPI/PROFIBUS (RS-422/485) |
| Configuration Software | TIA Portal WinCC Basic V13 SP1 or higher |
| Compatible Controllers | SIMATIC S7-1200, S7-300, S7-400, S7-1500 (via PROFINET) |
| Supply Voltage | DC 24 V (20.4 V – 28.8 V) |
| Power Consumption | Typ. 1.5 W |
| Degree of Protection (Front) | IP65 / NEMA 4 |
| Degree of Protection (Rear) | IP20 |
| Operating Temperature | 0 °C to +50 °C (horizontal) / 0 °C to +40 °C (vertical) |
| Storage Temperature | -20 °C to +60 °C |
| Relative Humidity | 10% – 90%, non-condensing |
| Dimensions (W × H × D) | Approx. 90 × 110 × 38 mm |
| Panel Cutout | 76 × 96 mm |
| Weight | Approx. 240 g |
| Certifications | CE, UL, cULus, RCM, KC |
| Mounting | Panel mounting (portrait or landscape) |
| Internal Memory | 10 MB user memory |
| Alarm Buffer | 512 alarms |
| Recipe Memory | Supported (via TIA Portal) |
Proven Application Environments
- Conveyor & Material Handling: Local start/stop control and status display at conveyor drive stations
- Pump & Compressor Stations: Pressure setpoint entry, run-hour display, fault acknowledgment
- Packaging Machinery: Batch counter display, speed setpoint, product changeover prompts
- HVAC & Building Automation: Temperature setpoint visualization and alarm indication
- Small Assembly Cells: Operator guidance screens, step-by-step process instructions
- Water Treatment: Level monitoring, valve status, dosing control interface
Engineering Advantages
- TIA Portal Integration: Single engineering environment for PLC and HMI — no separate HMI software license required at Basic tier
- IP65 Front Panel: Suitable for wash-down environments and dusty industrial enclosures
- Dual Interface Option: PROFINET variant (0BA11) supports modern Ethernet-based architectures; MPI/PROFIBUS variant available for legacy S7-300/400 systems
- Compact Footprint: 76 × 96 mm cutout minimizes enclosure real estate — ideal for retrofit and space-constrained installations
- Low Power Draw: 1.5 W typical — suitable for 24 VDC panel power supplies without dedicated HMI circuit
- Siemens Ecosystem: Full alarm, recipe, trend, and user management features accessible within TIA Portal WinCC Basic
System Architecture & Signal Flow
The 6AV6640-0BA11-0AX0 connects to the PLC controller via PROFINET (RJ45) using standard Ethernet cabling (Cat5e or better). In a typical architecture:
- PLC (e.g., S7-1200 CPU 1214C) → PROFINET switch or direct connection → KTP200 Basic RJ45 port
- TIA Portal project contains both PLC program and HMI screens in a single project file
- HMI variables are mapped directly to PLC data blocks (DB) or I/O addresses — no OPC UA or middleware required
- Operator inputs (touch / function keys) write directly to PLC memory; PLC outputs update HMI display in real time (typical cycle: <100 ms)
- Power supplied via 24 VDC terminal block on rear connector
Sourcing & Quality Verification
- Origin: Genuine Siemens product, manufactured in Germany / authorized production facilities
- Traceability: Each unit carries Siemens MLFB label with date code and serial number — verifiable via Siemens Industry Online Support (SIOS)
- Condition: New-in-box (NIB) OEM units; surplus stock sourced from authorized Siemens distribution channels
- Inspection: Pre-shipment functional check — power-on, display, and communication port verification
- Packaging: Original Siemens anti-static packaging with accessories (mounting clamps, gasket, terminal block)
- Warranty: 12-month Konmask.com warranty against manufacturing defects
Procurement Process
- Confirm compatibility: Verify your PLC model and TIA Portal version support KTP200 Basic (PROFINET variant 0BA11 requires TIA Portal V13 SP1+)
- Place order via Konmask.com — secure checkout, multiple payment methods accepted
- Order confirmation with tracking number issued within 1 business day
- Shipping: DHL Express / FedEx International — typical transit 3–7 business days worldwide
- Technical support: Pre- and post-sale engineering support available via support@konmask.com
- Returns: 30-day return policy for unused, unopened units
Technical FAQ
Q: What is the difference between 6AV6640-0BA11-0AX0 and 6AV6640-0AA11-0AX0?
A: The 0BA11 variant includes a PROFINET (RJ45) interface. The 0AA11 variant uses MPI/PROFIBUS (RS-422/485). Choose 0BA11 for S7-1200 and modern PROFINET networks; choose 0AA11 for legacy S7-300/400 MPI connections.
Q: Which TIA Portal version is required?
A: Minimum TIA Portal V13 SP1 with WinCC Basic. V15.1 or V17 recommended for full feature support and latest firmware compatibility.
Q: Can the KTP200 Basic connect to third-party PLCs?
A: The KTP200 Basic is optimized for SIMATIC controllers. Limited third-party connectivity is possible via Modbus TCP (firmware-dependent) but is not officially supported by Siemens for this Basic panel series.
Q: Is the backlight replaceable?
A: No. The LED backlight is integrated and non-replaceable. Siemens rates LED lifetime at >50,000 hours under normal operating conditions.
Q: What accessories are included in the box?
A: Standard package includes: mounting clamps (×4), front panel gasket (×1), 2-pin power terminal block (×1), and printed Quick Start guide. USB programming cable sold separately.
Q: Is this panel suitable for outdoor installation?
A: The front panel is IP65-rated (dust-tight, water jet resistant), but the unit is not rated for direct UV exposure or temperatures outside 0–50 °C. Outdoor use requires an appropriate enclosure with climate control.
