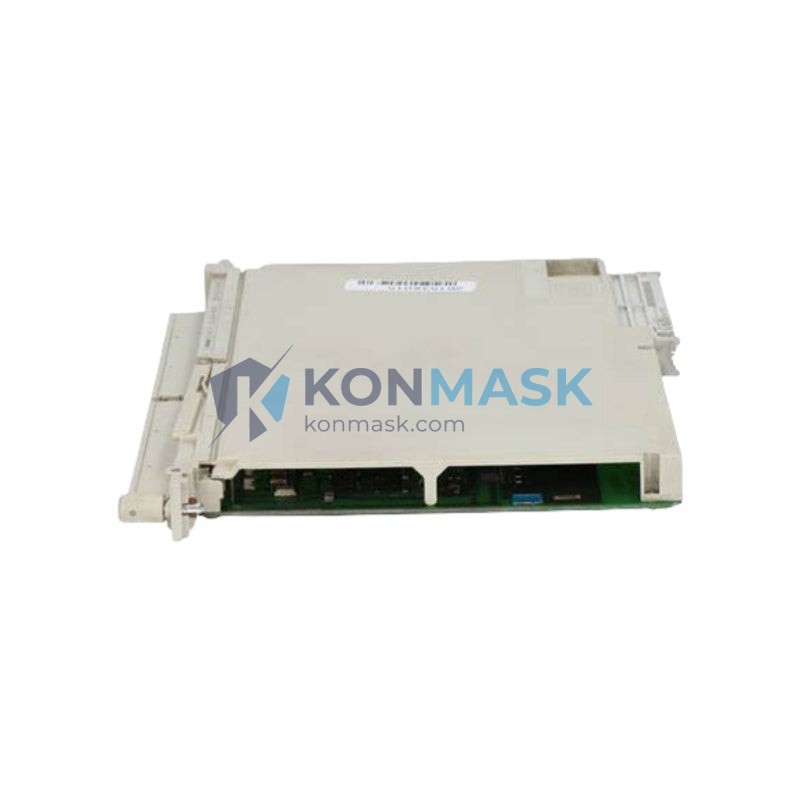

Siemens 6ES5454-4UA14 Digital Output Module | Replacement, Equivalent & Selection Guide
The Siemens 6ES5454-4UA14 is a 32-channel digital output module designed for the SIMATIC S5-115U programmable logic controller family. It delivers reliable 24 VDC transistor outputs for demanding industrial automation environments. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Part Number / SKU: 6ES5454-4UA14
- Manufacturer: Siemens AG
- Series: SIMATIC S5 — S5-115U
- Module Type: Digital Output Module (DO)
- Number of Outputs: 32 channels
- Output Voltage: 24 VDC
- Output Type: Transistor (sourcing)
- Output Current per Channel: 0.5 A
- Total Current: Max 4 A per group
- Isolation: Optocoupler isolation between field and logic side
- Backplane Bus: S5 parallel bus
- Power Supply: 24 VDC (via backplane)
- Operating Temperature: 0 °C to +60 °C
- Dimensions (W×H×D): Standard S5 single-width module
- Weight: Approx. 500 g
- Certifications: CE, UL (per S5 platform standards)
Compatible Replacement & Equivalent Models
When the original 6ES5454-4UA14 is discontinued or unavailable, the following alternatives are commonly evaluated. Always verify electrical and mechanical compatibility before substitution:
- Siemens 6ES5454-4UA13 — Earlier hardware revision; functionally equivalent in most S5-115U applications. Check firmware compatibility.
- Siemens 6ES5454-4UA12 — Older revision; suitable for legacy systems with matching backplane firmware.
- Siemens 6ES7322-1BL00-0AA0 — S7-300 32-channel 24VDC DO module; requires S5→S7 migration with CPU and rack change.
- Third-party S5-compatible DO modules — Some OEM manufacturers produce pin-compatible replacements; confirm bus timing and output drive specifications before use.
Note: Cross-brand replacements require full system re-validation. Konmask recommends using original Siemens modules or certified equivalents for safety-critical applications.
Why Choose the Original 6ES5454-4UA14
- Guaranteed compatibility with all S5-115U CPU variants (CPU 941–944) without firmware changes.
- Proven field reliability in continuous 24/7 industrial environments — process plants, automotive lines, and utilities.
- Optocoupler isolation protects the CPU from field-side voltage transients and ground loops.
- Sourced from verified supply chains — Konmask stocks factory-tested, authentic modules with traceability documentation.
- Reduces re-engineering cost — drop-in replacement with no software or rack modifications required.
Typical Applications
- Solenoid valve control in process automation
- Motor starter and contactor switching
- Conveyor and material handling systems
- Automotive body-shop welding line control
- Utilities and water treatment plant automation
- Legacy S5-115U system maintenance and spare-parts management
System Compatibility
- PLC Platform: SIMATIC S5-115U
- Compatible CPUs: 6ES5941-7UA11, 6ES5942-7UA11, 6ES5943-7UA11, 6ES5944-7UA11 (CPU 941–944 series)
- Rack: S5-115U central rack (CR) and expansion rack (ER)
- Programming Software: STEP 5 (S5 DOS/Windows)
- Bus Interface: S5 parallel I/O bus — not compatible with S7 racks without hardware migration
Selection Guide
Use the criteria below to confirm the 6ES5454-4UA14 is the right module for your application:
- Step 1 — Platform check: Confirm your PLC is SIMATIC S5-115U. If S5-135U or S5-155U, different module variants apply.
- Step 2 — Channel count: 32 DO channels required? If 16 channels suffice, consider 6ES5454-4UA13 or 6ES5452-4UA13.
- Step 3 — Output type: Transistor (DC) outputs needed? For relay outputs, refer to 6ES5456 series.
- Step 4 — Voltage level: Field devices rated 24 VDC? Confirm load current does not exceed 0.5 A per channel.
- Step 5 — Revision: -4UA14 is the latest hardware revision. Prefer this over -4UA12/-4UA13 for new spare stock.
- Step 6 — Migration path: Planning an S5→S7 migration? Contact Konmask for a migration assessment and S7-300/S7-1500 equivalent recommendation.
Quality Assurance & Sourcing
- All modules are inspected and function-tested prior to shipment.
- Authentic Siemens origin — no counterfeit or refurbished-without-disclosure stock.
- Traceability documentation available on request (batch records, test reports).
- Packaging: original Siemens anti-static packaging where available; otherwise ESD-safe repackaging.
- Warranty: 12 months from date of shipment against manufacturing defects.
How to Order
- SKU: 6ES5454-4UA14
- Minimum Order Quantity: 1 unit
- Lead Time: In-stock items ship within 1–3 business days; sourced items 7–21 business days.
- Payment: T/T, PayPal, credit card, and trade-term arrangements for qualified B2B buyers.
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders.
- Request a Quote: Email support@konmask.com with quantity and delivery destination for volume pricing.
Replacement & Compatibility FAQ
Q: Is 6ES5454-4UA14 still in production?
A: The SIMATIC S5 platform is discontinued by Siemens. Konmask sources authentic new-old-stock (NOS) and factory-refurbished units from verified global supply chains.
Q: Can I use 6ES5454-4UA13 instead of 6ES5454-4UA14?
A: In most cases yes — the hardware revision difference is minor. However, always verify with your STEP 5 project configuration and CPU firmware version.
Q: Will this module work in an S5-135U or S5-155U rack?
A: No. The 6ES5454-4UA14 is designed for S5-115U. Different module variants are required for S5-135U/155U systems.
Q: Do you provide a certificate of conformity?
A: Yes. A certificate of conformity and test report can be provided upon request for B2B orders.
Q: What is the S7 equivalent for migration?
A: The closest S7-300 equivalent is the 6ES7322-1BL00-0AA0 (32-channel 24VDC DO). Full migration requires CPU, rack, and software changes — contact us for a migration package.
