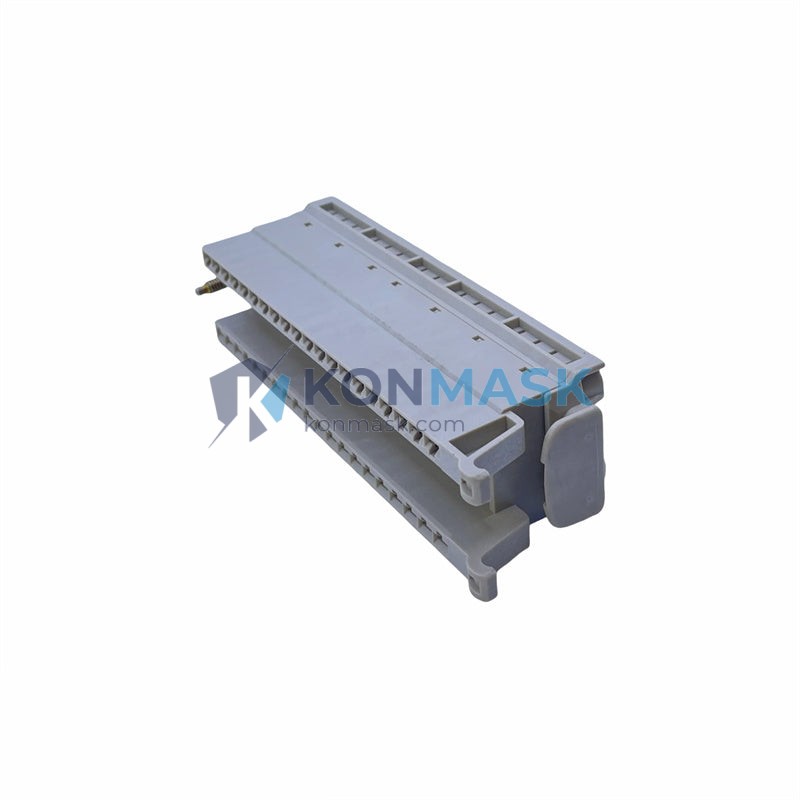

Siemens 6ES5490-8FB11 – 40-Pin Front Connector for SIMATIC S5 I/O Modules
Engineering Background: The SIMATIC S5 series remains one of the most widely deployed legacy PLC platforms in heavy industry, process automation, and critical infrastructure worldwide. Designed in the 1980s–1990s and built to industrial-grade standards, S5 systems continue to operate reliably in steel mills, chemical plants, power stations, and automotive assembly lines decades after initial installation. Maintaining these systems requires access to genuine, specification-matched spare parts — and the front connector is the most frequently replaced field-wiring interface component in any S5 installation.
Product Positioning: The Siemens 6ES5490-8FB11 is a 40-pin screw-type front connector designed for use with SIMATIC S5 digital and analog I/O modules. It provides the mechanical and electrical interface between field wiring and the PLC module, enabling clean, reliable signal termination without soldering. This connector is an essential consumable for any maintenance engineer managing an active S5 installation or executing a controlled migration project.
Complete Technical Specifications
- Part Number / SKU: 6ES5490-8FB11
- Manufacturer: Siemens AG
- Product Family: SIMATIC S5
- Component Type: Front Connector (Frontstecker)
- Pin Count: 40-pin
- Connection Method: Screw-type terminal (cage clamp variant not applicable to this SKU)
- Conductor Cross-Section: 0.25 mm² – 1.5 mm² (AWG 24–16)
- Rated Voltage: ≤ 250 V AC/DC
- Rated Current per Contact: ≤ 10 A
- Degree of Protection: IP20 (when mated with module)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Weight: approx. 206 g
- Mounting: Plug-in, front-mount to S5 I/O module
- Color Coding: Standard Siemens S5 gray
- RoHS Compliance: Legacy component; verify with Siemens documentation for specific batch
Proven Application Environments
- SIMATIC S5-115U systems (CPU 941/942/943/944/945)
- SIMATIC S5-135U and S5-155U high-performance controllers
- Digital input/output modules: 6ES5420, 6ES5421, 6ES5430, 6ES5431, 6ES5440, 6ES5441, 6ES5450, 6ES5451
- Analog I/O modules requiring 40-pin front wiring interface
- Retrofit and spare-parts programs for legacy S5 installations
- Controlled migration projects from S5 to S7 requiring interim field-wiring preservation
- Industries: Automotive, Chemical & Petrochemical, Power Generation, Water Treatment, Pulp & Paper, Steel & Metals
Engineering Advantages
- Tool-free module swap: Field wiring remains on the connector; the module can be replaced without rewiring, minimizing MTTR in live production environments.
- Screw-terminal reliability: Vibration-resistant screw terminations maintain contact integrity in high-vibration industrial environments (compressors, presses, conveyors).
- Labeling strip included: Integrated labeling area allows engineers to document terminal assignments directly on the connector body.
- Genuine Siemens manufacturing tolerances: Ensures correct mating force and contact resistance — critical for analog signal accuracy and digital I/O noise immunity.
- Backward compatibility: Compatible across the full S5 I/O module range using the 40-pin form factor.
System Architecture & Signal Flow
In a SIMATIC S5 rack, the 6ES5490-8FB11 front connector plugs directly onto the face of the I/O module after the module is seated in the backplane. Field cables terminate at the screw terminals on the connector body. Signal paths run: Field Device → Cable → Front Connector Terminal → Module Pin → Backplane Bus → CPU. The connector’s mechanical latch locks it to the module, preventing accidental disconnection during operation. When a module requires replacement, the connector (with all field wiring intact) is unplugged and transferred to the replacement module in seconds — a key design feature for minimizing unplanned downtime.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels.
- Each unit inspected for contact integrity, terminal thread condition, and housing integrity prior to dispatch.
- Original Siemens part markings and batch codes preserved and verifiable.
- Packaging: Anti-static bag + protective carton. Weight: approx. 206 g per unit.
- Certificate of conformity available upon request for regulated industries.
Procurement Process
- Confirm quantity requirement and delivery timeline with our team.
- Submit purchase order or inquiry via support@konmask.com or WhatsApp/WeChat: +0086 19859288691.
- Receive proforma invoice with lead time confirmation (typically 1–5 business days for in-stock units).
- Payment via T/T, PayPal, or other agreed B2B terms.
- Dispatch with tracking; DHL / FedEx / UPS international express available.
Technical FAQ
- Q: Is the 6ES5490-8FB11 compatible with S5-90U and S5-95U?
- A: The S5-90U/95U use compact modules with different connector form factors. The 6ES5490-8FB11 is designed for the full-size S5-115U/135U/155U rack systems. Verify your module’s connector specification before ordering.
- Q: What is the difference between 6ES5490-8FB11 and 6ES5490-8MA11?
- A: The 8FB11 uses screw-type terminals; the 8MA11 uses spring-cage (cage clamp) terminals. Both are 40-pin. Selection depends on your field wiring standard and maintenance preference.
- Q: Can I use this connector with S7-300 modules?
- A: No. S7-300 uses a different front connector system (e.g., 6ES7392 series). The 6ES5490-8FB11 is exclusively for SIMATIC S5 I/O modules.
- Q: Are these new or refurbished units?
- A: Please confirm with our team at time of inquiry. We supply both new-old-stock (NOS) and professionally refurbished units depending on availability, clearly identified on the invoice.
- Q: Do you offer volume pricing for MRO contracts?
- A: Yes. Contact us with your annual volume estimate for framework pricing and priority allocation agreements.
