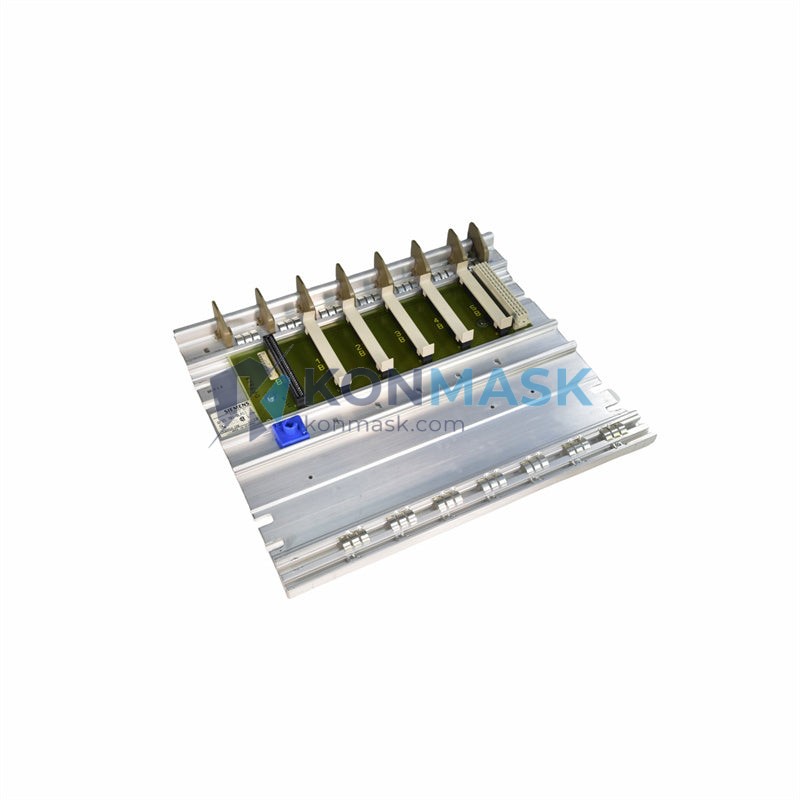

Siemens 6ES5701-0LA11 – SIMATIC S5 Expansion Unit | EU 183U / 185U / 187U / 188U
Engineering Background
The Siemens SIMATIC S5 platform has been the backbone of industrial automation in process manufacturing, automotive assembly, and utility infrastructure for decades. The 6ES5701-0LA11 is the dedicated Expansion Unit (EU) designed to extend the I/O capacity of S5-115U central controllers, enabling engineers to scale control architectures without replacing the central processing rack.
Product Positioning
This unit is the preferred expansion solution for facilities maintaining legacy SIMATIC S5 installations where system continuity, validated control logic, and long-term spare-part availability are critical. It is sourced as verified surplus and is fully compatible with the EU 183U, 185U, 187U, and 188U sub-rack configurations.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES5701-0LA11 |
| Product Family | SIMATIC S5 |
| Module Type | Expansion Unit (EU) |
| Compatible Sub-Racks | EU 183U, EU 185U, EU 187U, EU 188U |
| Compatible CPUs | S5-115U series (CPU 941–944) |
| Backplane Bus | SIMATIC S5 parallel I/O bus |
| Max. Expansion Slots | Up to 8 signal module slots (sub-rack dependent) |
| Power Supply | Via PS 951 / PS 955 (24 VDC or 120/230 VAC) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 % to 95 % (non-condensing) |
| Degree of Protection | IP 20 |
| Weight | 4,460 g |
| Country of Origin | Germany |
| Siemens Order No. | 6ES5701-0LA11 |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines and paint shop conveyors running validated S5 programs
- Chemical & Petrochemical Plants: Reactor control and batch sequencing systems with long change-management cycles
- Power Generation & Utilities: Turbine auxiliary control and substation automation requiring high MTBF hardware
- Water & Wastewater Treatment: Pump station and filtration control with 24/7 uptime requirements
- Food & Beverage: Filling and packaging lines where re-validation costs prohibit platform migration
Engineering Advantages
- Seamless I/O Expansion: Extends the S5-115U rack without modifying existing CPU or program logic
- Broad Module Compatibility: Accepts the full range of S5 digital and analog I/O signal modules
- Deterministic Bus Timing: Parallel backplane bus ensures cycle-time-consistent I/O updates
- Robust Industrial Design: DIN-rail and panel-mount sub-rack construction rated for harsh plant environments
- Drop-in Replacement: Identical form factor and bus pinout to OEM units — no rewiring required
System Architecture & Signal Flow
The 6ES5701-0LA11 connects to the S5-115U central controller via the SIMATIC S5 expansion cable (e.g., 6ES5705-0BB00). The CPU addresses expansion I/O modules through the parallel I/O bus, with the EU acting as a transparent bus extension. Signal modules installed in the EU slots are addressed sequentially following the central rack’s module address map. Power is supplied locally via a dedicated PS module mounted in the EU sub-rack.
[S5-115U CPU Rack] ──expansion cable──> [6ES5701-0LA11 EU]
│
┌───────────────┼───────────────┐
[SM DI] [SM DO] [SM AI]
(Digital In) (Digital Out) (Analog In)
Sourcing & Quality Verification
All units offered by Konmask.com are sourced from decommissioned industrial installations or authorized surplus channels. Each unit undergoes the following verification process before listing:
- Visual inspection: housing integrity, connector condition, label legibility
- Firmware/hardware revision check against Siemens documentation
- Functional power-on test where applicable
- Anti-static packaging and secure export carton preparation
Condition is clearly stated on each listing. Warranty terms are available upon request.
Procurement Process
- Confirm compatibility – verify your CPU model and sub-rack type against the specifications above
- Request a quote – contact support@konmask.com for volume pricing or lead-time confirmation
- Place order – checkout online or via proforma invoice for bank transfer
- Shipping – DHL / FedEx express worldwide; export documentation (commercial invoice, packing list) included
- Incoming inspection – we recommend a bench test against a known-good S5 rack upon receipt
Technical FAQ
Q: Is the 6ES5701-0LA11 compatible with S5-135U or S5-155U systems?
A: No. This expansion unit is designed specifically for the S5-115U platform. S5-135U and S5-155U use different sub-rack and bus architectures.
Q: How many expansion units can be connected to one S5-115U CPU?
A: The S5-115U supports up to 4 expansion units depending on the CPU variant and total I/O module count.
Q: Can I mix digital and analog modules in the same EU?
A: Yes. The EU accepts any combination of S5-compatible signal modules within the available slots.
Q: What expansion cable is required?
A: Siemens 6ES5705-0BB00 or equivalent S5 expansion cable. Cable length must not exceed the specification in the S5-115U system manual.
Q: Do you provide a test report or certificate of conformance?
A: A basic inspection report is available upon request. For COC or third-party testing, please contact us before ordering.
