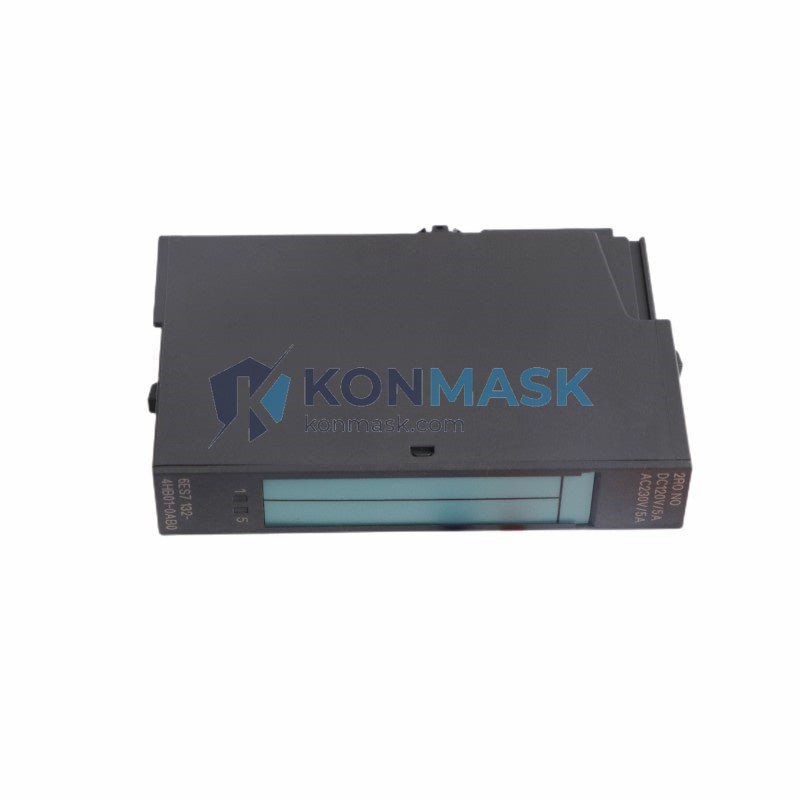

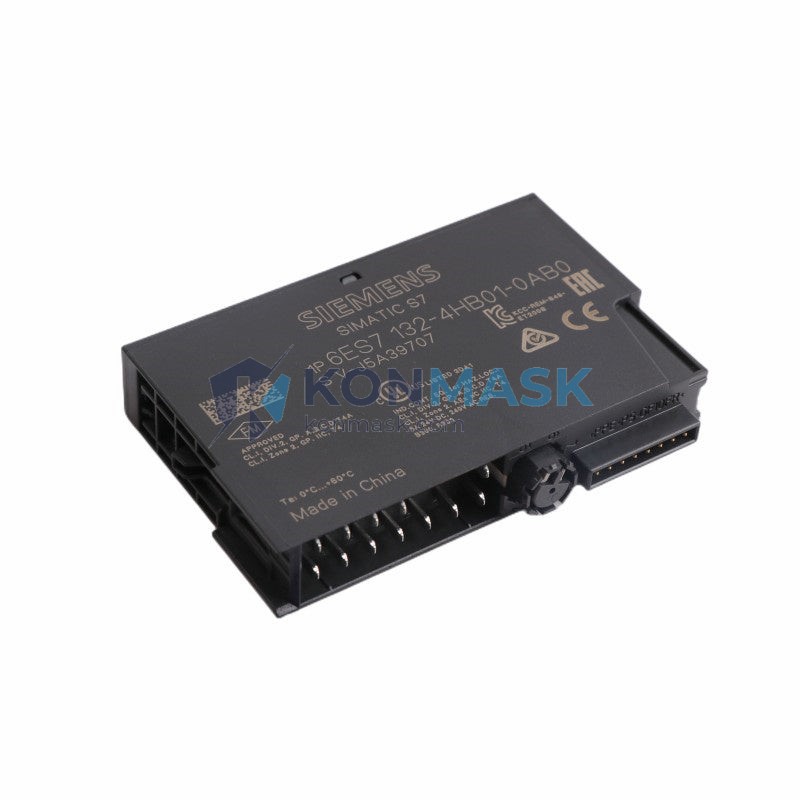

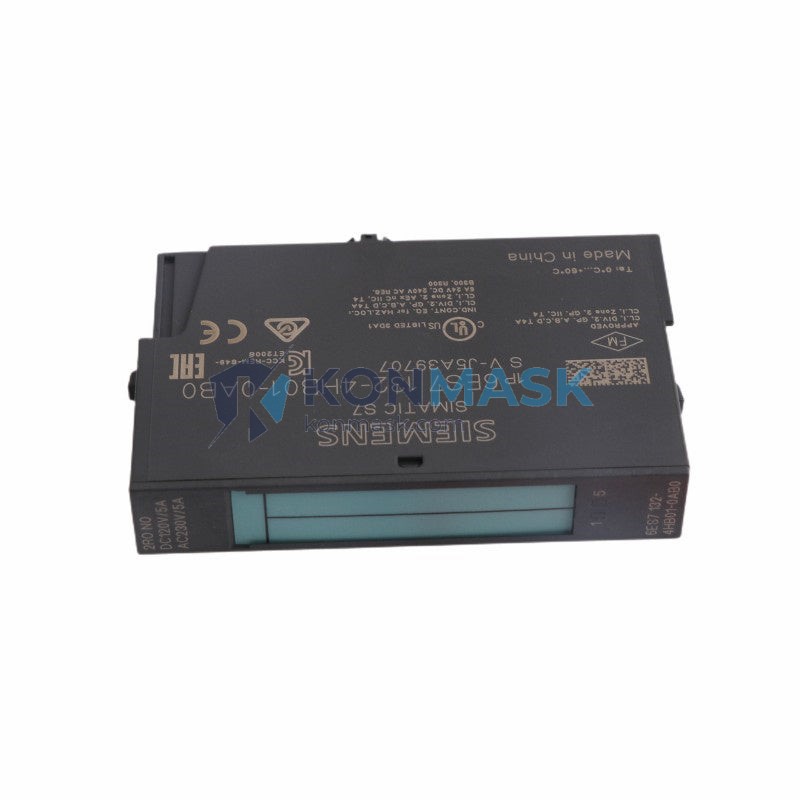

SIEMENS 6ES7132-4HB01-0AB0 Digital Output Module | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7132-4HB01-0AB0 is a 2-channel digital output module for the ET 200S distributed I/O system, rated at 24 VDC / 0.5 A per channel. Designed for high-density, modular automation architectures, it integrates seamlessly with SIMATIC S7-300/S7-400 controllers via PROFIBUS DP. Konmask.com supplies genuine and compatible units with full traceability for industrial procurement teams.
Technical Specifications
- Part Number: 6ES7132-4HB01-0AB0
- Series: SIMATIC ET 200S
- Module Type: Digital Output (DO)
- Number of Outputs: 2 channels
- Output Voltage: 24 VDC
- Output Current: 0.5 A per channel
- Output Type: Transistor (sourcing)
- Supply Voltage: 24 VDC (via power module)
- Isolation: Optocoupler isolation between field and logic side
- Cycle Time: < 1 ms
- Dimensions (W×H×D): 15 × 81 × 52 mm
- Weight: approx. 40 g
- Operating Temperature: 0 °C to +60 °C
- Protection Class: IP20
- Certifications: CE, UL, cULus
- Interface: PROFIBUS DP via IM 151 interface module
Compatible Replacement & Equivalent Models
When the 6ES7132-4HB01-0AB0 is unavailable or end-of-life, the following models are commonly evaluated as replacements. Always verify electrical ratings, channel count, and firmware compatibility before substitution.
- 6ES7132-4HB00-0AB0 – Earlier revision of the same module; functionally equivalent, check firmware version
- 6ES7132-4BB01-0AB0 – 2DO 24VDC/2A variant; higher current rating, same form factor
- 6ES7132-4BD02-0AA0 – 4DO 24VDC/0.5A; doubles channel density if slot space allows
- 6ES7132-6BH01-0BA0 – ET 200SP DO 8×24VDC/0.5A; next-generation platform, requires IM 155-6 interface
- 6ES7522-1BH01-0AB0 – S7-1500 DO 16×24VDC/0.5A; for migration to TIA Portal architecture
Note: Cross-platform replacements require hardware and software re-engineering. Contact Konmask technical support for migration assessment.
Why Choose the Original Model
- Proven field reliability – Widely deployed in automotive, food & beverage, and process industries since 2004
- Drop-in replacement – Same terminal block and slot footprint as predecessor 6ES7132-4HB00-0AB0
- Minimal engineering overhead – No GSD file update required when swapping within the same revision family
- Genuine Siemens quality – Full MTBF documentation and Siemens repair/exchange program eligibility
- Long spare-parts availability – Siemens extended availability commitment for ET 200S platform
Typical Applications
- Solenoid valve control in pneumatic and hydraulic systems
- Conveyor belt start/stop and direction control
- Indicator lamp and signal tower driving
- Relay coil switching in safety-rated panels
- Actuator control in packaging and filling lines
- Motor contactor pilot circuits in HVAC and pump stations
System Compatibility
- Interface Module: IM 151-1 Standard / IM 151-1 FO / IM 151-7 CPU
- Power Module Required: PM-E 24VDC (6ES7138-4CA01-0AA0 or equivalent)
- Compatible PLCs: SIMATIC S7-300, S7-400, S7-1500 (via PROFIBUS DP)
- Engineering Software: STEP 7 V5.x, TIA Portal V13 and above
- Bus System: PROFIBUS DP (via ET 200S head station)
- Slot Position: Any DO slot in ET 200S station after power module
Selection Guide
Use the table below to select the correct ET 200S digital output module for your application:
- 2 channels / 0.5 A / 24VDC → 6ES7132-4HB01-0AB0 (this module) – Standard solenoid/relay loads
- 2 channels / 2 A / 24VDC → 6ES7132-4BB01-0AB0 – High-current actuators
- 4 channels / 0.5 A / 24VDC → 6ES7132-4BD02-0AA0 – Higher density, same rail space
- 2 channels / 0.5 A / 120–230VAC → 6ES7132-4FB01-0AB0 – AC load switching
- Relay output / 2 A / 24VDC–230VAC → 6ES7132-4HF00-0AB0 – Mixed voltage environments
Key selection criteria: load current, voltage type (AC/DC), channel count, and available slot width in your ET 200S station.
Quality Assurance & Sourcing
- Origin: Genuine Siemens production; sourced through authorized distribution channels
- Inspection: Each unit inspected for label authenticity, firmware version, and physical integrity before shipment
- Packaging: Original Siemens anti-static packaging with holographic seal where applicable
- Documentation: Certificate of conformity and packing list provided with every order
- Warranty: 12-month Konmask warranty against manufacturing defects
- Traceability: Batch and serial number records maintained for audit compliance
How to Order
- Part Number: 6ES7132-4HB01-0AB0
- Minimum Order Quantity: 1 piece (bulk pricing available for 5+ units)
- Lead Time: In-stock items ship within 1–3 business days; ex-stock orders within 7–14 days
- Payment: T/T, PayPal, credit card, and trade credit (approved accounts)
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for large orders
- RFQ: Submit quantity and delivery requirements to support@konmask.com for volume pricing
Replacement & Compatibility FAQ
Q: Can I replace 6ES7132-4HB01-0AB0 with 6ES7132-4HB00-0AB0?
A: Yes, in most cases. Both are 2DO 24VDC/0.5A modules with the same footprint. Verify the STEP 7 hardware catalog entry matches and update the project if prompted.
Q: Is this module compatible with TIA Portal?
A: Yes. The ET 200S hardware catalog is supported in TIA Portal V13+. The module can be configured under the existing ET 200S station object.
Q: Can I use this module with an S7-1200 PLC?
A: The S7-1200 does not natively support PROFIBUS DP master functionality without a CM 1243-5 communications module. With that module installed, ET 200S stations including this DO module can be integrated.
Q: What is the difference between -0AB0 and -0AA0 order suffixes?
A: The suffix denotes the hardware revision and packaging variant. -0AB0 is the current production revision. -0AA0 is an earlier revision; functionally equivalent but may differ in minor hardware details.
Q: Do you supply this module in a package of 5?
A: Yes. This listing covers a package of 5 units. Single-unit and custom quantity orders are also available — contact us for pricing.
