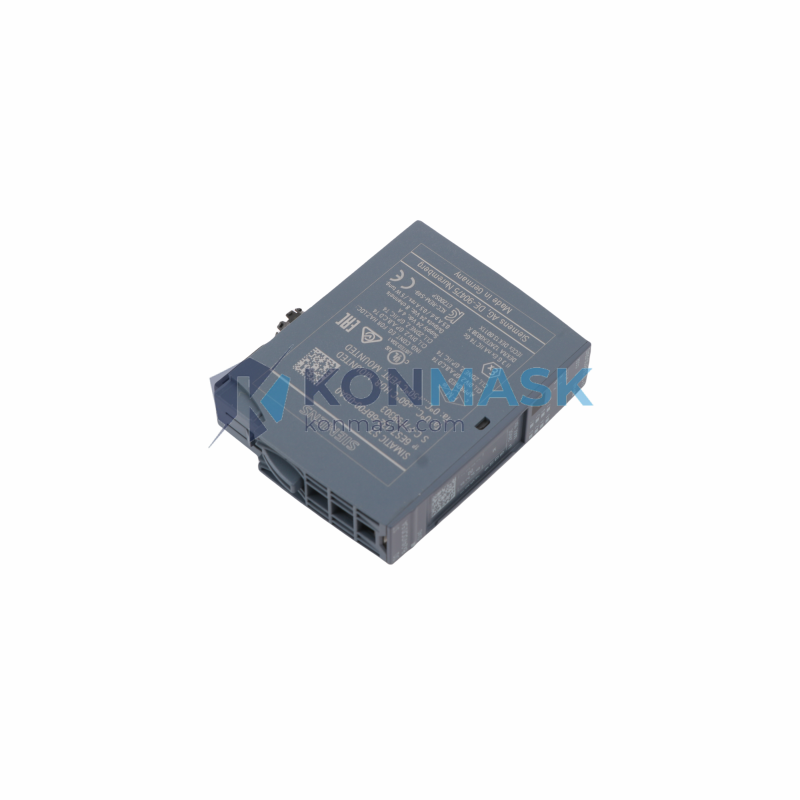

SIEMENS 6ES7132-6BF00-0BA0 – 8-Channel Digital Output Module | SIMATIC ET 200SP
The SIEMENS 6ES7132-6BF00-0BA0 is a high-density digital output module engineered for the SIMATIC ET 200SP distributed I/O platform. Designed to meet the demands of modern industrial automation, this module delivers precise, reliable 24 V DC switching across 8 output channels — making it the preferred choice for procurement engineers specifying control-system components in manufacturing, process, and infrastructure applications.
As an authorized distributor and technical reseller, Konmask.com supplies this module with full traceability, OEM packaging verification, and rapid global logistics support.
Complete Technical Specifications
- Part Number / SKU: 6ES7132-6BF00-0BA0
- Product Family: SIMATIC ET 200SP
- Module Type: Digital Output (DQ)
- Number of Outputs: 8 channels
- Output Voltage: 24 V DC
- Output Current per Channel: 0.5 A
- Total Current (all channels): 4 A max
- Output Type: Transistor (source output, P-switching)
- Short-Circuit Protection: Yes, electronic
- Isolation: Optocoupler isolation between field and backplane bus
- Supply Voltage (L+): 24 V DC (20.4 – 28.8 V)
- Power Consumption from Backplane Bus: Typ. 1.5 W
- Dimensions (W × H × D): 15 × 73 × 58 mm
- Weight: Approx. 20 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Mounting: DIN rail via ET 200SP BaseUnit (BU type A0)
- Certifications: CE, UL, cULus, ATEX (Zone 2), IECEx
- Country of Origin: Germany
- HS Code: 8537.10
Proven Application Environments
- Discrete Manufacturing: Conveyor control, actuator switching, solenoid valve drive in automotive and electronics assembly lines
- Process Industry: Pump/motor on-off control, valve actuation in chemical, pharmaceutical, and food & beverage plants
- Building Automation: HVAC damper control, lighting relay switching, access control integration
- Infrastructure & Utilities: Water treatment plant actuator control, substation auxiliary output switching
- Machine Safety Systems: Used alongside safety PLCs for non-safety output channels in mixed-architecture panels
Engineering Advantages
- Ultra-Slim 15 mm Width: Maximizes cabinet density — fit more I/O points per DIN rail meter compared to conventional 20 mm modules
- Hot-Swap Capability: Replace modules under power without shutting down the ET 200SP station, minimizing unplanned downtime
- Integrated Diagnostics: Channel-level fault detection (short-circuit, wire break) reported directly to the CPU via PROFINET, enabling rapid fault isolation
- Color-Coded Wiring: BaseUnit terminal color coding reduces wiring errors during commissioning
- TIA Portal Integration: Full hardware catalog support in STEP 7 / TIA Portal V13 SP1 and above — drag-and-drop configuration, no manual parameter entry
- Scalable Architecture: Mix digital, analog, and technology modules on the same ET 200SP station without additional gateways
System Architecture & Signal Flow
The 6ES7132-6BF00-0BA0 mounts onto a BaseUnit BU15-P16+A0+2B (order no. 6ES7193-6BP20-0BA0) or compatible A0-type BaseUnit. The backplane bus carries both power and PROFINET data; the module draws logic supply from the bus while field-side 24 V DC is fed directly through the BaseUnit terminal block.
Output switching is performed by integrated transistors with electronic short-circuit protection. Diagnostic data is transmitted to the ET 200SP interface module (IM 155-6 PN series) and forwarded to the S7-1200/1500 CPU via PROFINET IO. Process image update occurs within the standard CPU scan cycle.
Sourcing & Quality Verification
- OEM Authenticity: All units sourced through verified supply chains; original Siemens packaging, holographic labels, and date codes intact
- Inspection Protocol: Visual inspection, label verification, and functional power-on test prior to shipment
- Documentation: Certificate of conformity and packing list provided with every order
- Traceability: Batch and serial number records maintained for 5 years
- Warranty: 12-month warranty against manufacturing defects from date of shipment
Procurement Process
- Submit RFQ: Contact support@konmask.com with quantity, required delivery date, and destination port
- Quotation: Formal quotation with unit price, lead time, and shipping options returned within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Shipment: DHL Express / FedEx International Priority standard; EXW, FOB, CIF Incoterms available
- After-Sales: Technical support and RMA handling via dedicated engineering team
Technical FAQ
Q: Which BaseUnit is compatible with the 6ES7132-6BF00-0BA0?
A: This module requires a Type A0 BaseUnit. The most common pairing is 6ES7193-6BP20-0BA0 (BU15-P16+A0+2B). Verify BaseUnit type before ordering to ensure correct power routing.
Q: Can this module be used in ATEX Zone 1 environments?
A: No. The standard 6ES7132-6BF00-0BA0 is rated for Zone 2 (ATEX) and Zone 22 (dust). For Zone 1 applications, consult Siemens for intrinsically safe alternatives.
Q: Is TIA Portal V15 or later required?
A: The module is supported from TIA Portal V13 SP1 onwards. For full diagnostic and firmware update features, TIA Portal V16 or later is recommended.
Q: What is the maximum number of DQ modules per ET 200SP station?
A: Up to 32 I/O modules (mix of DI, DQ, AI, AQ) per ET 200SP station, subject to backplane bus current limits.
Q: Can I order in small quantities?
A: Yes. Minimum order quantity is 1 unit. Volume pricing available for orders of 5 units or more.
