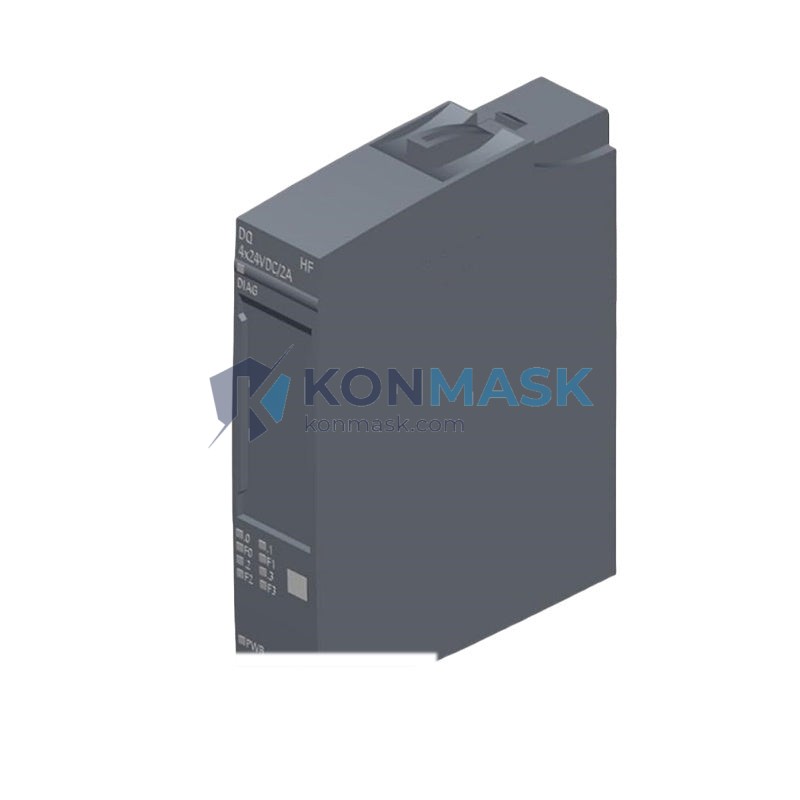

Machine Automation Solution – Siemens 6ES7132-6BF01-0AA0 | ET 200SP Series
Where This Product Is Used

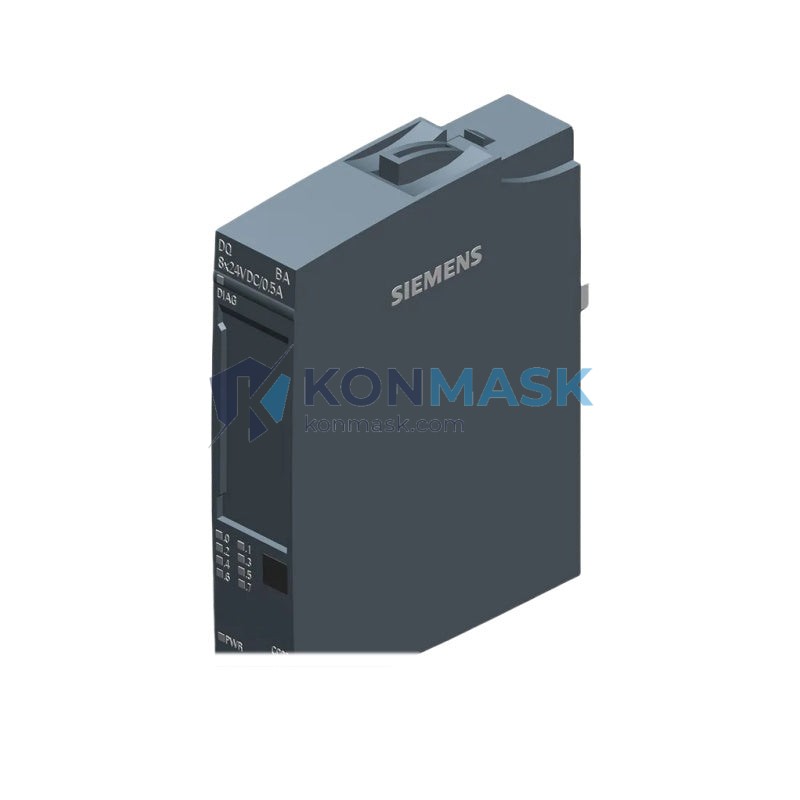

The Siemens 6ES7132-6BF01-0AA0 is a compact digital output module from the SIMATIC ET 200SP distributed I/O system. It is widely deployed in:
- Discrete manufacturing lines – controlling solenoid valves, contactors, and indicator lamps on assembly stations
- Conveyor & material handling systems – switching drive enable signals, brake relays, and diverter actuators
- Packaging machinery – coordinating pneumatic cylinders, sealing elements, and reject gates
- Process automation panels – interfacing with field devices in chemical, food & beverage, and water treatment plants
- Machine tool & press control – driving spindle contactors, coolant pumps, and safety light curtain resets
- Building automation & HVAC – controlling damper actuators, fan starters, and pump relays via PROFINET-connected ET 200SP stations
Technical Specifications
| Part Number (SKU) | 6ES7132-6BF01-0AA0 |
| Series | SIMATIC ET 200SP |
| Module Type | Digital Output (DQ) |
| Number of Outputs | 8 channels |
| Output Voltage | 24 V DC |
| Output Current per Channel | 0.5 A |
| Output Type | Transistor (source output, P-switching) |
| Supply Voltage | 24 V DC (via BaseUnit) |
| Backplane Bus | ET 200SP internal bus |
| Compatible BaseUnit | BU Type A0 (e.g., 6ES7193-6BP00-0BA0) |
| Dimensions (W×H×D) | 15 mm × 73 mm × 58 mm |
| Weight | approx. 30 g |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Firmware | V1.0 and above |
| MLFB | 6ES7 132-6BF01-0AA0 |
Why Engineers Specify This Model
- Ultra-slim 15 mm pitch – maximises channel density in compact control cabinets without sacrificing wiring access
- Hot-swap capable – modules can be replaced under power when used with appropriate BaseUnits, minimising production downtime
- Integrated diagnostics – per-channel short-circuit and overload detection reported directly to the CPU via PROFINET, enabling predictive maintenance
- Consistent Siemens ecosystem – fully configurable in TIA Portal V13 SP1 and above; no third-party GSD file required
- Proven field reliability – part of the ET 200SP platform deployed in millions of nodes worldwide across automotive, pharma, and energy sectors
Complete System Bill of Materials
To build a functional ET 200SP output station, the following components are typically required:
- Interface Module – e.g., 6ES7155-6AU01-0BN0 (IM 155-6 PN ST) for PROFINET connectivity
- BaseUnit – 6ES7193-6BP00-0BA0 (BU15-P16+A0+2B) – one per I/O module
- This Module – 6ES7132-6BF01-0AA0 (DQ 8×24VDC/0.5A)
- Server Module – 6ES7193-6PA00-0AA0 (to terminate the ET 200SP station)
- 24 V DC Power Supply – e.g., SITOP PSU100S 6EP1334-2BA20
- Mounting Rail – 35 mm DIN rail, minimum 160 mm length per station
Compliance & Industry Standards
- CE Marking – EU Machinery Directive & Low Voltage Directive compliant
- UL Listed – UL 508 (Industrial Control Equipment)
- IEC 61131-2 – Programmable Controllers: Equipment Requirements & Tests
- PROFINET IO – IEC 61158 / IEC 61784 conformant
- RoHS 2011/65/EU – Restriction of Hazardous Substances compliant
- ATEX / IECEx – suitable for Zone 2 / Class I Div 2 with appropriate enclosure (consult Siemens documentation)
Quality Assurance & Sourcing
Every 6ES7132-6BF01-0AA0 unit offered through Konmask.com undergoes the following verification process:
- Visual inspection of housing, label, and firmware version sticker against Siemens factory standards
- Functional power-on test confirming LED status indicators and backplane communication
- Anti-static packaging with humidity indicator card for safe international transit
- Traceable sourcing from authorised distribution channels and verified surplus inventories
How to Source This Part
Add the 6ES7132-6BF01-0AA0 to your cart directly from this page. For volume orders (10+ units), OEM project pricing, or urgent same-day quotations, contact our engineering sales team:
- 📧 support@konmask.com
- 📞 +0086 198 5928 8691
- 🌐 konmask.com
Lead time: typically 1–3 business days for in-stock units; 7–14 days for sourced orders. DHL / FedEx international express available.
Application-Specific FAQ
Q: Can I use 6ES7132-6BF01-0AA0 with an S7-1200 or S7-1500 CPU directly?
A: No. This module requires an ET 200SP Interface Module (IM 155-6 series) connected via PROFINET. It cannot be plugged directly into an S7-1200/1500 CPU rack.
Q: What BaseUnit do I need?
A: Use a Type A0 BaseUnit such as 6ES7193-6BP00-0BA0. Ensure the colour-coded push-in terminal matches your wiring gauge (standard or high-feature variant).
Q: Is this module suitable for driving 24 V DC relay coils?
A: Yes, provided the relay coil current does not exceed 0.5 A per channel and a flyback diode is fitted across the coil. Total module load must not exceed 4 A aggregate.
Q: Can I replace this module while the station is powered (hot-swap)?
A: Hot-swap is supported when using a compatible BaseUnit with the hot-swap feature enabled in TIA Portal. Refer to Siemens manual 6ES7132-6BF01-0AA0 for exact conditions.
Q: What TIA Portal version is required?
A: TIA Portal V13 SP1 or higher. The module HSP (Hardware Support Package) may be required for older TIA versions — download from the Siemens Industry Online Support portal.
