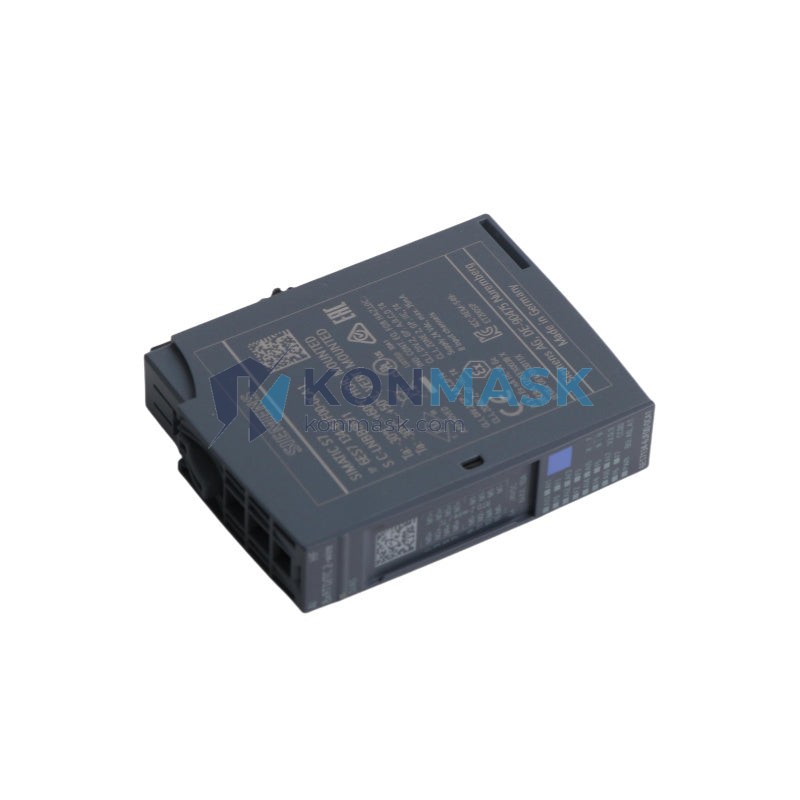

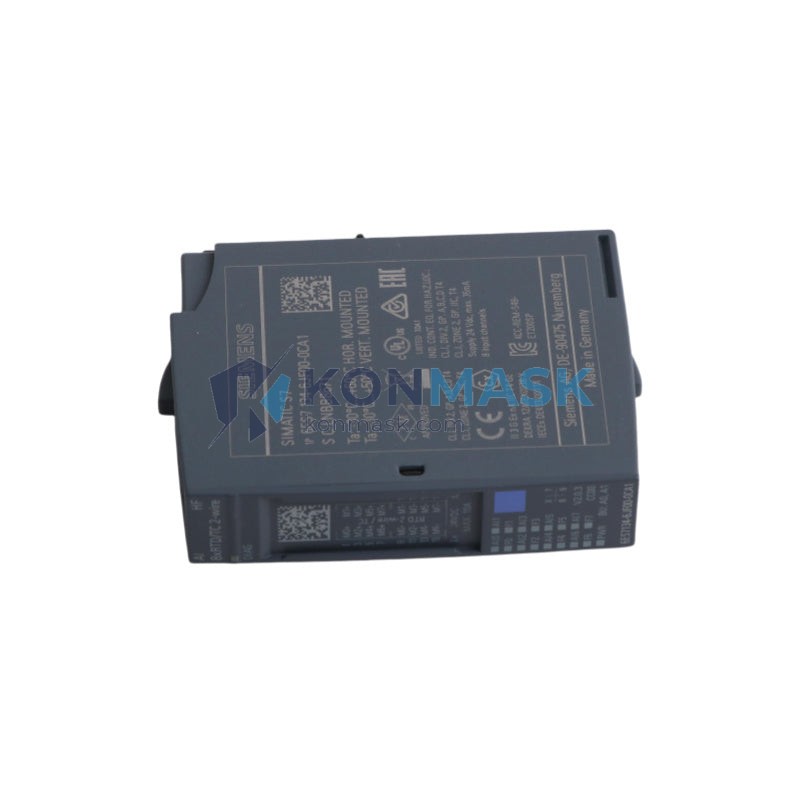

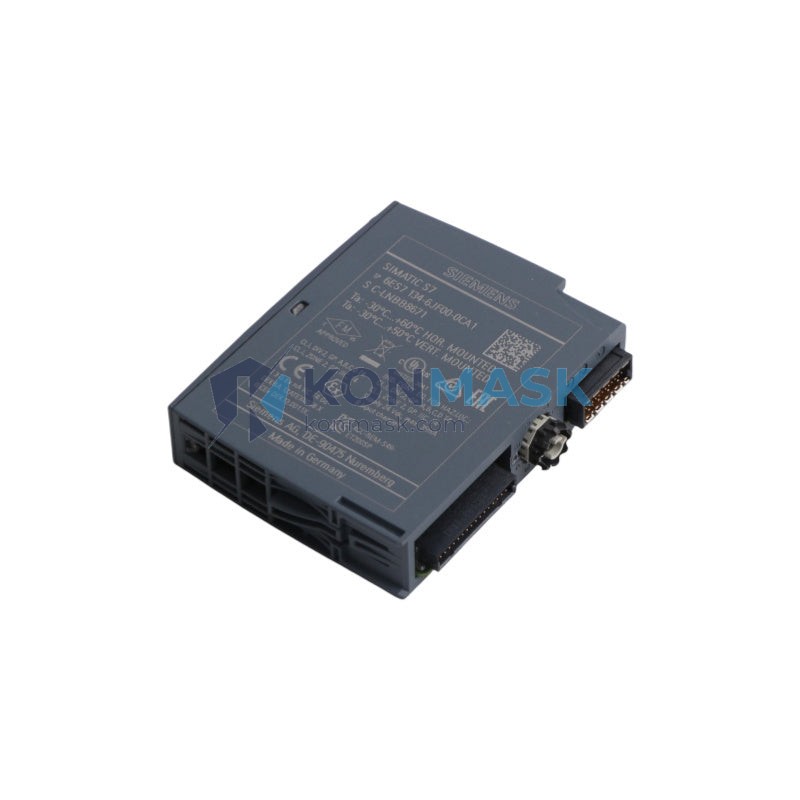

Siemens 6ES7134-6JF00-0CA1 – 8-Channel Analog Input Module | ET 200SP / SIMATIC S7-1500
Engineering Background
The SIMATIC ET 200SP distributed I/O system is Siemens’ flagship modular peripheral platform for SIMATIC S7-1500 and S7-1200 controllers. Designed for high-density cabinet installations, the ET 200SP family delivers deterministic signal acquisition with minimal footprint — a critical requirement in modern process automation and machine control architectures.
Product Positioning
The 6ES7134-6JF00-0CA1 is an 8-channel analog input module within the ET 200SP series, engineered for precision measurement of voltage and current signals in demanding industrial environments. It is the preferred choice for procurement engineers specifying distributed I/O for SIMATIC S7-1500 PLC systems requiring high-resolution analog acquisition at the field level.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6ES7134-6JF00-0CA1 |
| Product Family | SIMATIC ET 200SP |
| Module Type | Analog Input Module (AI) |
| Number of Channels | 8 (single-ended) / 4 (differential) |
| Input Signal Types | Voltage: ±10 V, ±5 V, ±2.5 V, 0–10 V, 1–5 V; Current: 0–20 mA, 4–20 mA, ±20 mA |
| Resolution | 16-bit (including sign bit) |
| Conversion Time (per channel) | Configurable: 400 µs – 100 ms |
| Accuracy (at 25 °C) | ±0.1% of full scale |
| Supply Voltage | 24 V DC (via BaseUnit) |
| Current Consumption (from backplane bus) | ≤ 70 mA |
| Isolation | Electrically isolated from backplane bus |
| Diagnostic Functions | Wire break, short circuit, overflow/underflow, parameter assignment error |
| Compatible BaseUnit | BU type A0 (e.g., 6ES7193-6BP00-0BA0) |
| Mounting | 35 mm DIN rail via ET 200SP BaseUnit |
| Dimensions (W × H × D) | 15 mm × 73 mm × 58 mm |
| Weight | Approx. 40 g |
| Operating Temperature | -40 °C to +70 °C (horizontal); -40 °C to +60 °C (vertical) |
| Storage Temperature | -40 °C to +85 °C |
| Degree of Protection | IP20 |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Certifications | CE, UL, cULus, ATEX Zone 2, IECEx |
| MLFB (Order Number) | 6ES7134-6JF00-0CA1 |
| Firmware Version | V1.0 and above |
Proven Application Environments
- Process Automation: Temperature, pressure, and flow measurement in chemical, oil & gas, and water treatment plants
- Machine Building: Servo drive feedback, force/torque sensor integration in packaging and printing machinery
- Building Automation: HVAC control loops, energy metering, and environmental monitoring
- Automotive Manufacturing: Weld quality monitoring, conveyor tension control, and robotic cell I/O
- Food & Beverage: Level sensing, pH/conductivity measurement in hygienic process lines
- Power Generation: Generator excitation feedback, turbine vibration monitoring
Engineering Advantages
- Ultra-compact 15 mm width — highest channel density in the ET 200SP family, maximizing cabinet space utilization
- 16-bit resolution — delivers ±0.1% accuracy for precision closed-loop control applications
- Universal signal range — single module supports both voltage and current inputs, reducing spare parts inventory
- Configurable filter/conversion time — balance between speed (400 µs) and noise rejection (100 ms) per application requirement
- Comprehensive diagnostics — wire break and short-circuit detection reduce MTTR in field troubleshooting
- Hot-swap capable — module replacement without powering down the BaseUnit (with appropriate BaseUnit configuration)
- ATEX Zone 2 / IECEx certified — suitable for use in potentially explosive atmospheres without additional barriers
- TIA Portal integration — plug-and-play configuration with STEP 7 V13 SP1 and above; GSD file available for third-party PROFINET masters
System Architecture & Signal Flow
The 6ES7134-6JF00-0CA1 mounts onto a compatible ET 200SP BaseUnit (Type A0), which provides the backplane bus connection, terminal wiring, and 24 V DC supply. The module communicates with the SIMATIC S7-1500 CPU (or IM 155-6 interface module) via the ET 200SP high-speed backplane bus at up to 12 Mbit/s. Signal flow:
- Field sensor → terminal block on BaseUnit (2-wire or 4-wire connection)
- Analog front-end → 16-bit ADC with configurable input range
- Digital value → backplane bus → IM 155-6 / CPU process image
- TIA Portal → cyclic/acyclic parameter assignment and diagnostic readback
Supports PROFINET IRT (Isochronous Real-Time) when used with compatible IM 155-6 PN HF interface modules, enabling deterministic cycle times down to 250 µs for motion-critical applications.
Sourcing & Quality Verification
All Siemens modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes the following verification process before dispatch:
- Visual inspection: label integrity, housing condition, connector pin check
- Firmware version verification against Siemens product lifecycle records
- Functional power-on test with PROFINET enumeration confirmation
- Anti-static packaging with humidity indicator card
- Certificate of conformity available upon request
We maintain traceability records for all units. Counterfeit-risk assessment is performed on every batch per IEC 62239-1 guidelines.
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders confirmed same day
- MOQ: 1 piece (no minimum order quantity)
- Packaging: Original Siemens retail box or OEM anti-static bag (condition stated at order)
- Payment: T/T, PayPal, credit card, and trade finance options available for qualified buyers
- Export: DDP/DAP/EXW Incoterms available; HS Code 8537.10 for customs declaration
- RFQ for volume orders: Contact support@konmask.com for pricing on 10+ units
Technical FAQ
- Q: Is the 6ES7134-6JF00-0CA1 compatible with S7-300/S7-400 systems?
- A: No. This module is exclusively designed for the ET 200SP platform and requires an ET 200SP BaseUnit and a compatible PROFINET interface module (IM 155-6 series) or direct connection to an S7-1500 CPU with integrated PROFINET port.
- Q: Can I mix voltage and current channels on the same module?
- A: Yes. Each channel pair can be independently configured for voltage or current input via TIA Portal parameter assignment. No hardware jumpers are required.
- Q: What BaseUnit is required?
- A: This module requires a Type A0 BaseUnit (e.g., 6ES7193-6BP00-0BA0 for standard applications or 6ES7193-6BP20-0BA0 for dark-current-capable configurations). Type B BaseUnits are not compatible.
- Q: Is HART communication supported?
- A: No. The 6ES7134-6JF00-0CA1 does not support HART protocol. For HART-capable analog input, refer to the 6ES7134-6JD00-0CA1 (4-channel HART AI module).
- Q: What is the difference between 0CA1 and 0DA0 firmware variants?
- A: The 0CA1 suffix denotes the standard production release with full ET 200SP compatibility. Always verify the complete MLFB when ordering to ensure firmware and hardware revision alignment with your existing system.
- Q: Can this module operate in SIL 2 safety applications?
- A: No. For functional safety applications, use the dedicated F-AI module 6ES7136-6DC00-0CA0 (ET 200SP F-AI 4xI 2-/4-wire HF). The 6ES7134-6JF00-0CA1 is a standard (non-safety) module.
