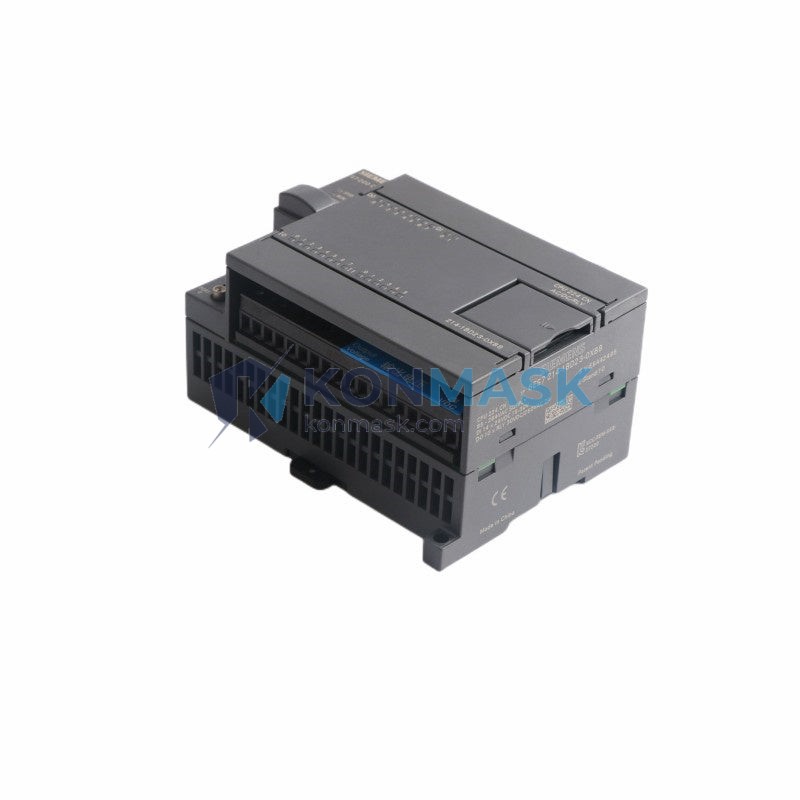

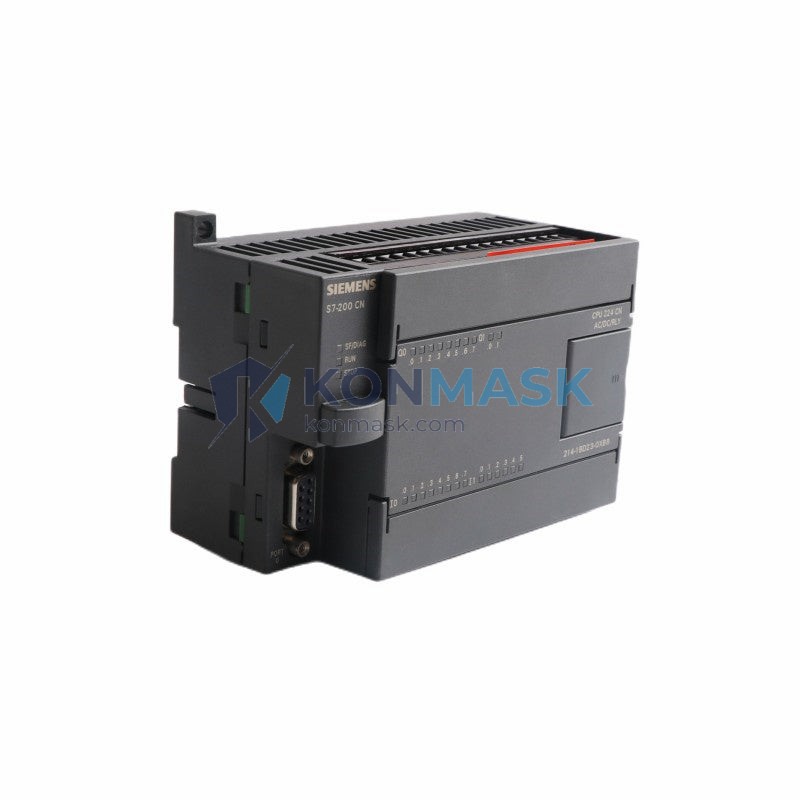

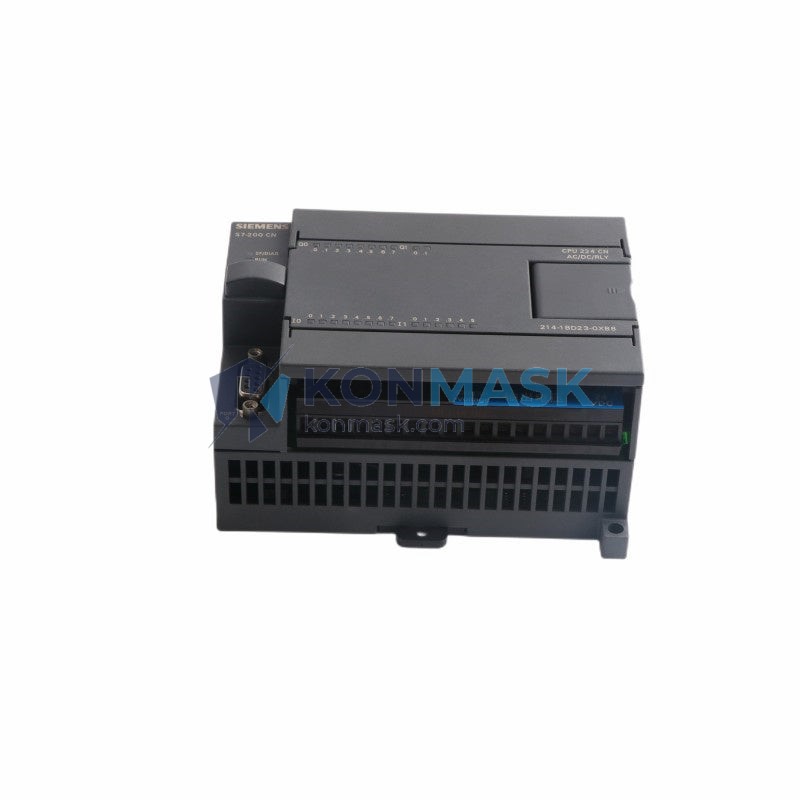

Genuine SIEMENS 6ES7214-1BD23-0XB8 CPU224 CN Processor Module | S7-200 – Verified Source
The SIEMENS 6ES7214-1BD23-0XB8 is the CPU224 CN compact processor module from the SIEMENS SIMATIC S7-200 series — one of the most widely deployed micro-PLC platforms in global industrial automation. Designed for the Chinese domestic market (CN variant), this CPU module serves as the central intelligence of small-to-medium automation systems, handling program execution, I/O control, and communication tasks with the reliability that SIEMENS engineering is known for worldwide.
At Konmask.com, we source this module through verified supply channels and subject every unit to a documented 4-step quality verification process before it reaches your facility. Whether you are maintaining an existing S7-200 installation, building a new control panel, or stocking spare parts for critical production lines, we are your trusted B2B partner for genuine SIEMENS automation components.
Technical Specifications
- Manufacturer: SIEMENS (Germany)
- Part Number / SKU: 6ES7214-1BD23-0XB8
- Product Series: SIMATIC S7-200
- Module Type: CPU224 CN Compact Processor Module
- Market Variant: CN (China domestic version)
- Digital Inputs: 14 × DC 24V inputs
- Digital Outputs: 10 × DC 24V transistor outputs
- Program Memory: 12 KB
- Data Memory: 8 KB
- Execution Speed: 0.37 µs per Boolean instruction
- Communication Ports: 1 × RS-485 (PPI/MPI/Freeport)
- Expansion Modules Supported: Up to 7
- Power Supply: DC 24V
- Operating Temperature: 0°C to +55°C
- Weight: Approx. 360 g
- Dimensions (W×H×D): 120.5 mm × 80 mm × 62 mm
Note: All specifications are sourced from official SIEMENS documentation. Konmask.com does not alter or fabricate product parameters.
Our 4-Step Quality Verification Process
Every SIEMENS 6ES7214-1BD23-0XB8 unit shipped from Konmask.com passes through our documented verification workflow before dispatch:
- Step 1 — Source Traceability Check: We verify the supply chain origin of each unit, confirming it comes from authorized distributors or certified secondary-market channels. Counterfeit or unverifiable units are rejected at intake.
- Step 2 — Physical Authenticity Inspection: Our technicians inspect label printing, housing markings, firmware version stamps, and connector quality against known-genuine reference units. Any discrepancy triggers immediate quarantine.
- Step 3 — Functional Power-On Test: Each CPU module is powered up and subjected to a basic I/O and communication port test to confirm operational status. Non-functional units are never shipped.
- Step 4 — Packaging & Documentation Review: Units are repackaged in anti-static protective packaging with a Konmask inspection record card. Customers receive documentation confirming the unit passed all four steps.
Key Features & Benefits
- High I/O Density: 14 DI + 10 DO onboard eliminates the need for additional I/O modules in many small machine applications, reducing panel cost and complexity.
- Expandable Architecture: Support for up to 7 expansion modules (digital, analog, communication) makes the CPU224 CN a scalable platform that grows with your application.
- Fast Boolean Execution: At 0.37 µs per instruction, the CPU224 CN handles time-critical control loops with precision — essential for packaging, conveying, and motion applications.
- RS-485 Multi-Protocol Port: Native PPI, MPI, and Freeport support enables seamless integration with SIEMENS HMIs (TP/OP series), STEP 7 Micro/WIN programming software, and third-party devices via Modbus RTU.
- CN Variant Compliance: The 0XB8 suffix designates the CN market version, ensuring regulatory compliance and compatibility with locally sourced expansion modules and accessories.
- Proven Global Installed Base: The S7-200 CPU224 series has millions of units deployed across manufacturing, water treatment, building automation, and OEM machine applications worldwide.
Typical Applications
- Conveyor and material handling systems
- Packaging and labeling machines
- Water and wastewater pump station control
- HVAC and building management systems
- Textile and printing machinery
- Small-scale process control and batch systems
- OEM machine builders requiring a compact, cost-effective PLC platform
- Spare part replacement for existing S7-200 installations
Compatible System Components
The 6ES7214-1BD23-0XB8 is designed to work within the SIMATIC S7-200 ecosystem. Compatible components available from Konmask.com include:
- Digital Expansion Modules: 6ES7221-xxxx-0XA0 (DI), 6ES7222-xxxx-0XA0 (DO), 6ES7223-xxxx-0XA0 (DI/DO)
- Analog Expansion Modules: 6ES7231-xxxx-0XA0 (AI), 6ES7232-xxxx-0XA0 (AO)
- Communication Modules: 6ES7241-1CH22-0XA0 (EM241 Modem), 6ES7243-1B00-0XA0 (EM243 Ethernet)
- Programming Cable: 6ES7901-3CB30-0XA0 (PC/PPI USB cable)
- HMI Panels: SIEMENS TP177, OP177, and compatible SMART LINE panels
- Power Supply: SIEMENS LOGO! Power or PM1207 24VDC rail-mount PSU
Contact us to confirm cross-compatibility or to request a complete BOM for your project.
Global Sourcing & Shipping Capabilities
- Stock Availability: We maintain regular stock of high-demand SIEMENS S7-200 modules. Inquire for real-time availability and lead times.
- Shipping Destinations: We ship to Southeast Asia, the Middle East, South Asia, Africa, Eastern Europe, and Latin America. DHL, FedEx, and UPS express options available.
- Export Documentation: We provide commercial invoices, packing lists, and certificates of origin as required for customs clearance in your country.
- Minimum Order Quantity: No MOQ for standard inquiries. Volume pricing available for orders of 5+ units.
- Lead Time: In-stock items typically ship within 1–3 business days of order confirmation.
Certifications & Compliance Statement
- SIEMENS 6ES7214-1BD23-0XB8 is CE marked and compliant with applicable EU machinery directives (as manufactured by SIEMENS AG).
- CN variant meets GB/T standards applicable to the Chinese domestic market.
- Konmask.com operates as a secondary-market distributor. We do not manufacture, modify, or re-label any SIEMENS products. All brand names and part numbers remain the intellectual property of SIEMENS AG.
- Units sourced and sold by Konmask.com are genuine SIEMENS products. We do not knowingly source or sell counterfeit goods.
How to Order
- Submit an Inquiry: Contact us via email at support@konmask.com or WhatsApp/phone at +0086 19859288691 with your required part number, quantity, and destination country.
- Receive a Quotation: We will respond within 1 business day with pricing, availability, and estimated lead time.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods. Payment terms available for established accounts.
- Dispatch & Track: Your order is packed, inspected, and shipped with full tracking information provided.
- After-Sales Support: Our technical team is available to assist with installation questions or warranty claims post-delivery.
Authenticity & Trust FAQ
- Q: Is the 6ES7214-1BD23-0XB8 you sell a genuine SIEMENS product?
- A: Yes. Every unit we sell is a genuine SIEMENS product sourced through verified supply channels. We do not sell clones, replicas, or relabeled products.
- Q: Can you provide proof of authenticity or inspection records?
- A: Yes. Each unit shipped from Konmask.com includes a Konmask inspection record card documenting the 4-step verification process. Additional documentation can be provided upon request.
- Q: Is the CN variant compatible with STEP 7 Micro/WIN software?
- A: Yes. The CPU224 CN (6ES7214-1BD23-0XB8) is fully programmable with SIEMENS STEP 7 Micro/WIN V4.0 SP9 and later. The CN designation refers to the market variant, not a software restriction.
- Q: What is the difference between the CN variant and the standard (0XB0) variant?
- A: The CN variant (0XB8) is the version approved and sold for the Chinese domestic market. Functionally it is equivalent to the international version. Expansion module compatibility is the same.
- Q: Do you offer a warranty?
- A: We offer a 90-day functional warranty on all units shipped. If a unit fails under normal operating conditions within 90 days, we will arrange a replacement or refund. Contact support@konmask.com to initiate a claim.
- Q: Can I order a sample unit before committing to a larger purchase?
- A: Absolutely. We welcome sample orders with no minimum quantity. Contact us to discuss sample pricing and shipping arrangements.
