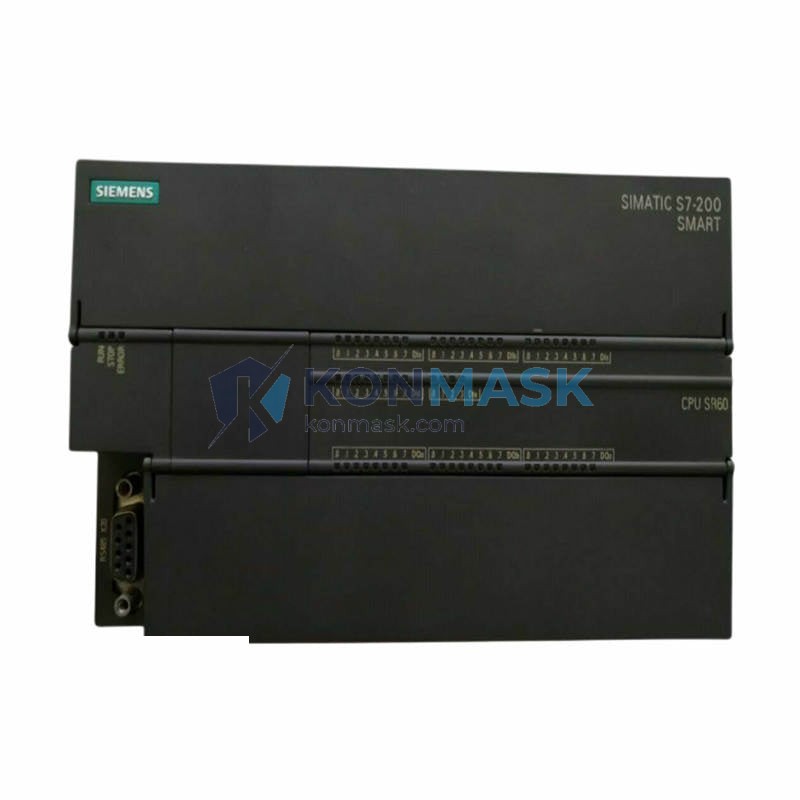

Packaging & Conveyor Automation Solution — SIEMENS 6ES7288-1SR60-0AA0 | S7-200 SMART CPU SR60
Where This Product Is Used
The SIEMENS 6ES7288-1SR60-0AA0 CPU SR60 is a high-I/O compact PLC designed for demanding discrete and process control applications. Engineers specify this module across a wide range of industrial environments:
- Packaging Machinery — Filling, sealing, labeling, and cartoning lines requiring precise sequencing of 60+ I/O points.
- Conveyor & Material Handling Systems — Multi-zone conveyor control, diverter gates, and sortation systems.
- Water & Wastewater Treatment — Pump station control, valve sequencing, and level/flow monitoring with analog expansion.
- HVAC & Building Automation — Chiller plant sequencing, AHU control, and BMS integration via Modbus RTU.
- Food & Beverage Processing — Batch mixing, CIP cycle control, and temperature-regulated conveying.
- Textile & Printing Equipment — Tension control, register correction, and multi-axis coordination.
- OEM Machine Builders — Standard platform for mid-size machines requiring Ethernet connectivity and compact panel footprint.
Technical Specifications
| Part Number | 6ES7288-1SR60-0AA0 |
| Series | SIMATIC S7-200 SMART |
| CPU Type | SR60 (Standard Relay Output) |
| Digital Inputs (DI) | 36 × 24 VDC Sink/Source |
| Digital Outputs (DO) | 24 × Relay, 2 A per point |
| Total Onboard I/O | 60 points |
| Max Expandable I/O | Up to 188 I/O (with expansion modules) |
| Program Memory | 30 KB |
| Data Memory | 20 KB |
| Retentive Memory | 10 KB (EEPROM) |
| Communication Ports | 1 × Ethernet (RJ45), 1 × RS485 |
| Ethernet Protocol | S7 Communication, Modbus TCP, Open User Communication |
| High-Speed Counters | 4 × HSC up to 200 kHz |
| Pulse Outputs | 3 × PTO/PWM (via transistor expansion) |
| Real-Time Clock | Built-in (battery-backed) |
| Supply Voltage | AC 85–264 V / DC 24 V |
| Operating Temperature | 0 °C to +55 °C |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 196 × 100 × 81 mm |
| Weight | ~680 g |
| Programming Software | STEP 7-Micro/WIN SMART V2.x |
Why Engineers Specify This Model
- Highest Onboard I/O in the S7-200 SMART Range — 60 native I/O points eliminate the need for an immediate expansion module in most mid-size applications, reducing panel cost and wiring complexity.
- Built-in Ethernet as Standard — Unlike legacy S7-200 CPUs, the SR60 ships with an integrated Ethernet port, enabling direct SCADA/HMI connectivity without additional communication processors.
- Relay Outputs for Universal Load Compatibility — Relay DO supports AC and DC loads up to 2 A, making it suitable for direct control of contactors, solenoids, and indicator lamps without interposing relays.
- Motion-Ready Architecture — 4 high-speed counters at 200 kHz support encoder feedback for position verification and speed measurement.
- Proven Ecosystem — Seamless integration with SIMATIC HMI panels (KTP series), SINAMICS drives, and third-party Modbus RTU/TCP devices.
- Compact DIN-Rail Form Factor — 196 mm width fits standard 400 mm panels without custom cutouts.
Complete System Bill of Materials
A typical SR60-based control panel for a packaging line includes:
- 6ES7288-1SR60-0AA0 — CPU SR60 (this unit)
- 6ES7288-3AE04-0AA0 — EM AE04 Analog Input Module (4 × AI)
- 6ES7288-3AQ02-0AA0 — EM AQ02 Analog Output Module (2 × AO)
- 6ES7288-3DE08-0AA0 — EM DE08 Digital Input Expansion (8 × DI)
- 6ES7288-3DR08-0AA0 — EM DR08 Digital I/O Expansion (4DI / 4DO Relay)
- 6AV2123-2DB03-0AX0 — KTP400 Basic HMI Panel (4″ touch)
- 6GK5005-0BA00-1AA3 — SCALANCE XB005 Unmanaged Ethernet Switch
- 6ES7288-0ED20-0AA0 — SIMATIC Micro Memory Card (optional data logging)
Contact Konmask for complete BOM pricing and availability on all companion modules.
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage Directive (LVD) and EMC Directive
- UL Listed — UL 508 (Industrial Control Equipment)
- IEC 61131-2 — Programmable Controllers Hardware Standard
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
- ATEX / IECEx — Not rated for Zone 0/1; use appropriate barriers for hazardous area installations
- Marine / DNV — Consult Konmask for DNV-certified variants if required
Quality Assurance & Sourcing
Konmask sources the 6ES7288-1SR60-0AA0 exclusively through verified Siemens authorized distribution channels and established secondary-market partners with documented chain of custody. Every unit undergoes the following before dispatch:
- Visual inspection against Siemens OEM packaging and label authentication standards
- Firmware version verification via STEP 7-Micro/WIN SMART online diagnostics
- Functional power-on test with I/O point verification
- Anti-static packaging with humidity indicator card
- Batch traceability record retained for 5 years
All units are shipped with original Siemens documentation where available. Counterfeit-free guarantee backed by our sourcing policy.
How to Source This Part
- In-Stock Orders — Add to cart and check out directly. Same-day dispatch for orders placed before 15:00 CST on business days.
- Bulk / Project Quantities — Email support@konmask.com with your project BOM for volume pricing and lead-time confirmation.
- Urgent / Emergency Replacement — Call +0086 19859288691 for expedited sourcing. We maintain safety stock for critical spares.
- Export / Cross-Border Orders — We ship internationally with full commercial invoice and HS code documentation (HS: 8537.10). DDP terms available for select destinations.
- OEM / Integrator Accounts — Apply for a trade account to access net pricing, priority allocation, and dedicated account management.
Application-Specific FAQ
Q: Can the SR60 control a servo drive directly?
A: The SR60 relay outputs are not suitable for direct pulse-train servo control. For motion applications, pair the SR60 with a SINAMICS V90 drive using Modbus RTU or add a transistor output expansion module (EM DT08) for PTO pulse output.
Q: How many HMI panels can connect simultaneously?
A: The built-in Ethernet port supports up to 8 simultaneous S7 connections. Multiple KTP-series panels can connect concurrently within this limit.
Q: Is the SR60 compatible with TIA Portal?
A: No. The S7-200 SMART series is programmed exclusively with STEP 7-Micro/WIN SMART. It is not compatible with TIA Portal (which is for S7-300/400/1200/1500 families).
Q: What is the maximum expansion for this CPU?
A: Up to 6 expansion modules can be connected, supporting a maximum of 188 digital I/O or a mix of digital and analog points.
Q: Can I use this module in a food-grade washdown environment?
A: The SR60 is rated IP20 and is not washdown-rated. For food-grade environments, install the module in an IP65/IP66 rated enclosure with appropriate cable gland sealing.
Q: What is the warranty on this unit?
A: Konmask provides a 12-month warranty against manufacturing defects on all verified-authentic units. Warranty claims are processed within 5 business days.
