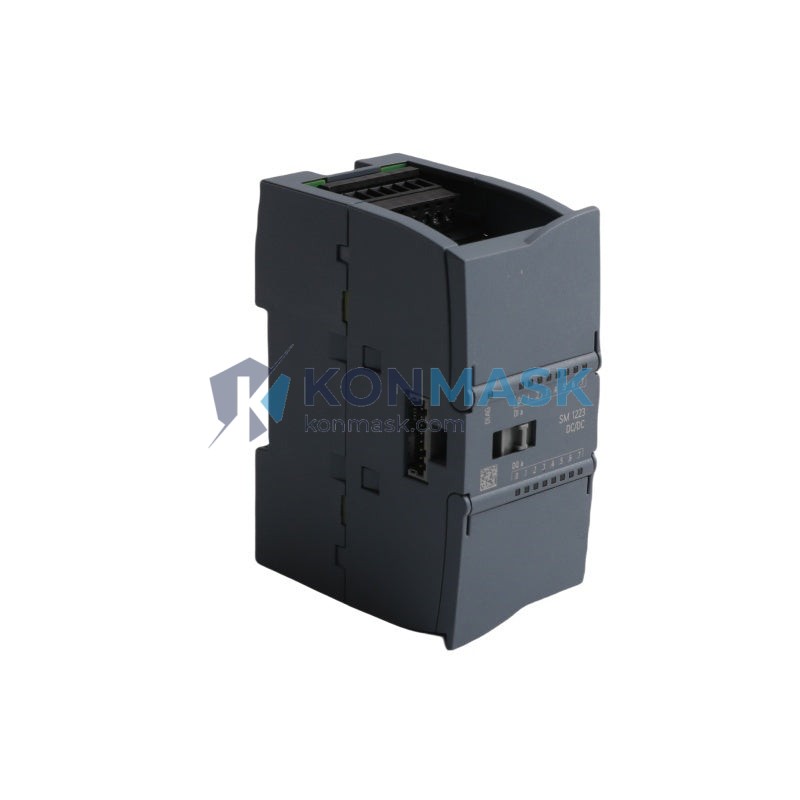

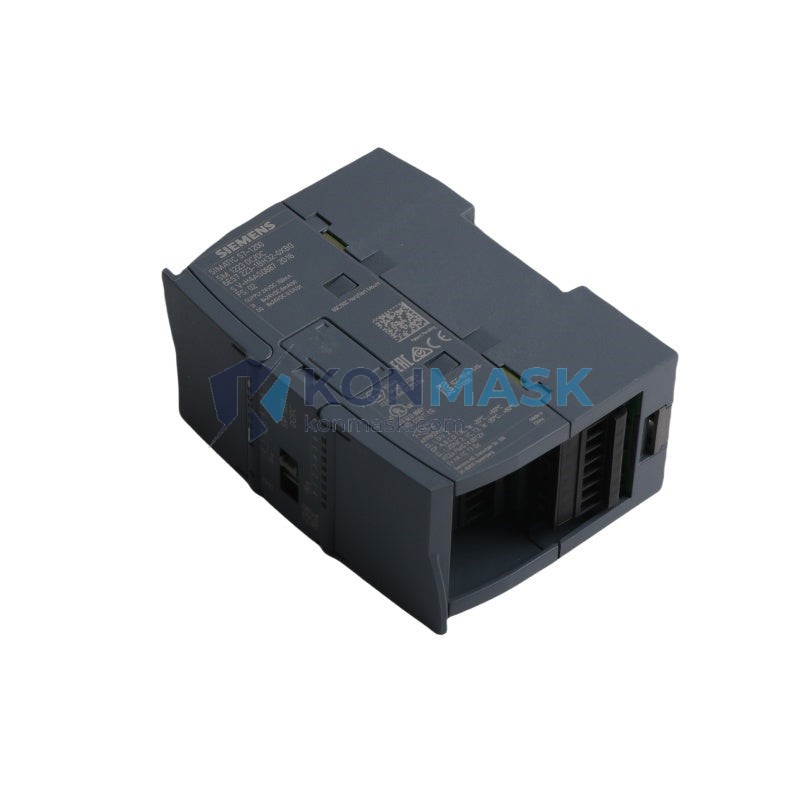

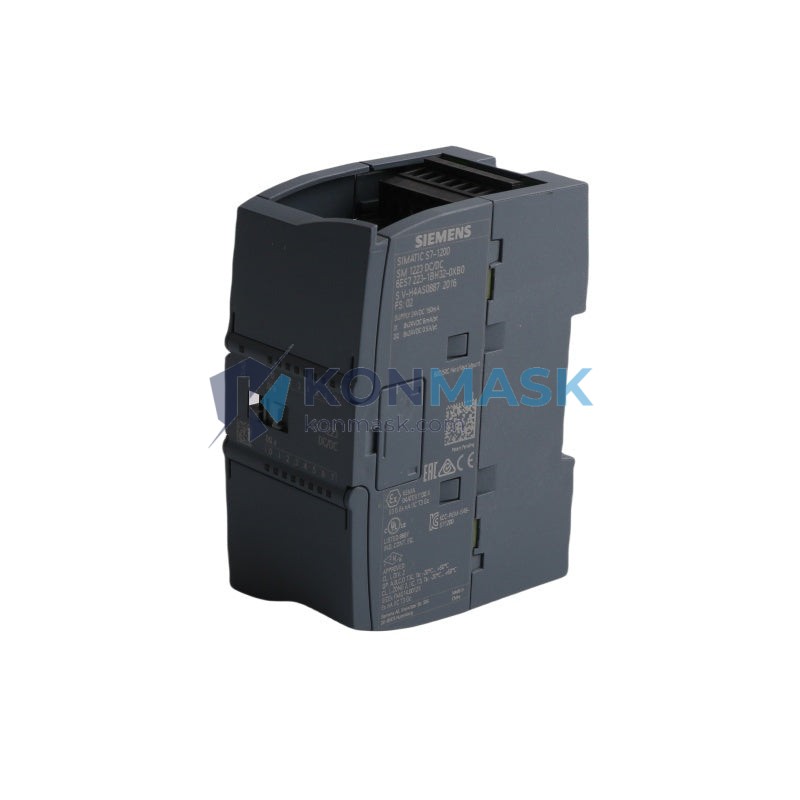

Genuine Siemens 6ES7223-1BH32-0XB0 8DI/8DO Digital I/O Module | SM 223 Series – Verified Source
The Siemens 6ES7223-1BH32-0XB0 is a high-performance digital combination I/O expansion module from the SM 223 series, designed for seamless integration with the S7-200 SMART programmable logic controller platform. Sourced directly through verified industrial supply channels, every unit sold by Konmask.com undergoes a rigorous 4-step authenticity and quality verification process before dispatch.
Technical Specifications
- Part Number / SKU: 6ES7223-1BH32-0XB0
- Series: SM 223 (Signal Module 223)
- Compatible PLC: Siemens S7-200 SMART
- Digital Inputs: 8 × 24 V DC (sink/source)
- Digital Outputs: 8 × 24 V DC transistor (0.75 A per output)
- Supply Voltage: 24 V DC (20.4–28.8 V)
- Current Consumption (5 V bus): 80 mA
- Current Consumption (24 V): 4 mA (no load)
- Power Dissipation: 2.5 W (typical)
- Isolation: Optically isolated inputs and outputs
- Dimensions (W × H × D): 45 × 100 × 81 mm
- Weight: 180 g
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Protection Rating: IP20
- Mounting: DIN rail (35 mm)
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured exclusively from Siemens-authorized distributors or verified OEM surplus channels. No grey-market or counterfeit sources are accepted.
- Step 2 – Physical Inspection: Each module is inspected for label integrity, housing condition, terminal quality, and correct firmware/hardware revision markings.
- Step 3 – Functional Bench Test: Where applicable, modules are powered up and I/O points are verified against Siemens factory specifications using calibrated test equipment.
- Step 4 – Secure Packaging: Units are packed in anti-static ESD bags with protective foam inserts and shipped with a Konmask inspection certificate.
Key Features & Benefits
- ✅ Genuine Siemens OEM hardware — not a clone or compatible substitute
- ✅ 8 digital inputs + 8 digital outputs in a single compact module — reduces panel space and wiring complexity
- ✅ Transistor (solid-state) outputs — fast switching, no mechanical wear, ideal for high-cycle applications
- ✅ Optical isolation on all I/O channels — protects the CPU from field-side voltage transients
- ✅ Plug-and-play expansion — connects directly to S7-200 SMART CPU via the integrated expansion bus connector
- ✅ Wide operating temperature range — suitable for demanding industrial environments
- ✅ DIN rail mounting — standard 35 mm rail, quick installation and removal
Typical Applications
- Conveyor and material handling control systems
- Packaging and labeling machine automation
- HVAC and building management systems (BMS)
- Water treatment and pump station control
- Textile and printing machinery
- Food and beverage processing lines
- OEM machine builders requiring compact I/O expansion
Compatible System Components
- Host CPU: Siemens S7-200 SMART CPU SR20, SR30, SR40, SR60, ST20, ST30, ST40, ST60
- Programming Software: STEP 7-Micro/WIN SMART V2.x and above
- Communication: Ethernet (via CPU), RS-485 (via CPU)
- Related Expansion Modules: SM 221 (DI), SM 222 (DO), SM 231 (AI), SM 232 (AO), SM 234 (AI/AO)
- Power Supply: Siemens PM 207 or equivalent 24 V DC regulated supply
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation component supplier serving customers across Asia-Pacific, Europe, the Middle East, and the Americas. We maintain stock of both current-production and legacy Siemens automation hardware.
- Lead Time: In-stock items ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, SF Express (Asia)
- Export Documentation: Commercial invoice, packing list, certificate of origin available on request
- Customs & HS Code: 8537.10 (Boards, panels, consoles for electric control) — we assist with customs documentation
- Minimum Order: 1 unit; volume pricing available for orders of 5+ units
Certifications & Compliance Statement
- ✔ CE Marked — compliant with EU Low Voltage Directive and EMC Directive
- ✔ UL Listed — recognized for use in North American industrial installations
- ✔ RoHS Compliant — meets EU Directive 2011/65/EU on restriction of hazardous substances
- ✔ ATEX / IECEx: Not rated for hazardous area use in standard configuration
- ✔ All products sold by Konmask.com are genuine Siemens-manufactured goods. We do not sell counterfeit, refurbished-as-new, or unauthorized replica products.
How to Order
- Confirm your part number: Verify that 6ES7223-1BH32-0XB0 matches your system’s expansion slot requirements and S7-200 SMART CPU model.
- Select quantity and add to cart, or contact us for a formal quotation (RFQ).
- Provide your shipping address — we will confirm lead time, freight cost, and export documentation requirements.
- Payment: We accept T/T (bank transfer), PayPal, and major credit cards. Net-30 terms available for approved accounts.
- Receive your order with Konmask inspection certificate and original Siemens packaging where available.
📧 For bulk orders, OEM partnerships, or technical pre-sales support, contact us at support@konmask.com or call +0086 19859288691.
Authenticity & Trust FAQ
Q: How do I know the module is genuine Siemens?
A: Every unit is sourced from authorized channels and inspected before shipment. We provide a Konmask authenticity certificate and can supply sourcing documentation on request. You can also verify the product serial number with Siemens Industry Online Support (SIOS).
Q: Do you sell refurbished or repaired units?
A: No. All units listed as “New” are factory-new, unused, and in original or equivalent OEM packaging. Refurbished units, if available, are clearly labeled as such with full condition disclosure.
Q: What if the module is faulty on arrival (DOA)?
A: We offer a 30-day DOA replacement guarantee. Contact support@konmask.com with your order number and a description of the fault. We will arrange a replacement or full refund at no cost to you.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. The official Siemens S7-200 SMART System Manual and SM 223 datasheet are available. Contact us and we will send the relevant documentation by email.
Q: Do you ship to my country?
A: We ship to over 80 countries worldwide. Contact us with your destination for a freight quote and estimated delivery time.
