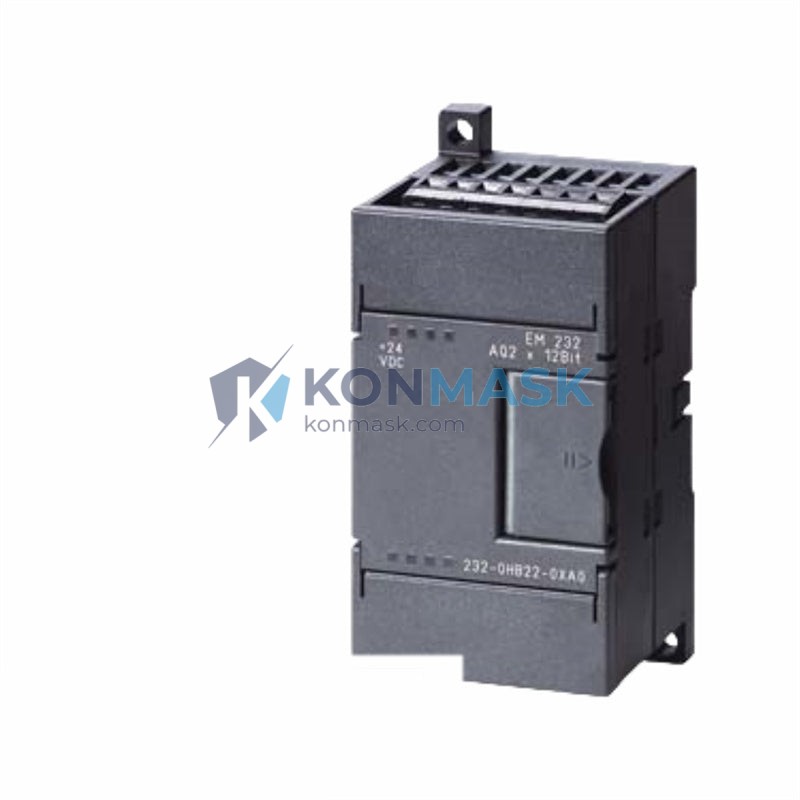

SIEMENS 6ES7232-0HB22-0XA0 Analog Output Module – SIMATIC S7-200 EM232 Series
When an analog output module fails on the production floor, the consequences are immediate and costly: actuators freeze in place, control valves lose their setpoints, and entire process lines grind to a halt. Variable-speed drives revert to fixed speeds, temperature controllers lose their output signal, and operators are left managing a system that can no longer respond to real-world demands. In high-stakes environments — chemical dosing, precision motion control, or continuous process manufacturing — even minutes of downtime translate directly into scrap, safety risks, and revenue loss. The SIEMENS 6ES7232-0HB22-0XA0 is the exact replacement that restores full analog control authority without compromise.
The 6ES7232-0HB22-0XA0 is the EM232 2-channel analog output expansion module within the SIMATIC S7-200 family — one of Siemens’ most widely deployed compact PLC platforms globally. Designed for seamless integration with the S7-200 CPU series, this module delivers precise voltage and current output signals that are the backbone of closed-loop process control worldwide. With millions of S7-200 systems still operational across manufacturing, water treatment, HVAC, and packaging industries, the EM232 remains a mission-critical spare part with sustained global demand.
Technical Specifications
- Part Number: 6ES7232-0HB22-0XA0
- Series: SIMATIC S7-200 EM232
- Module Type: Analog Output Expansion Module
- Number of Output Channels: 2
- Output Signal Types: Voltage (0–10 V DC) / Current (0–20 mA, 4–20 mA)
- Resolution: 12-bit (voltage), 11-bit (current)
- Output Range (Voltage): 0 to 10 V DC
- Output Range (Current): 0 to 20 mA
- Load Impedance (Voltage): ≥ 5 kΩ
- Load Impedance (Current): ≤ 500 Ω
- Supply Voltage: 24 V DC (via S7-200 CPU bus)
- Power Consumption: 2 W (from 5 V bus), 60 mA (from 24 V DC)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: –40 °C to +70 °C
- Degree of Protection: IP20
- Dimensions (W × H × D): 46 × 80 × 62 mm
- Weight: Approx. 130 g
- Certifications: CE, UL, cUL, FM
Key Features & Benefits
- Dual-Channel Output: Two independent analog output channels allow simultaneous control of multiple field devices from a single module, reducing wiring complexity and panel space.
- Flexible Signal Types: Supports both voltage (0–10 V) and current (4–20 mA / 0–20 mA) outputs, making it compatible with the vast majority of industrial actuators, drives, and positioners.
- High Resolution: 12-bit voltage output resolution ensures fine-grained control precision, critical for applications such as proportional valve positioning and variable-speed drive speed reference.
- Direct Bus Connection: Plugs directly into the S7-200 CPU expansion bus — no additional power supply wiring required for logic power, simplifying installation and reducing failure points.
- Compact DIN-Rail Design: Space-efficient 46 mm wide housing fits standard DIN-rail enclosures, ideal for compact control panels.
- Proven Reliability: Built to Siemens’ industrial-grade standards with wide operating temperature range and full CE/UL certification for global deployment.
- Drop-In Replacement: 100% compatible with existing S7-200 CPU 221/222/224/224XP/226 systems — no firmware changes or reconfiguration required.
Industry & Equipment Applications
- Process Manufacturing: Analog setpoint output to control valves, flow regulators, and pressure controllers in chemical, pharmaceutical, and food & beverage plants.
- HVAC Systems: Speed reference signals to variable-frequency drives (VFDs) for fans, pumps, and compressors in building automation.
- Water & Wastewater Treatment: Dosing pump speed control and valve positioning in municipal and industrial water treatment facilities.
- Packaging Machinery: Tension control, speed synchronization, and position reference in high-speed packaging lines.
- Material Handling: Conveyor speed control and load cell feedback loops in logistics and warehouse automation.
- Textile & Printing: Precise speed and tension control for web-handling and printing press applications.
- OEM Machine Builders: Embedded in custom machinery requiring compact, reliable analog output capability with S7-200 PLC control.
System Integration & Compatible Parts
The 6ES7232-0HB22-0XA0 is designed to work within the SIMATIC S7-200 ecosystem. Compatible and commonly paired components include:
- Compatible CPUs: 6ES7214-1BD23-0XB0 (CPU 224), 6ES7214-2BD23-0XB0 (CPU 224XP), 6ES7216-2BD23-0XB0 (CPU 226)
- Analog Input Modules: 6ES7231-0HC22-0XA0 (EM231, 4AI), 6ES7231-7PB22-0XA0 (EM231 RTD)
- Combo Analog I/O: 6ES7235-0KD22-0XA0 (EM235, 4AI/1AO)
- Programming Cable: 6ES7901-3CB30-0XA0 (PC/PPI Cable USB)
- Power Supply: 6EP1332-1SH43 (SITOP PSU100S 24V/5A)
Our Quality Assurance Process
At Konmask.com, every SIEMENS 6ES7232-0HB22-0XA0 unit goes through a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Each unit is inspected for genuine Siemens labeling, holographic seals, and factory markings to eliminate counterfeit risk.
- Visual & Physical Inspection: Connector pins, housing integrity, and PCB condition are checked for any signs of damage, corrosion, or prior use.
- Functional Testing: Where applicable, modules are bench-tested for output signal accuracy across both voltage and current ranges.
- Secure Packaging: Anti-static packaging with foam cushioning ensures safe transit to any global destination.
- Documentation: Shipment includes product datasheet and, upon request, test reports or certificates of conformity.
How to Order
- Submit your inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery destination.
- Our technical sales team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon order confirmation, we arrange secure packaging and dispatch with full tracking information provided.
- For urgent requirements, please indicate your deadline — we offer expedited sourcing and shipping options.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, HMI, and automation components — not a generalist marketplace.
- ✅ Global Sourcing Network: Access to genuine Siemens parts through verified supply channels, including new, surplus, and refurbished stock.
- ✅ Fast Response: Dedicated B2B inquiry handling with quotations within 24 hours.
- ✅ Competitive Pricing: Direct sourcing relationships allow us to offer market-competitive pricing for both single units and bulk orders.
- ✅ Export Experience: Experienced in international shipping, customs documentation, and compliance for over 50 countries.
- ✅ Technical Support: Our team includes experienced automation engineers who can assist with compatibility questions and system integration advice.
Frequently Asked Questions
Q: Is the 6ES7232-0HB22-0XA0 compatible with all S7-200 CPUs?
A: Yes, it is compatible with all S7-200 CPU models including CPU 221, 222, 224, 224XP, and 226. It connects directly to the expansion bus without any additional configuration.
Q: Can this module output both voltage and current simultaneously on the two channels?
A: Each channel can be independently configured for either voltage (0–10 V) or current (0–20 mA / 4–20 mA) output via the S7-200 program. Both channels can operate in different modes simultaneously.
Q: Do you supply new or refurbished units?
A: We supply both new (factory-sealed) and professionally refurbished units depending on availability. The condition is clearly stated in your quotation. All units pass our quality inspection process.
Q: What is the typical lead time for this part?
A: For in-stock units, we typically ship within 1–3 business days. For sourced units, lead time is 5–15 business days depending on your location. Contact us for current availability.
Q: Can I order a single unit, or is there a minimum order quantity?
A: We accept orders for single units as well as bulk quantities. There is no minimum order quantity for standard inquiries.
Q: Is this module still in production by Siemens?
A: The SIMATIC S7-200 series has been discontinued by Siemens. However, Konmask.com maintains access to genuine surplus and new-old-stock inventory to support customers with existing S7-200 installations.
