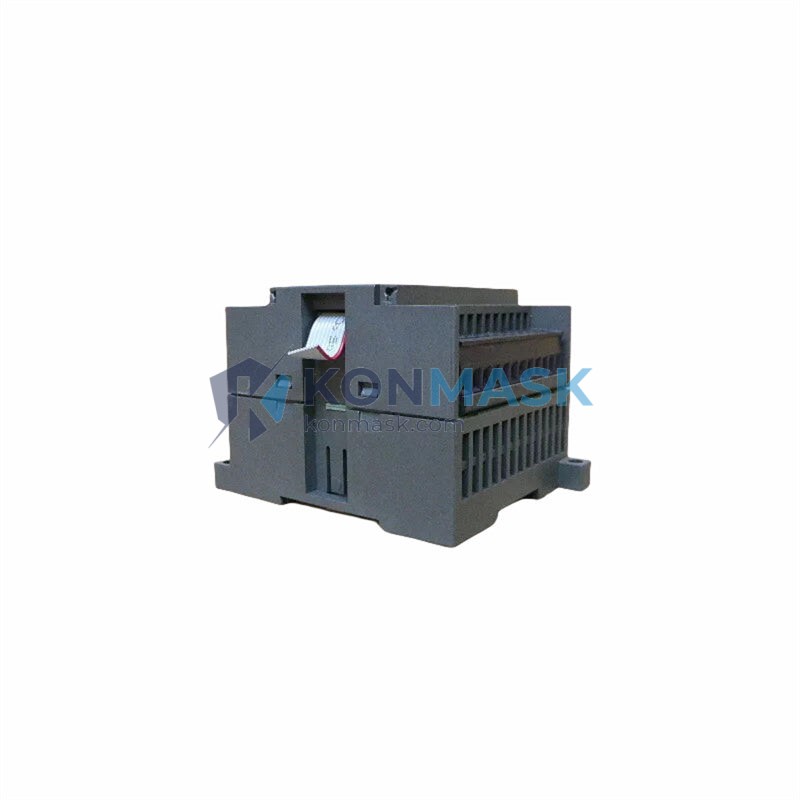

Siemens 6ES7253-1AA22-0XA0 Positioning Expansion Module – SIMATIC S7-200 EM 253 Series
Imagine a high-speed packaging line suddenly losing precise axis control — products misaligned, rejects piling up, and production halted while engineers scramble to diagnose the fault. In motion-critical industrial environments, a single failed positioning module can cascade into hours of costly downtime. The Siemens 6ES7253-1AA22-0XA0 eliminates that risk by delivering dedicated, hardware-level positioning control directly integrated with your S7-200 CPU — keeping your axes synchronized and your line running.
The 6ES7253-1AA22-0XA0, also known as the EM 253 Position Control Module, is the purpose-built positioning expansion for the Siemens SIMATIC S7-200 compact PLC family. Within the S7-200 ecosystem, the EM 253 occupies a unique role: it offloads all pulse-train generation and position tracking from the CPU, enabling smooth, high-resolution stepper motor and open-loop servo drive control without burdening the main scan cycle. Globally, the S7-200 series has been deployed in millions of machines across packaging, textile, printing, and material handling — and the EM 253 remains the definitive positioning solution for this platform.
Technical Specifications
- Part Number: 6ES7253-1AA22-0XA0
- Series: SIMATIC S7-200 EM 253 Position Control Module
- Manufacturer: Siemens AG
- Module Type: Positioning Expansion Module (Open-Loop)
- Pulse Output: High-speed pulse train output for stepper / open-loop servo drives
- Reference Input: Supports reference point (home) switch input
- Limit Inputs: Hardware limit switch inputs (positive & negative travel limits)
- Interface: Direct expansion bus connection to S7-200 CPU
- Configuration: Via STEP 7-Micro/WIN Position Control Wizard
- Weight: 4,460 g (module with packaging)
- Compatibility: SIMATIC S7-200 CPU 221, 222, 224, 224XP, 226
Note: All specifications are based on Siemens official documentation. Do not rely on third-party sources for safety-critical parameters.
Key Features & Benefits
- Dedicated Positioning Processor: Offloads pulse generation from the S7-200 CPU, ensuring deterministic motion control independent of PLC scan time.
- Seamless Wizard-Based Configuration: The STEP 7-Micro/WIN Position Control Wizard guides engineers through axis setup, eliminating complex manual programming.
- Hardware Limit & Home Switch Inputs: Built-in hardware inputs for travel limits and reference point detection ensure safe, repeatable homing cycles.
- Open-Loop Stepper & Servo Compatibility: Works with a wide range of stepper drivers and open-loop servo amplifiers, maximizing drive selection flexibility.
- Compact DIN-Rail Form Factor: Snaps directly onto the S7-200 expansion bus — no additional wiring harness required.
- Proven Global Installed Base: Millions of EM 253 modules deployed worldwide in OEM machinery, providing a deep pool of application knowledge and spare parts availability.
Industry & Equipment Applications
- Packaging Machinery: Servo-driven film feeders, form-fill-seal machines, and case erectors requiring precise cut-length and registration control.
- Textile & Printing Equipment: Stepper-driven fabric feeders, label applicators, and web tension control systems.
- Material Handling: Conveyor indexing, pick-and-place gantries, and automated storage/retrieval positioning.
- CNC Retrofit Projects: Upgrading legacy machine tools with modern PLC-based positioning without replacing the entire control cabinet.
- Assembly Automation: Rotary indexing tables, screw-driving stations, and press-fit assembly cells requiring repeatable positioning.
System Integration & Compatible Parts
The 6ES7253-1AA22-0XA0 integrates directly with the following Siemens SIMATIC S7-200 components:
- Compatible CPUs: 6ES7214-1BD23-0XB0 (CPU 224), 6ES7214-2BD23-0XB0 (CPU 224XP), 6ES7216-2BD23-0XB0 (CPU 226)
- Programming Software: STEP 7-Micro/WIN V4.0 SP9 or later (Position Control Wizard required)
- Expansion Cables: 6ES7290-6AA20-0XA0 (if remote expansion is required)
- Power Supplies: 6EP1332-1SH43 (SITOP PSU100S 24V/5A) for stable 24 VDC supply
- Drive Compatibility: Any stepper driver or open-loop servo amplifier accepting pulse/direction (P/D) or CW/CCW pulse input signals
Our Quality Assurance Process
At Konmask.com, every Siemens module undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Label inspection, hologram check, and cross-reference against Siemens factory serial number databases.
- Visual & Physical Inspection: Connector integrity, PCB condition, and housing inspection to detect any signs of refurbishment or damage.
- Functional Pre-Test: Where applicable, modules are bench-tested on compatible S7-200 hardware to confirm communication and basic operation.
- ESD-Safe Packaging: All modules are shipped in anti-static bags with foam cushioning to prevent transit damage.
- Traceability: Full documentation of sourcing chain available upon request for regulated industries.
How to Order
- Submit your inquiry via the Contact / Request a Quote button on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and shipping options within 24 business hours.
- Upon agreement, we issue a proforma invoice and arrange secure payment via T/T, L/C, or other agreed terms.
- Modules are dispatched with full tracking and export documentation (commercial invoice, packing list, COO).
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and automation hardware — not a generalist electronics distributor.
- Global B2B Supply: Serving OEMs, system integrators, and MRO teams across Europe, Southeast Asia, the Middle East, and the Americas.
- Technical Pre-Sales Support: Our engineers can advise on compatibility, firmware versions, and system integration before you commit to a purchase.
- Fast Quotation: Most inquiries receive a detailed quote within 24 hours.
- Secure Export Compliance: All shipments comply with applicable export regulations with full documentation.
Frequently Asked Questions
- Q: Is the 6ES7253-1AA22-0XA0 compatible with S7-200 SMART CPUs?
- A: No. The EM 253 is designed exclusively for the classic SIMATIC S7-200 series. The S7-200 SMART uses a different expansion bus and its own motion control modules (e.g., EM AX8).
- Q: Can this module control a closed-loop servo system?
- A: The 6ES7253-1AA22-0XA0 provides open-loop pulse/direction output. Closed-loop position feedback (encoder) is managed by the servo drive itself, not by this module. For true closed-loop PLC control, consider the S7-1200 with TO (Technology Object) axis functions.
- Q: What is the maximum pulse output frequency?
- A: Please refer to the official Siemens EM 253 manual (6ES7253-1AA22-0XA0) for the rated maximum pulse frequency, as this parameter must be confirmed from the official datasheet for your specific firmware version.
- Q: Do you provide a warranty on this module?
- A: Yes. Konmask.com provides a quality guarantee on all modules. Specific warranty terms are confirmed at the time of quotation based on module condition (new, surplus, or refurbished).
- Q: Can you supply multiple units for a production line retrofit?
- A: Yes. We regularly supply bulk quantities for OEM production and MRO stocking programs. Contact us with your volume requirements for preferential pricing.
