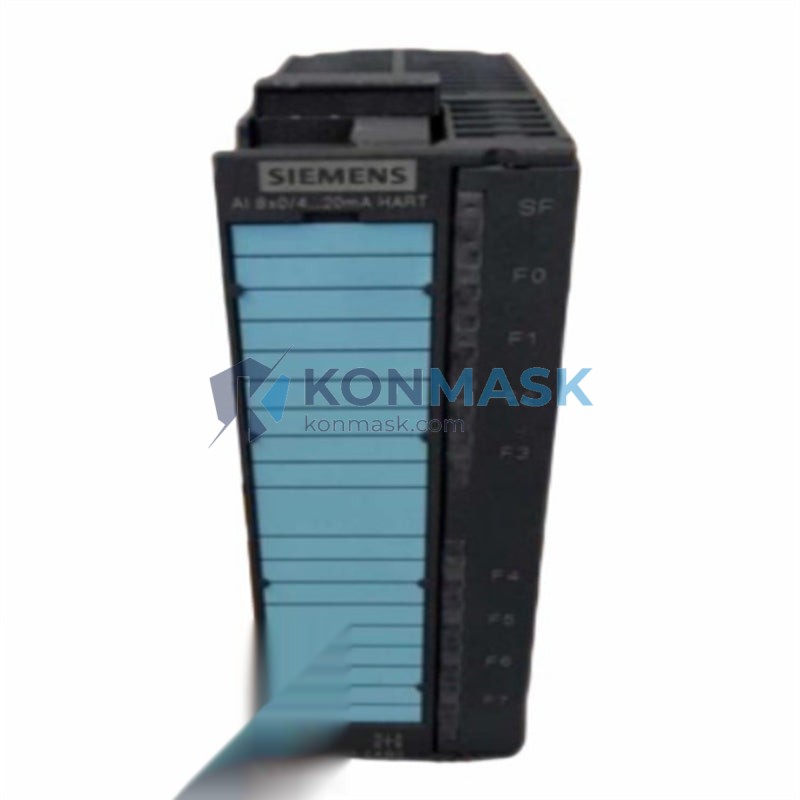

SIEMENS 6ES7331-7TF01-0AB0 – 8-Channel High-Accuracy Analog Input Module | SIMATIC S7-300 Platform
Engineering Background
The SIMATIC S7-300 series remains one of the most widely deployed modular PLC platforms in global industrial automation. Designed for mid-range to high-performance control tasks, the S7-300 rack architecture supports seamless integration of signal modules (SM), function modules (FM), and communication processors (CP). The SM 331 family of analog input modules is the backbone of precision process measurement within this ecosystem.
Product Positioning
The 6ES7331-7TF01-0AB0 is an SM 331 series 8-channel analog input module engineered for applications demanding high-resolution, multi-range signal acquisition. It supports thermocouple, RTD, voltage, and current inputs simultaneously across its channels, making it the preferred choice for process engineers who require flexible, high-accuracy measurement in a single slot. Konmask.com supplies this module from verified OEM and authorized-distributor channels, with full traceability documentation available on request.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7331-7TF01-0AB0 |
| Product Family | SIMATIC S7-300 SM 331 |
| Module Type | Analog Input Module (SM 331) |
| Number of Analog Inputs | 8 channels (configurable in groups of 2) |
| Input Signal Types | Voltage (±80 mV to ±10 V), Current (0–20 mA / 4–20 mA), Thermocouple (Type B/C/E/J/K/L/N/R/S/T/U), RTD (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000) |
| Resolution | Up to 15 bits + sign (high-accuracy mode) |
| Conversion Time per Channel | Min. 52 ms (all 8 channels active, 50 Hz integration) |
| Measurement Principle | Integrating (sigma-delta ADC) |
| Isolation | Galvanically isolated between channels and backplane bus |
| Supply Voltage (Load) | DC 24 V (20.4–28.8 V) |
| Current Consumption (Backplane Bus) | Max. 80 mA |
| Power Dissipation | Max. 2.0 W |
| Operating Temperature | 0 °C to +60 °C (horizontal), 0 °C to +40 °C (vertical) |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10–95% (non-condensing) |
| Degree of Protection | IP 20 |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Weight | Approx. 200 g |
| Certifications | CE, UL, cUL, FM, ATEX (Zone 2), IECEx |
| Compatible CPUs | All S7-300 CPUs (312 to 319), ET 200M via IM 153 |
| Firmware | Parameterizable via STEP 7 / TIA Portal (HW Config) |
Proven Application Environments
- Process Industry: Temperature profiling in chemical reactors, distillation columns, and heat exchangers using thermocouple/RTD inputs.
- Energy & Utilities: Current-loop (4–20 mA) monitoring of flow transmitters, pressure transducers, and level sensors in water treatment and power generation.
- Automotive Manufacturing: Multi-zone temperature control in paint-shop ovens and press-hardening lines requiring simultaneous multi-type input acquisition.
- Food & Beverage: Hygienic process monitoring with Pt100 RTD sensors in CIP/SIP systems and pasteurization tunnels.
- Oil & Gas: ATEX Zone 2 certified installations for wellhead monitoring and pipeline SCADA integration via ET 200M remote I/O.
- Building Automation: HVAC control loops integrating voltage and current signals from mixed-vendor sensor arrays.
Engineering Advantages
- Universal Multi-Type Input: A single module handles voltage, current, TC, and RTD simultaneously — eliminating the need for separate signal conditioning hardware and reducing panel footprint.
- High-Resolution Sigma-Delta ADC: 15-bit + sign resolution ensures accurate measurement of low-level thermocouple signals (±80 mV range) without external amplification.
- Per-Channel Galvanic Isolation: Prevents ground loops and protects the CPU backplane from field-side transients — critical in electrically noisy industrial environments.
- Flexible Integration Time: Selectable 50 Hz / 60 Hz noise rejection filter adapts to local power grid frequency, suppressing interference at the source.
- STEP 7 & TIA Portal Compatible: Full parameterization via HW Config — no DIP switches, no manual range jumpers. Channel-level diagnostics (wire-break, overflow, underflow) reported directly to the CPU.
- Scalable Architecture: Supports up to 8 modules per S7-300 rack and remote deployment via ET 200M with IM 153-x interface modules.
System Architecture & Signal Flow
The 6ES7331-7TF01-0AB0 occupies a standard S7-300 signal module slot and communicates with the CPU via the S7-300 backplane bus (P-bus + K-bus). Signal flow is as follows:
- Field Wiring → 20-pin front connector: Sensors connect via the removable 20-pin screw terminal front connector (included). Channels are wired in pairs sharing a common reference.
- Input Multiplexer: An internal analog multiplexer sequentially routes each channel to the sigma-delta ADC for conversion.
- Sigma-Delta ADC: Performs high-resolution conversion with selectable integration time (16.7 ms / 20 ms per channel at 60/50 Hz).
- Galvanic Isolation Barrier: Optocoupler/transformer isolation separates field-side signals from the backplane logic.
- Backplane Bus Interface: Converted digital values are transferred to the CPU process image input (PII) area and are accessible in STEP 7 / TIA Portal as standard analog input words (PIW addresses).
- Diagnostics: Wire-break detection (for current inputs and RTD/TC in 4-wire mode), overflow/underflow flags, and module fault bits are reported via the diagnostic buffer and can trigger OB82 interrupt routines.
Sourcing & Quality Verification
- Origin: Sourced from Siemens authorized distributors and verified OEM channels. Each unit is inspected for authentic labeling, firmware version consistency, and physical integrity before dispatch.
- Traceability: Batch documentation and country-of-origin certificates available upon request for regulated industries (pharmaceutical, nuclear, defense).
- Condition: New-in-box (NIB) stock available. Refurbished/tested units clearly labeled with full test reports. No gray-market or counterfeit product is knowingly stocked.
- Warranty: 12-month Konmask warranty on all units. Siemens OEM warranty honored on NIB stock where applicable.
- Anti-Counterfeit: Customers are encouraged to verify the module’s MLFB (order number) and firmware version via STEP 7 online diagnostics upon receipt. Discrepancies should be reported immediately.
Procurement Process
- Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp/phone at +0086 19859288691. Include required quantity, delivery timeline, and destination country.
- Quotation: Konmask responds within 1 business day with pricing (HKD/USD), lead time, and available stock condition (NIB / refurbished).
- Order Confirmation: Purchase order or proforma invoice issued. Payment terms: T/T, PayPal, or Shopify checkout (credit card / Shop Pay).
- Quality Inspection & Packing: Each module is inspected, photographed, and packed in anti-static ESD packaging with foam protection.
- Shipping: DHL / FedEx / UPS express worldwide. Export documentation (commercial invoice, packing list, COO) provided. HS Code: 8537.10 (programmable controllers).
- After-Sales: Technical support available for installation, STEP 7 parameterization, and fault diagnosis. Warranty claims processed within 5 business days.
Technical FAQ
Q: Can the 6ES7331-7TF01-0AB0 measure thermocouples and RTDs simultaneously on different channels?
A: Yes. Each pair of channels (CH0–1, CH2–3, etc.) is independently configurable for input type and range via STEP 7 HW Config. Different channel groups can be set to different measurement types simultaneously.
Q: What is the maximum number of this module per S7-300 rack?
A: Up to 8 signal modules per rack. With ET 200M expansion, additional racks can be added via PROFIBUS DP or PROFINET, each supporting up to 8 SM slots.
Q: Is this module compatible with TIA Portal?
A: Yes. The 6ES7331-7TF01-0AB0 is fully supported in TIA Portal V13 SP1 and later via the HSP (Hardware Support Package) for S7-300. Parameterization is identical to STEP 7 V5.x.
Q: Does the module support HART communication?
A: No. The SM 331 7TF01 does not support HART pass-through. For HART-enabled analog input, refer to the 6ES7331-7HF01-0AB0 (SM 331 HART variant).
Q: What happens if a sensor wire breaks?
A: For current inputs (4–20 mA) and RTD/TC in 4-wire mode, the module detects wire-break conditions and sets the corresponding channel to overflow/underflow status. An OB82 diagnostic interrupt is triggered at the CPU, and the fault is logged in the diagnostic buffer.
Q: Can I use this module in a Zone 2 hazardous area?
A: The module itself is IP20 and not rated for direct Zone 2 installation. However, it can be used in a Zone 2 system when installed in a purged/pressurized enclosure or when paired with certified Zener barriers or galvanic isolators on the field side, per ATEX/IECEx system certification requirements.
