Genuine SIEMENS 6ES7313-5BE01-0AB0 SIMATIC S7-300 - Industrial Automation Part

SIEMENS 6ES7313-5BE01-0AB0 Compact Controller | S7-300 CPU

SKU: 6ES7313-5BE01-0AB0 Category: Siemens

Description

Machine Automation Solution – SIEMENS 6ES7313-5BE01-0AB0 | S7-300 Series

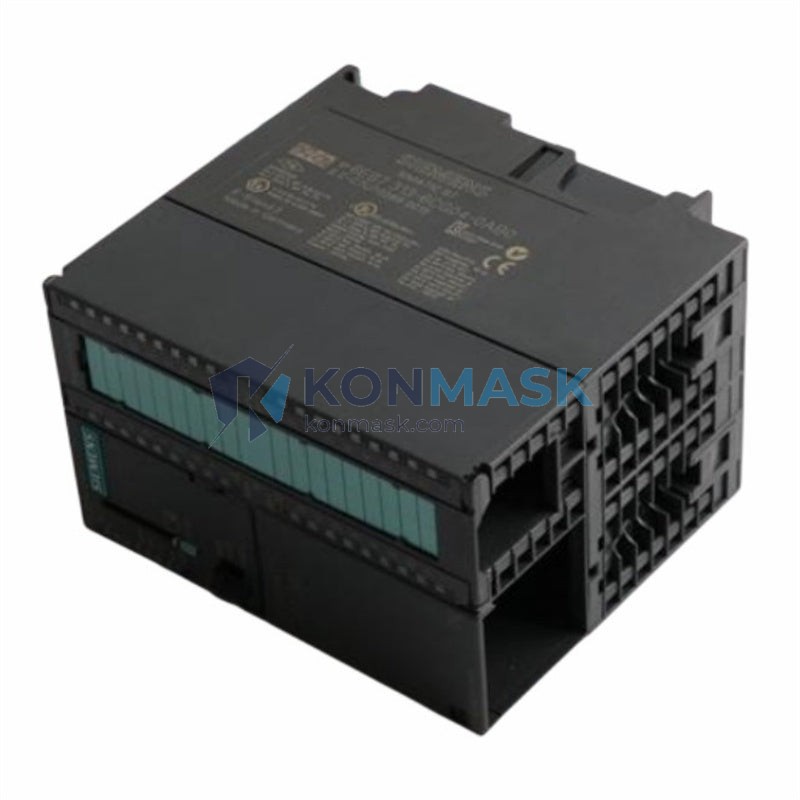

The SIEMENS 6ES7313-5BE01-0AB0 is a compact CPU module from the SIMATIC S7-300 family, engineered for standalone machine control and mid-range automation tasks. With integrated I/O, onboard MPI/DP interface, and a proven STEP 7 programming environment, this controller delivers deterministic performance in demanding industrial environments.

Where This Product Is Used

Engineers and system integrators deploy the 6ES7313-5BE01-0AB0 across a wide range of industrial applications:

Conveyor & Material Handling Systems — Precise sequencing and speed control for belt conveyors, sorting lines, and palletizers.
Packaging Machinery — Coordinating filling, sealing, labeling, and reject stations with deterministic cycle times.
Injection Molding & Plastics — Closed-loop temperature and pressure control integrated with machine safety interlocks.
Water & Wastewater Treatment — Pump station automation, level control, and SCADA integration via MPI/PROFIBUS DP.
Building Automation & HVAC — Chiller sequencing, AHU control, and BMS gateway applications.
Food & Beverage Processing — Hygienic-area machine control with recipe management and batch logging.
Automotive Assembly Lines — Fixture control, torque monitoring, and station interlocking in body-in-white and trim lines.

Technical Specifications

Part Number: 6ES7313-5BE01-0AB0
Series: SIMATIC S7-300
CPU Type: CPU 313C (Compact Controller with integrated I/O)
Work Memory: 32 KB
Integrated Digital Inputs: 24 × DI (24 V DC)
Integrated Digital Outputs: 16 × DO (24 V DC, 0.5 A)
Integrated Analog Inputs: 4 × AI (0–10 V / 0–20 mA)
Integrated Analog Outputs: 2 × AO (0–10 V / 0–20 mA)
Counting Inputs: 3 × 30 kHz high-speed counters
Communication Interface: MPI (187.5 kbps) + PROFIBUS DP (12 Mbps)
Programming Software: SIMATIC STEP 7 V5.x / TIA Portal (via migration)
Supply Voltage: 24 V DC
Operating Temperature: 0 °C to +60 °C
Protection Rating: IP20
Dimensions (W×H×D): 80 × 125 × 130 mm
Weight: approx. 700 g
Mounting: DIN rail (S7-300 standard)

Why Engineers Specify This Model

All-in-One Footprint — Integrated I/O eliminates the need for a separate SM module in small-to-mid machine panels, reducing cabinet space and wiring cost.
Proven S7-300 Ecosystem — Compatible with the full range of S7-300 signal modules, function modules, and communication processors, enabling modular expansion as requirements grow.
Dual-Port Communication — Simultaneous MPI and PROFIBUS DP connectivity supports HMI, programming device, and distributed I/O on a single CPU without additional CPs.
High-Speed Counting — Three onboard 30 kHz counters handle encoder feedback and frequency measurement without dedicated FM modules.
Long Field Track Record — The S7-300 platform has been deployed globally since the 1990s; spare parts, trained technicians, and legacy programs are widely available.
Deterministic Scan Cycle — Suitable for time-critical control loops where consistent response time is a design requirement.

Complete System Bill of Materials

A typical standalone machine panel built around the 6ES7313-5BE01-0AB0 includes:

Power Supply: SIEMENS 6ES7307-1BA01-0AA0 (PS 307, 2 A, 24 V DC)
CPU (this unit): 6ES7313-5BE01-0AB0
Memory Card (optional): 6ES7953-8LF31-0AA0 (MMC 4 MB)
Digital I/O Expansion (if needed): 6ES7321-1BL00-0AA0 (SM 321, 32 × DI) / 6ES7322-1BL00-0AA0 (SM 322, 32 × DO)
Analog I/O Expansion (if needed): 6ES7331-7KF02-0AB0 (SM 331, 8 × AI)
DIN Rail & Bus Connectors: 6ES7390-1AE80-0AA0 (480 mm rail) + 6ES7390-0AA00-0AA0 connectors
HMI (recommended): SIEMENS 6AV2123-2DB03-0AX0 (KTP400 Basic, 4″ touch panel)
Programming Cable: 6GK1571-0BA00-0AA0 (PC Adapter USB)

Compliance & Industry Standards

CE Marking — EU Low Voltage Directive & EMC Directive compliant
UL Listed — UL 508 (Industrial Control Equipment)
IEC 61131-2 — Programmable Controllers Hardware Standard
PROFIBUS DP — IEC 61158 / EN 50170 compliant
RoHS Directive 2011/65/EU compliant
ATEX / IECEx — Not rated for Zone 0/1; use appropriate barriers for hazardous area installations

Quality Assurance & Sourcing

Konmask.com sources the 6ES7313-5BE01-0AB0 exclusively through verified industrial distribution channels. Every unit undergoes the following before dispatch:

Visual inspection for label authenticity, hologram integrity, and housing condition
Firmware version verification against SIEMENS official release records
Functional power-on test with STEP 7 diagnostic readout
Anti-static packaging with humidity indicator card
Batch traceability documentation available on request

We do not list, sell, or knowingly handle counterfeit or refurbished-as-new components. If a unit fails to meet specification upon receipt, we provide replacement or full refund under our standard warranty policy.

How to Source This Part

In-Stock Orders: Add to cart and complete checkout — standard lead time 1–3 business days for domestic CN shipments.
Bulk / Project Quantities: Contact support@konmask.com for volume pricing and project BOM support.
Urgent Requirements: Call +0086 19859288691 for same-day quotation on critical spares.
Cross-Reference / Replacement: If you are replacing a 6ES7313-5BE00-0AB0 (earlier firmware revision), the 5BE01 is a direct drop-in replacement with no hardware modification required.
Export / International: We support cross-border shipments with full commercial invoice and HS code documentation (HS 8537.10).

Application-Specific FAQ

Q: Can the 6ES7313-5BE01-0AB0 run without an MMC memory card?
A: Yes — the CPU has internal load memory sufficient for small programs. However, an MMC is required to retain the program after a power cycle without a battery backup. For production machines, an MMC is strongly recommended.

Q: Is this CPU compatible with TIA Portal?
A: The 6ES7313-5BE01-0AB0 is natively programmed with SIMATIC STEP 7 V5.x. TIA Portal supports S7-300 CPUs via the “Classic” project type, but full TIA Portal integration requires migration. For new projects, consider the S7-1500 family.

Q: What is the maximum number of I/O modules that can be connected?
A: Up to 8 signal modules per rack, with a maximum of 4 racks (using IM 360/361 interface modules), giving up to 32 modules total.

Q: Can I use this CPU for motion control applications?
A: The onboard 30 kHz counters support basic positioning via software. For multi-axis coordinated motion, a dedicated FM 353/354 function module or an S7-1500T CPU is recommended.

Q: What is the difference between 6ES7313-5BE00-0AB0 and 6ES7313-5BE01-0AB0?
A: The -5BE01 is a later firmware revision of the -5BE00. Both are hardware-compatible; the -5BE01 includes minor firmware improvements and is the current shipping revision.

Q: Does Konmask provide programming or commissioning support?
A: We supply hardware only. For STEP 7 programming services or on-site commissioning, we can refer you to certified SIEMENS Solution Partners in your region.
