S7-300 Signal Module Wiring Solution – SIEMENS 6ES7392-1AJ00-0AA0 | S7-300 Series

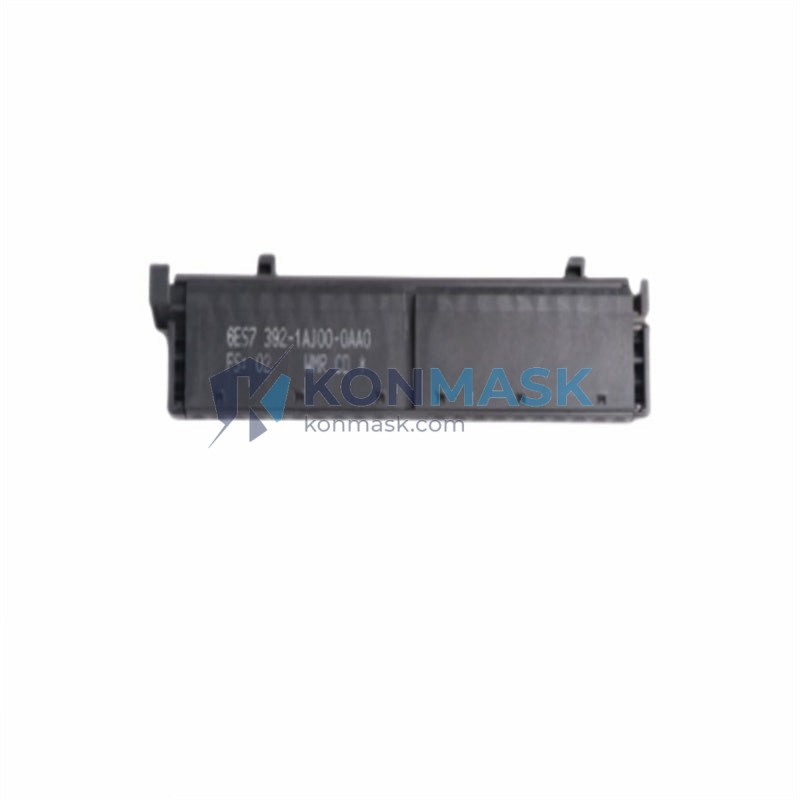

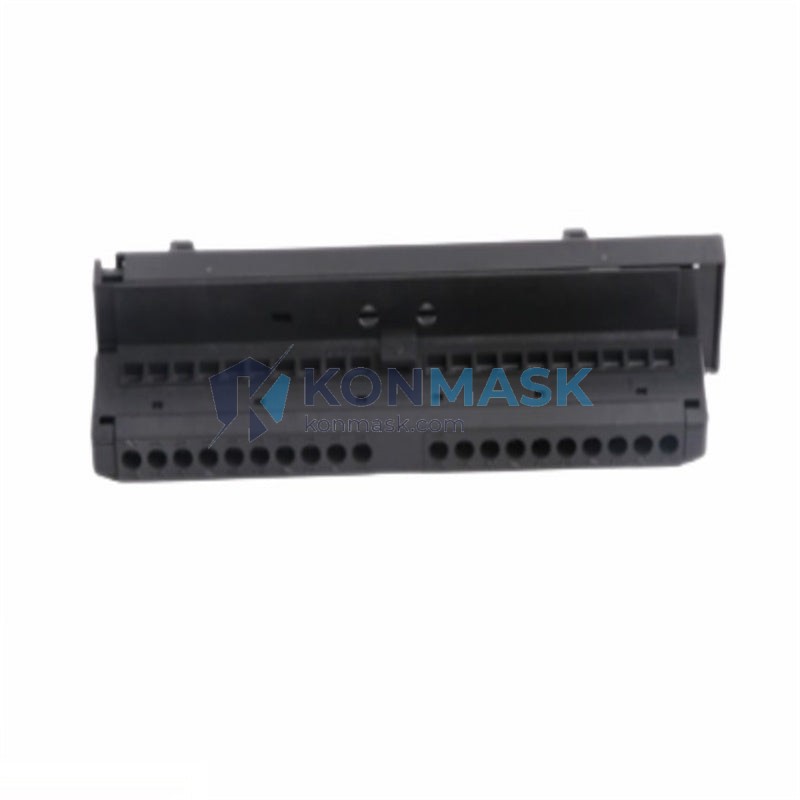

The Siemens 6ES7392-1AJ00-0AA0 is the standard 20-pin screw-type front connector for the Siemens SIMATIC S7-300 PLC signal module family. It is the essential field-wiring interface between your process I/O cables and the S7-300 SM (Signal Module) — enabling clean, reliable, and maintainable connections in panel-build and retrofit projects alike. Konmask.com supplies this connector as a verified OEM component with full traceability.
Where This Product Is Used
- S7-300 Digital Input Modules (SM 321) — Terminating field sensor cables (proximity switches, pushbuttons, limit switches) to DI modules such as 6ES7321-1BH02-0AA0
- S7-300 Digital Output Modules (SM 322) — Connecting actuator wiring (solenoid valves, contactors, indicator lamps) to DO modules such as 6ES7322-1BH01-0AA0
- S7-300 Analog Input/Output Modules (SM 331 / SM 332) — Terminating 4–20 mA transmitter loops and analog actuator signals with screw-type reliability
- Panel Build & System Integration — Standard connector used by panel builders for new S7-300 control cabinet assemblies across all industries
- MRO & Spare Parts Stocking — Maintenance engineers stock this connector as a critical spare to enable rapid module swap-out without rewiring field cables
- Retrofit & Upgrade Projects — Replacing worn or damaged connectors on existing S7-300 installations without disturbing field wiring (cable stays on connector; module is swapped)
Technical Specifications
| Part Number | 6ES7392-1AJ00-0AA0 |
| Manufacturer | Siemens AG |
| Product Family | SIMATIC S7-300 |
| Connector Type | Front connector, screw-type terminals |
| Number of Pins | 20-pin (for 16-channel or 8-channel SM modules) |
| Terminal Type | Screw terminals (cage clamp not included in this variant) |
| Conductor Cross-Section | 0.25 – 1.5 mm² (AWG 24–16) |
| Rated Voltage | Up to 250 V AC/DC |
| Rated Current per Terminal | Up to 10 A |
| Compatible Module Width | 40 mm (standard S7-300 SM width) |
| Mounting | Snap-on to front of S7-300 signal module |
| Labeling | Integrated label strip holder for terminal identification |
| Protection Rating | IP20 (installed in panel) |
| Operating Temperature | 0 °C to +60 °C |
| Weight | Approx. 60 g |
| Siemens MLFB | 6ES7392-1AJ00-0AA0 |
Note: Always verify compatibility against the specific S7-300 signal module MLFB. Refer to the Siemens S7-300 Module Data manual (A5E00105505) for full wiring diagrams.
Why Engineers Specify This Model
- Module-Independent Field Wiring — Field cables terminate on the connector, not the module. When a module fails, swap the module and re-plug the connector — zero rewiring, minimal downtime
- Screw-Type Terminals for Industrial Reliability — Vibration-resistant screw terminations preferred in heavy industry, machine tools, and process plants over spring-cage alternatives for permanent installations
- Integrated Cable Strain Relief — Built-in cable clamp bar prevents terminal pull-out under cable weight or vibration — critical in vertical panel layouts
- Label Strip Holder — Accepts standard Siemens terminal labels for clear, auditable I/O identification — mandatory in CE-compliant panel documentation
- Genuine Siemens OEM Part — Ensures dimensional fit, terminal torque compliance, and UL/CE certification continuity for the complete S7-300 assembly
- Long-Term Availability — S7-300 installed base exceeds millions of units globally; Siemens continues to supply this connector for MRO support
Complete System Bill of Materials
A typical S7-300 digital I/O station requires the following components alongside the 6ES7392-1AJ00-0AA0:
- CPU Module — e.g., 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP) or equivalent S7-300 CPU
- Signal Module (SM) — e.g., 6ES7321-1BH02-0AA0 (SM 321, 16 DI × 24 V DC) — the host module for this connector
- Front Connector (this item) — 6ES7392-1AJ00-0AA0 (20-pin screw-type, 1× per SM module)
- DIN Rail — 35 mm standard DIN rail (EN 60715) for S7-300 rack mounting
- Bus Connector — 6ES7390-0AA00-0AA0 (required between each module on the rack)
- Power Supply Module — e.g., 6ES7307-1EA01-0AA0 (PS 307, 5 A) for 24 V DC rail supply
- Shielded I/O Cable — Appropriate cross-section per signal type (0.5–1.5 mm² typical)
Contact Konmask.com to source complete S7-300 station BOMs — we supply CPUs, SMs, PSUs, and accessories from verified stock.
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage Directive and EMC Directive as part of the SIMATIC S7-300 system
- UL Listed — UL 508 (Industrial Control Equipment) listing applicable to S7-300 system components
- IEC 61131-2 — S7-300 system (including connectors) designed to IEC 61131-2 PLC hardware standard
- EN 60715 — DIN rail mounting compatibility per European standard
- RoHS Compliant — Restriction of Hazardous Substances compliant per EU Directive 2011/65/EU
Quality Assurance & Sourcing
- OEM Origin — Sourced through authorized Siemens distribution channels or verified secondary market with full inspection protocol
- Pre-Shipment Inspection — Visual inspection of housing integrity, terminal condition, and Siemens MLFB label authenticity before dispatch
- Functional Check — Connector latch mechanism and terminal screw torque verified prior to packaging
- Anti-Static Packaging — Shipped in protective packaging to prevent ESD damage and mechanical stress in transit
- Documentation on Request — Siemens datasheet, EU Declaration of Conformity, and Certificate of Conformity available for all shipped units
- Counterfeit Mitigation — Konmask.com applies Siemens genuine product identification checks: hologram label, MLFB format, housing markings, and terminal quality
How to Source This Part
- Confirm MLFB — Verify 6ES7392-1AJ00-0AA0 matches your S7-300 signal module type (20-pin screw-type for standard 40 mm SM modules)
- Check Quantity — One connector required per signal module; confirm total count against your rack BOM
- Contact Konmask.com — Email or call to confirm current stock, lead time, and volume pricing
- Submit RFQ — Provide quantity, delivery address, and required date for accurate freight and customs quotation
- Review Proforma Invoice — PI issued within 1 business day with unit price, freight cost, and payment terms
- Payment & Dispatch — T/T bank transfer or agreed trade terms; dispatch within 1–3 business days of payment confirmation
- Shipment Tracking — DHL / FedEx / SF Express tracking provided; full customs documentation for international orders
Application-Specific FAQ
Q: Is the 6ES7392-1AJ00-0AA0 compatible with all S7-300 signal modules?
A: It is compatible with standard 40 mm wide S7-300 SM modules (SM 321, SM 322, SM 331, SM 332 series). Some specialty modules use different connector types — always verify against the specific module’s datasheet.
Q: What is the difference between 6ES7392-1AJ00-0AA0 and 6ES7392-1BJ00-0AA0?
A: The -1AJ00 variant uses screw-type terminals; the -1BJ00 variant uses spring-cage (cage clamp) terminals. Both are 20-pin. Selection depends on your panel wiring standard and preference for screw vs. tool-free termination.
Q: Can I reuse the connector when replacing a failed signal module?
A: Yes — this is the primary design intent. Field wiring stays on the connector. Remove the connector from the failed module, install the replacement module, and re-plug the connector. No rewiring required.
Q: How many connectors do I need for a full S7-300 rack?
A: One connector per signal module (SM). A standard S7-300 rack supports up to 8 SMs, so a fully populated rack requires up to 8 × 6ES7392-1AJ00-0AA0 connectors (plus the CPU, which does not use this connector type).
Q: Does Konmask.com supply the matching label strips for terminal identification?
A: Yes. Siemens-compatible label strips for S7-300 front connectors are available — contact us when placing your order to include them in the shipment.
