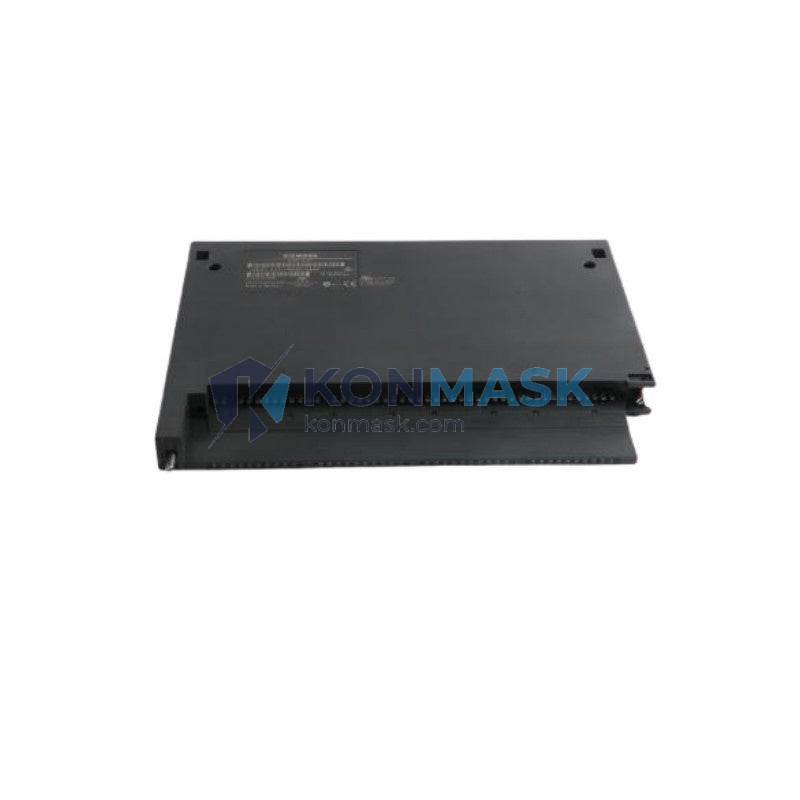

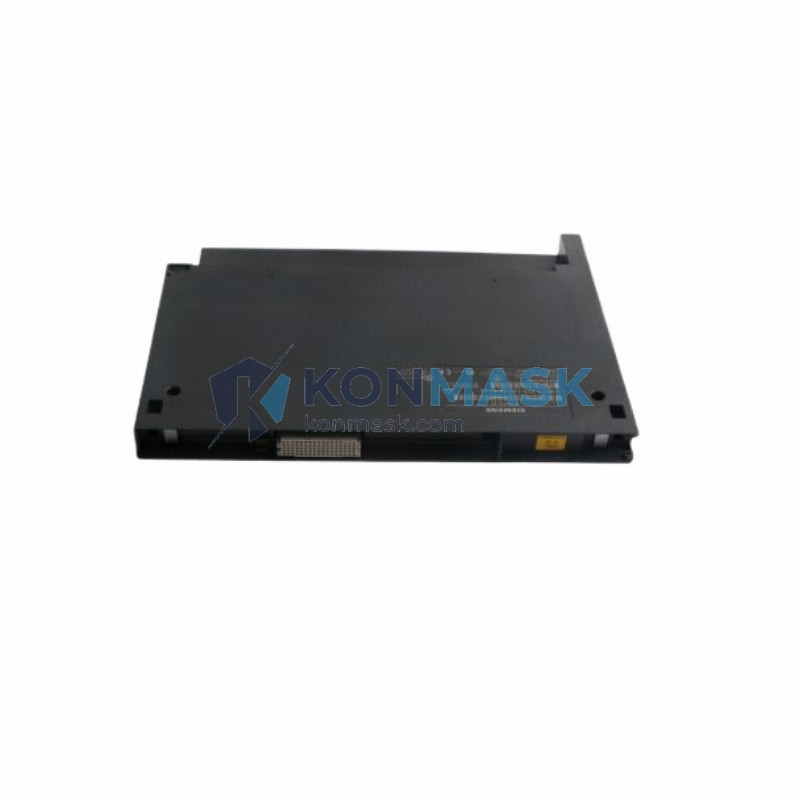

Genuine SIEMENS 6ES7422-1BL00-0AB0 Digital Output Module | S7-400 Series – Verified Source
The SIEMENS SIMATIC S7-400 6ES7422-1BL00-0AB0 is a 32-channel 24 VDC digital output module designed for demanding industrial automation environments. Sourced through verified supply channels, every unit sold by Konmask.com undergoes a documented multi-step inspection process before dispatch — giving B2B buyers the confidence they need when specifying critical control-system components.
Technical Specifications
- Part Number: 6ES7422-1BL00-0AB0
- Series: SIMATIC S7-400
- Module Type: Digital Output (DO)
- Number of Outputs: 32 channels
- Output Voltage: 24 VDC
- Output Current per Channel: 0.5 A
- Total Current (all channels): 4 A
- Isolation: Optocoupler isolation between channels and backplane bus
- Backplane Bus: S7-400 P-bus / K-bus compatible
- Dimensions (W × H × D): 25 mm × 290 mm × 210 mm
- Weight: approx. 380 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Protection Class: IP20
- Certifications: CE, UL, cULus
Our 4-Step Quality Verification Process
Every 6ES7422-1BL00-0AB0 unit shipped from Konmask.com passes through the following documented inspection stages:
- Step 1 — Source Authentication: Module origin is traced to authorised distributor invoices or OEM factory documentation. Counterfeit indicators (label fonts, hologram integrity, PCB markings) are cross-checked against SIEMENS reference samples.
- Step 2 — Visual & Mechanical Inspection: Housing, connector pins, front-panel labelling, and firmware version stickers are inspected under magnification for signs of refurbishment, re-marking, or physical damage.
- Step 3 — Functional Power-On Test: The module is seated in a live S7-400 rack and all 32 output channels are exercised via STEP 7 / TIA Portal diagnostic routines. Fault LEDs, channel response times, and bus communication are logged.
- Step 4 — Packaging & Documentation Seal: Passed units are resealed in anti-static ESD packaging with a Konmask inspection certificate, serial number record, and test-date stamp enclosed.
Key Features & Benefits
- 32 individually addressable 24 VDC output channels — maximises I/O density per rack slot
- Optocoupler isolation protects the CPU and backplane from field-side voltage transients
- Diagnostic interrupt capability enables real-time fault detection without halting the PLC scan cycle
- Hot-swap compatible within S7-400 UR1/UR2 universal racks (with appropriate CPU configuration)
- Compact 25 mm single-width form factor preserves valuable rack space in panel-constrained installations
- Fully compatible with STEP 7 v5.x and TIA Portal V13 and above for seamless engineering
Typical Applications
- Discrete actuator control in automotive body-shop and press-line automation
- Valve and solenoid sequencing in chemical and pharmaceutical batch processes
- Conveyor drive enable/disable logic in logistics and warehousing systems
- Motor starter and contactor control in water/wastewater treatment plants
- Safety-rated output expansion in redundant S7-400H high-availability configurations
- Building management and HVAC control panels requiring high channel-count DO modules
Compatible System Components
- Racks: UR1 (18-slot), UR2 (9-slot), ER1/ER2 expansion racks
- Power Supplies: PS 405 (4 A / 10 A), PS 407 (4 A / 10 A / 20 A)
- CPUs: CPU 412, CPU 414, CPU 416, CPU 417, CPU 412H / 414H / 417H (redundant)
- Front Connectors: 6ES7492-1AL00-0AA0 (40-pin screw-type), 6ES7492-1BL00-0AA0 (40-pin spring-type)
- Engineering Software: SIMATIC STEP 7 v5.5+, TIA Portal V13–V19
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China — with partner warehouses in Hong Kong and Germany
- Lead Time: In-stock units ship within 1–3 business days of payment confirmation
- Shipping Methods: DHL Express, FedEx International Priority, SF International, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and ESD-safe packing declaration provided as standard
- Customs HS Code: 8537.10 (programmable controllers and associated modules)
- Minimum Order Quantity: 1 unit (bulk pricing available for orders of 5+ units)
Certifications & Compliance Statement
The 6ES7422-1BL00-0AB0 is manufactured by Siemens AG and carries the following certifications as issued by the OEM:
- CE marking — compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL / cULus listed — suitable for use in North American installations per NEC requirements
- RoHS compliant — manufactured without restricted hazardous substances per EU Directive 2011/65/EU
- ATEX / IECEx: Not rated for Zone 0/1 explosive atmospheres in standard configuration
Konmask.com is an independent distributor and is not an authorised Siemens partner. All brand names, trademarks, and part numbers are the property of their respective owners and are used solely for identification purposes.
How to Order
- Step 1: Add the required quantity to your cart and proceed to checkout, or contact us directly for a formal quotation.
- Step 2: For orders of 3+ units or urgent project requirements, email [email protected] with your project timeline and delivery address for priority handling.
- Step 3: Payment accepted via T/T bank transfer, PayPal (verified business accounts), and major credit cards. Pro-forma invoice issued upon request.
- Step 4: Receive your Konmask inspection certificate, tracking number, and export documents within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: How do I know the module is genuine and not a counterfeit?
A: Every unit is sourced with traceable documentation and passes our 4-step inspection process. We provide the inspection certificate and, upon request, the source invoice reference number for your records.
Q: Can I return the module if it fails on arrival?
A: Yes. We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Contact [email protected] with your order number and a brief fault description.
Q: Do you provide a warranty?
A: All modules carry a 12-month Konmask functional warranty covering manufacturing defects and premature failure under normal operating conditions.
Q: Can you supply a batch of 10–50 units for a plant upgrade project?
A: Yes. Please contact us for a project quotation. Bulk orders receive priority sourcing, consolidated shipping, and a dedicated account manager.
Q: Is the firmware version the latest available?
A: Firmware version is confirmed during our Step 3 functional test and documented on the inspection certificate. If a specific firmware revision is required, please specify at the time of order.
