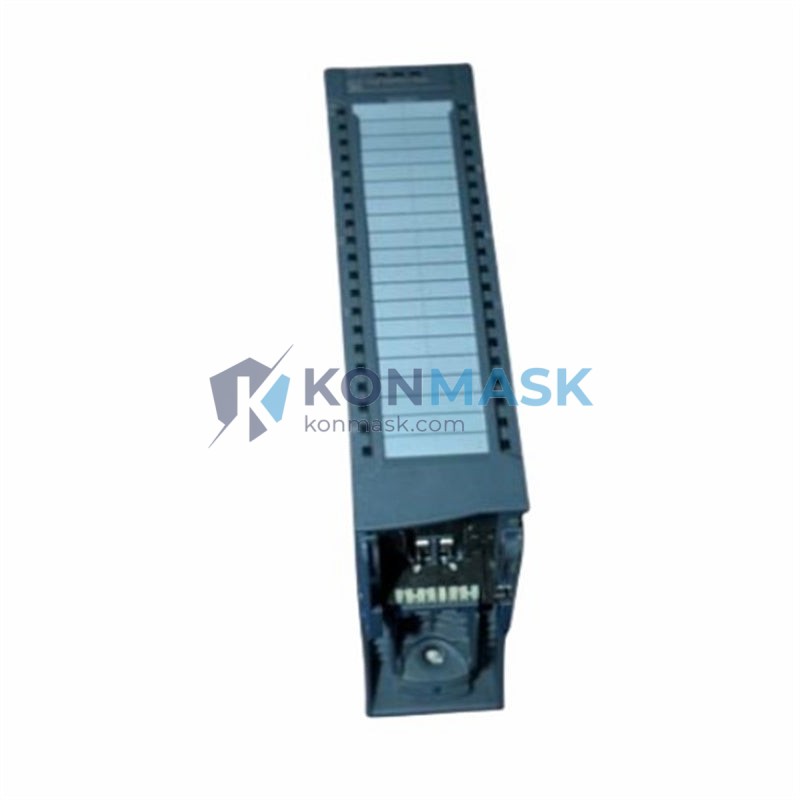

SIEMENS 6ES7532-5HF00-0AB0 — 8-Channel Analog Output Module | SIMATIC S7-1500 Series
Engineering Background
The SIMATIC S7-1500 platform represents Siemens’ flagship PLC architecture for high-performance industrial automation. Designed for demanding process control, motion, and safety applications, the S7-1500 series delivers deterministic cycle times, integrated diagnostics, and seamless TIA Portal integration. The 6ES7532-5HF00-0AB0 is the 8-channel analog output module (AQ 8×U/I ST) within this platform, engineered to drive precision actuators, control valves, variable-frequency drives, and process instrumentation with 16-bit resolution.
Product Positioning
This module is the preferred choice for process engineers requiring high-channel-density analog output in a compact S7-1500 form factor. It supports both voltage (±10 V) and current (0–20 mA / 4–20 mA) output modes per channel, making it universally compatible with field devices across industries including chemical processing, power generation, water treatment, and advanced manufacturing.
Complete Technical Specifications
- Order Number: 6ES7532-5HF00-0AB0
- Module Type: AQ 8×U/I ST — Analog Output, 8-Channel, Standard
- Platform: SIMATIC S7-1500
- Number of Outputs: 8 channels (individually configurable)
- Output Signal Types: Voltage ±10 V; Current 0–20 mA / 4–20 mA
- Resolution: 16-bit (including sign bit)
- Output Accuracy (25 °C): ±0.3% of full-scale range
- Output Accuracy (0–60 °C): ±0.6% of full-scale range
- Settling Time (Voltage): ≤ 1 ms (to 1% of full scale)
- Settling Time (Current): ≤ 2 ms (to 1% of full scale)
- Load Impedance (Voltage): ≥ 1 kΩ
- Load Impedance (Current): ≤ 600 Ω
- Supply Voltage: 24 V DC (via backplane bus)
- Power Consumption (Backplane Bus): Typically 2.0 W
- Isolation: Channels isolated from backplane bus; channels not isolated from each other
- Diagnostics: Wire-break detection (current mode), short-circuit detection (voltage mode), overflow/underflow alarms
- Operating Temperature: 0 °C to +60 °C (horizontal mounting); 0 °C to +40 °C (vertical mounting)
- Storage Temperature: −40 °C to +70 °C
- Relative Humidity: 10–95% (non-condensing)
- Protection Class: IP20
- Dimensions (W × H × D): 35 mm × 147 mm × 129 mm
- Weight: Approx. 270 g
- Certifications: CE, UL, cULus, ATEX Zone 2, IECEx, KC
- MLFB / Article Number: 6ES7532-5HF00-0AB0
Proven Application Environments
- Process Control: Setpoint transmission to control valves, positioners, and flow regulators in chemical, oil & gas, and pharmaceutical plants
- Drive Control: Speed reference signals to variable-frequency drives (VFDs) and servo amplifiers in conveyor and motion systems
- Power Generation: Turbine governor control, excitation system reference, and load dispatch signals
- Water & Wastewater: Pump speed control, dosing pump regulation, and level control valve actuation
- Building Automation: HVAC damper control, chiller setpoint management, and BMS integration
- Automotive Manufacturing: Weld current control, paint line tension regulation, and press force control
Engineering Advantages
- High Channel Density: 8 independently configurable channels in a single 35 mm wide module slot — minimizes rack space and wiring cost
- Dual Output Mode: Each channel switchable between voltage and current output via TIA Portal software configuration — no hardware jumpers required
- 16-Bit Resolution: Provides 65,536 discrete output steps for precise actuator positioning and smooth process control
- Integrated Diagnostics: Channel-level fault detection with automatic alarm generation to the CPU — reduces MTTR and supports predictive maintenance
- TIA Portal Native: Full parameter assignment, online monitoring, and force values available within Siemens TIA Portal V13 SP1 and above
- PROFINET Transparency: Module status and channel diagnostics accessible via PROFINET I&M data records for asset management systems
- Substitute Value on CPU STOP: Configurable substitute output values (hold last value or defined safe value) ensure safe process behavior during controller faults
System Architecture & Signal Flow
The 6ES7532-5HF00-0AB0 mounts directly onto the S7-1500 mounting rail and connects to the CPU via the high-speed backplane bus (up to 400 MB/s). The CPU writes 16-bit output words to the module’s process image output (PIO) area. The module’s internal D/A converter translates digital values to the configured analog signal range. Each channel’s output driver is independently protected against short-circuit (voltage mode) and open-circuit (current mode) conditions. Fault events are reported back to the CPU via the backplane bus and surfaced as diagnostic interrupts in the TIA Portal program.
Front connector (40-pin) provides field wiring termination. The module supports hot-swapping when the system is configured for it, enabling maintenance without full system shutdown.
Sourcing & Quality Verification
- Origin: Genuine Siemens OEM product — sourced through authorized distribution channels
- Condition: New-in-box (NIB) or factory-refurbished with full test certification available upon request
- Traceability: Each unit carries Siemens factory serial number and date code for full supply chain traceability
- Anti-Counterfeit: Konmask.com performs visual inspection, hologram verification, and functional bench testing on all S7-1500 modules prior to shipment
- Documentation: Siemens product datasheet, EU Declaration of Conformity, and test report available on request
Procurement Process
- Step 1 — Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691 for availability and lead time confirmation
- Step 2 — Quotation: Receive a formal quotation within 2 business hours including unit price, quantity, delivery terms (EXW/FOB/CIF), and payment terms
- Step 3 — Order Confirmation: Issue PO or confirm order via the Konmask.com checkout. Pro-forma invoice issued immediately
- Step 4 — Inspection & Dispatch: Module undergoes pre-shipment inspection. Tracking number and packing list provided within 24 hours of payment clearance
- Step 5 — After-Sales: 12-month warranty on all new modules. Technical support available for installation and commissioning queries
Technical FAQ
Q: Is the 6ES7532-5HF00-0AB0 compatible with S7-1500 CPUs running firmware V1.x?
A: The module requires TIA Portal V13 SP1 or higher for full parameter assignment. It is compatible with all S7-1500 CPUs from firmware V1.5 onwards. Verify CPU firmware version before installation.
Q: Can I mix voltage and current outputs on the same module?
A: Yes. Each of the 8 channels is independently configurable for voltage (±10 V) or current (0–20 mA / 4–20 mA) output via TIA Portal hardware configuration — no physical modification required.
Q: What happens to the outputs when the CPU goes to STOP mode?
A: Each channel can be individually configured to either hold its last output value or switch to a defined substitute value (including 0 V / 0 mA) upon CPU STOP. This is configured in the module properties within TIA Portal.
Q: Does this module support HART communication?
A: No. The 6ES7532-5HF00-0AB0 (ST variant) does not support HART. For HART-enabled analog output, refer to the 6ES7532-5HF00-0AB0 HF variant (6ES7532-5HF00-0AB0 is ST; HF variant has different MLFB).
Q: What front connector is required?
A: The 40-pin front connector (e.g., 6ES7592-1AM00-0XB0 for screw terminals or 6ES7592-1BM00-0XB0 for push-in terminals) must be ordered separately and is not included with the module.
Q: Can Konmask.com provide a test report or inspection certificate?
A: Yes. A functional test report and visual inspection certificate are available upon request at no additional charge for orders of 1 unit or more.
