Siemens 6FC5203-0AF22-0AA2 MCP 483C MPI Machine Control Panel | Replacement, Equivalent & Selection Guide

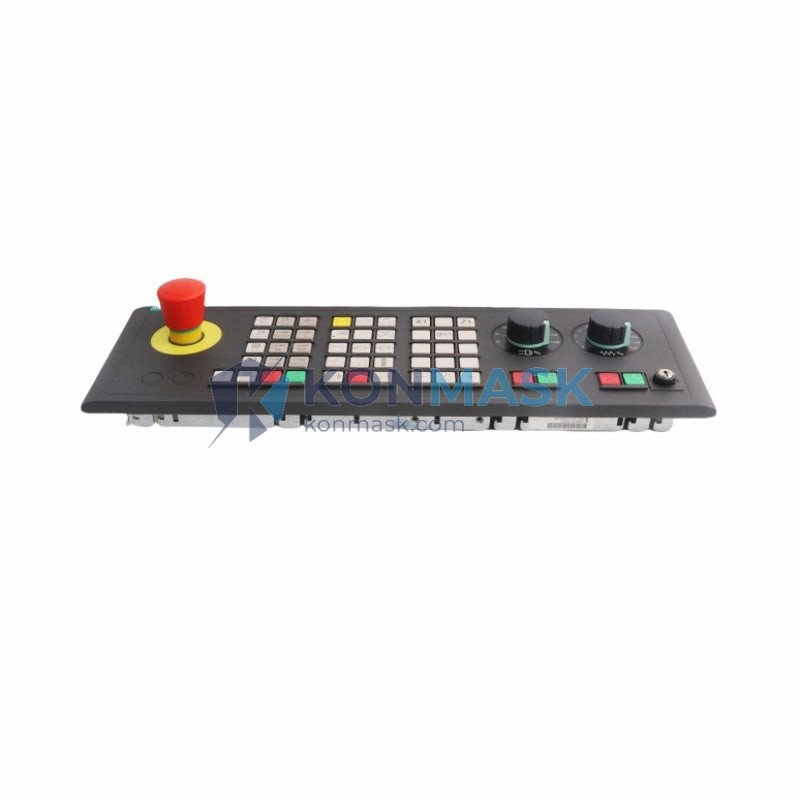

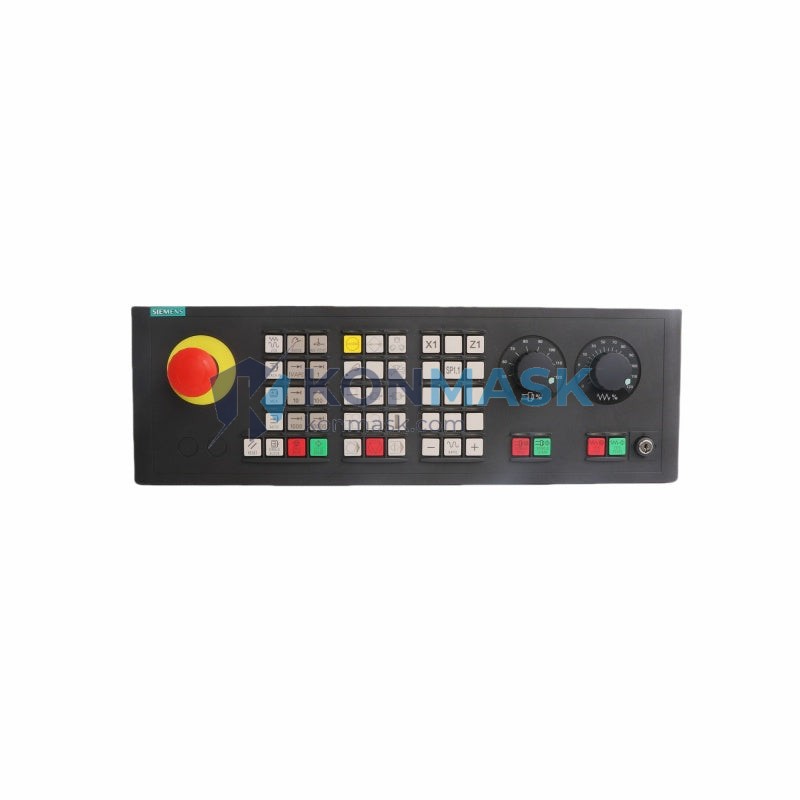

The Siemens 6FC5203-0AF22-0AA2 is a SINUMERIK MCP 483C MPI Machine Control Panel designed for CNC machine tool control systems. This panel provides operators with direct access to machine functions via dedicated keys and an integrated interface, making it a critical HMI component in Siemens SINUMERIK-based automation environments. Konmask.com supplies genuine and compatible units with full traceability.
Technical Specifications
- Part Number: 6FC5203-0AF22-0AA2
- Brand: Siemens
- Series: SINUMERIK MCP 483C
- Interface: MPI (Multi-Point Interface)
- Panel Width: 483 mm (19-inch rack compatible)
- Application: CNC Machine Tool Control
- Compatible Controllers: SINUMERIK 840D, 840Di, 810D
- Mounting: Panel / rack mount
- Weight: ~80 g (panel unit)
- Origin: Germany
Compatible Replacement & Equivalent Models
When sourcing a replacement for the 6FC5203-0AF22-0AA2, the following models are functionally equivalent or directly compatible depending on your controller version and interface requirements:
- 6FC5203-0AF02-0AA2 — MCP 483C, earlier firmware revision, MPI interface
- 6FC5203-0AF13-0AA2 — MCP 483C, Profibus DP variant (requires DP-capable controller)
- 6FC5203-0AF62-0AA2 — MCP 483C IE (Ethernet), for SINUMERIK 840D sl systems
- 6FC5203-0AF72-0AA2 — MCP 483C IE USB, latest generation with USB port
- A5E00160773 — OEM equivalent panel used in select Siemens-integrated machine builds
Note: Always verify the interface type (MPI / Profibus / Ethernet) and SINUMERIK controller version before substituting models.
Why Choose the Original Model
- Guaranteed compatibility with SINUMERIK 840D, 840Di, and 810D via native MPI protocol
- No firmware reconfiguration required — plug-and-play replacement for existing MPI installations
- Proven reliability in high-cycle industrial environments (metalworking, mold & die, aerospace)
- Full Siemens support — spare parts, documentation, and service available through authorized channels
- Standardized 483 mm form factor — direct mechanical fit in existing enclosures
Typical Applications
- CNC turning centers and machining centers
- Mold & die manufacturing equipment
- Aerospace precision machining lines
- Automotive body and powertrain machining
- Retrofit and upgrade projects for legacy SINUMERIK 840D / 810D systems
- OEM machine builder integrations requiring MPI-based HMI panels
System Compatibility
- ✅ SINUMERIK 840D (powerline) — Full compatibility via MPI
- ✅ SINUMERIK 840Di — Full compatibility via MPI
- ✅ SINUMERIK 810D — Full compatibility via MPI
- ⚠️ SINUMERIK 840D sl — Requires Ethernet variant (6FC5203-0AF62-0AA2 or 0AF72)
- ❌ SINUMERIK 808D / 828D — Not compatible (different panel architecture)
Selection Guide
Use the table below to select the correct MCP 483C variant for your system:
- MPI interface + 840D/810D powerline → 6FC5203-0AF22-0AA2 ✅ (this model)
- Profibus DP interface + 840D powerline → 6FC5203-0AF13-0AA2
- Ethernet (IE) + 840D sl → 6FC5203-0AF62-0AA2
- Ethernet + USB + 840D sl (latest) → 6FC5203-0AF72-0AA2
- Unsure of interface type? → Contact Konmask.com with your NCU/PCU part number for a free compatibility check.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock
- Inspection: Each unit undergoes visual and functional pre-shipment inspection
- Packaging: Anti-static ESD packaging with protective foam insert
- Documentation: CE declaration and Siemens product datasheet available on request
- Warranty: 12-month warranty against manufacturing defects
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders within 5–7 days
How to Order
- Confirm your SINUMERIK controller model (840D / 840Di / 810D) and interface type (MPI)
- Add 6FC5203-0AF22-0AA2 to cart or contact us for bulk/project pricing
- Provide your shipping address and preferred freight method
- Receive order confirmation with tracking within 24 hours
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use 6FC5203-0AF22-0AA2 to replace an older 6FC5203-0AF02-0AA2?
A: Yes. The -0AF22 is a later revision of the -0AF02 and is a direct drop-in replacement on MPI-based systems.
Q: Is this panel compatible with SINUMERIK 840D sl?
A: No. The 840D sl requires an Ethernet (IE) variant such as 6FC5203-0AF62-0AA2 or 6FC5203-0AF72-0AA2.
Q: Can I convert MPI to Profibus without changing the panel?
A: No. The interface is hardware-defined. You must select the correct panel variant for your bus type.
Q: Do you supply refurbished units?
A: We supply both new and tested-good refurbished units. Please specify your preference when ordering.
Q: What is the lead time for out-of-stock units?
A: Typically 5–10 business days. Contact us for urgent requirements.
