Siemens 6FC5210-0DF31-2AB0 PCU 50.3B-C PC/PG Unit | Replacement, Equivalent & Selection Guide

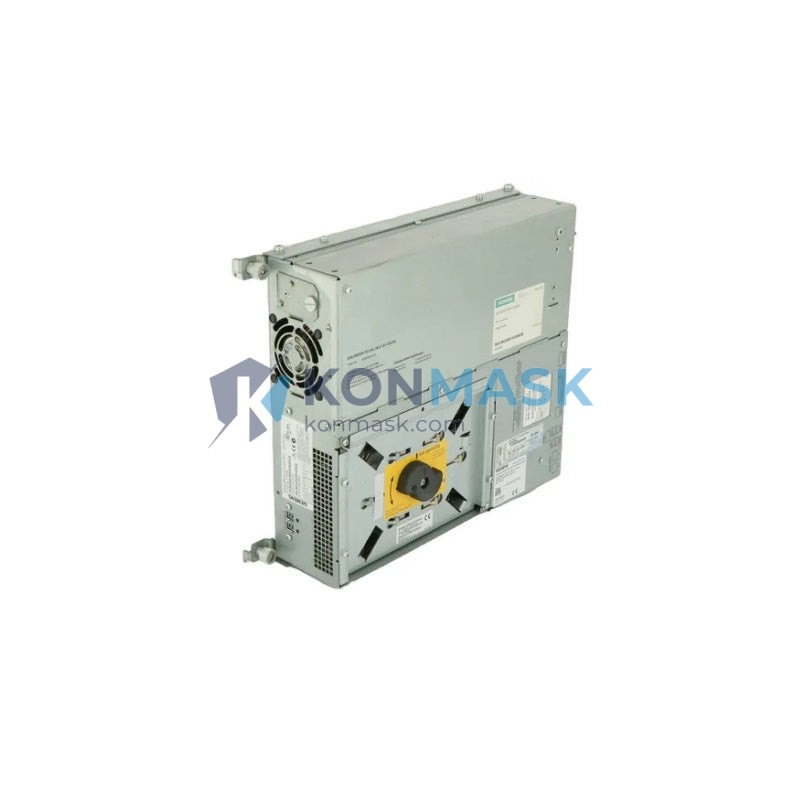

The Siemens 6FC5210-0DF31-2AB0 is a PCU 50.3B-C (PC Unit) designed for use with the SINUMERIK 840D sl CNC system. It serves as the central computing platform integrating the HMI, PLC interface, and drive communication in a compact industrial-grade enclosure. Konmask.com supplies this unit as new, refurbished, and equivalent alternatives to support your machine tool maintenance and upgrade projects.
Technical Specifications
- Part Number: 6FC5210-0DF31-2AB0
- Series: PCU 50.3B-C (PC Unit 50.3)
- Compatible CNC Platform: SINUMERIK 840D sl
- Form Factor: Panel-mount PC/PG Unit
- Operating System: Windows Embedded / WinCC flexible (factory-loaded)
- Interface: PROFIBUS DP, Ethernet, USB, DVI/VGA
- Power Supply: 24 V DC
- Weight: approx. 500 g
- Manufacturer: Siemens AG, Germany
- HS Code Reference: 8537.10 (programmable controllers)
Compatible Replacement & Equivalent Models
If the 6FC5210-0DF31-2AB0 is unavailable or cost-prohibitive, the following models are functionally compatible or serve as direct replacements in most SINUMERIK 840D sl installations:
- 6FC5210-0DF22-1AB0 — PCU 50.3-C (earlier revision, same mounting footprint)
- 6FC5210-0DF31-1AB0 — PCU 50.3B-C variant with alternate firmware pre-load
- 6FC5210-0DF32-2AB0 — PCU 50.3B-C with extended memory configuration
- 6FC5210-0DF11-0AB0 — PCU 50.3 base variant (verify HMI version compatibility)
Note: Always verify NCU/NCK software version compatibility before substitution. Contact Konmask technical support for cross-reference confirmation.
Why Choose the Original Model
- Factory-validated firmware and OS image for SINUMERIK 840D sl
- Full Siemens warranty and lifecycle support eligibility
- Guaranteed compatibility with Siemens HMI panels (OP 010, OP 012, OP 015A)
- Certified EMC/CE compliance for industrial environments
- Traceable serial number for Siemens service and repair programs
Typical Applications
- CNC milling, turning, and grinding machine tool retrofits
- SINUMERIK 840D sl HMI replacement and upgrade projects
- Spare parts inventory for production-critical machine tools
- OEM machine builders integrating Siemens CNC platforms
- Maintenance and repair of existing PCU 50.3 installations
System Compatibility
- CNC Controller: SINUMERIK 840D sl (NCU 710.3, 720.3, 730.3)
- HMI Panels: OP 010, OP 012, OP 015A, TCU 30.3
- Drive Systems: SINAMICS S120 (via NCU integration)
- PLC: SIMATIC S7-300 integrated in NCU
- Communication: PROFIBUS DP, Industrial Ethernet
Selection Guide
Use the following criteria to select the correct PCU 50.3 variant for your application:
- Step 1 — Identify your NCU version: Check the NCU label (710.3 / 720.3 / 730.3) to confirm PCU compatibility.
- Step 2 — Check HMI panel type: OP 010/012/015A require PCU 50.3; TCU 30.3 setups may not need a PCU.
- Step 3 — Confirm software version: Match the PCU firmware to your SINUMERIK software version (e.g., SW 4.5, SW 4.7).
- Step 4 — Evaluate memory requirements: Standard vs. extended memory variants differ by suffix (e.g., -2AB0 vs. -1AB0).
- Step 5 — New vs. refurbished: For production-critical machines, specify new OEM units; for budget retrofits, certified refurbished units are viable.
Quality Assurance & Sourcing
- Units sourced from authorized Siemens distribution channels and certified secondary market suppliers
- Each unit inspected and tested prior to shipment
- Refurbished units include 12-month functional warranty
- New OEM units carry full Siemens manufacturer warranty
- Traceable documentation available upon request (COC, test reports)
How to Order
- Confirm your part number: 6FC5210-0DF31-2AB0
- Specify condition: New OEM / Certified Refurbished / Equivalent Alternative
- Provide your NCU version and current SINUMERIK software version if requesting a compatible substitute
- Contact us via email or phone for lead time and pricing
- Submit your purchase order — we support T/T, L/C, and trade assurance payment terms
Replacement & Compatibility FAQ
Q: Can I replace 6FC5210-0DF31-2AB0 with 6FC5210-0DF22-1AB0?
A: In most cases yes, provided the NCU firmware and HMI software versions are compatible. A software re-commissioning step may be required.
Q: Does the PCU 50.3B-C work with SINUMERIK 828D?
A: No. The PCU 50.3 series is designed exclusively for SINUMERIK 840D sl. The 828D uses an integrated HMI and does not require a separate PCU.
Q: Is a refurbished unit safe for production use?
A: Yes, when sourced from a certified supplier like Konmask. All refurbished units undergo functional testing and carry a 12-month warranty.
Q: What is the lead time for a new OEM unit?
A: Typically 2–8 weeks depending on Siemens stock availability. Refurbished and equivalent units are usually available within 3–7 business days.
Q: Can Konmask assist with installation or commissioning?
A: We provide technical documentation and remote guidance. On-site commissioning support can be arranged through our partner network.
