SIEMENS 6GK1501-1BB00-2AA3 Industrial Ethernet Media Converter | Replacement, Equivalent & Selection Guide

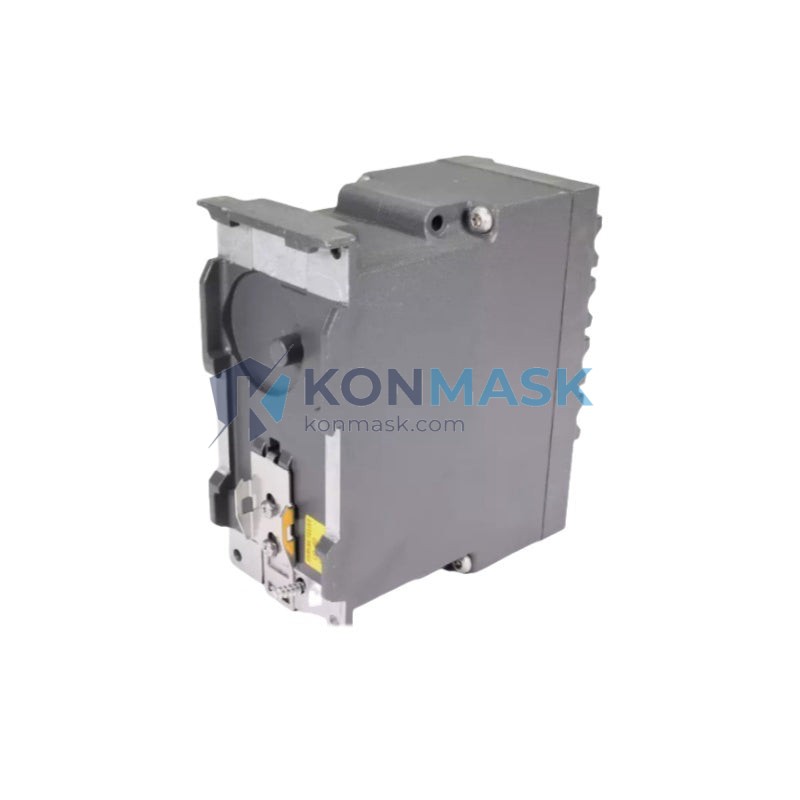

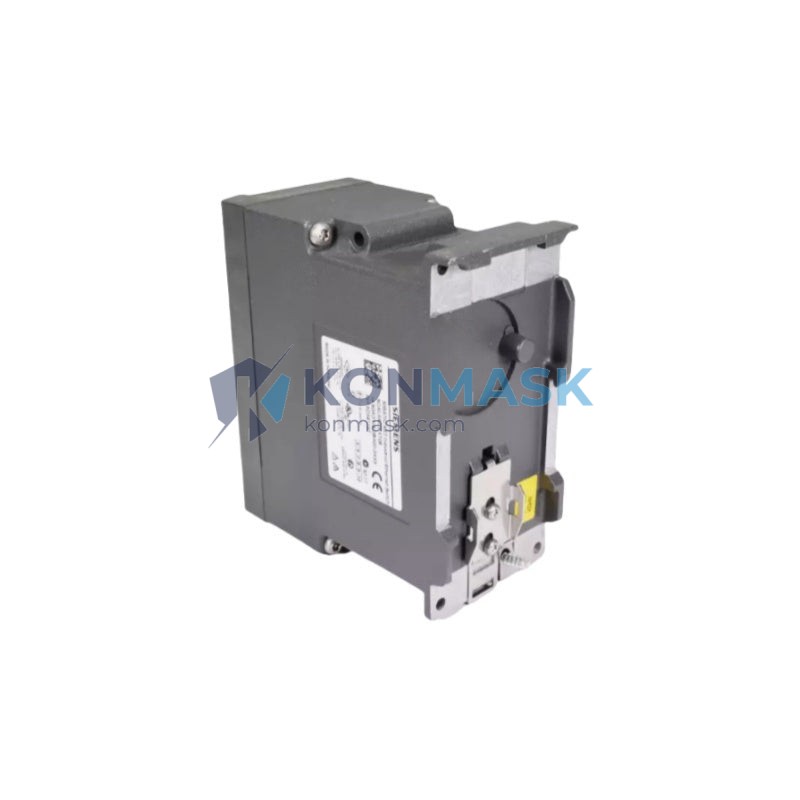

The SIEMENS 6GK1501-1BB00-2AA3 is an unmanaged Industrial Ethernet media converter from the SCALANCE X product family, designed to bridge copper (RJ45) and fiber optic (BFOC/SC) connections in demanding industrial environments. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 6GK1501-1BB00-2AA3
- Manufacturer: Siemens AG
- Product Family: SCALANCE X / OSM / ESM Series
- Device Type: Unmanaged Industrial Ethernet Media Converter
- Network Standard: IEEE 802.3, 10/100 Mbps Ethernet
- Ports: 1× RJ45 (TP, 10/100BASE-TX) + 1× BFOC (fiber optic, 100BASE-FX)
- Fiber Type: Multi-mode fiber optic
- Max. Transmission Distance (Fiber): Up to 3 km (multi-mode)
- Supply Voltage: 24 V DC (SELV)
- Power Consumption: Approx. 3.5 W
- Operating Temperature: -10 °C to +60 °C
- Protection Class: IP20
- Mounting: DIN rail (35 mm)
- Dimensions (W×H×D): 30 × 125 × 75 mm
- Weight: Approx. 780 g
- Certifications: CE, UL, ATEX (zone 2)
- MLFB / Order Number: 6GK1501-1BB00-2AA3
Compatible Replacement & Equivalent Models
If the 6GK1501-1BB00-2AA3 is discontinued, out of stock, or outside budget, the following models offer compatible or equivalent functionality:
- SIEMENS 6GK1501-0AA00 – SCALANCE X101-1, single-port TP/FO media converter, direct functional equivalent
- SIEMENS 6GK5101-1BB00-2AA3 – SCALANCE XB101-1 (newer generation), enhanced replacement with wider temperature range
- SIEMENS 6GK5101-1BB10-2AA3 – SCALANCE XB101-1 (POF variant), for plastic optical fiber applications
- Moxa IMC-21A – Third-party equivalent, 10/100BASE-TX to 100BASE-FX, DIN rail, 24 VDC
- Phoenix Contact FL MC 100BASE-FX/100BASE-TX – Industrial-grade equivalent, compatible wiring and DIN rail form factor
Always verify fiber connector type (BFOC vs. SC vs. ST) and fiber mode (multi-mode vs. single-mode) before substituting.
Why Choose the Original Model
- Proven SIEMENS SCALANCE pedigree – Engineered for 24/7 industrial operation with high MTBF
- Seamless STEP 7 / TIA Portal integration – No configuration required; plug-and-play for PROFINET and standard Ethernet networks
- Compact DIN rail form factor – Fits standard control cabinet layouts without additional adapters
- Wide certification coverage – CE, UL, and ATEX zone 2 approval for hazardous area installations
- Long-term spare parts availability – Konmask.com maintains stock of legacy SIEMENS networking components
Typical Applications
- Extending Industrial Ethernet segments beyond 100 m copper limit via fiber optic backbone
- Connecting PLCs, HMIs, and SCADA systems across long distances in factory automation
- Integrating legacy copper-based devices into fiber optic ring or star topologies
- Oil & gas, water treatment, and power distribution substations requiring ATEX-rated networking
- Automotive assembly lines and process control networks with high EMI environments
System Compatibility
- SIMATIC S7-300 / S7-400 / S7-1200 / S7-1500 – Full compatibility via standard Industrial Ethernet
- SIMATIC NET SCALANCE X switches – Integrates into existing SCALANCE X topology without configuration
- PROFINET IO networks – Transparent media conversion; no impact on PROFINET cycle time
- Third-party PLCs and DCS – Compatible with any IEEE 802.3 10/100 Mbps Ethernet device
- Fiber optic cables: 50/125 µm or 62.5/125 µm multi-mode fiber with BFOC (ST-compatible) connectors
Selection Guide
Use the table below to select the correct SIEMENS media converter for your application:
- Transmission distance < 3 km, multi-mode fiber → 6GK1501-1BB00-2AA3 (this model)
- Transmission distance up to 26 km, single-mode fiber → 6GK1501-1AA00 (SCALANCE X101-1LD)
- Plastic optical fiber (POF) applications → 6GK5101-1BB10-2AA3
- Managed media conversion with SNMP/web management → SCALANCE XM-400 series
- Gigabit Ethernet media conversion → SCALANCE XR-500 series
- Redundant ring (MRP) topology required → SCALANCE X200 / X300 series switches
Not sure which model fits your system? Contact our technical team at support@konmask.com with your network diagram and we will recommend the correct part.
Quality Assurance & Sourcing
- Authenticity guaranteed – All SIEMENS parts sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection – Each unit tested for power-on functionality and port link status before dispatch
- Traceability – Batch records and supplier documentation available on request
- Packaging – Original or equivalent anti-static packaging with full labeling
- Warranty – 12-month warranty against manufacturing defects; DOA replacement within 7 days
How to Order
- Step 1: Confirm part number: 6GK1501-1BB00-2AA3
- Step 2: Specify quantity and required delivery timeline
- Step 3: Request a quote via support@konmask.com or add to cart directly
- Step 4: Receive order confirmation with lead time and tracking information
For urgent requirements or bulk orders (>5 units), contact us directly for priority processing and volume pricing.
Replacement & Compatibility FAQ
Q: Is the 6GK1501-1BB00-2AA3 discontinued?
A: This model may have limited availability. The SCALANCE XB101-1 (6GK5101-1BB00-2AA3) is the recommended current-generation replacement.
Q: Can I use a single-mode fiber cable with this converter?
A: No. The 6GK1501-1BB00-2AA3 is designed for multi-mode fiber only. For single-mode, select the 6GK1501-1AA00 variant.
Q: Does this converter require any software configuration?
A: No. It is an unmanaged device — plug-and-play with no IP address or configuration required.
Q: What fiber connector type does this unit use?
A: BFOC (Bayonet Fiber Optic Connector), also known as ST-type connector.
Q: Is this unit compatible with PROFINET?
A: Yes. As a transparent Layer 1 media converter, it is fully compatible with PROFINET IO and any IEEE 802.3 Ethernet protocol.
Q: Can Konmask.com supply the matching fiber patch cable?
A: Yes. Please specify cable length and connector type when ordering and we will include compatible multi-mode BFOC patch cables.
