Siemens 6GK7542-5DX00-0XE0 CP 5420 PROFIBUS Communication Module | Replacement, Equivalent & Selection Guide

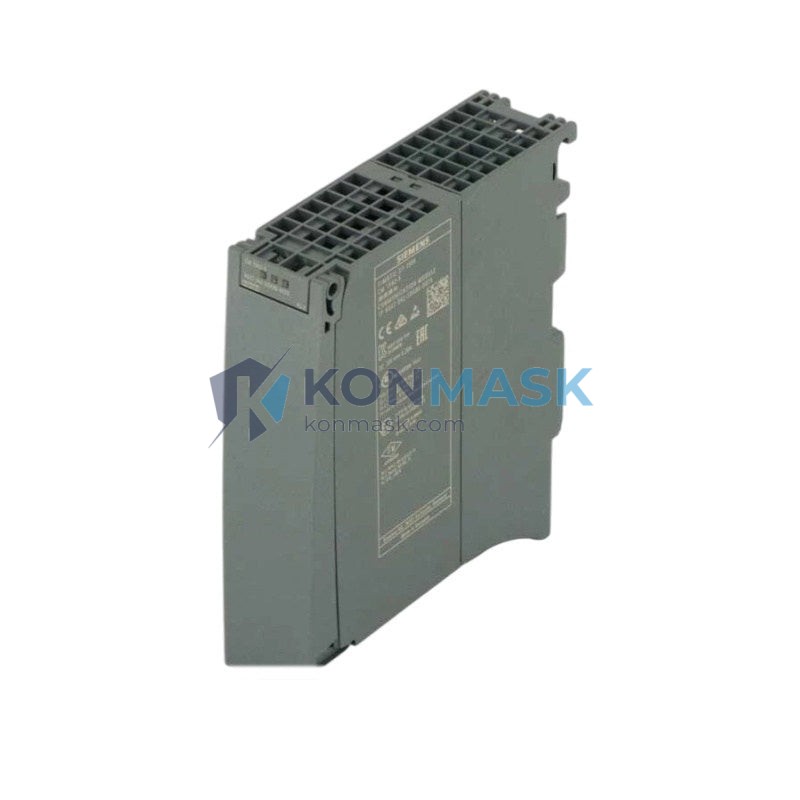

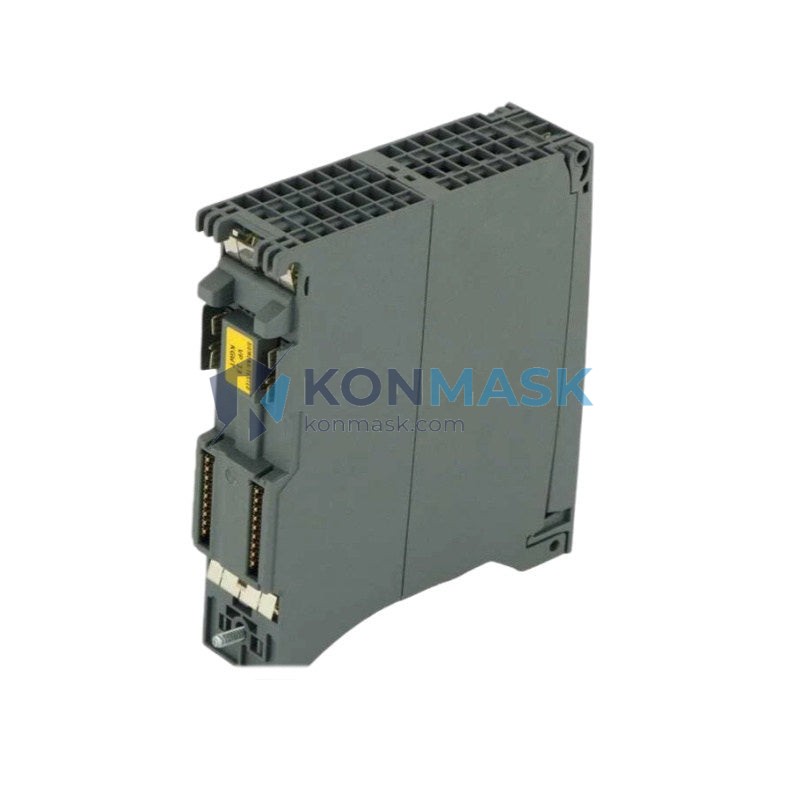

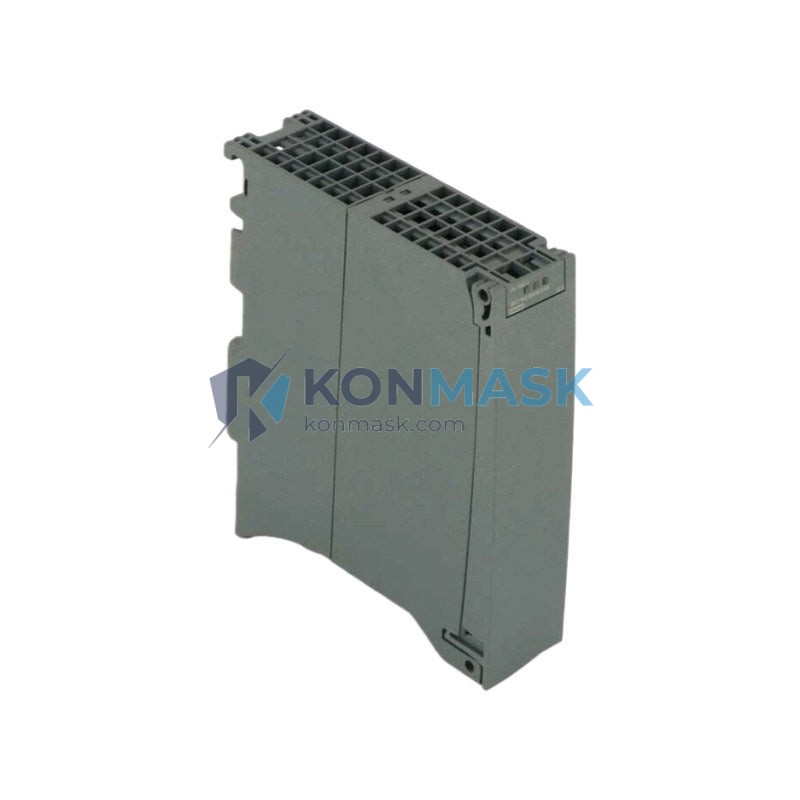

The Siemens 6GK7542-5DX00-0XE0 is the CP 5420 PROFIBUS communication processor module designed for the SIMATIC S7-1500 PLC platform. It enables high-speed PROFIBUS DP master and slave connectivity at up to 12 Mbit/s, making it the preferred choice for engineers integrating legacy PROFIBUS field devices into modern S7-1500 automation architectures. Available at Konmask.com with global sourcing and quality verification.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6GK7542-5DX00-0XE0 |
| Product Family | SIMATIC NET CP 5420 |
| Compatible PLC | SIMATIC S7-1500 (standard & ET 200MP) |
| Communication Protocol | PROFIBUS DP (Master & Slave) |
| Max. Transmission Rate | 12 Mbit/s |
| PROFIBUS DP Master Stations | Up to 125 DP slaves |
| Interface | 1× RS-485 (Sub-D 9-pin female) |
| Supported Standards | IEC 61158, IEC 61784 |
| Configuration Software | STEP 7 (TIA Portal V13 SP1+) |
| Firmware Update | Via TIA Portal |
| Supply Voltage | Via S7-1500 backplane bus (DC 24 V) |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Degree of Protection | IP20 |
| Dimensions (W×H×D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 400 g |
| Certifications | CE, UL, cULus, ATEX (Zone 2) |
| Country of Origin | Germany |
Compatible Replacement & Equivalent Models
When the 6GK7542-5DX00-0XE0 is unavailable or under evaluation, the following models are commonly considered as replacements or functional equivalents. Always verify firmware compatibility and DP configuration before substitution.
| Model | Platform | Protocol | Notes |
|---|---|---|---|
| 6GK7542-5DX00-0XE0 (this unit) | S7-1500 | PROFIBUS DP M/S | Original — recommended |
| 6GK7343-1EX30-0XE0 (CP 343-1) | S7-300 | PROFIBUS DP | Legacy predecessor; not pin-compatible |
| 6GK7443-5DX05-0XE0 (CP 443-5 Ext) | S7-400 | PROFIBUS DP M/S | Higher-end platform equivalent |
| 6ES7155-6AU01-0BN0 (IM 155-6 PN) | ET 200SP | PROFINET (not PROFIBUS) | Protocol migration path only |
| 6GK7542-5DX00-0XE0 (same PN) | S7-1500 / ET 200MP | PROFIBUS DP M/S | Direct drop-in replacement |
⚠ Note: Cross-platform replacements require re-engineering of hardware configuration and TIA Portal project. Consult Konmask technical support before substitution.
Why Choose the Original Model
- Native S7-1500 Integration: Designed exclusively for the S7-1500 backplane — no adapter or gateway required.
- Dual DP Master/Slave: Operates simultaneously as DP master and DP slave, enabling flexible multi-master topologies.
- TIA Portal Native: Full configuration, diagnostics, and firmware management within TIA Portal — no separate tool needed.
- Isochronous Mode Support: Enables time-synchronized PROFIBUS cycles for motion control and high-precision applications.
- Proven Field Reliability: Deployed in thousands of automotive, chemical, and process automation installations worldwide.
- Long-term Availability: Active product in Siemens SIMATIC NET portfolio with guaranteed spare parts support.
Typical Applications
- Connecting S7-1500 controllers to existing PROFIBUS DP field device networks (drives, I/O, sensors)
- Automotive body shop and powertrain assembly line automation
- Chemical and pharmaceutical process control with distributed I/O
- Water/wastewater treatment plant SCADA integration
- Retrofit and modernization projects: replacing S7-300/400 with S7-1500 while retaining PROFIBUS field wiring
- Multi-master PROFIBUS architectures requiring DP slave functionality
System Compatibility
| Component | Compatible Version / Model |
|---|---|
| PLC Rack | SIMATIC S7-1500 (all CPU variants), ET 200MP |
| TIA Portal | V13 SP1 and higher (V16+ recommended) |
| STEP 7 Classic | Not supported — TIA Portal only |
| PROFIBUS DP Slaves | All IEC 61158-compliant DP slaves (GSD-based) |
| PROFIBUS PA | Via DP/PA coupler (e.g., 6ES7157-0AC83-0XA0) |
| Redundancy | S7-1500R/H redundant systems supported |
| PROFIBUS Repeater | 6ES7972-0AA02-0XA0 and compatible |
Selection Guide
Use this guide to confirm the 6GK7542-5DX00-0XE0 is the right module for your project:
- ✔ Your PLC is S7-1500 or ET 200MP → CP 5420 is the correct PROFIBUS module.
- ✔ You need PROFIBUS DP Master → Supported. Up to 125 DP slaves per master interface.
- ✔ You need PROFIBUS DP Slave → Supported simultaneously with master mode.
- ✔ You need 12 Mbit/s transmission rate → Fully supported.
- ✔ You are migrating from S7-300 CP 342-5 / CP 343-5 → CP 5420 is the designated successor; re-import GSD files in TIA Portal.
- ✘ Your PLC is S7-300 or S7-400 → Use CP 342-5 (6GK7342-5DA02-0XE0) or CP 443-5 instead.
- ✘ You need PROFINET, not PROFIBUS → Use CP 1543-1 (6GK7543-1AX00-0XE0) for PROFINET connectivity.
Quality Assurance & Sourcing
- Authentic Origin: All units sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability.
- Pre-shipment Inspection: Visual inspection, label verification (MLFB code, date code, firmware sticker), and packaging integrity check.
- Counterfeit Prevention: Holographic Siemens authenticity labels verified; serial numbers cross-referenced where applicable.
- Condition Grading: New (factory sealed), New Open Box, or Refurbished — clearly stated at time of quotation.
- Warranty: 12-month replacement warranty on all units shipped from Konmask.com.
How to Order
- Confirm part number: 6GK7542-5DX00-0XE0
- Specify required quantity and condition (New / Refurbished)
- Submit RFQ via [email protected] or use the cart above
- Receive quotation with lead time and shipping options within 24 hours
- Payment via T/T, PayPal, or trade credit (approved accounts)
- Shipment via DHL / FedEx with tracking; export documentation provided
Replacement & Compatibility FAQ
Q: Can the 6GK7542-5DX00-0XE0 replace a CP 342-5 in an S7-300 rack?
A: No. The CP 5420 is designed exclusively for the S7-1500 backplane. To replace a CP 342-5, you must also migrate the CPU to S7-1500 and re-engineer the TIA Portal project.
Q: Is the CP 5420 compatible with PROFIBUS PA devices?
A: Not directly. PROFIBUS PA requires a DP/PA coupler (e.g., 6ES7157-0AC83-0XA0) between the CP 5420 and PA segment.
Q: Can I use two CP 5420 modules in one S7-1500 station?
A: Yes. Multiple CP 5420 modules can be installed in the same S7-1500 rack to expand PROFIBUS master capacity.
Q: What is the maximum cable length for PROFIBUS at 12 Mbit/s?
A: 100 meters per segment at 12 Mbit/s. Use PROFIBUS repeaters to extend the network.
Q: Does Konmask provide GSD files or TIA Portal project templates?
A: Yes. Contact [email protected] for GSD files, wiring diagrams, and configuration support.
