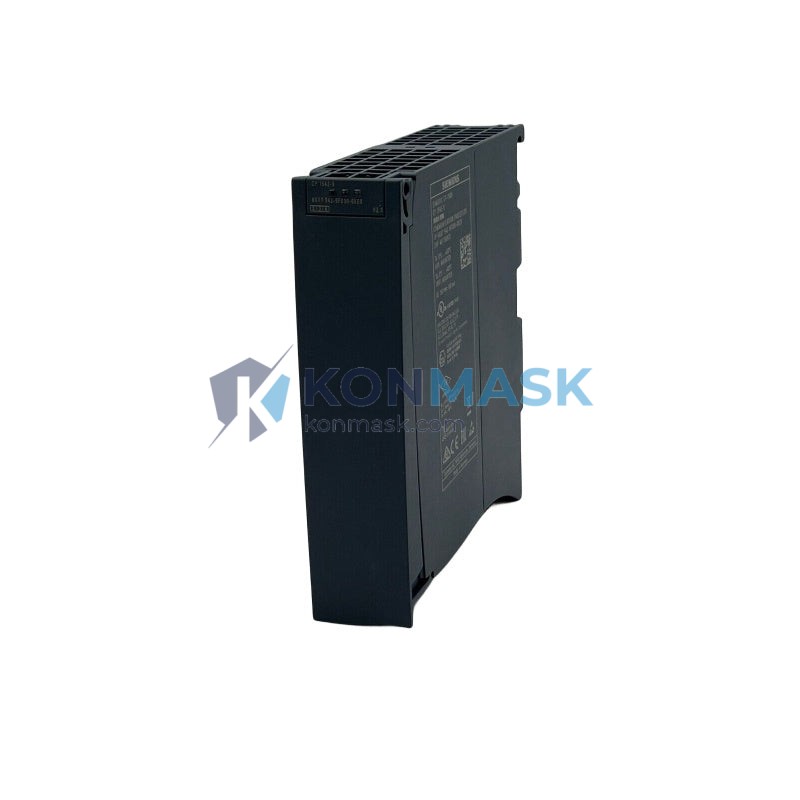

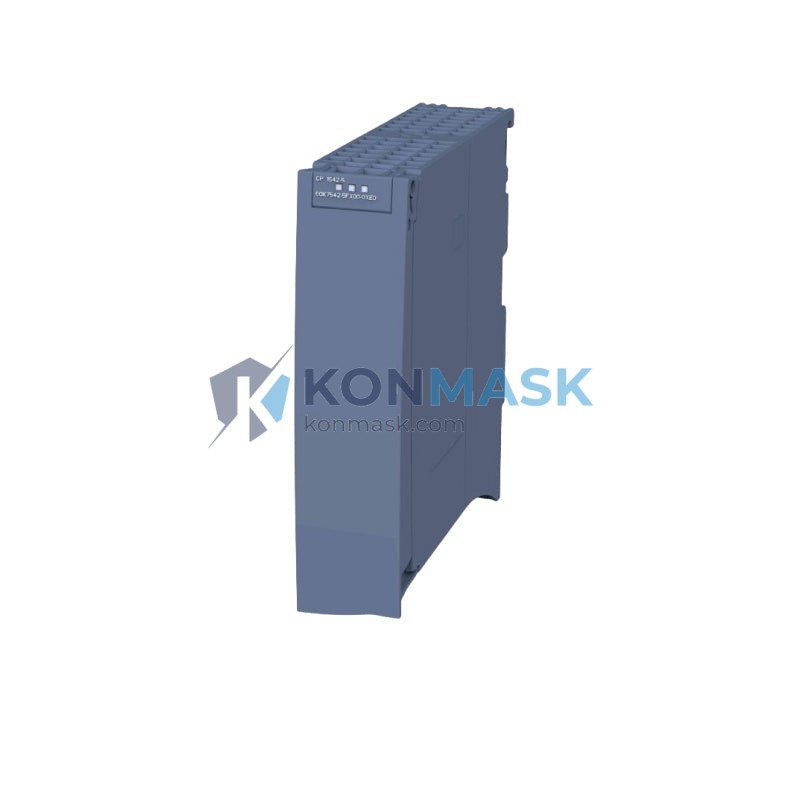

Siemens 6GK7542-5FX00-0XE0 CP 542-5 — PROFIBUS Communication Processor | SIMATIC NET S7-1500
Engineering Background
The SIMATIC NET CP 542-5 is Siemens’ dedicated PROFIBUS communication processor engineered for the S7-1500 controller platform. Designed to offload fieldbus communication from the CPU, it enables deterministic, high-speed PROFIBUS DP/FMS data exchange across complex distributed I/O architectures — a critical requirement in process automation, machine building, and drive coordination applications where cycle-time integrity is non-negotiable.
Product Positioning
The 6GK7542-5FX00-0XE0 targets automation engineers who require a proven, standards-compliant PROFIBUS interface for new S7-1500 installations or legacy PROFIBUS network integration. It supports simultaneous DP Master and DP Slave operation, making it the preferred choice for hierarchical fieldbus topologies where the S7-1500 must act as both a controller and a subordinate node.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6GK7542-5FX00-0XE0 |
| Product Family | SIMATIC NET CP 542-5 |
| Compatible Controller | SIMATIC S7-1500 (all CPU variants) |
| Fieldbus Standard | PROFIBUS DP / FMS (IEC 61158 / EN 50170) |
| Transmission Rate | 9.6 kbit/s — 12 Mbit/s (auto-negotiated) |
| DP Operating Modes | DP Master (Class 1 & 2), DP Slave |
| Max. DP Slaves (Master mode) | 125 |
| FMS Connections | Up to 32 FMS connections |
| S7 Communication | S7 routing, S7 basic communication |
| Physical Interface | 9-pin Sub-D (RS-485), galvanically isolated |
| Backplane Interface | S7-1500 system bus (proprietary high-speed) |
| Supply Voltage | Via S7-1500 backplane (no external supply required) |
| Power Consumption | Typ. 3.5 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 % to 95 % (non-condensing) |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 350 g |
| Certifications | CE, UL, cULus, ATEX Zone 2 (with appropriate enclosure) |
| Configuration Tool | STEP 7 (TIA Portal V13 SP1 and above) |
| Firmware Update | Via TIA Portal / SIMATIC Automation Tool |
Proven Application Environments
- Distributed I/O Integration: Connecting ET 200 remote I/O stations (ET 200M, ET 200S, ET 200SP) to S7-1500 controllers via PROFIBUS DP.
- Drive Coordination: PROFIBUS DP communication with SINAMICS, MICROMASTER, and third-party variable frequency drives using PROFIdrive profile.
- Process Automation: Integration with PROFIBUS PA field devices (via DP/PA coupler) in chemical, oil & gas, and water treatment plants.
- Legacy Network Migration: Bridging existing PROFIBUS DP networks to new S7-1500 infrastructure without rewiring field devices.
- Hierarchical Topologies: Simultaneous DP Master + DP Slave operation for multi-tier control architectures.
- Safety Systems: Compatible with PROFIsafe-capable devices when used alongside F-CPU variants.
Engineering Advantages
- CPU Offload: Dedicated communication processor handles all PROFIBUS protocol stack processing, freeing S7-1500 CPU cycles for control logic.
- Deterministic Timing: Hardware-level cycle synchronization ensures consistent DP cycle times independent of CPU load.
- Dual-Mode Operation: Simultaneous DP Master Class 1 (cyclic I/O) and DP Master Class 2 (acyclic diagnostics/parameterization) without additional hardware.
- Galvanic Isolation: RS-485 interface is galvanically isolated, protecting the S7-1500 backplane from fieldbus transients and ground loops.
- Seamless TIA Portal Integration: Full hardware configuration, diagnostics, and firmware management within STEP 7 TIA Portal — no separate tool required.
- Hot-Swap Capable: Supports S7-1500 hot-swap procedures for module replacement without full system shutdown (firmware-dependent).
System Architecture & Signal Flow
The CP 542-5 occupies a standard S7-1500 module slot on the rack. Communication flow:
- TIA Portal configures DP network topology, slave GSD files, and I/O mapping → downloaded to S7-1500 CPU.
- S7-1500 CPU exchanges process image data with CP 542-5 via the high-speed S7-1500 backplane bus (cycle-synchronous).
- CP 542-5 autonomously manages PROFIBUS DP token ring, cyclic I/O polling of all configured slaves, and acyclic services (DPV1 read/write, alarms).
- PROFIBUS DP Slaves (ET 200, drives, encoders, valves) exchange I/O data at configured DP cycle times (min. ~1 ms at 12 Mbit/s).
Diagnostic data (slave status, bus errors, cycle time statistics) is accessible via the S7-1500 CPU’s diagnostic buffer and TIA Portal online view.
Sourcing & Quality Verification
- Origin: Genuine Siemens product — sourced through authorized distribution channels and verified supplier networks.
- Condition: New (factory-sealed) and refurbished (tested, cleaned, firmware-updated) units available — condition specified at order confirmation.
- Verification: Each unit verified against Siemens MLFB/serial number database prior to shipment. Counterfeit screening performed on all refurbished stock.
- Documentation: Original Siemens product documentation, CE declaration of conformity, and test report available upon request.
- Warranty: 12-month Konmask operational warranty covering hardware defects under normal operating conditions.
Procurement Process
- Inquiry: Submit your BOM or project requirement to [email protected] or via the product page inquiry form.
- Quotation: Receive itemized quotation with lead time, unit price (HKD/USD), and shipping options within 1 business day.
- Order Confirmation: Purchase order accepted via email, Alibaba Trade Assurance, or direct Shopify checkout.
- Inspection & Packaging: Unit inspected, photographed, and packed in anti-static ESD packaging with foam protection.
- Shipment: DHL Express / FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales: Technical support available via email and WhatsApp for installation and commissioning queries.
Technical FAQ
Q: Is the 6GK7542-5FX00-0XE0 compatible with S7-300 or S7-400 racks?
A: No. The CP 542-5 is exclusively designed for the S7-1500 backplane. For S7-300, use CP 342-5; for S7-400, use CP 443-5.
Q: Can this module operate as both DP Master and DP Slave simultaneously?
A: Yes. The CP 542-5 supports concurrent DP Master (Class 1 cyclic + Class 2 acyclic) and DP Slave operation on the same PROFIBUS segment.
Q: What is the minimum TIA Portal version required?
A: TIA Portal V13 SP1 or higher. V15.1+ recommended for full DPV1 diagnostic and firmware update support.
Q: Does it support PROFIBUS PA devices directly?
A: Not directly. PROFIBUS PA devices require a DP/PA coupler or link (e.g., Siemens DP/PA Coupler 6ES7157-0AC83-0XA0) between the CP 542-5 DP segment and the PA segment.
Q: What happens to PROFIBUS communication if the S7-1500 CPU goes to STOP mode?
A: The CP 542-5 continues to maintain the PROFIBUS token ring and can be configured to hold last output values or set outputs to zero — behavior is configurable in TIA Portal.
Q: Can I use this module for S7 routing between PROFIBUS and PROFINET?
A: Yes. When combined with a PROFINET-capable S7-1500 CPU, the CP 542-5 enables S7 routing between PROFIBUS and PROFINET networks for cross-network programming and diagnostics.
