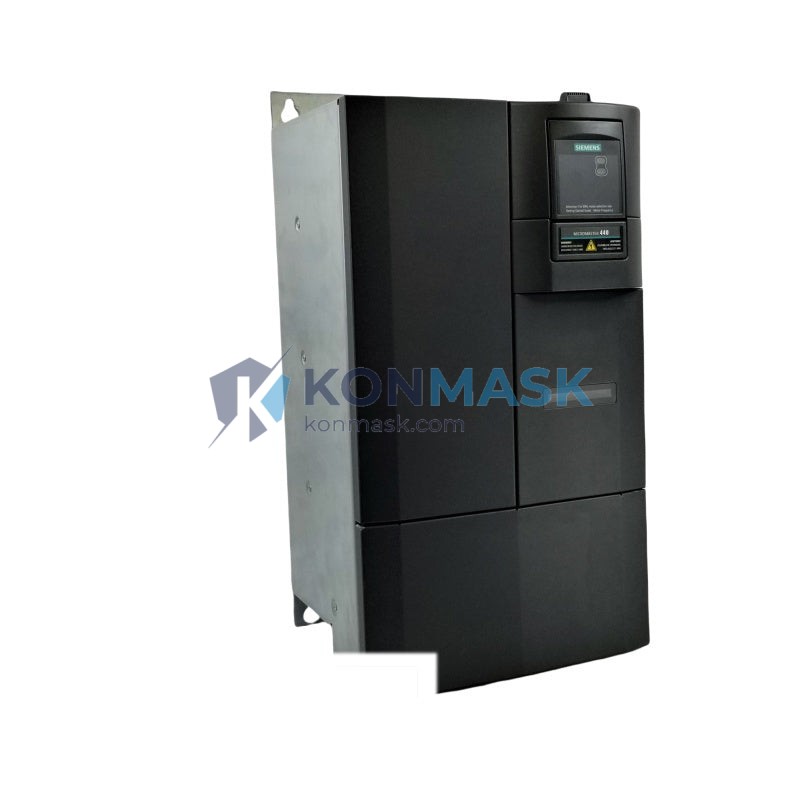

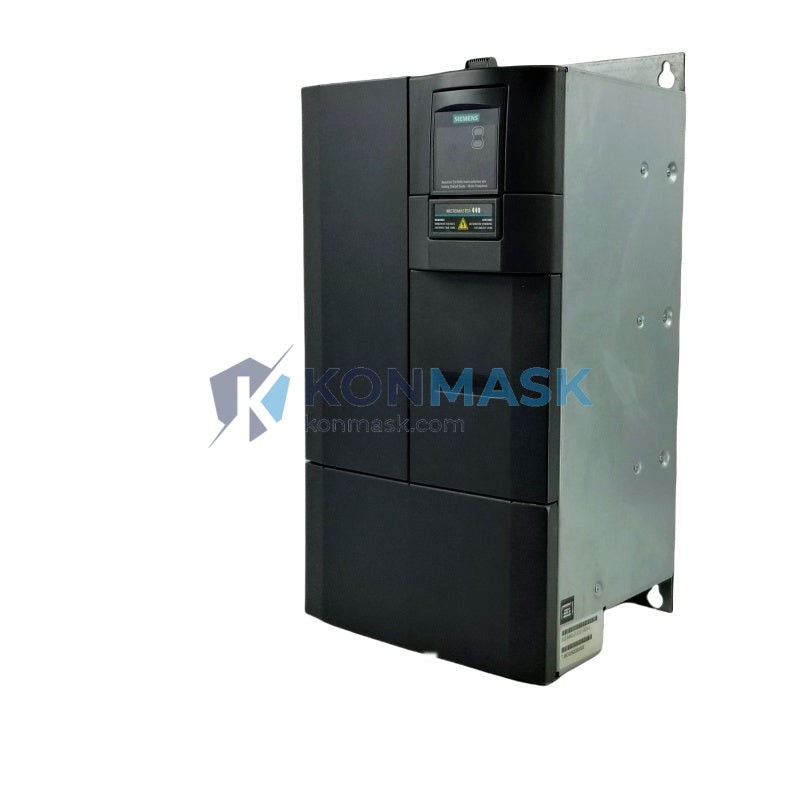

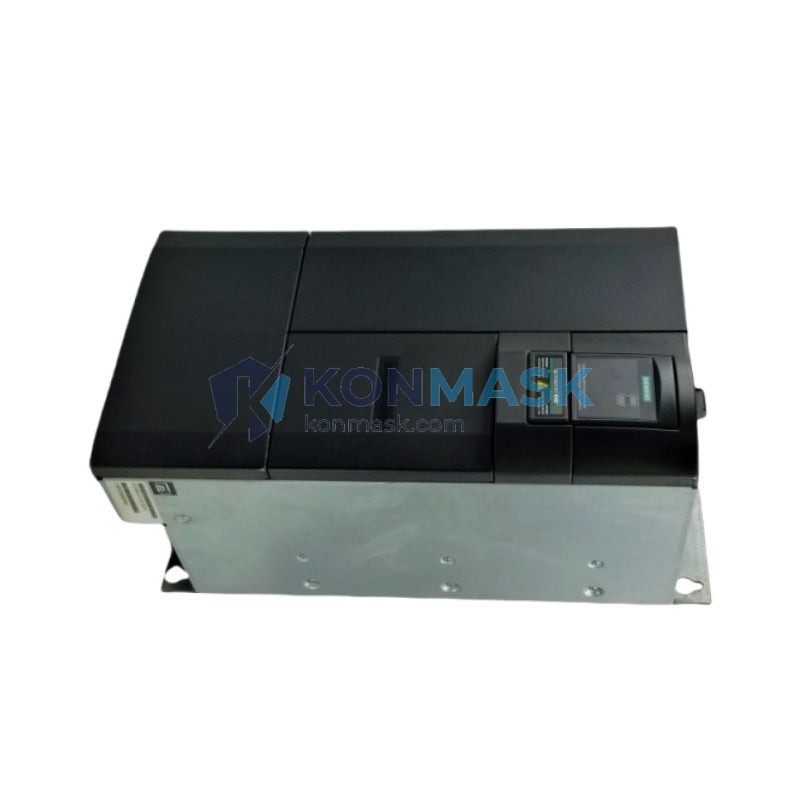

Industrial Motor Control Solution – SIEMENS 6SE6440-2UD31-5DA1 | MICROMASTER 440 Series
Where This Product Is Used
The SIEMENS 6SE6440-2UD31-5DA1 is a 15 kW (20 HP) variable frequency drive (VFD) engineered for demanding industrial motor control applications. Engineers and system integrators specify this unit across a wide range of sectors:
- Water & Wastewater Treatment: Pump speed regulation for pressure-controlled water supply systems and sewage lift stations.
- HVAC Systems: Fan and blower control in commercial buildings, data centers, and industrial facilities for energy-efficient airflow management.
- Manufacturing & Assembly Lines: Conveyor belt speed control in automotive, food & beverage, and packaging plants.
- Compressor Stations: Soft-start and variable-speed operation of air and gas compressors to reduce mechanical stress and energy consumption.
- Crane & Hoist Applications: Precise torque and speed control for overhead cranes and material handling equipment.
- Textile & Paper Mills: Tension control and synchronized multi-drive operation on winding and unwinding lines.
Technical Specifications
- Part Number / SKU: 6SE6440-2UD31-5DA1
- Series: MICROMASTER 440 (MM440)
- Manufacturer: SIEMENS AG
- Rated Output Power: 15 kW (20 HP)
- Input Voltage: 3-Phase AC 380 V – 480 V (±10%)
- Output Frequency Range: 0 – 650 Hz
- Rated Output Current: 34 A
- Overload Capacity: 150% for 60 s / 200% for 3 s
- Control Mode: V/f, Flux Current Control (FCC), Sensorless Vector Control
- Protection Rating: IP20 (chassis mount)
- Ambient Temperature: -10°C to +50°C (operating)
- Weight: 16 kg
- Communication: RS-485 (USS protocol); optional PROFIBUS, DeviceNet, CANopen via CB modules
- Braking: Built-in DC braking; external dynamic braking resistor compatible
Why Engineers Specify This Model
- Proven MICROMASTER 440 Platform: Over two decades of field-proven reliability in global industrial installations.
- Advanced Vector Control: Sensorless vector control delivers high dynamic response without encoder feedback, reducing system cost.
- Wide Frequency Output (0–650 Hz): Supports high-speed spindle and specialized motor applications beyond standard 50/60 Hz drives.
- Flexible Communication: Native USS/RS-485 with optional fieldbus modules (PROFIBUS DP, DeviceNet, CANopen) for seamless PLC/DCS integration.
- Comprehensive Protection: Built-in motor overtemperature, overcurrent, overvoltage, and short-circuit protection reduces downtime risk.
- Compact Chassis Design: IP20 chassis format optimized for panel-mount integration in MCC (Motor Control Center) enclosures.
Complete System Bill of Materials
For a fully operational drive system, engineers typically specify the following companion components:
- Line Filter (EMC): SIEMENS 6SE6400-2FA00-6AD0 – Class A/B EMC compliance filter
- Line Reactor: SIEMENS 6SE6400-3CC01-4AB3 – Input choke for harmonic mitigation
- Braking Resistor: SIEMENS 6SE6400-4BD16-5CA0 – For regenerative braking duty
- Operator Panel (BOP/AOP): SIEMENS 6SE6400-0BP00-0AA0 (Basic Operator Panel)
- PROFIBUS Module: SIEMENS 6SE6400-1PB00-0AA0 – CB PROFIBUS DP communication board
- Shielded Motor Cable: SIEMENS MOTION-CONNECT 500 series – For EMC-compliant motor wiring
Compliance & Industry Standards
- CE Marked – EU Low Voltage Directive (2014/35/EU) & EMC Directive (2014/30/EU)
- UL Listed / cUL – North American safety certification
- IEC 61800-5-1: Adjustable speed electrical power drive systems – Safety requirements
- IEC 61800-3: EMC requirements for power drive systems
- RoHS Compliant
Quality Assurance & Sourcing
Konmask.com sources the SIEMENS 6SE6440-2UD31-5DA1 through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and seal verification
- Firmware version and nameplate data cross-check against SIEMENS product documentation
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card for safe international shipping
We provide full traceability documentation upon request for MRO procurement teams and quality auditors.
How to Source This Part
Ready to order the SIEMENS 6SE6440-2UD31-5DA1? Here’s how to proceed:
- Add to Cart: Click “Add to Cart” above for standard stock orders.
- Request a Quote: For bulk orders (5+ units), OEM pricing, or project-based procurement, contact our team for a formal quotation.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock or special-order units: 2–4 weeks depending on origin warehouse.
- Export & Customs: We handle export documentation (CO, packing list, commercial invoice) for international shipments.
- Payment: T/T (Wire Transfer), PayPal, and major credit cards accepted.
Application-Specific FAQ
Q: Can the 6SE6440-2UD31-5DA1 control a pump in a closed-loop PID configuration?
A: Yes. The MM440 has a built-in PID controller (P2200–P2285 parameter group) that accepts a 4–20 mA or 0–10 V feedback signal directly, eliminating the need for an external PLC for simple pressure or flow control loops.
Q: Is this drive compatible with SIMATIC S7 PLCs via PROFIBUS?
A: Yes, with the optional CB PROFIBUS DP module (6SE6400-1PB00-0AA0) installed, the drive integrates natively with S7-300, S7-400, and S7-1500 PLCs using standard GSD files.
Q: What motor types are compatible?
A: The 6SE6440-2UD31-5DA1 is designed for standard 3-phase asynchronous (induction) motors. It also supports permanent magnet synchronous motors (PMSM) in sensorless vector mode with appropriate parameter configuration.
Q: Can it be used in a hazardous area (ATEX zone)?
A: The drive itself is IP20 rated and not ATEX certified. However, it can control ATEX-certified motors installed in hazardous zones when the drive is mounted in a safe area control panel.
Q: What is the difference between 6SE6440-2UD31-5DA1 and 6SE6440-2UD33-0EA1?
A: The 6SE6440-2UD31-5DA1 is rated at 15 kW / 34 A, while the 6SE6440-2UD33-0EA1 is rated at 30 kW / 62 A. Both are MM440 series with identical control architecture but different power stages.
