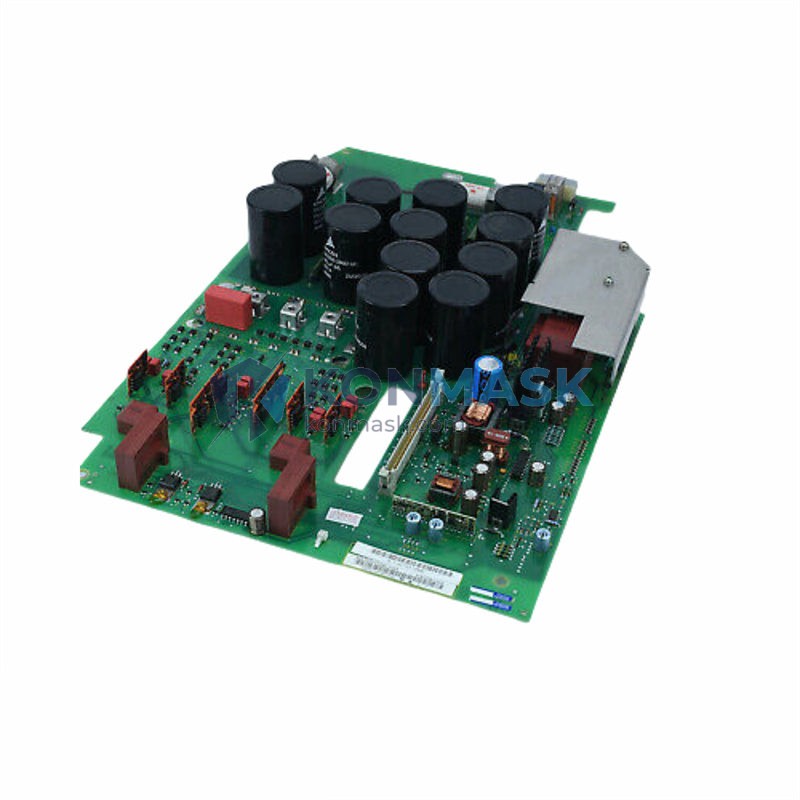

Siemens 6SE7023-4TC84-1HF3 – MASTERDRIVES MC Inverter Drive Board | 11 kW · 3AC 380–480 V
Engineering Background
The Siemens MASTERDRIVES MC (Motion Control) platform was engineered for high-dynamic servo and vector-control applications in demanding industrial environments. The 6SE7023-4TC84-1HF3 is the core inverter drive board within this platform, delivering precise torque and speed regulation for AC induction and synchronous motors up to 11 kW. Designed to IEC/EN 61800-5-1 safety standards, it integrates seamlessly into Siemens SIMATIC and PROFIBUS-based automation architectures.
Product Positioning
This board is the preferred choice for procurement engineers sourcing a verified, drop-in replacement or expansion unit for existing MASTERDRIVES MC cabinets. Konmask.com supplies this component with full traceability documentation, making it suitable for MRO (Maintenance, Repair & Operations) and new-build control panel projects alike.
Complete Technical Specifications
| Part Number | 6SE7023-4TC84-1HF3 |
| Series / Platform | Siemens MASTERDRIVES MC (Motion Control) |
| Component Type | Inverter Drive Board (Power Electronics Module) |
| Rated Output Power | 11 kW (15 HP) |
| Input Voltage | 3AC 380 V – 480 V (±10%), 50/60 Hz |
| Output Voltage | 0 – Input Voltage (3-phase PWM) |
| Output Current (rated) | 23.4 A |
| Control Mode | Vector Control (VC) / V/f Control / Servo Control |
| Communication Interface | PROFIBUS-DP (via CBP2 option board slot) |
| Encoder Interface | HTL / TTL incremental encoder (SBP option) |
| Protection Class | IP20 (panel-mount) |
| Cooling Method | Forced air (internal fan) |
| Ambient Temperature | 0 °C to +40 °C (derate above 40 °C) |
| Storage Temperature | -25 °C to +70 °C |
| Humidity | ≤ 95% RH, non-condensing |
| Altitude | ≤ 1000 m (derate above) |
| Weight | Approx. 400 g |
| Compliance | CE, UL, IEC 61800-5-1, EN 55011 Class A |
| Country of Origin | Germany |
Proven Application Environments
- Machine Tool & CNC Spindle Drives – High-dynamic torque response for milling, turning, and grinding spindles
- Conveyor & Material Handling – Precise speed regulation for belt conveyors, roller tables, and palletizers
- Pump & Fan Control – Energy-efficient V/f operation for HVAC and process pumps
- Printing & Packaging Machinery – Synchronised multi-axis motion via PROFIBUS-DP master
- Crane & Hoist Systems – Safe torque-off (STO) compatible configurations
- Automotive Assembly Lines – Integration with SIMATIC S7 PLC for coordinated motion sequences
Engineering Advantages
- ✅ Direct MASTERDRIVES MC Compatibility – Plug-in replacement; no firmware re-parameterisation required when replacing like-for-like
- ✅ Dual Control Architecture – Supports both open-loop V/f and closed-loop vector control from a single hardware platform
- ✅ PROFIBUS-DP Ready – Native fieldbus integration reduces wiring complexity and enables real-time diagnostics
- ✅ Modular Option Board Slots – Accepts CBP2 (PROFIBUS), SBP (encoder), and T400 (technology) option boards
- ✅ Robust EMC Design – Integrated DC-link choke and EMC filter option reduce harmonic distortion
- ✅ Wide Input Voltage Range – 380–480 V ±10% tolerates grid fluctuations common in industrial facilities
System Architecture & Signal Flow
The 6SE7023-4TC84-1HF3 operates as the power stage within the MASTERDRIVES MC chassis. The signal flow is as follows:
- AC Mains Input (L1/L2/L3) → Rectifier Bridge → DC Bus (540–680 V DC)
- DC Bus → IGBT Inverter Stage → 3-phase PWM output to motor terminals (U/V/W)
- Control Board (CU) receives speed/torque setpoints via PROFIBUS-DP or analogue input (0–10 V / 4–20 mA)
- Encoder Feedback (optional SBP board) closes the speed/position loop for servo-class accuracy
- Fault & Status signals output via relay contacts and PROFIBUS process data words (ZSW/HIW)
Sourcing & Quality Verification
- Authenticity – All units sourced from authorised Siemens distribution channels or verified OEM surplus; serial numbers traceable to Siemens production records
- Pre-shipment Testing – Power-on functional test, insulation resistance check (≥ 1 MΩ @ 500 V DC), and IGBT gate-drive verification
- Packaging – Anti-static bag + foam-lined carton; humidity indicator card included
- Documentation – Siemens datasheet, test report, and CE declaration of conformity available on request
- Warranty – 12-month warranty against manufacturing defects from date of shipment
Procurement Process
- Confirm Part Number – Verify 6SE7023-4TC84-1HF3 against your existing nameplate or BOM
- Request Quote – Contact support@konmask.com with quantity and required delivery date
- Order Confirmation – Pro-forma invoice issued within 24 hours; T/T, PayPal, and credit card accepted
- Shipment – DHL / FedEx Express worldwide; EXW Xiamen or CIF destination available
- After-sales Support – Technical commissioning guidance provided by our automation engineers
Technical FAQ
Q: Is the 6SE7023-4TC84-1HF3 compatible with SIMATIC S7-300/400 via PROFIBUS?
A: Yes. With the CBP2 option board installed, the drive appears as a standard PROFIBUS-DP slave (GSD file: SI0080B6.GSD) and integrates directly with S7-300/400 or S7-1500 via DP/DP coupler.
Q: Can this board replace a 6SE7023-4TC84-1HF0 or 1HF1 variant?
A: The -1HF3 suffix denotes the firmware/hardware revision. Mechanical and electrical interfaces are identical; parameter sets (P-files) are forward-compatible. Confirm firmware version with our technical team before substitution.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 piece. Volume pricing available for orders of 5+ units.
Q: Do you provide a test report?
A: Yes. A unit-specific functional test report is included with every shipment at no additional charge.
Q: What is the lead time for out-of-stock units?
A: Typical lead time for sourced units is 7–15 business days. Express sourcing (3–5 days) available for urgent requirements.
