Industrial Drive Protection Solution – SIEMENS 6SL3000-1BE32-5AA0 | SINAMICS S120 Series
Where This Product Is Used

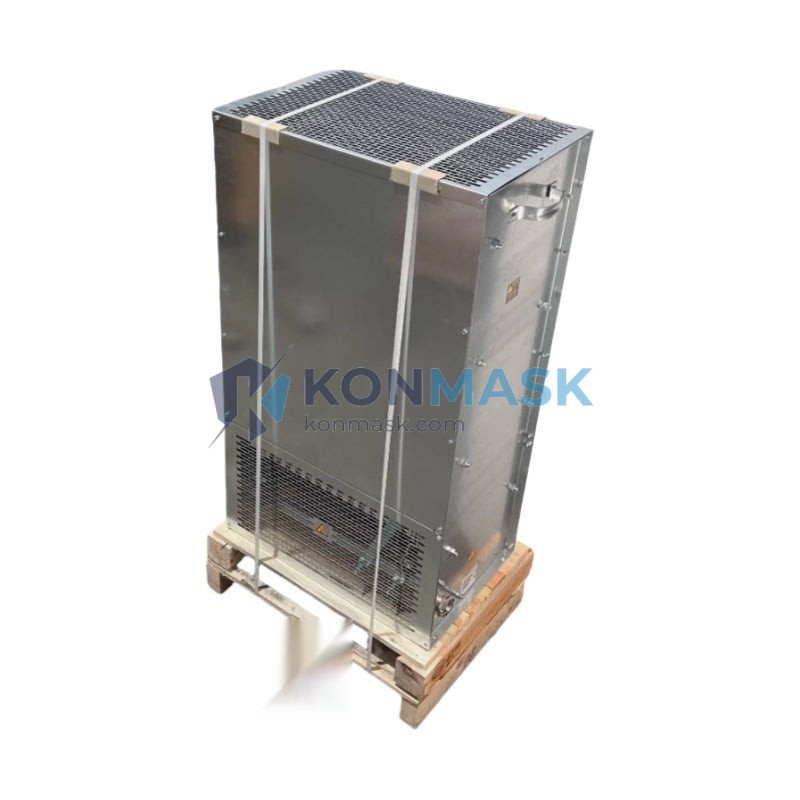

The SIEMENS 6SL3000-1BE32-5AA0 is a 3-phase AC line reactor (input choke) engineered for use with SINAMICS S120 booksize and chassis drive systems. It is deployed across demanding industrial environments where power quality and drive longevity are critical:
- CNC Machining Centers – Protects multi-axis SINAMICS S120 drive lines from mains voltage spikes and harmonic disturbances generated by adjacent equipment.
- Automotive Assembly Lines – Installed upstream of servo drive cabinets to stabilize supply voltage during high-cycle start/stop operations.
- Paper & Printing Machinery – Reduces THD (Total Harmonic Distortion) on shared bus systems where multiple drives operate simultaneously.
- Crane & Hoist Systems – Limits inrush current during regenerative braking events, protecting rectifier bridges.
- Water Treatment Plants – Used in pump and blower drive panels to comply with EN 61000-3-12 harmonic emission limits.
- Semiconductor Fab Equipment – Ensures clean AC input to sensitive SINAMICS S120 Active Line Modules in cleanroom environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 6SL3000-1BE32-5AA0 |
| Product Family | SINAMICS S120 |
| Component Type | 3-Phase AC Line Reactor (Input Choke) |
| Rated Current | 250 A |
| Voltage Range | 380 – 480 V AC, 3-phase |
| Frequency | 47 – 63 Hz |
| Inductance | Optimized for SINAMICS S120 Active/Smart Line Modules |
| Degree of Protection | IP00 (panel-mount) |
| Cooling Method | Natural convection / forced air (cabinet-dependent) |
| Weight | ~4.0 kg |
| Manufacturer | Siemens AG |
| Country of Origin | Germany / EU |
Why Engineers Specify This Model
- OEM-Matched Design – Electrically and mechanically matched to SINAMICS S120 Active Line Modules; no derating calculations required.
- Harmonic Mitigation – Reduces current THD at the point of common coupling, supporting compliance with IEEE 519 and EN 61000-3-12.
- Inrush Current Limiting – Protects rectifier diodes and IGBTs from destructive peak currents during power-on events.
- Extended Drive MTBF – Absorbs voltage transients (switching surges, utility notching) before they reach sensitive power electronics.
- Plug-and-Play Integration – Designed to mount directly in SINAMICS S120 drive cabinets with standard DIN rail or panel-mount hardware.
- Siemens Lifecycle Support – Covered under Siemens Industry Mall spare parts program with long-term availability commitment.
Complete System Bill of Materials
The 6SL3000-1BE32-5AA0 is typically specified alongside the following SINAMICS S120 components:
- SINAMICS S120 Active Line Module (ALM) – e.g., 6SL3130-7TE32-5AA3
- SINAMICS S120 Motor Module (booksize) – e.g., 6SL3120-1TE32-5AA3
- SINAMICS S120 Control Unit CU320-2 DP/PN – 6SL3040-1MA01-0AA0
- SINAMICS S120 Braking Module – 6SL3100-1AE31-0AA0
- SINAMICS S120 Voltage Sensing Module (VSM10) – 6SL3053-0AA00-3AA1
- Main circuit breaker / fuse assembly (per local electrical code)
- Cabinet cooling unit (Rittal / Siemens enclosure)
Compliance & Industry Standards
- CE Marked – Low Voltage Directive 2014/35/EU
- UL / cUL Listed (where applicable)
- EN 61558 / IEC 61558 – Safety of transformers and reactors
- EN 61000-3-12 – Harmonic current emission limits
- IEEE 519-2022 – Harmonic control in electric power systems
- RoHS 2 Compliant – Directive 2011/65/EU
Quality Assurance & Sourcing
At Konmask.com, every SIEMENS component is sourced through verified industrial distribution channels. Our quality process includes:
- Visual inspection against Siemens OEM packaging and label standards
- Serial number and date-code verification
- Functional continuity and insulation resistance check prior to dispatch
- Anti-static packaging with humidity indicator cards for sensitive electronics
- Full traceability documentation available on request
How to Source This Part
Ready to order the 6SL3000-1BE32-5AA0? Here’s how to proceed:
- Request a Quote – Email support@konmask.com with your required quantity and delivery timeline.
- Bulk / Project Orders – We support BOM-based procurement for system integrators and OEMs. Send your full BOM for consolidated pricing.
- Urgent Replacement – Call or WhatsApp +0086 19859288691 for same-day quotation on critical downtime situations.
- Export & Cross-Border – We ship globally with full commercial invoice, packing list, and certificate of origin documentation.
Application-Specific FAQ
Q: Is the 6SL3000-1BE32-5AA0 compatible with both Active Line Modules and Smart Line Modules?
A: It is primarily specified for Active Line Modules (ALM). For Smart Line Modules (SLM), verify the inductance rating against the SLM’s input choke requirements in the SINAMICS S120 Hardware Installation Manual.
Q: Can this reactor be used with third-party drives of equivalent current rating?
A: While electrically feasible at 250 A / 480 V, the reactor is optimized for SINAMICS S120 impedance characteristics. Consult your drive OEM before substituting.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock situations, standard lead time is 2–4 weeks depending on Siemens factory allocation.
Q: Do you provide a warranty?
A: Yes. All genuine Siemens parts carry the manufacturer’s warranty. Konmask.com additionally provides a 90-day inspection warranty covering shipping damage and authenticity.
Q: Can I return or exchange if the part does not match my system?
A: Yes, within 14 days of receipt in original, unopened condition. Contact support@konmask.com to initiate an RMA.
