Regenerative Infeed Solution – Siemens 6SL3130-7TE21-6AA4 | SINAMICS S120
Where This Product Is Used

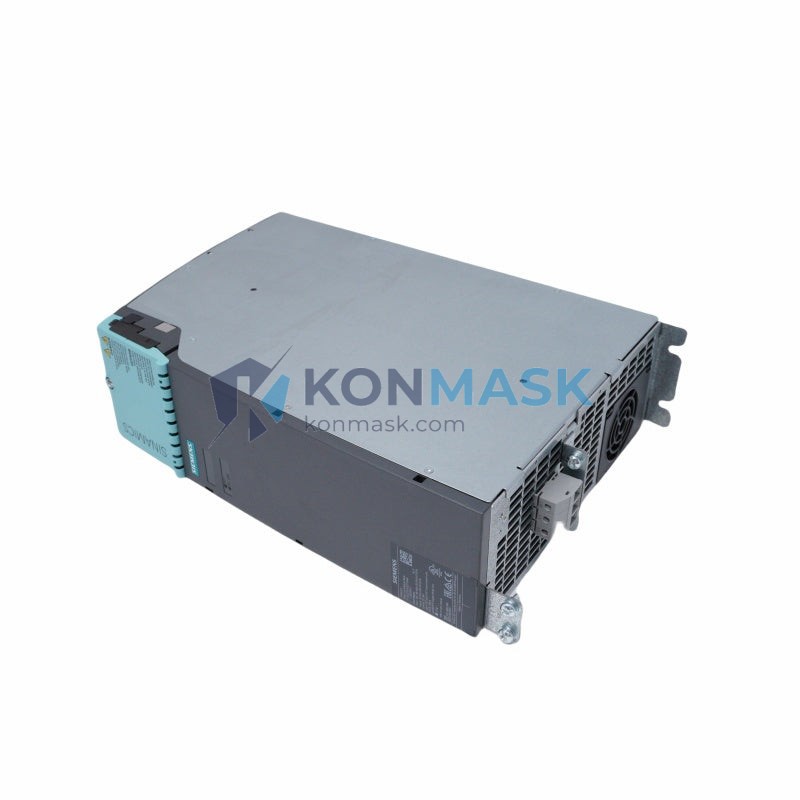

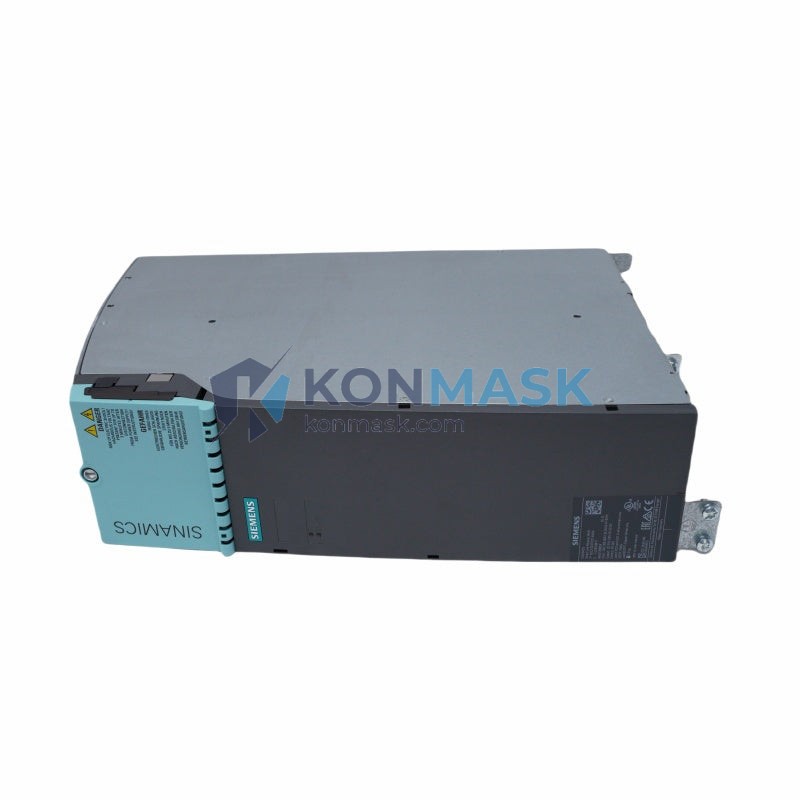

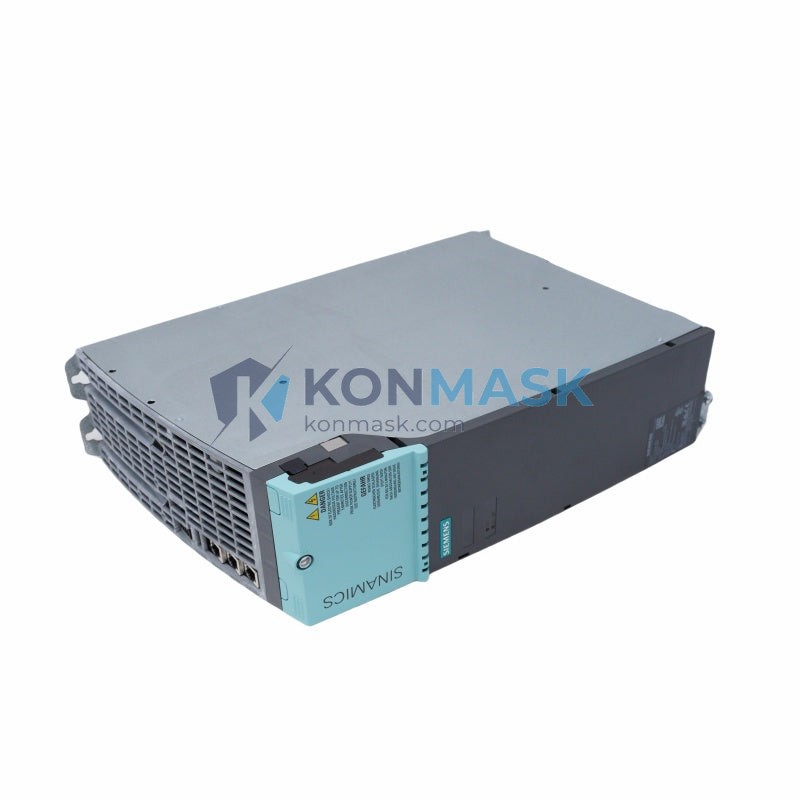

The Siemens 6SL3130-7TE21-6AA4 Active Line Module is the regenerative infeed unit at the heart of SINAMICS S120 multi-axis drive systems. It is specified by engineers across the following industrial sectors:
- Automotive Manufacturing: Body-in-white welding lines, transfer presses, and robotic assembly cells where regenerative braking energy is fed back to the grid, reducing energy costs by up to 30%.
- Packaging Machinery: High-speed form-fill-seal machines and cartoning lines requiring clean sinusoidal mains current and low harmonic distortion (THD <5%).
- Printing & Paper: Web-tension control systems on offset and gravure presses where four-quadrant operation is mandatory.
- Machine Tool & CNC: Multi-axis machining centers and grinding machines sharing a common DC bus with Motor Modules.
- Crane & Hoist: Overhead cranes and port gantries where lowering loads generate significant regenerative energy.
- Test Bench & Dynamometer: Engine and drivetrain test rigs requiring bidirectional power flow and ultra-stable DC bus voltage.
- Renewable Energy & Utilities: Grid-tie inverter test systems and power quality improvement installations.
Technical Specifications
| Part Number (SKU) | 6SL3130-7TE21-6AA4 |
| Series | SINAMICS S120 |
| Module Type | Active Line Module (ALM) – Regenerative Infeed |
| Rated Input Voltage | 3 AC 380–480 V (±10%) |
| Rated Input Current | 16 A |
| Rated Power | ~11 kW (infeed/regeneration) |
| DC Bus Voltage | 600–720 V DC |
| Mains Frequency | 47–63 Hz |
| Cooling Method | Internal air cooling (chassis format) |
| Protection Class | IP20 |
| Communication Interface | DRIVE-CLiQ |
| Control Unit Compatibility | CU320-2 DP / CU320-2 PN |
| Ambient Temperature | 0 °C to +40 °C (derating above 40 °C) |
| Standards | CE, UL, cUL, RoHS |
| Manufacturer | Siemens AG |
Why Engineers Specify This Model
- True Four-Quadrant Operation: Feeds regenerative braking energy back to the mains grid rather than dissipating it as heat in braking resistors — reducing energy consumption and eliminating resistor maintenance.
- Sinusoidal Mains Current: Active front-end topology ensures THD <5%, protecting sensitive equipment on the same supply bus and meeting IEEE 519 / IEC 61000-3-12 harmonic limits.
- Stable DC Bus: Active voltage regulation maintains a stiff, stable DC bus for all connected Motor Modules, enabling precise coordinated motion across multiple axes.
- DRIVE-CLiQ Ecosystem: Plug-and-play integration with Siemens CU320-2 Control Units, SIMOTION D, and S7-1500T via PROFIBUS DP or PROFINET IRT.
- Compact Booksize Format: Optimized for high-density cabinet layouts; mounts directly alongside Motor Modules on a shared DC bus bar.
- Integrated Safety: Supports STO (Safe Torque Off) and SS1 (Safe Stop 1) safety functions per IEC 62061 / ISO 13849-1 PLe.
Complete System Bill of Materials
A typical SINAMICS S120 multi-axis system built around the 6SL3130-7TE21-6AA4 includes:
- Active Line Module: 6SL3130-7TE21-6AA4 (this unit)
- Active Interface Module (AIM): 6SL3100-0BE21-6AB0 (line filter + reactor, required for ALM)
- Control Unit: 6SL3040-1MA01-0AA0 (CU320-2 DP) or 6SL3040-1MA00-0AA0 (CU320-2 PN)
- Motor Module (Booksize): 6SL3120-1TE21-0AA3 or per axis power requirement
- SIMOTICS Servo Motor: 1FK7 / 1FT7 series matched to load
- DRIVE-CLiQ Cable: 6FX2002-1DC00-xxxx (length per cabinet layout)
- 24 V DC Power Supply: 6EP1333-3BA00 (SITOP PSU100S)
- Braking Module (optional backup): 6SL3100-1BE21-3AA0
Compliance & Industry Standards
- CE Marking – Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C – Power Conversion Equipment (USA/Canada)
- IEC 61800-5-1 – Adjustable Speed Electrical Power Drive Systems (Safety)
- IEC 61800-3 – EMC Requirements for Drive Systems
- ISO 13849-1 / IEC 62061 – Functional Safety (STO, SS1)
- RoHS 2011/65/EU – Restriction of Hazardous Substances
- IEEE 519 – Harmonic Control in Electric Power Systems
Quality Assurance & Sourcing
Konmask.com sources the 6SL3130-7TE21-6AA4 exclusively through verified supply channels with full traceability:
- Each unit ships with original Siemens packaging, serial number, and factory test documentation.
- Pre-shipment inspection includes visual check, label verification, and functional power-on test where applicable.
- Counterfeit-prevention: holographic labels, date codes, and PCB markings are verified against Siemens authenticity guidelines.
- Warranty: 12 months from date of shipment, covering manufacturing defects.
How to Source This Part
- Add to Cart directly on this page for standard stock orders.
- Request a Quote for volume orders (>3 units), project pricing, or lead-time confirmation — email [email protected].
- Urgent / Emergency Orders: Call or WhatsApp +0086 19859288691 for same-day response.
- Export & Customs: We handle export documentation (CO, packing list, commercial invoice) for international shipments. HS Code: 8504.40.
Application-Specific FAQ
Q: Does the 6SL3130-7TE21-6AA4 require an Active Interface Module (AIM)?
A: Yes. Siemens mandates the use of a matched Active Interface Module (e.g., 6SL3100-0BE21-6AB0) with every Active Line Module. The AIM contains the line reactor and EMC filter required for proper ALM operation and CE compliance.
Q: Can this ALM share a DC bus with Basic Line Modules or Smart Line Modules?
A: No. Active Line Modules operate at a higher DC bus voltage (~680 V) than Smart Line Modules (~600 V). All modules on a shared DC bus must be of the same infeed type.
Q: What is the maximum cable length between the ALM and the AIM?
A: Siemens specifies a maximum of 1.5 m between the ALM and AIM using the supplied busbars. Longer connections require engineering review.
Q: Is this module compatible with SIMOTION D?
A: Yes. The 6SL3130-7TE21-6AA4 integrates seamlessly with SIMOTION D4x5-2 via DRIVE-CLiQ and is fully supported in SCOUT TIA engineering software.
Q: What firmware version is required?
A: Firmware ≥ V4.7 SP9 is recommended for full feature support including Safety Integrated and PROFINET IRT. Check the Siemens Industry Online Support portal for the latest firmware.
Q: Can Konmask provide commissioning support?
A: Yes. Our technical team offers remote commissioning guidance, parameter backup files, and STARTER/TIA Portal project templates for standard applications. Contact [email protected].
