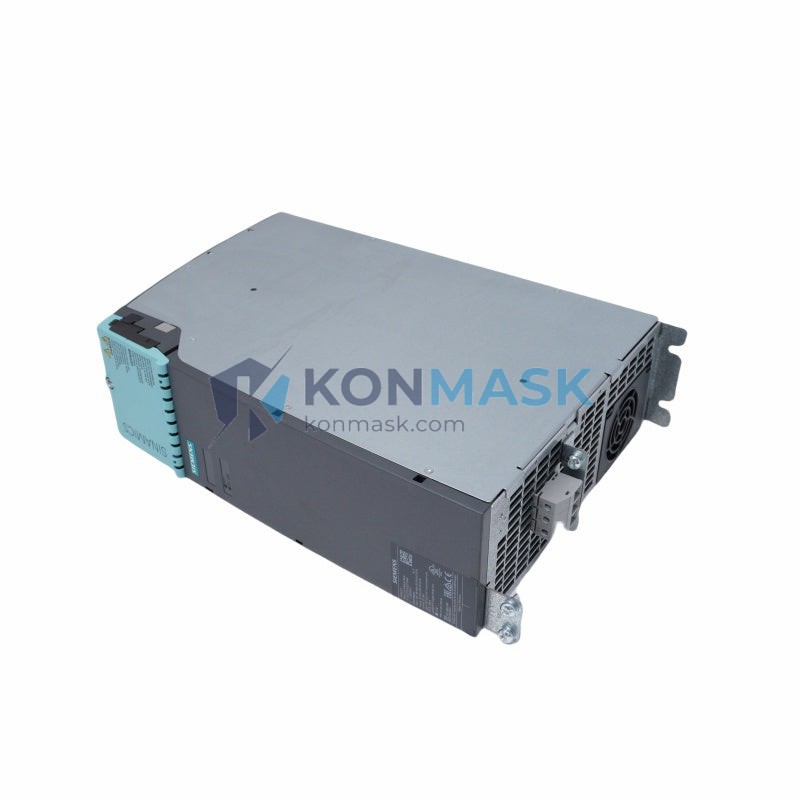

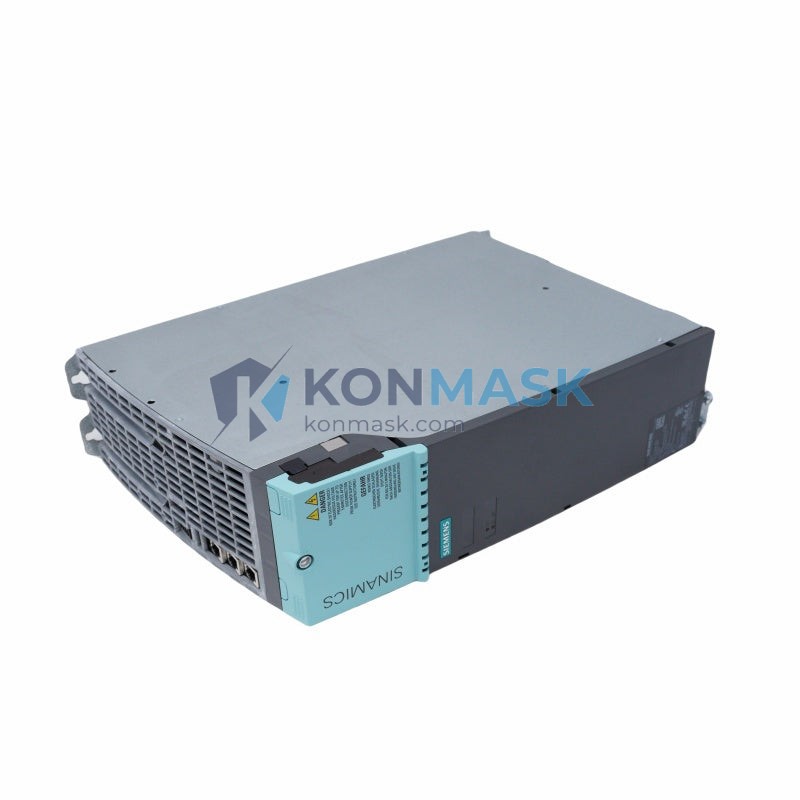

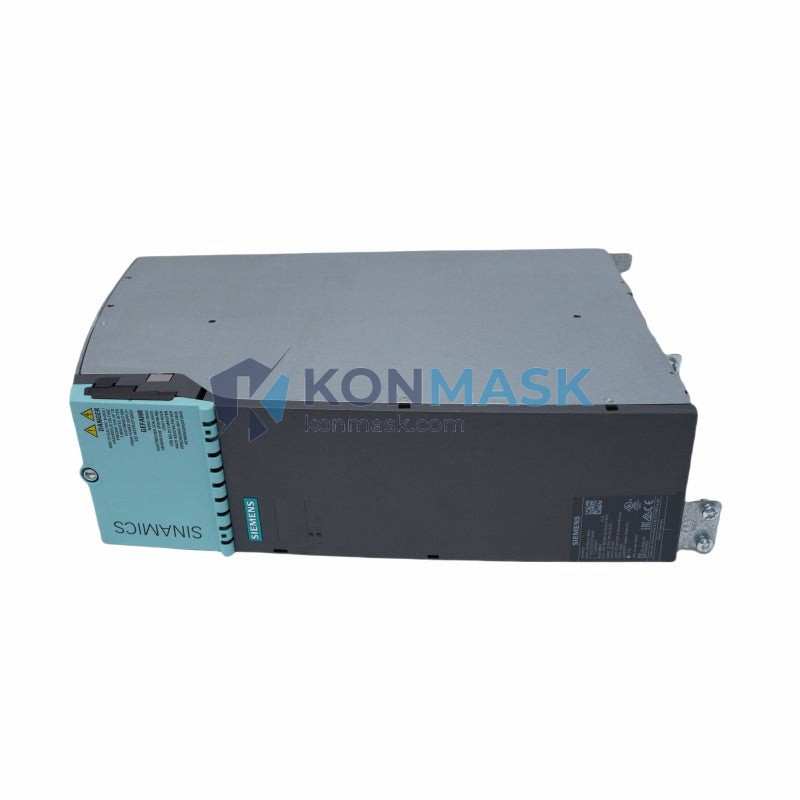

SIEMENS 6SL3100-0BE31-2AB0 Active Interface Module – SINAMICS S120 Series
When a drive system loses its active front-end interface, the consequences on the production floor are immediate and severe: uncontrolled harmonic distortion floods the power grid, regenerative braking energy has nowhere to go, and the entire SINAMICS S120 drive line trips offline. Unplanned downtime in high-throughput manufacturing, paper mills, or metal processing plants can cost thousands of dollars per hour. The SIEMENS 6SL3100-0BE31-2AB0 Active Interface Module (AIM) is the critical bridge between the supply network and the Active Line Module — without it, the system simply cannot operate safely or efficiently.
The 6SL3100-0BE31-2AB0 is engineered for the SINAMICS S120 Booksize format, Siemens’ flagship multi-axis servo and vector drive platform trusted in automotive body shops, semiconductor fabs, packaging lines, and offshore wind turbine test rigs worldwide. Within the S120 family, this AIM variant supports a 380–480 V AC input range and is designed to work in tandem with the Active Line Module to deliver near-unity power factor (cos φ ≈ 1) and ultra-low THDi, meeting the most stringent grid codes including IEEE 519 and IEC 61000-3-12. Its position in the global industrial automation market is unambiguous: it is the preferred front-end conditioning solution for engineers who demand regenerative capability and grid compliance in a compact booksize footprint.
Technical Specifications
- Part Number / SKU: 6SL3100-0BE31-2AB0
- Brand: SIEMENS
- Series: SINAMICS S120 Booksize
- Product Type: Active Interface Module (AIM)
- Input Voltage: 3-phase AC 380 V – 480 V (±10%)
- Input Frequency: 47 – 63 Hz
- Degree of Protection: IP20
- Cooling Method: Forced air cooling (internal fan)
- Mounting: Booksize rail mounting, DIN rail compatible
- Communication Interface: DRIVE-CLiQ
- Ambient Operating Temperature: 0 °C to +40 °C (derating above 40 °C)
- Storage Temperature: -40 °C to +70 °C
- Relative Humidity: 5 % – 95 %, non-condensing
- Standards Compliance: CE, UL, cUL, EN 61800-3
Note: All specifications are sourced from Siemens official documentation. Konmask.com does not modify or fabricate technical data.
Key Features & Benefits
- Active Front End (AFE) Technology: Achieves near-unity power factor and dramatically reduces harmonic current injection into the supply network, protecting sensitive equipment sharing the same bus.
- Regenerative Braking: Returns braking energy back to the supply grid instead of dissipating it as heat, reducing energy consumption and eliminating the need for braking resistors in many applications.
- DRIVE-CLiQ Integration: Plug-and-play digital communication with the SINAMICS S120 Control Unit and Active Line Module enables automatic parameter identification and simplified commissioning via STARTER or TIA Portal.
- Compact Booksize Format: Optimized for high-density control cabinet installations, minimizing panel footprint without sacrificing power density.
- Wide Input Voltage Tolerance: ±10% voltage tolerance ensures stable operation in regions with fluctuating grid quality.
- Robust EMC Performance: Integrated EMC filter options and shielding design meet Category C2/C3 requirements, reducing interference with adjacent automation equipment.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, press transfer systems, and paint shop conveyor drives requiring regenerative energy recovery.
- Paper & Printing: Winder/unwinder drives and multi-section web tension control systems demanding ultra-low harmonic distortion.
- Metal Processing: Rolling mills, coil handling, and wire drawing machines with high dynamic braking requirements.
- Packaging & Converting: High-speed servo-driven packaging lines with frequent acceleration/deceleration cycles.
- Semiconductor & Electronics: Cleanroom HVAC variable-speed drives and precision motion stages requiring grid-clean power.
- Renewable Energy Test Rigs: Wind turbine nacelle test benches and motor test stands with four-quadrant operation.
System Integration & Compatible Parts
The 6SL3100-0BE31-2AB0 is designed to integrate seamlessly within the SINAMICS S120 Booksize drive system. Typical companion components include:
- Active Line Module (ALM): e.g., 6SL3130-7TE21-6AA3, 6SL3130-7TE23-6AA3
- Control Unit: CU320-2 DP (6SL3040-1MA01-0AA0) or CU320-2 PN (6SL3040-1MA00-0AA0)
- Motor Modules (Booksize): 6SL3120-1TE21-0AA3 series
- DRIVE-CLiQ Hub Module: 6SL3162-2AA00-0AA0
- Line Reactor: Siemens 4EP series line reactors matched to ALM rating
- Braking Module & Resistor: 6SL3100-1BE21-3AA0 (for supplementary dynamic braking)
Contact our engineering team at support@konmask.com for system-level BOM verification and cross-reference support.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized Siemens distribution channels or verified surplus with full traceability documentation.
- Incoming Inspection: Each module undergoes visual inspection, label verification (part number, date code, country of origin), and packaging integrity check upon receipt.
- Functional Testing: Where applicable, units are powered-on tested and DRIVE-CLiQ communication is verified before shipment.
- Anti-Counterfeit Measures: Holographic labels, serial number cross-referencing with Siemens product authentication tools, and UV marking inspection are standard procedures.
- Packaging: ESD-safe anti-static bags, foam-lined cartons, and moisture-barrier packaging for international air and sea freight.
How to Order
- Submit your inquiry via the “Get a Quote” button or email support@konmask.com with your required quantity and delivery timeline.
- Our technical team will confirm stock availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange export documentation, commercial invoice, packing list, and certificate of origin as required.
- Shipment via DHL Express, FedEx, or sea freight depending on order volume and urgency.
- Post-shipment tracking and customs clearance support provided throughout delivery.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drives, and automation components — not a generalist marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO procurement teams across Europe, Southeast Asia, the Middle East, and the Americas.
- Technical Pre-Sales Support: Our engineers can assist with compatibility verification, firmware version matching, and system configuration advice.
- Competitive Lead Times: Extensive supplier network enables fast sourcing even for obsolete or long-lead Siemens part numbers.
- Transparent Documentation: Full export documentation, test reports, and traceability records provided with every order.
Frequently Asked Questions
- Q: What is the difference between the Active Interface Module and a standard line filter?
- A: A standard passive line filter only attenuates harmonics already present. The Active Interface Module works in conjunction with the Active Line Module to actively control the input current waveform, achieving near-unity power factor and THDi typically below 5% — far superior to passive solutions.
- Q: Is the 6SL3100-0BE31-2AB0 compatible with SINAMICS S120 Cabinet Modules?
- A: No. The 6SL3100-0BE31-2AB0 is designed for the Booksize format. Cabinet Module installations use a different AIM variant. Please confirm your drive format before ordering.
- Q: Can this module be used without an Active Line Module?
- A: No. The AIM is a companion module to the Active Line Module (ALM) and cannot function independently. It must be installed upstream of the ALM as part of the complete active front-end assembly.
- Q: Do you provide a warranty on this part?
- A: Yes. Konmask.com provides a standard 12-month warranty against manufacturing defects on all verified genuine units. Terms are detailed in our quotation documentation.
- Q: What certifications does this module carry?
- A: The 6SL3100-0BE31-2AB0 carries CE marking, UL/cUL listing, and complies with EN 61800-3 for variable-speed electrical power drive systems.
