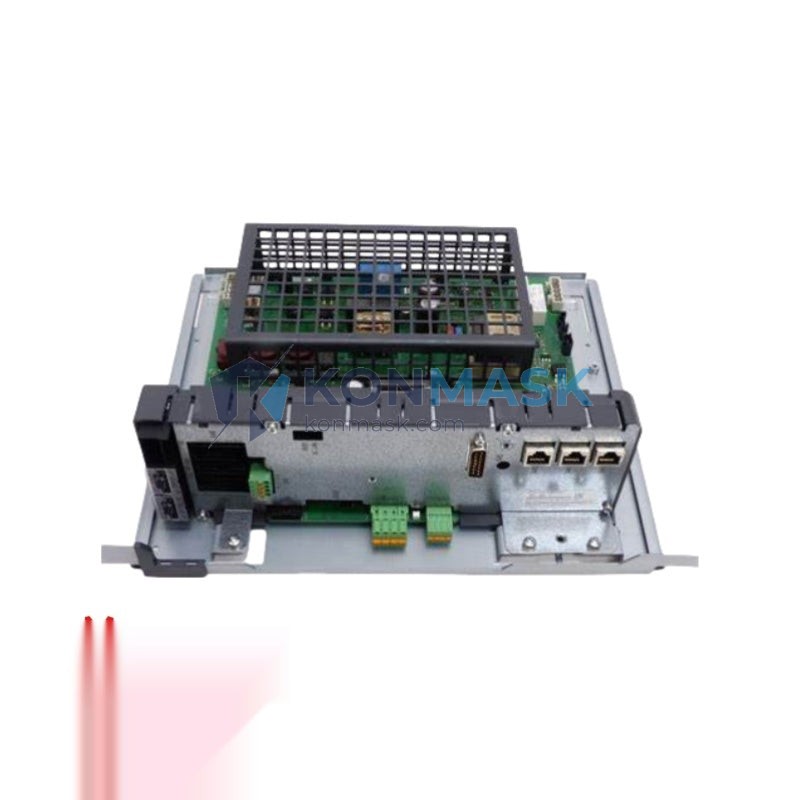

SIEMENS 6SL3350-6TK00-0BA0 – Active Line Module 16kW | SINAMICS S120 Booksize Platform
The SIEMENS 6SL3350-6TK00-0BA0 is a high-performance Active Line Module (ALM) from the SINAMICS S120 Booksize series, engineered for demanding industrial drive applications requiring clean power regeneration, ultra-low harmonic distortion, and bidirectional energy flow. Designed for procurement engineers specifying servo and vector drive systems in precision manufacturing, robotics, and process automation environments.
This module functions as the DC bus supply unit within a SINAMICS S120 multi-axis drive system, delivering regulated DC link voltage to connected Motor Modules while enabling regenerative braking energy to be fed back to the AC supply — reducing energy consumption and eliminating braking resistors in most applications.
Complete Technical Specifications
- Part Number: 6SL3350-6TK00-0BA0
- Series: SINAMICS S120 Booksize
- Module Type: Active Line Module (ALM)
- Rated Power: 16 kW
- Input Voltage: 3-phase AC 380–480 V (±10%)
- Input Frequency: 47–63 Hz
- DC Link Voltage Output: ~600–750 V DC (regulated)
- Rated Input Current: ~25 A (at 400 V AC)
- Form Factor: Booksize (chassis-mount, rail-integrated)
- Cooling Method: Internal fan (forced air)
- Protection Class: IP20
- Ambient Temperature: 0°C to +40°C (derated to +55°C)
- Storage Temperature: -40°C to +70°C
- Relative Humidity: ≤95% (non-condensing)
- Weight: approx. 3.3 kg
- Communication Interface: DRIVE-CLiQ
- Harmonic Distortion (THDi): <5% (active front-end topology)
- Power Factor: cos φ ≈ 1 (unity, active correction)
- Regenerative Capability: Yes – bidirectional energy flow
- Manufacturer: Siemens AG, Germany
- Country of Origin: Germany
Proven Application Environments
- Multi-axis CNC machining centers and turning/milling systems
- Industrial robot servo drive systems (KUKA, ABB, Fanuc integration)
- Printing and packaging machinery with regenerative deceleration
- Plastics injection molding and extrusion lines
- Textile and winding machinery requiring precise tension control
- Test bench and dynamometer systems with energy recovery
- Crane and hoist applications with regenerative lowering
- Semiconductor and electronics manufacturing equipment
Engineering Advantages
- Active Front End (AFE): IGBT-based rectifier eliminates line harmonics — no additional line filter required in most installations
- Unity Power Factor: Reduces reactive power demand and utility penalties
- Regenerative Braking: Returns braking energy to the grid, reducing net energy consumption by up to 30% in cyclic applications
- DRIVE-CLiQ Integration: Plug-and-play topology recognition, automatic parameterization, and real-time diagnostics via STARTER/TIA Portal
- Compact Booksize Form Factor: Shared DC bus architecture minimizes cabinet footprint vs. standalone drives
- Siemens Safety Integration: Compatible with Safety Integrated functions (STO, SS1, SLS) when paired with S120 Motor Modules
System Architecture & Signal Flow
The 6SL3350-6TK00-0BA0 operates as the infeed module in a SINAMICS S120 Booksize drive line-up:
- AC Supply → Line Filter (optional) → Line Reactor → Active Line Module (this unit)
- ALM converts AC to regulated DC bus voltage (~600–750 V DC)
- DC bus is shared across all connected Motor Modules via busbars
- DRIVE-CLiQ daisy-chains ALM → Motor Modules → Encoders → Control Unit (CU320-2)
- Regenerated energy flows back: Motor Module → DC bus → ALM → AC grid
- Control Unit (CU320-2 DP/PN) manages the entire drive system via PROFIBUS or PROFINET
Sourcing & Quality Verification
- Origin: Genuine Siemens AG production, Germany
- Condition: New OEM / Surplus stock (specify at inquiry)
- Traceability: Full serial number and date code documentation available
- Testing: Functional verification available upon request prior to shipment
- Packaging: Original Siemens anti-static packaging with factory labels
- Warranty: 12-month Konmask quality guarantee
- Export Compliance: ECCN classification and export documentation available for international orders
Procurement Process
- Step 1: Submit RFQ via [email protected] with quantity and required delivery date
- Step 2: Receive quotation with stock confirmation, lead time, and datasheet within 24 hours
- Step 3: Issue PO — payment via T/T, L/C, or agreed terms
- Step 4: Shipment via DHL Express / FedEx with full tracking and commercial invoice
- Step 5: Post-delivery technical support available from Konmask engineering team
Technical FAQ
Q: Can the 6SL3350-6TK00-0BA0 operate as a standalone drive?
A: No. It is an infeed module and must be paired with SINAMICS S120 Motor Modules and a Control Unit (e.g., CU320-2). It does not directly control a motor.
Q: What line reactor is required?
A: Siemens recommends a 2% line reactor (e.g., 6SL3000-0BE21-6AA0) upstream of the ALM to protect against voltage spikes and ensure stable operation.
Q: Is a line filter mandatory?
A: The AFE topology inherently reduces harmonics. An additional EMC line filter may be required depending on local grid regulations (EN 61800-3 Category C2/C3).
Q: What firmware/software is needed for commissioning?
A: SINAMICS Startdrive (TIA Portal V16+) or STARTER V5.4+. DRIVE-CLiQ enables automatic topology detection.
Q: Can this module replace a Basic Line Module (BLM)?
A: Yes, with caveats. The ALM provides regeneration and lower harmonics vs. BLM, but requires a line reactor and has different DC bus voltage characteristics. Verify compatibility with your Motor Module firmware.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days internationally. Contact us for current availability.
