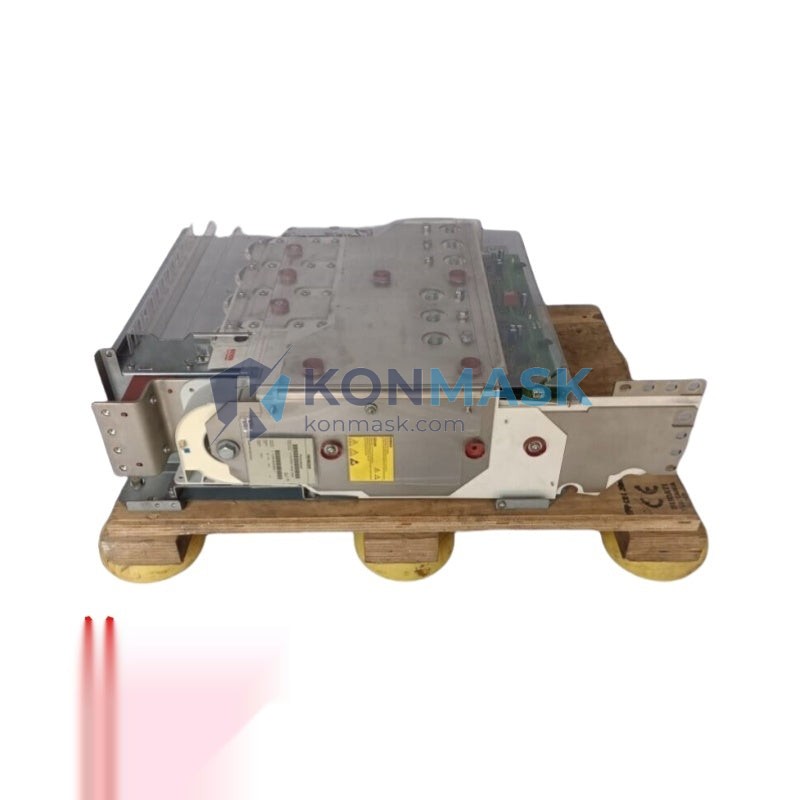

Industrial Drive & Regenerative Power Solution – SIEMENS 6SL3352-1AE41-4FA1 | SINAMICS S120
Where This Product Is Used
The SIEMENS 6SL3352-1AE41-4FA1 Active Line Module is deployed in demanding industrial environments where regenerative energy feedback and precise drive control are critical. Typical application scenarios include:
- CNC Machining Centers & Milling Lines — Provides stable DC bus power with regenerative braking for multi-axis servo coordination.
- Automotive Assembly Lines — Supports high-cycle press and conveyor drives requiring consistent voltage regulation and energy recovery.
- Crane & Hoist Systems — Enables regenerative feedback during lowering operations, reducing energy consumption and braking resistor wear.
- Plastics Injection Molding Machines — Delivers clean sinusoidal input current for sensitive mold-temperature and clamping-force control loops.
- Paper & Printing Machinery — Maintains tight speed synchronization across multi-motor winder/unwinder configurations.
- Test Bench & Dynamometer Systems — Feeds regenerated energy back to the grid during motor load testing, lowering operating costs.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 6SL3352-1AE41-4FA1 |
| Brand / Manufacturer | SIEMENS |
| Product Series | SINAMICS S120 |
| Module Type | Active Line Module (ALM) — Booksize Format |
| Input Voltage | 3-phase AC 380–480 V (±10%) |
| Input Frequency | 47–63 Hz |
| Rated DC Link Voltage | 600 V DC |
| Rated Input Current | ~490 A (refer to project-specific derating) |
| Power Factor | ≈ 1 (sinusoidal input current, low THD) |
| Cooling Method | Forced air cooling (internal fan) |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (derated to +55 °C) |
| Weight | ~4 kg |
| Communication Interface | DRIVE-CLiQ |
| Standards | CE, UL, cUL |
Why Engineers Specify This Model
- True Regenerative Feedback: Returns braking energy to the supply grid — measurably reduces energy bills in high-inertia applications.
- Sinusoidal Input Current: Near-unity power factor and low THD protect upstream transformers and comply with EN 61000-3-12.
- DRIVE-CLiQ Integration: Plug-and-play commissioning within the SINAMICS S120 ecosystem; automatic parameter identification via STARTER / TIA Portal.
- Booksize Compact Form Factor: Minimizes cabinet footprint while supporting high power density multi-axis configurations.
- Proven Field Reliability: Widely specified in Tier-1 automotive and machine-tool OEM platforms globally.
Complete System Bill of Materials
For a fully operational SINAMICS S120 drive system using this Active Line Module, the following components are typically required:
- Active Line Module: 6SL3352-1AE41-4FA1 (this unit)
- Control Unit: e.g., 6SL3040-1MA01-0AA0 (CU320-2 DP) or CU320-2 PN
- Line Filter (EMC): e.g., 6SL3000-0BE31-6DA0
- Line Reactor: e.g., 6SL3000-0CE32-3AA0
- Motor Module (Booksize): e.g., 6SL3120-1TE26-0AA3
- DRIVE-CLiQ Cable Set: 6SL3060-4Axxxx-0AA0 series
- Braking Module (optional): 6SL3100-1BE31-0AA0
- Servo Motor: e.g., SIMOTICS S-1FK7 / 1FT7 series
Contact Konmask.com for complete BOM sourcing and compatibility verification.
Compliance & Industry Standards
- CE Marking — EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C — Power Conversion Equipment (North America)
- EN 61800-3 — Adjustable Speed Electrical Power Drive Systems (EMC)
- EN 61000-3-12 — Harmonic Current Limits for High-Power Equipment
- IEC 61508 / SIL — Functional safety compatibility within S120 Safety Integrated framework
- RoHS Compliant
Quality Assurance & Sourcing
- Verified Origin: Sourced from authorized SIEMENS distribution channels and certified industrial surplus networks.
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label verification, and functional continuity checks before dispatch.
- Authenticity Guarantee: Holographic labels, date codes, and firmware versions are cross-referenced against SIEMENS factory records.
- Packaging: Anti-static ESD bag + foam-lined export carton; suitable for international air and sea freight.
- Warranty: 12-month replacement warranty against manufacturing defects.
How to Source This Part
- Add 6SL3352-1AE41-4FA1 to your cart or submit a quote request via the product page.
- Our engineering team confirms stock availability and lead time within 1 business day.
- Receive a proforma invoice with HS Code 8504.40 for customs clearance.
- Choose your preferred shipping method: DHL Express, FedEx, or sea freight LCL/FCL.
- Track your shipment with a dedicated logistics coordinator until delivery.
Application-Specific FAQ
Q: Can the 6SL3352-1AE41-4FA1 operate on a 480 V supply?
A: Yes. The ALM accepts 3-phase 380–480 V AC (±10%), making it compatible with both European 400 V and North American 480 V industrial supplies.
Q: Is a line reactor mandatory?
A: SIEMENS strongly recommends a matched line reactor to limit inrush current and protect the input rectifier bridge. Konmask can supply the correct reactor as part of a complete BOM.
Q: What Control Unit is compatible?
A: The CU320-2 DP (PROFIBUS) and CU320-2 PN (PROFINET) are the primary control units for S120 booksize configurations. The ALM connects via DRIVE-CLiQ.
Q: Can this module feed energy back to the grid?
A: Yes — this is the defining feature of an Active Line Module. Unlike a Basic Line Module, the ALM actively regenerates braking energy to the supply, reducing net energy consumption.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. For out-of-stock scenarios, lead time is 4–8 weeks depending on SIEMENS factory allocation.
