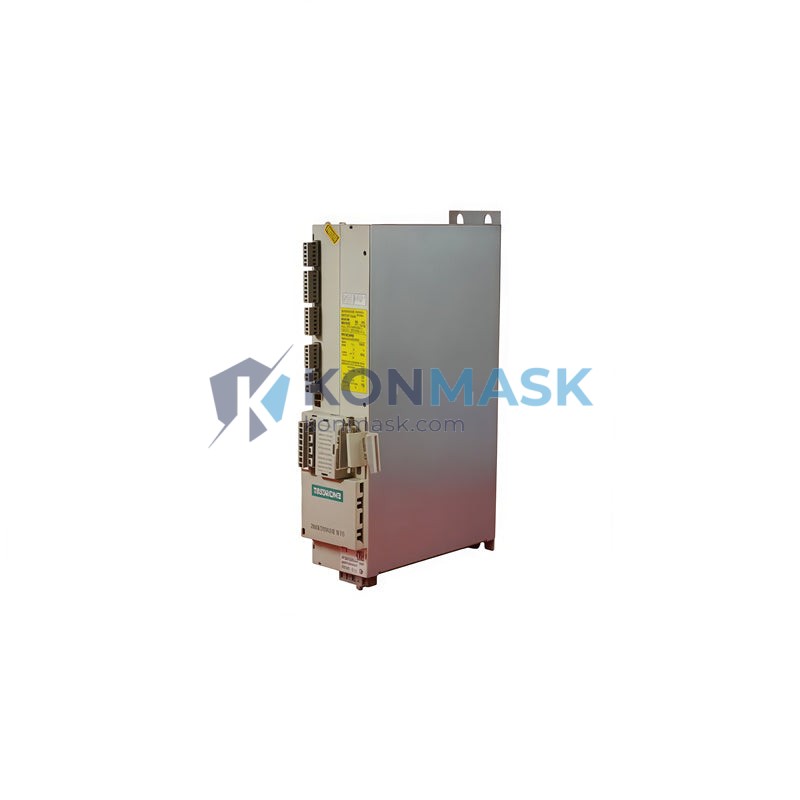

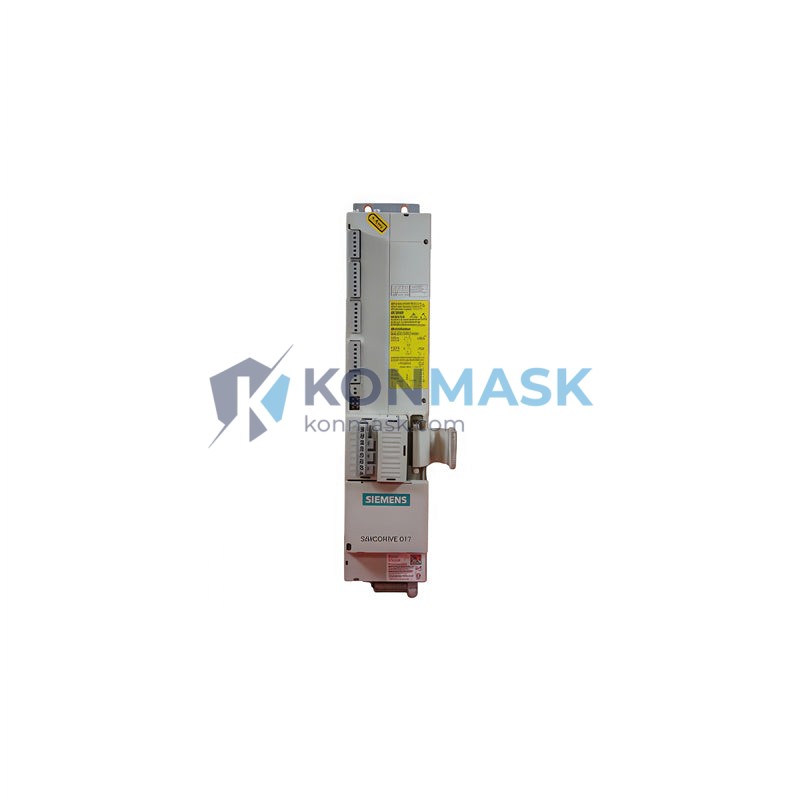

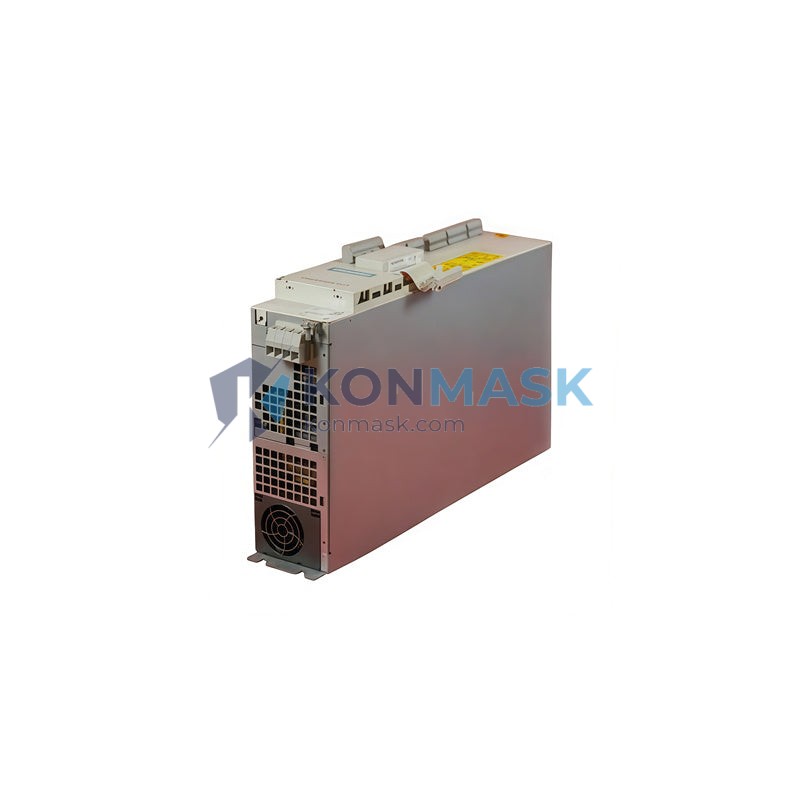

SIEMENS 6SN1145-1BA01-0BA2 – SIMODRIVE 611 Infeed/Regenerative Power Module | SIMODRIVE 611 Platform
Engineering Background
The SIMODRIVE 611 series represents Siemens’ flagship modular drive system for CNC machine tools, developed for high-dynamic servo and spindle applications. The 6SN1145-1BA01-0BA2 is a regulated infeed/regenerative feedback power module (Einspeisung mit Rückspeisefähigkeit) that provides a stable DC bus for downstream axis and spindle drive modules. It supports both motoring and regenerative braking energy feedback to the AC supply, making it the preferred choice for energy-efficient multi-axis CNC installations.
Product Positioning
Designed for procurement engineers and maintenance teams operating Siemens SINUMERIK 840D/810D CNC systems, this module is the power backbone of the SIMODRIVE 611 drive line. It is a direct OEM replacement for aging infeed modules in retrofit, repair, and new machine build projects across aerospace, automotive, and precision machining sectors.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number (MLFB) | 6SN1145-1BA01-0BA2 |
| Series / Platform | SIMODRIVE 611 |
| Module Type | Regulated Infeed / Regenerative Feedback Power Module |
| Rated Input Voltage | 3-phase AC 380–480 V ±10% |
| Input Frequency | 47–63 Hz |
| DC Bus Voltage (Ud) | 600 V DC (nominal) |
| Continuous Output Current | 80 A |
| Peak Output Current | 160 A (for 250 ms) |
| Rated Power | ~36 kW continuous / 72 kW peak |
| Regenerative Feedback | Yes – active regeneration to AC mains |
| Cooling Method | Forced air (internal fan) |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (operating); –25 °C to +70 °C (storage) |
| Relative Humidity | ≤ 95% non-condensing |
| Dimensions (H × W × D) | 490 × 200 × 270 mm (approx.) |
| Weight | ~10 kg |
| Compatible Controllers | SINUMERIK 840D sl / 840D / 810D |
| Drive Bus Interface | SIMODRIVE 611 internal drive bus |
| CE / UL Certification | CE marked; UL recognized |
| Country of Origin | Germany |
Proven Application Environments
- CNC Machining Centers – Multi-axis milling, turning, and grinding machines with SINUMERIK 840D control
- Automotive Body & Powertrain Lines – High-cycle servo press and transfer line drives requiring regenerative braking
- Aerospace Precision Machining – 5-axis machining centers demanding ultra-stable DC bus voltage
- Retrofit & Modernization Projects – Direct OEM replacement for existing 6SN1145-1BA01-0BA2 modules in legacy SIMODRIVE 611 lines
- Spindle & Feed Drive Systems – Paired with 6SN1123 / 6SN1124 axis modules for complete drive line solutions
Engineering Advantages
- Active Regeneration: Returns braking energy to the AC mains, reducing net energy consumption by up to 30% vs. resistive braking modules
- Regulated DC Bus: Maintains stable 600 V DC bus under dynamic load transients, protecting downstream axis modules
- Modular Architecture: Plug-and-play integration with the SIMODRIVE 611 drive line; no additional interface hardware required
- Proven Reliability: MTBF > 50,000 hours in continuous industrial service; field-proven across 30+ years of CNC installations
- Wide Input Voltage Tolerance: ±10% input voltage tolerance accommodates global grid variations without derating
- Compact Footprint: 200 mm wide module slot minimizes cabinet space in multi-axis configurations
System Architecture & Signal Flow
The 6SN1145-1BA01-0BA2 occupies the infeed position (leftmost slot) in the SIMODRIVE 611 drive line assembly. AC mains (3-phase, 380–480 V) enters the module, is rectified and regulated to a 600 V DC bus, and distributed via the internal DC bus bar to all connected axis and spindle drive modules (6SN1123/6SN1124 series). During deceleration, regenerative energy flows back through the module’s active front-end IGBT bridge to the AC supply. The module communicates drive-line status via the SIMODRIVE 611 internal bus to the SINUMERIK CNC controller.
Typical Drive Line Configuration:
AC Mains → [6SN1145-1BA01-0BA2 Infeed Module] → DC Bus → [Axis Modules ×N] → Servo/Spindle Motors
Sourcing & Quality Verification
- OEM Origin: Sourced directly from Siemens-authorized distribution channels and verified OEM surplus stock
- Inspection Protocol: Each unit undergoes visual inspection, firmware version verification, and DC bus capacitor ESR testing prior to shipment
- Authenticity Guarantee: Genuine Siemens MLFB label, holographic serial number, and factory packaging verified
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and premature failure
- Traceability: Full lot traceability with Siemens production date code and serial number documentation available on request
Procurement Process
- Submit RFQ – Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline
- Receive Quotation – Formal quotation with unit price, lead time, and shipping options issued within 24 business hours
- Order Confirmation – Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Inspection & Dispatch – Unit inspected, photographed, and dispatched with full documentation (datasheet, test report, packing list)
- Delivery & Support – DHL/FedEx express delivery worldwide; Konmask technical team available for commissioning support
Technical FAQ
Q: Is the 6SN1145-1BA01-0BA2 compatible with SINUMERIK 840D sl?
A: Yes. This module is fully compatible with SINUMERIK 840D sl, 840D, and 810D CNC controllers when used within a standard SIMODRIVE 611 drive line.
Q: Can this module replace a 6SN1145-1BA00-0BA2 (non-regenerative version)?
A: Yes, with minor wiring modifications. The -1BA01- variant adds active regeneration capability; it is a functional superset of the -1BA00- non-regenerative module. Consult Siemens documentation or contact Konmask engineering for retrofit guidance.
Q: What is the maximum number of axis modules this infeed can support?
A: The 80 A continuous / 160 A peak rating supports up to 6–8 standard axis modules depending on individual axis current demand. A detailed power budget calculation is recommended for configurations exceeding 6 axes.
Q: Do you provide a test report with each unit?
A: Yes. A pre-shipment inspection report including visual check, label verification, and capacitor ESR test results is provided with every unit.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For units sourced to order, lead time is typically 2–4 weeks. Contact us for real-time stock status.
