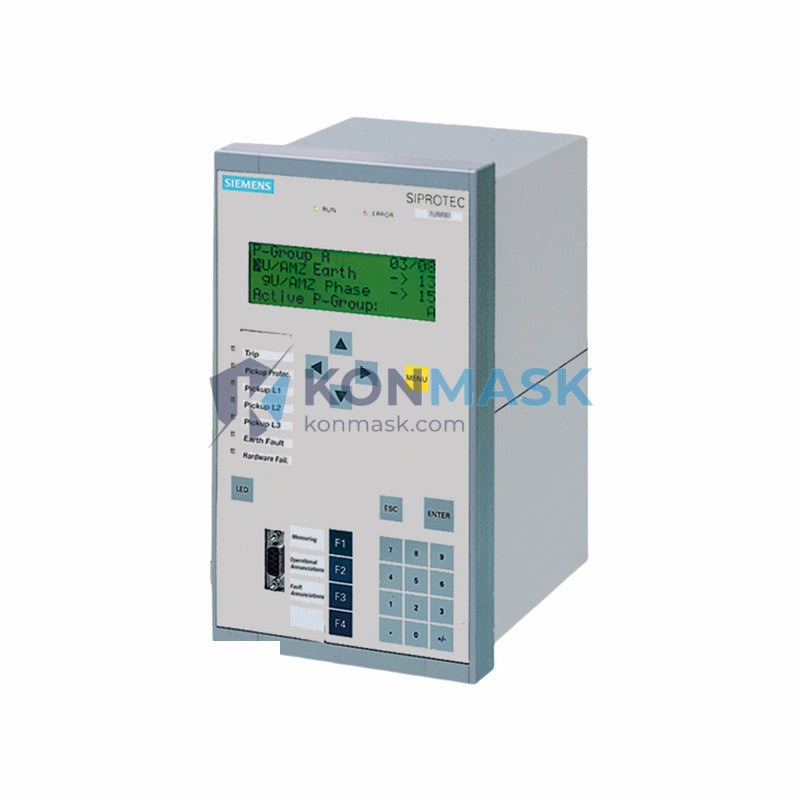

SIEMENS 7UT6125-5EB20-1AA0/BB Differential Protection Relay – SIPROTEC 7UT612 Series
When a transformer, motor, or generator loses its differential protection, the consequences are catastrophic: undetected internal faults escalate within milliseconds into full-scale equipment failures, causing unplanned shutdowns, costly repairs, and — in the worst cases — fires or explosions that endanger personnel and infrastructure. In critical power distribution environments, every second without reliable protection is a second of unacceptable risk.
The SIEMENS 7UT6125-5EB20-1AA0/BB is a high-performance numerical differential protection relay from the renowned SIPROTEC 7UT612 series, engineered specifically for the protection of transformers, motors, generators, and busbars in medium- and high-voltage power systems. As part of Siemens’ globally trusted SIPROTEC 4 platform, this relay delivers sub-cycle fault detection, advanced harmonic restraint, and seamless integration into modern SCADA and substation automation architectures — making it a cornerstone component in power utilities, heavy industry, and critical infrastructure worldwide.
Technical Specifications
- Model / Part Number: 7UT6125-5EB20-1AA0/BB
- Series: SIPROTEC 7UT612
- Manufacturer: SIEMENS AG
- Function: Numerical Differential Protection Relay
- Protected Objects: Transformers, Motors, Generators, Busbars
- Rated Frequency: 50/60 Hz
- Auxiliary Voltage: 110–125 V DC (as per variant code -5EB20)
- Communication Interface: IEC 61850 / PROFIBUS / RS-485 (variant dependent)
- Mounting: Flush panel / rack mounting
- Weight: Approx. 4.46 kg
- Standards Compliance: IEC 60255, IEC 61850, CE
Note: All specifications are based on Siemens official documentation. Contact us to verify exact variant parameters before ordering.
Key Features & Benefits
- High-Speed Differential Protection: Sub-cycle tripping for internal faults, minimizing equipment damage and downtime.
- Advanced Harmonic Restraint: 2nd and 5th harmonic blocking prevents false trips during transformer energization (inrush current).
- Flexible CT Ratio Matching: Software-configurable current transformer ratio compensation eliminates the need for interposing CTs.
- Integrated Overcurrent Backup: Built-in overcurrent and earth-fault protection functions provide comprehensive backup coverage.
- IEC 61850 Ready: Native support for modern substation communication protocols enables seamless SCADA integration.
- Comprehensive Event Recording: Fault records, disturbance recordings, and event logs support rapid post-fault analysis.
- User-Friendly Parameterization: DIGSI 4 software interface simplifies configuration, testing, and commissioning.
Industry & Equipment Applications
- Power Utilities & Substations: Protection of power transformers in transmission and distribution substations.
- Oil & Gas: Motor and generator protection in upstream/downstream processing facilities.
- Steel & Metallurgy: Large drive motor protection in rolling mills and arc furnace installations.
- Water Treatment & Pumping Stations: Pump motor protection in critical water infrastructure.
- Renewable Energy: Generator protection in wind and solar power plants.
- Marine & Offshore: Shipboard power system protection and offshore platform electrical systems.
- Data Centers & Critical Facilities: UPS transformer and generator protection for uninterrupted power supply.
System Integration & Compatible Parts
The 7UT6125-5EB20-1AA0/BB integrates seamlessly within the Siemens SIPROTEC 4 ecosystem and broader substation automation environments. Compatible and commonly paired components include:
- SIPROTEC 7SJ61 / 7SJ62 / 7SJ64 — Overcurrent and motor protection relays for backup coordination
- SIPROTEC 7SD52 / 7SD61 — Line differential protection relays for feeder protection
- SIPROTEC 7VK61 — Busbar protection relay
- DIGSI 4 Software — Configuration and parameterization tool (PC-based)
- SIEMENS SICAM / SINAUT — Substation automation and SCADA communication systems
- Siemens SIRIUS 3RT / 3RV — Motor starters and circuit breakers for complete motor protection schemes
