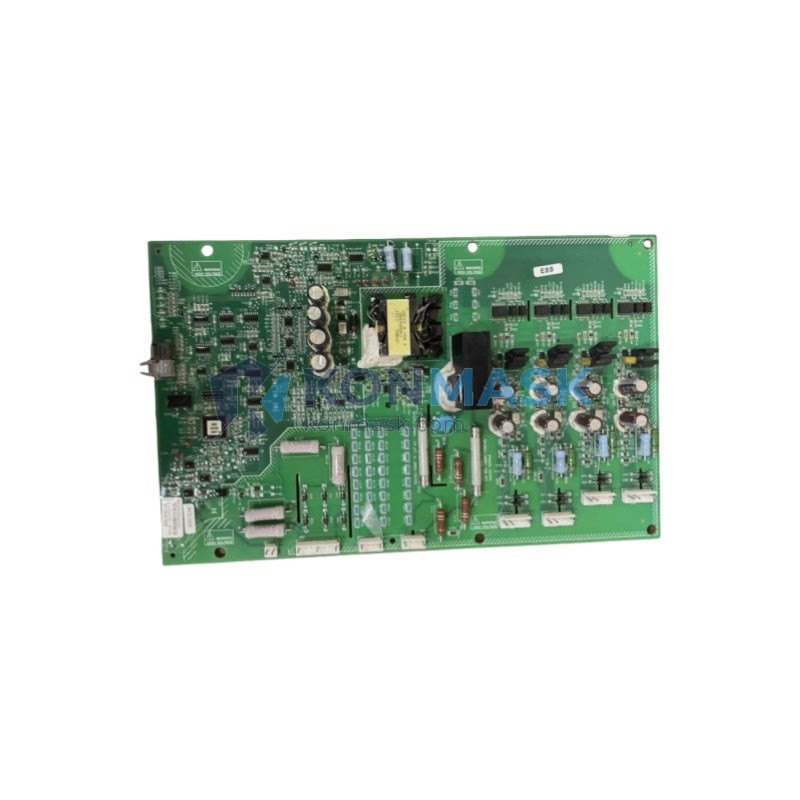

Siemens A1A098194 Robicon Backplane PCA | Replacement, Equivalent & Selection Guide
The Siemens A1A098194 is a Robicon series Backplane PCA (Printed Circuit Assembly) designed for use in Siemens Robicon drive and control systems. This backplane module provides the structural and electrical interconnect backbone for Robicon drive system cards, enabling reliable slot-based communication and power distribution across the control rack. Available at Konmask.com with global shipping support.
Technical Specifications
- Part Number: A1A098194
- Manufacturer: Siemens (Robicon)
- Series: Robicon Drive Control System
- Module Type: Backplane PCA (Printed Circuit Assembly)
- Function: Rack backplane for card interconnection and power distribution
- Weight: Approx. 700 g
- Condition: New / Refurbished / Tested Available
- Country of Origin: Germany / USA (Robicon)
Compatible Replacement & Equivalent Models
The following models may serve as functional replacements or equivalents for the A1A098194. Always verify firmware version, slot count, and connector pinout before substitution:
- Siemens A1A098194A – Revised hardware revision of the same backplane
- Siemens A1A098194B – Later revision with minor PCB updates
- Robicon 459626 – OEM equivalent backplane used in Perfect Harmony drives
- Robicon 459627 – Extended slot variant for larger rack configurations
- Siemens 6SE70 Series Backplane Cards – Compatible in select Robicon-integrated systems
Note: Replacement compatibility depends on drive series, firmware, and rack configuration. Contact support@konmask.com for pre-purchase verification.
Why Choose the Original A1A098194
- ✅ OEM Guaranteed Compatibility – Designed and tested by Siemens for Robicon systems
- ✅ Stable Signal Integrity – Precision PCB traces ensure low-noise backplane communication
- ✅ Long Service Life – Industrial-grade materials rated for continuous 24/7 operation
- ✅ Plug-and-Play Installation – No firmware modification required when replacing like-for-like
- ✅ Traceability – Full OEM documentation and serial number traceability available
Typical Applications
- Siemens Robicon Perfect Harmony medium-voltage drive systems
- Robicon drive control rack card interconnection
- Industrial motor drive control panels
- Power generation and utility automation systems
- Oil & gas, mining, and heavy industrial process control
- Water treatment and pump station variable frequency drive (VFD) systems
System Compatibility
- Drive Series: Siemens Robicon Perfect Harmony (GH150, GH180, GH190)
- Control Architecture: Robicon multi-cell drive control racks
- Interface: Backplane slot connector (verify slot count with system BOM)
- Power Supply: Rack-supplied via drive system PSU
- Communication: Internal rack bus (proprietary Robicon protocol)
Selection Guide
Use the following criteria to confirm the A1A098194 is the correct backplane for your system:
- Step 1 – Identify Drive Series: Confirm your drive is a Siemens Robicon Perfect Harmony or equivalent Robicon-branded system.
- Step 2 – Check Rack Slot Count: Match the number of card slots on your existing backplane to the A1A098194 specification.
- Step 3 – Verify Connector Type: Inspect the edge connector and backplane bus connector pinout against the OEM wiring diagram.
- Step 4 – Confirm Hardware Revision: Check the revision suffix (A, B, etc.) on the existing board label to ensure compatibility with installed cards.
- Step 5 – Cross-Reference BOM: Match against your system’s Bill of Materials or contact Konmask for a free compatibility check.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified OEM surplus channels
- Each board undergoes visual inspection and functional testing prior to shipment
- Anti-static packaging with moisture barrier protection
- Certificate of conformance available upon request
- Refurbished units include full test report and 90-day warranty
How to Order
- Add Siemens A1A098194 to cart on Konmask.com
- Select condition: New / Refurbished / Exchange
- Proceed to checkout – we accept T/T, PayPal, and major credit cards
- For bulk orders or urgent requirements, email support@konmask.com or call +0086 19859288691
- Lead time: In-stock items ship within 1–3 business days; special orders 5–10 business days
Replacement & Compatibility FAQ
Q: Can I use A1A098194A or A1A098194B as a direct replacement for A1A098194?
A: In most cases yes, as these are hardware revisions of the same base part. However, verify with your system documentation or contact us to confirm.
Q: Is this backplane compatible with non-Robicon Siemens drives (e.g., SINAMICS, MICROMASTER)?
A: No. The A1A098194 is specific to the Robicon drive platform and is not interchangeable with SINAMICS or MICROMASTER series backplanes.
Q: Do you offer exchange/repair service for faulty A1A098194 boards?
A: Yes. Contact support@konmask.com for our board repair and exchange program.
Q: What is the lead time for new OEM units?
A: In-stock units ship within 1–3 business days. For new OEM orders, lead time is typically 4–8 weeks depending on Siemens availability.
Q: Can Konmask provide a datasheet or wiring diagram?
A: Yes, available documentation is provided upon purchase or upon request for qualified buyers.
