Siemens A1A10000432.02M GATE BOARD | Drive Control Gate Driver Module

Drive Control Solution – Siemens A1A10000432.02M | GATE BOARD

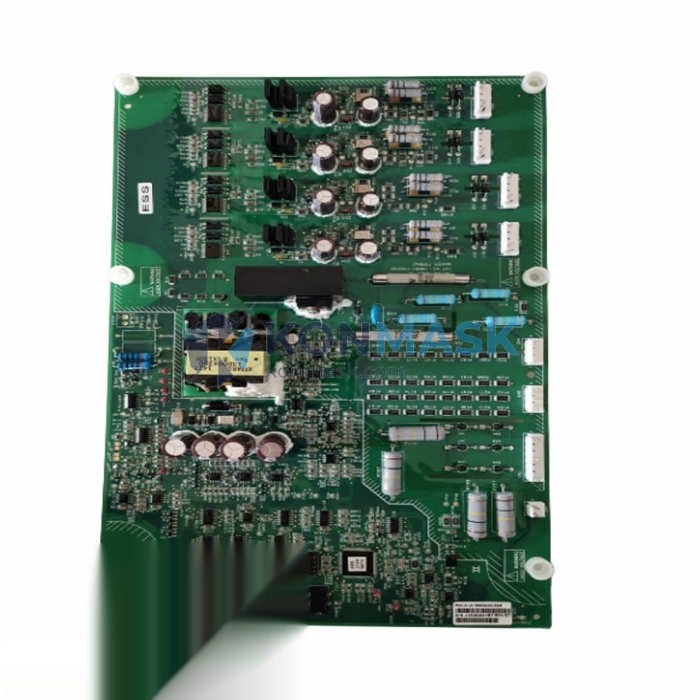

The Siemens A1A10000432.02M is an industrial-grade GATE BOARD designed for IGBT gate driver circuits in medium-voltage and low-voltage variable frequency drive (VFD) systems. Engineered to Siemens’ exacting standards, this module ensures precise switching control, fault isolation, and thermal protection across demanding industrial power conversion applications.

Where This Product Is Used

Engineers and maintenance teams specify the A1A10000432.02M in the following environments:

• Variable Frequency Drives (VFDs) — SIMOVERT MASTERDRIVES, SINAMICS S120/G120 series and compatible medium-voltage drive platforms requiring reliable IGBT gate triggering.
• Steel & Metal Processing Plants — Rolling mill drives, coiler/uncoiler systems, and crane hoist drives where precise torque control is critical.
• Oil & Gas Facilities — Compressor drives, pump control panels, and subsea topside power conversion units operating in harsh environments.
• Water & Wastewater Treatment — High-power pump and blower VFD systems requiring continuous-duty gate driver reliability.
• Cement & Mining Operations — Kiln drives, conveyor belt drives, and ball mill motor controllers with high-cycle switching demands.
• Power Generation & Utilities — Excitation systems, STATCOM gate driver boards, and UPS inverter stages.
• Marine & Offshore Propulsion — Variable-speed thruster drives and shaft generator control systems.

Technical Specifications

• Part Number: A1A10000432.02M
• Manufacturer: Siemens AG
• Module Type: IGBT Gate Driver Board (GATE BOARD)
• Compatible Platforms: SIMOVERT MASTERDRIVES, SINAMICS S120, compatible MV drive inverter stacks
• Function: Gate pulse generation, IGBT on/off switching control, desaturation fault detection
• Isolation: Galvanic isolation between control and power stage
• Protection Features: Short-circuit protection, over-temperature shutdown, under-voltage lockout (UVLO)
• Weight: 300 g
• Condition: New / Refurbished-to-OEM-spec (specify at inquiry)
• SKU: A1A10000432.02M

Why Engineers Specify This Model

• OEM-Matched Gate Timing — Maintains Siemens-specified dead-time and gate resistance values, preventing shoot-through faults in half-bridge topologies.
• Plug-and-Play Replacement — Form, fit, and function identical to the original board; no firmware re-parameterization required in most drive configurations.
• Fault Transparency — Desaturation detection and fault feedback signals are fully compatible with Siemens CU (Control Unit) diagnostic routines.
• Thermal Robustness — Rated for continuous operation in high-ambient industrial enclosures; conformal coating available on select variants.
• Reduced Downtime Risk — Stocking this board as a critical spare eliminates multi-week OEM lead times during unplanned outages.

Complete System Bill of Materials

When replacing or commissioning a drive inverter stack, consider sourcing the following complementary components from Konmask:

• Siemens IGBT Power Module (matching voltage/current class)
• Siemens Fiber Optic Interface Board (pulse transmission to gate board)
• Siemens Control Unit (CU320-2 / CU240E-2 or equivalent)
• DC Bus Capacitor Bank / Capacitor Module
• Siemens DRIVE-CLiQ Cable Set
• Thermal Interface Pad / Heatsink Compound
• Siemens Snubber / Clamp Circuit Board

Contact support@konmask.com for a complete BOM quotation for your drive model.

Compliance & Industry Standards

• CE Marking — Compliant with EU Low Voltage Directive and EMC Directive as part of the Siemens drive system.
• UL / cUL Recognition — Applicable to drive assemblies listed under UL 508C (Power Conversion Equipment).
• IEC 61800-5-1 — Adjustable speed electrical power drive systems — safety requirements.
• RoHS Compliant — Restriction of Hazardous Substances per EU Directive 2011/65/EU.
• ISO 9001:2015 — Manufactured under Siemens’ certified quality management system.

Quality Assurance & Sourcing

Konmask sources the A1A10000432.02M through verified industrial supply channels with full traceability. Every unit dispatched from our warehouse undergoes:

• Visual inspection for physical damage, corrosion, and counterfeit markers
• Label and date-code verification against Siemens OEM packaging standards
• Functional bench test where applicable (new-in-box units ship sealed)
• Anti-static packaging with humidity indicator card for safe transit
• Photographic documentation available upon request for insurance and audit purposes

We do not list products we cannot ship. Inventory status is confirmed before every order acknowledgment.

How to Source This Part

1. Submit an Inquiry — Email support@konmask.com with your drive model, serial number, and required quantity.
2. Receive a Quotation — We respond within 1 business day with pricing, lead time, and stock confirmation.
3. Place Your Order — Secure checkout via this product page or via proforma invoice for B2B/corporate accounts.
4. Shipping & Tracking — Dispatched via DHL Express / FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, COO) included.
5. After-Sales Support — Our technical team is available to assist with installation verification and drive commissioning questions.

Application-Specific FAQ

Q: Is the A1A10000432.02M compatible with SINAMICS S120 Booksize Power Modules?
A: This gate board is designed for specific inverter stack configurations. Please provide your full drive model and power module part number so our engineers can confirm compatibility before ordering.

Q: Can this board be used as a direct drop-in replacement without recalibration?
A: In most standard SIMOVERT and SINAMICS configurations, yes — the board is a direct OEM replacement. However, if your drive has been modified or uses a non-standard firmware version, we recommend a bench test before installation.

Q: Do you offer exchange / core return pricing?
A: Yes. We offer exchange pricing for repairable cores. Contact us with the condition of your failed board for a core credit assessment.

Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock units are sourced within 5–15 business days depending on global supply availability.

Q: Do you provide a warranty?
A: All units carry a minimum 90-day warranty against defects in materials and workmanship. Extended warranty options are available for volume orders.

---
