Siemens C98043-A7044-L1-6/RSS70-DCF-40 PC Board | Replacement, Equivalent & Selection Guide

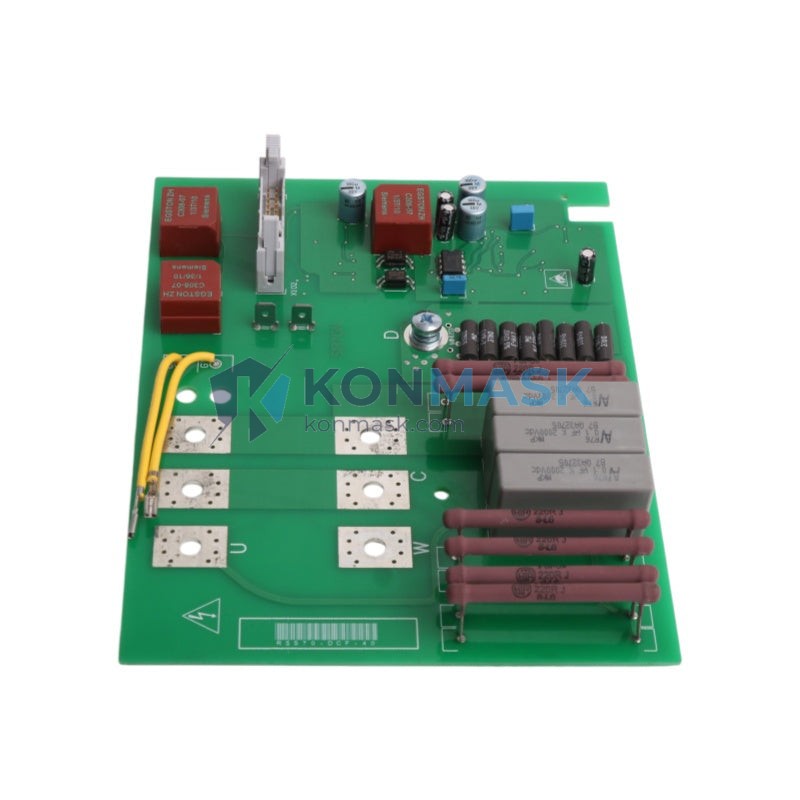

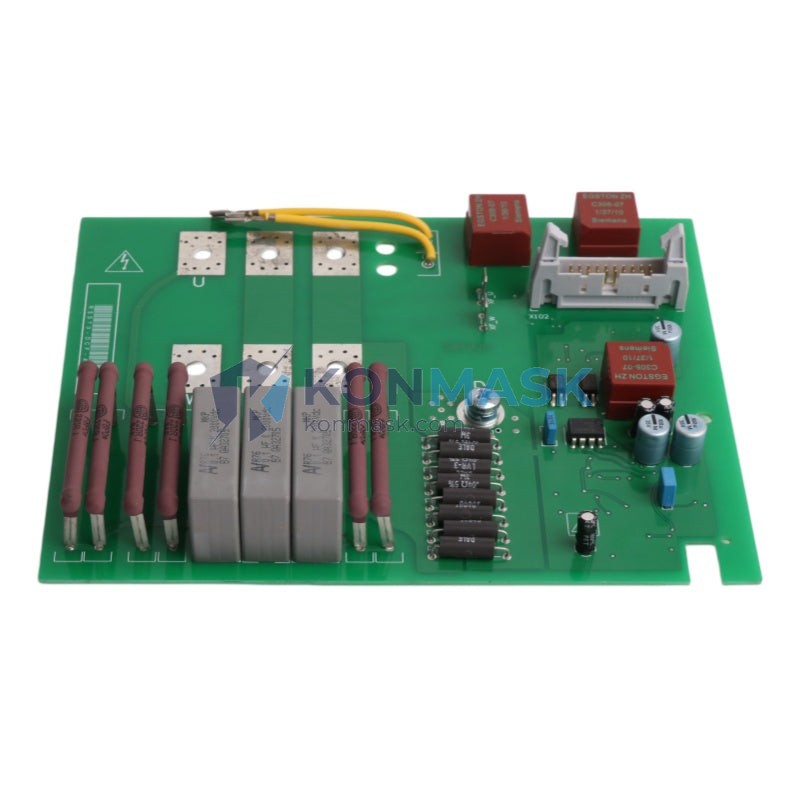

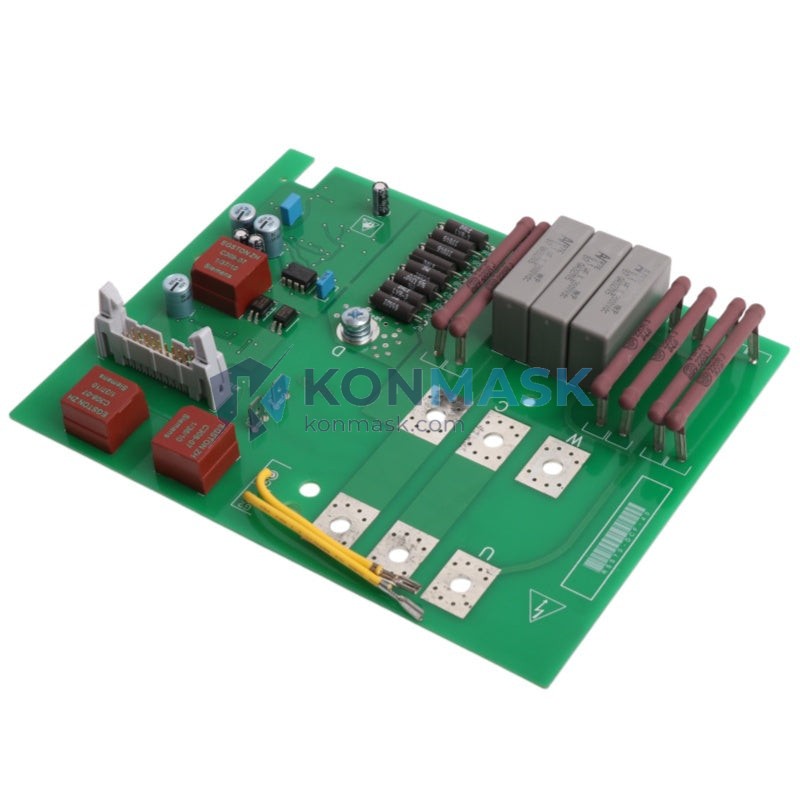

The Siemens C98043-A7044-L1-6/RSS70-DCF-40 is an industrial-grade printed circuit board (PC Board) designed for use in Siemens drive and automation control systems. This board serves as a critical functional module within SIMOREG and related DC drive platforms, providing reliable signal processing and control logic for demanding industrial environments.
At Konmask.com, we specialize in sourcing, verifying, and supplying original and compatible automation components — helping engineers and procurement teams make confident, spec-accurate decisions.
Technical Specifications
- Manufacturer: Siemens AG
- Part Number / SKU: C98043-A7044-L1-6/RSS70-DCF-40
- Component Type: PC Board (Printed Circuit Board)
- Product Series: SIMOREG DC Master / C98043 Series
- Form Factor: Plug-in board module
- Weight: Approx. 220 g
- Application: DC drive control, signal conditioning, auxiliary control logic
- Condition Available: New original / Refurbished / Tested surplus
Compatible Replacement & Equivalent Models
If the C98043-A7044-L1-6/RSS70-DCF-40 is discontinued or unavailable, the following models may serve as functional equivalents or replacements depending on your system configuration. Always verify hardware revision and firmware compatibility before substitution.
| Model | Series | Notes |
|---|---|---|
| C98043-A7044-L2 | C98043 Series | Revised version — check revision compatibility |
| C98043-A7044-L1-5 | C98043 Series | Earlier revision, functionally similar |
| C98043-A7044-L1-7 | C98043 Series | Later revision, may require firmware update |
| 6RA7085-6DS22-0 Control Board | SIMOREG DC Master | Platform-level replacement for full drive upgrade |
⚠ Disclaimer: Replacement suitability depends on your specific drive model, firmware version, and system configuration. Contact our technical team for confirmation before ordering.
Why Choose the Original Model
- Exact fit: Designed specifically for Siemens SIMOREG and C98043-series drive platforms — no adaptation required.
- Proven reliability: Factory-tested to Siemens quality standards for continuous industrial operation.
- Firmware compatibility: Guaranteed compatibility with existing drive firmware without reconfiguration.
- Warranty & traceability: Original parts come with full manufacturer traceability and documentation.
- Reduced downtime risk: Eliminates integration risk associated with cross-brand or revision-mismatched substitutes.
Typical Applications
- DC motor drive control systems (SIMOREG DC Master series)
- Steel mill and rolling mill automation
- Paper and printing machine drives
- Crane and hoist control systems
- Extruder and winding machine drives
- Industrial retrofit and modernization projects
System Compatibility
- Compatible Drive Platforms: Siemens SIMOREG DC Master (6RA70 series)
- Compatible Chassis: C98043-A7044 board slot configurations
- Interface: Internal bus connector — verify slot position with drive documentation
- Firmware: Compatible with standard SIMOREG firmware versions — consult Siemens documentation for revision-specific requirements
Selection Guide
Use the following criteria to confirm the correct board for your application:
- Step 1 — Identify your drive model: Locate the nameplate on your SIMOREG drive unit (e.g., 6RA7085, 6RA7090).
- Step 2 — Match the board slot: Cross-reference the C98043-A7044 board position in your drive’s wiring diagram or spare parts list.
- Step 3 — Confirm hardware revision: The suffix L1-6 denotes hardware revision. Ensure this matches your existing board or is confirmed compatible by Siemens documentation.
- Step 4 — Verify RSS70-DCF-40 sub-assembly: This designates the specific sub-assembly variant. Do not substitute without engineering confirmation.
- Step 5 — Contact us: Send your drive nameplate photo and existing board part number to support@konmask.com for free pre-purchase verification.
Quality Assurance & Sourcing
- All boards are inspected and tested prior to shipment.
- Original Siemens parts sourced from authorized channels or verified surplus stock.
- Each unit ships with inspection report and anti-static protective packaging.
- Traceability documentation available upon request.
- ISO-compliant handling and storage procedures.
How to Order
- Click Add to Cart or Contact Us for bulk/OEM pricing.
- Provide your drive model and existing board part number for pre-order verification (recommended).
- We confirm stock, lead time, and compatibility within 1 business day.
- Secure payment via T/T, PayPal, or other accepted methods.
- Ships worldwide with full tracking. Express options available.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a different hardware revision (e.g., L1-5 or L1-7) as a replacement?
A: In many cases yes, but hardware revisions may have component-level differences. We recommend confirming with Siemens documentation or our technical team before substituting.
Q: Is this board repairable?
A: Yes. Many C98043-series boards can be repaired by qualified drive service centers. Contact us if you need a repair referral or want to send your board for evaluation.
Q: Do you offer a warranty?
A: Yes. New original parts carry the manufacturer warranty. Refurbished/tested units carry a 90-day functional warranty from Konmask.com.
Q: What is the lead time?
A: In-stock items ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on sourcing.
Q: Can you help me identify the correct replacement if my board is damaged?
A: Absolutely. Send us a photo of the damaged board and your drive nameplate to support@konmask.com and we will identify the correct replacement.
