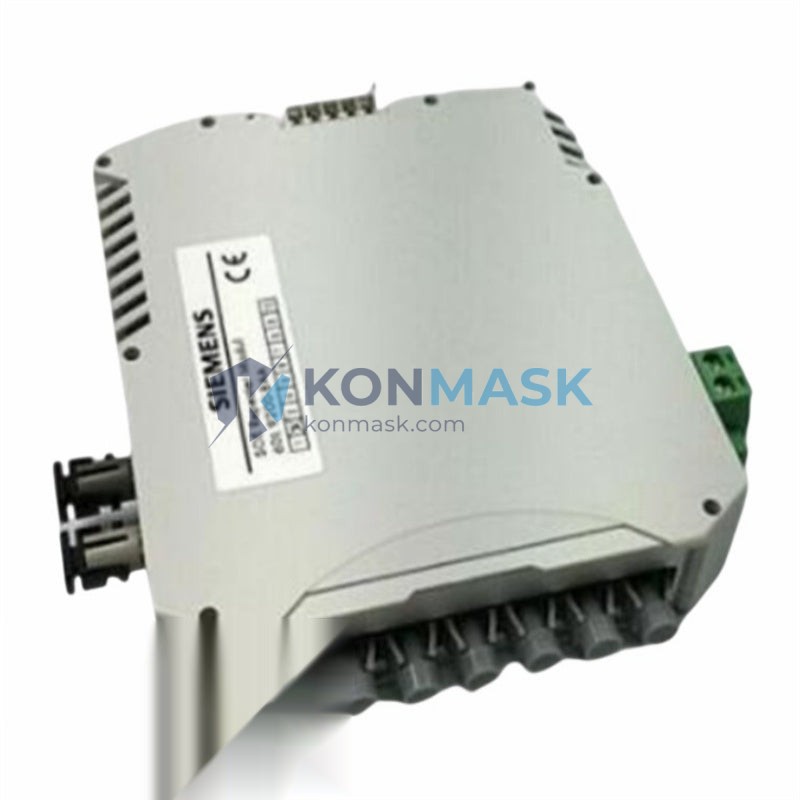

SIEMENS 6DL9200-8AA Repeater Module | Replacement, Equivalent & Selection Guide
The SIEMENS 6DL9200-8AA is a signal repeater module designed for use in SIMATIC PCS 7 distributed control systems and ET 200 remote I/O stations. It extends PROFIBUS DP segment lengths, regenerates bus signals, and enables reliable communication across large industrial installations. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make the right sourcing decision.
Technical Specifications
- Part Number: 6DL9200-8AA
- Manufacturer: Siemens AG
- Product Family: SIMATIC PCS 7 / ET 200 Series
- Function: PROFIBUS DP Bus Repeater / Signal Regenerator
- Bus Protocol: PROFIBUS DP (RS-485)
- Supply Voltage: 24 V DC
- Max. Transmission Rate: Up to 12 Mbit/s
- Number of Segments: 2 (electrically isolated)
- Max. Nodes per Segment: 32
- Segment Cable Length Extension: Up to 1,200 m (at 93.75 kbit/s)
- Isolation: Galvanic isolation between segments
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Protection Class: IP20
- Mounting: DIN rail (35 mm)
- Weight: Approx. 200 g
- Certifications: CE, UL (verify current listing)
Compatible Replacement & Equivalent Models
When the 6DL9200-8AA is unavailable or discontinued, the following models may serve as functional equivalents depending on your system configuration. Always verify electrical and mechanical compatibility before substitution.
- Siemens 6ES7972-0AA02-0XA0 – PROFIBUS DP Repeater RS485; widely used as a direct functional replacement in standard DP networks
- Siemens 6ES7972-0AA01-0XA0 – Earlier revision; compatible in most legacy PCS 7 installations
- Siemens 6GK1500-0FC10 – RS 485 Repeater for PROFIBUS; suitable for segment extension in ET 200 environments
- Phoenix Contact FL PB REPEAT – Third-party PROFIBUS repeater; verify baud rate and isolation specs before use
- Moxa IMC-101-M-SC – Fiber optic media converter option for long-distance or high-noise environments
Note: Konmask.com recommends using original Siemens parts wherever possible to ensure full system warranty and support compliance.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-validated for SIMATIC PCS 7 and ET 200 architectures
- Siemens Support Coverage: Eligible for Siemens Industry Online Support (SIOS) and firmware updates
- Proven Reliability: Designed and tested to IEC 61158 PROFIBUS standards
- Galvanic Isolation: Protects sensitive control segments from ground loops and electrical noise
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation
Typical Applications
- Extending PROFIBUS DP cable runs beyond single-segment limits in large plant installations
- Electrically isolating PROFIBUS segments to prevent ground loop interference
- Connecting remote ET 200 I/O stations to central SIMATIC PCS 7 controllers
- Chemical, petrochemical, and power generation process control networks
- Water treatment and utilities automation infrastructure
- Automotive and discrete manufacturing PROFIBUS backbones
System Compatibility
- Controllers: SIMATIC S7-300, S7-400, S7-1500 (via DP master), PCS 7 AS controllers
- Remote I/O: ET 200M, ET 200S, ET 200SP (with DP interface module)
- Engineering Software: STEP 7 V5.x, TIA Portal (DP configuration), PCS 7 Engineering Station
- Bus Standard: PROFIBUS DP (EN 50170 / IEC 61158)
- Not Compatible With: PROFINET, EtherNet/IP, or Modbus TCP networks (different physical layer)
Selection Guide
Use the criteria below to confirm the 6DL9200-8AA is the right choice, or to identify the best alternative:
- Segment Length > 1,200 m? → Consider fiber optic repeater or additional repeater cascade
- Baud Rate > 1.5 Mbit/s? → Verify repeater supports target baud rate; 6DL9200-8AA supports up to 12 Mbit/s
- Need Galvanic Isolation? → 6DL9200-8AA provides isolation; confirm third-party alternatives do the same
- Hazardous Area (ATEX/IECEx)? → Standard 6DL9200-8AA is IP20; consult Siemens for Ex-rated variants
- Budget-Constrained Retrofit? → Evaluate 6ES7972-0AA02-0XA0 as a cost-effective Siemens alternative
- Legacy PCS 7 System? → Prefer original 6DL9200-8AA or direct Siemens successor to avoid integration risk
Quality Assurance & Sourcing
- All units sourced through authorized Siemens distribution channels or verified surplus suppliers
- Each module inspected for physical integrity, label authenticity, and firmware version prior to shipment
- Anti-static packaging and shock-resistant cartons used for all shipments
- Traceability documentation (batch records, test reports) available upon request for critical projects
- Konmask.com maintains stock of both new and refurbished units — condition clearly stated on each listing
How to Order
- Step 1: Confirm part number: 6DL9200-8AA (cross-reference your existing module label)
- Step 2: Specify quantity and required condition (new / refurbished / exchange)
- Step 3: Add to cart or contact us directly for bulk pricing and lead time
- Step 4: Provide project details if expedited sourcing or documentation packages are required
- Email: support@konmask.com
- Phone/WhatsApp: +0086 19859288691
- Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Is the 6DL9200-8AA still in production?
A: This model may be discontinued or in limited supply. Contact Konmask.com to check current stock and recommended successors.
Q: Can I use the 6ES7972-0AA02-0XA0 as a direct drop-in replacement?
A: In most standard PROFIBUS DP applications, yes. However, verify mounting dimensions and power supply requirements match your cabinet design.
Q: Does the repeater require configuration in STEP 7 or TIA Portal?
A: The 6DL9200-8AA is typically transparent to the bus master and requires no software configuration — it is a hardware-level signal regenerator.
Q: What is the maximum number of repeaters in a PROFIBUS segment chain?
A: Siemens recommends a maximum of 9 repeaters in series on a single PROFIBUS DP network, limiting total nodes to 126.
Q: Do you offer warranty on refurbished units?
A: Yes. Konmask.com provides a 90-day functional warranty on all refurbished modules. New units carry the standard Siemens warranty.
