CNC Machine Tool Operator Interface Solution – Siemens MPP483IEH-S12 | SINUMERIK
Where This Product Is Used

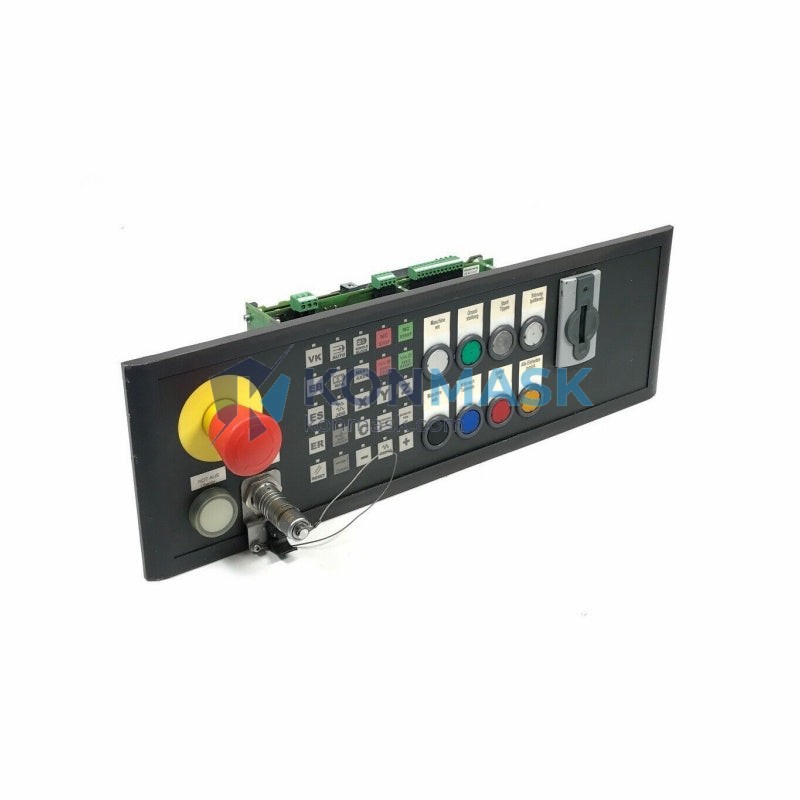

The Siemens MPP483IEH-S12 (Order No. 6FC5303-1AF12-8AM0) is a machine push button panel (MPP) designed for integration with SINUMERIK CNC controllers. It is deployed across a wide range of industrial machining environments:
- CNC Turning Centers & Machining Centers — provides operators with direct, ergonomic access to machine functions such as spindle control, axis jog, feed override, and program execution.
- Milling & Grinding Machines — mounted alongside the SINUMERIK operator panel front (OPF) to form a complete HMI station.
- Flexible Manufacturing Systems (FMS) — used in multi-axis, multi-station cells where standardized operator interfaces reduce training overhead.
- Retrofit & Modernization Projects — replaces legacy push button panels on existing machine tools being upgraded to SINUMERIK 828D or 840D sl platforms.
- OEM Machine Builders — integrated into new machine designs requiring a certified, Siemens-native operator panel solution.
Technical Specifications
| Part Number (SKU) | MPP483IEH-S12 |
| Order Number (MLFB) | 6FC5303-1AF12-8AM0 |
| Series | SINUMERIK Machine Push Button Panel (MPP) |
| Manufacturer | Siemens AG |
| Panel Width | 483 mm (19″) |
| Interface | USB / DRIVE-CLiQ compatible (model-dependent) |
| Mounting | Panel cut-out, front-mount |
| Protection Rating | IP65 (front face) |
| Operating Voltage | 24 V DC |
| Compatible Controllers | SINUMERIK 828D, 840D sl, 840D |
| Weight | Approx. 100 g (panel unit) |
| Country of Origin | Germany |
Why Engineers Specify This Model
- Standardized Siemens Ecosystem — plug-and-play compatibility with SINUMERIK 828D and 840D sl eliminates custom wiring and integration risk.
- IP65 Front Protection — sealed against coolant splash, metal chips, and dust in harsh shop-floor environments.
- Ergonomic 483 mm (19″) Form Factor — fits standard 19″ panel cutouts; reduces mechanical rework during installation or retrofit.
- Illuminated Pushbuttons — clear operator feedback reduces cycle errors and improves machine uptime.
- Long Product Lifecycle — Siemens SINUMERIK components are supported with spare parts and firmware for extended service periods, protecting capital investment.
- Certified for Industrial Use — CE marked and compliant with relevant EN/IEC machinery safety directives.
Complete System Bill of Materials
For a complete SINUMERIK operator station, engineers typically specify the following alongside the MPP483IEH-S12:
- SINUMERIK Operator Panel Front (OPF) — e.g., OP 010, OP 015, OP 019
- SINUMERIK PCU / NCU — e.g., PCU 50.5, NCU 720.3
- Machine Control Panel (MCP) — if separate from MPP
- Handheld Unit (HHU) — for setup and teach-in operations
- 24 V DC Power Supply — Siemens SITOP or equivalent
- Panel Bus / USB Hub — for peripheral connectivity
- Mounting Hardware & Cable Sets — 6FX series cables as applicable
Contact support@konmask.com for a complete BOM quotation.
Compliance & Industry Standards
- CE Marking — EU Machinery Directive 2006/42/EC
- IEC 60204-1 — Safety of Machinery: Electrical Equipment
- EN ISO 13849 — Safety-related control systems
- RoHS Compliant — Restriction of Hazardous Substances
- UL/cUL Listed (where applicable per regional variant)
Quality Assurance & Sourcing
Konmask.com sources Siemens SINUMERIK components through authorized distribution channels and verified industrial surplus networks. Every unit undergoes:
- Visual and mechanical inspection upon receipt
- Label and MLFB order number verification against Siemens documentation
- Functional pre-shipment check where test equipment is available
- Anti-static packaging with humidity indicator cards for safe transit
We provide a 90-day warranty on all stocked components. New factory-sealed units carry the original Siemens warranty.
How to Source This Part
- Request a Quote — Email support@konmask.com with your required quantity and delivery timeline.
- Confirm Availability — Our team will verify stock status and provide lead time within 1 business day.
- Place Order — Secure checkout via this product page, or via proforma invoice for B2B orders.
- Shipping — DHL Express / FedEx international shipping available. Export documentation provided for cross-border orders.
- After-Sales Support — Technical questions answered by our automation specialists post-delivery.
Application-Specific FAQ
Q: Is the MPP483IEH-S12 compatible with SINUMERIK 828D?
A: Yes. The MPP483 series is designed for use with SINUMERIK 828D and 840D sl. Verify the exact interface variant (USB vs. proprietary bus) against your NCU firmware version before ordering.
Q: Can this panel be used as a standalone replacement on an older SINUMERIK 840D (classic) system?
A: Compatibility depends on the specific hardware revision and firmware. Contact us with your existing NCU part number for a compatibility assessment.
Q: What is the lead time for this part?
A: In-stock units ship within 2–3 business days. Out-of-stock items typically have a 4–8 week lead time from Siemens distribution. Contact us for current availability.
Q: Do you provide export documentation for international orders?
A: Yes. We provide commercial invoices, packing lists, and certificates of origin. HS Code 8537.10 applies to this product category.
Q: Is this a new or refurbished unit?
A: We stock both new (factory-sealed) and tested-used units. Condition is clearly stated at time of quotation. All units are inspected before shipment.
