SIEMENS 3RG4014-4AB02 Inductive Proximity Switch | Replacement, Equivalent & Selection Guide

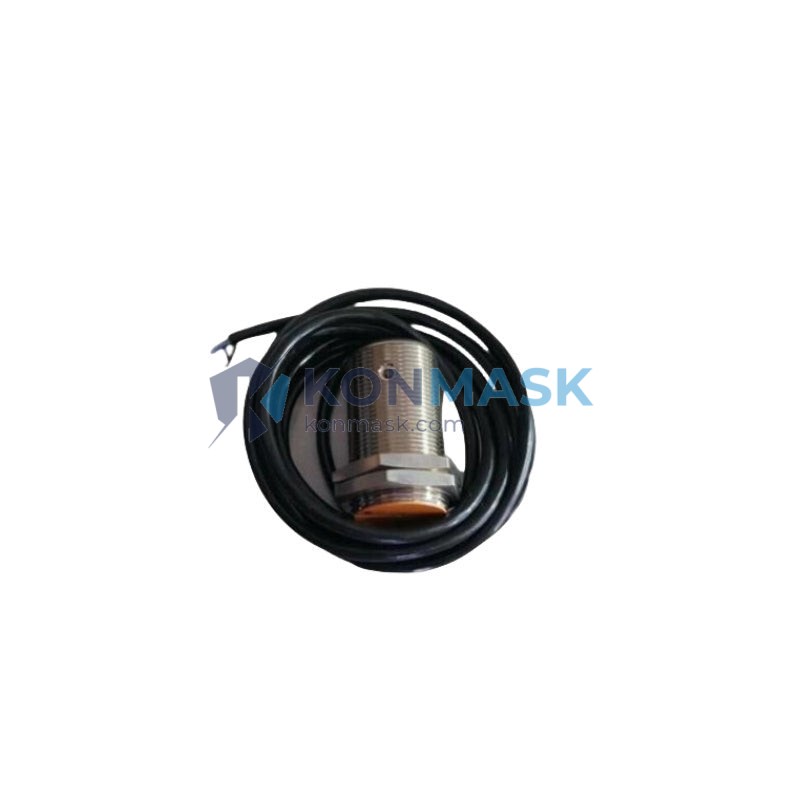

The SIEMENS 3RG4014-4AB02 is a cylindrical inductive proximity switch designed for reliable non-contact detection of metallic objects in industrial automation environments. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3RG4014-4AB02 |
| Manufacturer | SIEMENS |
| Series | 3RG40 |
| Type | Inductive Proximity Switch |
| Housing Form | Cylindrical, M14 |
| Sensing Distance (Sn) | 4 mm (nominal) |
| Output Type | PNP, Normally Open (NO) |
| Supply Voltage | 10–30 V DC |
| Output Current (max) | 200 mA |
| Protection Class | IP67 |
| Connection | Cable / Connector (M12) |
| Operating Temperature | -25°C to +70°C |
| Standards | IEC 60947-5-2 |
Note: Always verify specifications against the official SIEMENS datasheet before final design-in.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the 3RG4014-4AB02. Compatibility depends on mounting dimensions, output type, and supply voltage — verify all parameters before substitution.
| Brand | Model | Sensing Distance | Output | Voltage | Notes |
|---|---|---|---|---|---|
| SIEMENS | 3RG4014-4AB01 | 4 mm | PNP NO | 10–30 VDC | Earlier revision, same form factor |
| SIEMENS | 3RG4014-4AB03 | 4 mm | PNP NO | 10–30 VDC | Newer revision, direct upgrade |
| SICK | IME14-04BPSZC0S | 4 mm | PNP NO | 10–30 VDC | M14 cylindrical, IP67, cross-compatible |
| Pepperl+Fuchs | NBN4-12GM40-E2 | 4 mm | PNP NO | 10–30 VDC | M12 housing — verify mounting |
| Turck | BI4-M14-AP6X | 4 mm | PNP NO | 10–65 VDC | Wider voltage range, M14 |
| Omron | E2E-X4MD1 | 4 mm | PNP NO | 12–24 VDC | M12 housing — verify connector |
⚠ Disclaimer: Cross-reference data is provided for reference only. Konmask.com does not guarantee interchangeability. Always validate with your system engineer.
Why Choose the Original Model
- OEM Compatibility: Designed and validated for SIEMENS SIMATIC and SINUMERIK control architectures.
- Proven Reliability: The 3RG40 series has decades of field-proven performance in harsh industrial environments.
- Regulatory Compliance: Meets IEC 60947-5-2 and CE marking requirements out of the box.
- Simplified Maintenance: Direct drop-in replacement for existing 3RG40 installations — no re-wiring or re-parameterization required.
- Warranty & Traceability: Genuine SIEMENS parts include full manufacturer warranty and batch traceability.
Typical Applications
- Position detection on conveyor systems and transfer lines
- End-of-travel sensing on pneumatic and hydraulic cylinders
- Part presence/absence detection in assembly automation
- Speed and rotation monitoring on rotating machinery
- Tool change confirmation in CNC machining centers
- Door and guard interlock sensing in safety circuits
System Compatibility
The 3RG4014-4AB02 is compatible with the following SIEMENS and third-party control platforms:
- SIEMENS SIMATIC S7-1200 / S7-1500 — Direct digital input connection (PNP, 24 VDC)
- SIEMENS SIMATIC S7-300 / S7-400 — Via SM 321 digital input modules
- SIEMENS SINUMERIK 840D sl / 828D — Machine tool I/O integration
- Third-party PLCs (Allen-Bradley, Mitsubishi, Omron, Beckhoff) — Compatible with any 24 VDC PNP digital input
- Safety PLCs — Not rated for SIL/PLd safety functions; use SIEMENS 3SE / 3SF series for safety applications
Selection Guide
Use the following criteria to confirm the 3RG4014-4AB02 is the right choice, or to identify a suitable alternative:
- Sensing Distance: Required ≤ 4 mm nominal → 3RG4014-4AB02 ✓ | Need > 4 mm → consider 3RG4024 (8 mm) or 3RG4034 (15 mm)
- Output Logic: PNP NO required → 3RG4014-4AB02 ✓ | NPN or NC needed → select -4AA02 (NPN NO) or -4AB01 variants
- Housing Size: M14 cylindrical → 3RG4014-4AB02 ✓ | M12 needed → 3RG4012 series | M18 needed → 3RG4018 series
- Supply Voltage: 10–30 VDC system → 3RG4014-4AB02 ✓ | AC supply → select 3RG46 AC series
- Environment: IP67 standard → 3RG4014-4AB02 ✓ | Weld-field immune needed → 3RG4614 series
- Safety Function: SIL/PLd required → use SIEMENS 3SE/3SF safety switches instead
Quality Assurance & Sourcing
- Genuine Parts Only: Konmask.com sources exclusively from authorized distributors and verified OEM supply chains.
- Inspection: All units undergo visual and functional inspection prior to dispatch.
- Documentation: Certificate of conformity and packing list provided with every order.
- Anti-Counterfeit: We do not source from grey-market or unverified channels. Batch traceability available on request.
- Lead Time: In-stock items ship within 1–3 business days. Contact us for urgent requirements.
How to Order
- Confirm the part number: 3RG4014-4AB02
- Specify quantity required
- Add to cart and proceed to checkout, or contact us for bulk/project pricing
- For urgent or large-volume orders, email [email protected] or call +0086 19859288691
- We accept T/T bank transfer, PayPal, and major credit cards
Replacement & Compatibility FAQ
Q: Can I use a 3RG4014-4AB03 to replace a 3RG4014-4AB02?
A: Yes, the -4AB03 is a newer revision of the same series and is a direct drop-in replacement in most applications. Verify the datasheet for any minor specification changes.
Q: Is the 3RG4014-4AB02 compatible with Allen-Bradley PLCs?
A: Yes. Any PLC with a 24 VDC PNP digital input can accept the signal from this sensor. No special configuration is required.
Q: What is the difference between PNP and NPN output?
A: PNP (sourcing) outputs a positive voltage signal when active; NPN (sinking) pulls the signal to ground. Match the output type to your PLC input card specification.
Q: Can this sensor detect non-metallic objects?
A: No. Inductive proximity switches detect ferrous and non-ferrous metals only. For plastic, wood, or liquid detection, use a capacitive proximity switch.
Q: Do you provide a warranty?
A: Yes. All genuine SIEMENS parts sold through Konmask.com carry the manufacturer’s standard warranty. Contact us for details.
