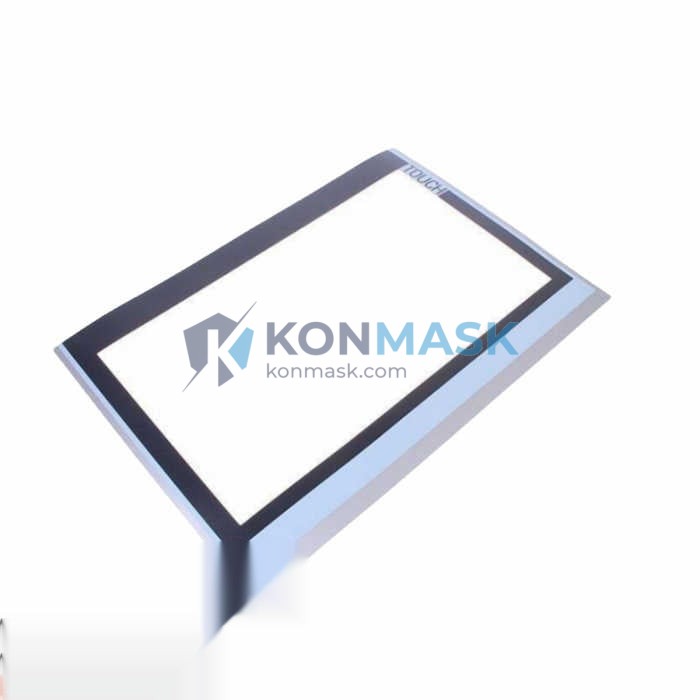

SIEMENS 6AV2124-0UC02-0AX0 – 15″ Widescreen Touch HMI | SIMATIC Comfort Series
Engineering Background
The SIEMENS SIMATIC Comfort Panel family represents the pinnacle of Siemens’ HMI engineering, designed for demanding industrial environments where reliability, precision, and seamless PLC integration are non-negotiable. The 6AV2124-0UC02-0AX0 is a 15.4″ widescreen touch panel within this series, engineered to serve as the primary operator interface in complex automation architectures across process, discrete, and hybrid manufacturing sectors.
Product Positioning
Positioned as a high-performance HMI for mid-to-large scale control systems, the 6AV2124-0UC02-0AX0 bridges the gap between field-level operator interaction and supervisory control. It is the preferred choice for procurement engineers specifying HMI solutions for SIMATIC S7-1200, S7-1500, S7-300, and S7-400 PLC platforms, as well as third-party controllers via open communication protocols.
Complete Technical Specifications
- Order Number: 6AV2124-0UC02-0AX0
- Series: SIMATIC Comfort Panel
- Display Size: 15.4″ Widescreen TFT LCD
- Resolution: 1280 × 800 px (WXGA)
- Color Depth: 16 million colors (24-bit)
- Touch Type: Resistive touch (single-touch)
- Processor: 800 MHz ARM Cortex-A8
- RAM: 128 MB
- Flash Memory: 24 MB (user memory)
- Operating System: Windows CE 6.0
- Supply Voltage: 24 V DC (19.2–28.8 V DC)
- Power Consumption: Approx. 25 W
- Interfaces: 2× USB 2.0, 2× PROFINET (RJ45), 1× RS-422/485 (MPI/PROFIBUS DP), 1× SD card slot, 1× Audio (line out)
- Communication Protocols: PROFINET IO, PROFIBUS DP, MPI, Modbus TCP/RTU, EtherNet/IP, OPC UA (client)
- Degree of Protection: IP65 (front panel), IP20 (rear)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Relative Humidity: 10–90% (non-condensing)
- Vibration Resistance: 10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1 g
- Shock Resistance: 15 g, 11 ms (IEC 60068-2-27)
- Dimensions (W×H×D): 399 × 284 × 54 mm
- Panel Cutout: 381 × 265 mm
- Weight: Approx. 3.5 kg
- Certifications: CE, UL, cULus, ATEX Zone 2 (with optional kit), GL, DNV
- Engineering Software: SIMATIC WinCC Comfort V13 SP1 or higher / TIA Portal V13 SP1+
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, paint shop SCADA interfaces, and assembly conveyor control stations requiring high-resolution visualization and robust EMC performance.
- Chemical & Pharmaceutical: Batch process control panels in ATEX Zone 2 classified areas (with appropriate enclosure), FDA 21 CFR Part 11 compliant audit trail logging via WinCC.
- Water & Wastewater Treatment: Pump station HMI with PROFINET connectivity to S7-1500 PLCs, IP65 front protection against wash-down environments.
- Food & Beverage: Hygienic area operator panels with stainless steel enclosure integration, supporting recipe management and production reporting.
- Power Generation & Distribution: Substation automation HMI with IEC 61850 gateway integration via OPC UA, real-time alarm management.
- Machine Tool & OEM: CNC auxiliary panel, packaging machine HMI, and printing press operator interface requiring PROFIBUS DP legacy connectivity.
Engineering Advantages
- TIA Portal Native Integration: Fully engineered within SIMATIC WinCC Comfort under TIA Portal, enabling unified project management, cross-device tag sharing, and one-click download — eliminating separate HMI software licensing complexity.
- Dual PROFINET Ports with Switch Functionality: Enables line topology wiring without additional network switches, reducing cabinet wiring cost and improving network resilience.
- High-Brightness 15.4″ WXGA Display: 1280×800 resolution provides superior visualization density for complex P&ID diagrams, trend curves, and alarm tables compared to standard XGA panels.
- Multi-Protocol Flexibility: Simultaneous communication with SIMATIC PLCs via PROFINET and legacy third-party controllers via Modbus RTU or EtherNet/IP — critical for brownfield retrofit projects.
- Robust Industrial Construction: Die-cast aluminum front frame, IP65 front protection, and wide operating temperature range ensure long-term reliability in harsh industrial environments.
- Scalable Visualization: Supports up to 2,000 process tags, 500 alarms, 50 trend curves, and 500 recipe entries — sufficient for mid-scale process visualization without SCADA-level licensing.
- OPC UA Client Support: Enables direct data exchange with MES/ERP systems and cloud platforms without additional middleware, future-proofing the architecture for Industry 4.0 integration.
System Architecture & Signal Flow
In a typical SIMATIC automation architecture, the 6AV2124-0UC02-0AX0 operates as follows:
- Engineering Station (TIA Portal) → Project compiled and downloaded to HMI via PROFINET or USB.
- HMI ↔ PLC Communication: Real-time tag exchange via PROFINET IO (cyclic) or S7 communication (acyclic). Typical cycle time: 100–500 ms depending on tag count and network load.
- HMI → Operator: Process visualization, alarm management, trend display, and recipe management presented on the 15.4″ WXGA touchscreen.
- HMI → MES/Cloud: OPC UA client pushes production data, alarm logs, and recipe records to higher-level systems via Ethernet.
- HMI → Peripherals: USB ports support barcode scanners, printers, and USB storage for data logging and firmware updates.
Sourcing & Quality Verification
- Origin: Genuine SIEMENS product, manufactured in Germany / China (Siemens-controlled facilities).
- Traceability: Each unit carries a Siemens serial number traceable via the Siemens Industry Online Support (SIOS) portal for authenticity verification.
- Inspection Standard: All units at Konmask.com undergo incoming inspection including: visual inspection, label verification, serial number cross-check, and functional power-on test where applicable.
- Packaging: Original Siemens OEM packaging with anti-static protection, foam cushioning, and factory seal intact.
- Warranty: 12-month Konmask warranty covering manufacturing defects. Siemens factory warranty terms apply for new-in-box units.
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the product page or email [email protected]. Include required quantity, delivery timeline, and destination country.
- Step 2 – Quotation: Konmask responds within 1 business day with pricing (HKD/USD), lead time, and shipping options (DHL Express, FedEx, sea freight).
- Step 3 – Order Confirmation: Purchase order or online checkout. Proforma invoice issued for T/T wire transfer or credit card payment.
- Step 4 – Shipment: Units dispatched within 1–3 business days for in-stock items. Tracking number provided upon dispatch.
- Step 5 – After-Sales: Technical support available via email and WhatsApp. DOA (Dead on Arrival) replacement policy within 7 days of receipt.
Technical FAQ
Q: Is the 6AV2124-0UC02-0AX0 compatible with SIMATIC S7-1500?
A: Yes. Full native integration via PROFINET IO and S7 communication protocol within TIA Portal V13 SP1 and above.
Q: Can this panel communicate with non-Siemens PLCs?
A: Yes. The panel supports Modbus TCP/RTU, EtherNet/IP, and OPC UA client, enabling connectivity with Allen-Bradley, Mitsubishi, Omron, and other third-party controllers.
Q: What is the difference between 6AV2124-0UC02-0AX0 and 6AV2124-0UC02-0BX0?
A: The -0BX0 suffix typically denotes a revised hardware version with minor component updates. Functionally and electrically equivalent for most applications. Confirm with Konmask for specific version availability.
Q: Is this panel suitable for ATEX Zone 1 environments?
A: No. The standard unit is rated for Zone 2 (with appropriate Ex enclosure). Zone 1 applications require a certified Ex d or Ex e enclosure solution.
Q: What WinCC license is included?
A: The panel includes a built-in WinCC Comfort runtime license. No separate runtime license purchase is required. Engineering requires TIA Portal WinCC Comfort engineering license on the PC.
Q: Can I upgrade the firmware?
A: Yes. Firmware updates are available via Siemens SIOS portal and can be applied via USB or PROFINET. Konmask recommends verifying firmware compatibility with your TIA Portal version before updating.
