Genuine Siemens 6ES7522-1BL01-0AB0 Digital Output Module | SIMATIC S7-1500 Series – Verified Source

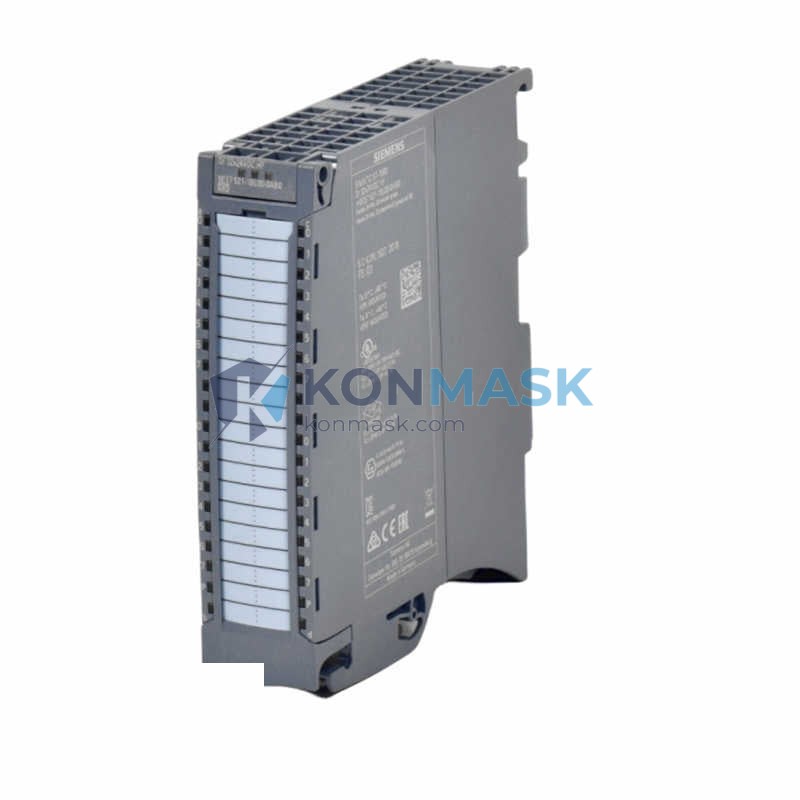

The Siemens 6ES7522-1BL01-0AB0 is a 32-channel 24 V DC digital output module designed for the SIMATIC S7-1500 programmable logic controller platform. At Konmask.com, every unit we supply passes through a documented 4-step verification process before it reaches your facility — giving industrial procurement teams and system integrators the confidence they need to specify with certainty.
Technical Specifications
- Part Number: 6ES7522-1BL01-0AB0
- Series: SIMATIC S7-1500
- Module Type: Digital Output (DQ)
- Number of Outputs: 32 channels
- Output Voltage: 24 V DC
- Output Current (per channel): 0.5 A
- Total Current (per module): 4 A
- Switching Frequency: Up to 100 Hz (resistive load)
- Isolation: Electrically isolated in groups of 16
- Backplane Bus: SIMATIC S7-1500 system bus
- Dimensions (W × H × D): 35 mm × 147 mm × 129 mm
- Weight: Approx. 200 g
- Operating Temperature: 0 °C to +60 °C
- Protection Class: IP20
- Firmware: Updateable via TIA Portal
- MLFB / Order Number: 6ES7522-1BL01-0AB0
Our 4-Step Quality Verification Process
Every 6ES7522-1BL01-0AB0 unit sourced by Konmask undergoes the following before dispatch:
- Step 1 — Origin Traceability: We verify the supply chain documentation, including manufacturer batch codes and distributor chain records, to confirm the unit originates from an authorised Siemens production run.
- Step 2 — Physical Inspection: Trained technicians inspect housing, label printing, connector pins, and firmware version markings against Siemens reference standards. Counterfeit indicators are cross-checked against a maintained database.
- Step 3 — Functional Bench Test: Where applicable, modules are powered up and output channel continuity is verified using calibrated test equipment prior to packaging.
- Step 4 — Secure Packaging & Documentation: Units are resealed in anti-static packaging with a Konmask inspection certificate enclosed. Batch and serial numbers are logged in our order management system for full post-sale traceability.
Key Features & Benefits
- 32 individually addressable 24 V DC output channels in a single compact module
- Electrically isolated channel groups reduce cross-interference in mixed-signal environments
- Seamless integration with TIA Portal V15 and above — no additional configuration libraries required
- Supports diagnostics and channel-level fault reporting directly to the S7-1500 CPU
- Hot-swap capable within the S7-1500 rack for reduced maintenance downtime
- Firmware upgradeable in the field without module removal
- Compact 35 mm width maximises rack density in space-constrained control cabinets
Typical Applications
- Discrete manufacturing lines — solenoid valve control, conveyor actuators, indicator lamps
- Automotive assembly — robot end-effector signalling, safety gate interlocks
- Food & beverage processing — dosing pump control, filling line sequencing
- Water & wastewater treatment — pump station control, valve actuation
- Building automation — HVAC damper control, lighting management systems
- Energy & utilities — substation auxiliary control, switchgear signalling
Compatible System Components
- CPUs: All SIMATIC S7-1500 CPU variants (CPU 1511, 1513, 1515, 1516, 1517, 1518 series)
- Power Modules: PM 70W 120/230V AC, PM 190W 120/230V AC
- Interface Modules: IM 155-5 PN ST / HF (for ET 200MP distributed I/O)
- Front Connectors: 6ES7592-1BM00-0XB0 (40-pin, screw type)
- Engineering Software: TIA Portal V15.1 / V16 / V17 / V18 / V19
- Related Output Modules: 6ES7522-1BH01-0AB0 (16-ch), 6ES7522-1BF00-0AB0 (8-ch)
Global Sourcing & Shipping Capabilities
- Stock Availability: Maintained in-house inventory with same-day dispatch for confirmed orders placed before 14:00 CST
- Lead Time (ex-stock): 1–3 business days domestic (China); 5–10 business days international
- Shipping Methods: DHL Express, FedEx International Priority, SF Express (domestic), sea freight consolidation available for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and Konmask inspection certificate provided as standard
- Customs & HS Code: HS 8537.10 — Boards, panels, consoles, desks, cabinets and other bases for electric control
- Minimum Order Quantity: 1 unit (volume pricing available from 5 units)
Certifications & Compliance Statement
- CE Marking: Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL Recognition: UL Listed per applicable standards for industrial control equipment
- RoHS: Compliant with EU RoHS Directive 2011/65/EU (Restriction of Hazardous Substances)
- REACH: Siemens confirms compliance with REACH Regulation (EC) No 1907/2006
- Konmask Policy: We do not knowingly source, stock, or sell counterfeit or grey-market components. All units are traceable to authorised distribution channels. Certificates of conformity are available upon request.
How to Order
- Online: Add to cart and complete checkout at konmask.com. Bank transfer (T/T), PayPal, and major credit cards accepted.
- Email RFQ: Send your purchase order or RFQ to support@konmask.com — we respond within 4 business hours.
- Phone / WhatsApp: +0086 19859288691 (Monday–Saturday, 09:00–18:00 CST)
- Bulk & Project Orders: Contact us for project pricing, scheduled delivery, and consignment stocking arrangements.
- Lead Time Confirmation: Stock availability is confirmed at time of order. For urgent requirements, please contact us before placing your order.
Authenticity & Trust FAQ
Q: How do I know the module is genuine Siemens?
A: Every unit is inspected against Siemens reference standards and ships with a Konmask inspection certificate. We maintain full batch traceability records and can provide supply chain documentation upon request.
Q: Can I return the module if it fails on arrival?
A: Yes. We offer a 30-day DOA (Dead on Arrival) replacement policy. Faulty units are replaced or refunded after our technical team confirms the defect. Contact support@konmask.com to initiate a claim.
Q: Do you offer a warranty?
A: All modules carry a 12-month Konmask warranty against manufacturing defects under normal operating conditions.
Q: Can you supply a datasheet or Siemens product documentation?
A: Yes. The official Siemens product manual (A5E03484084) is available on request. Contact us or download directly from the Siemens Industry Online Support portal.
Q: Are you an authorised Siemens distributor?
A: Konmask is an independent specialist supplier. We source from authorised channels and apply our own verification process. We are not an official Siemens authorised distributor. If your procurement policy requires authorised-only supply, please contact us to discuss documentation options.
