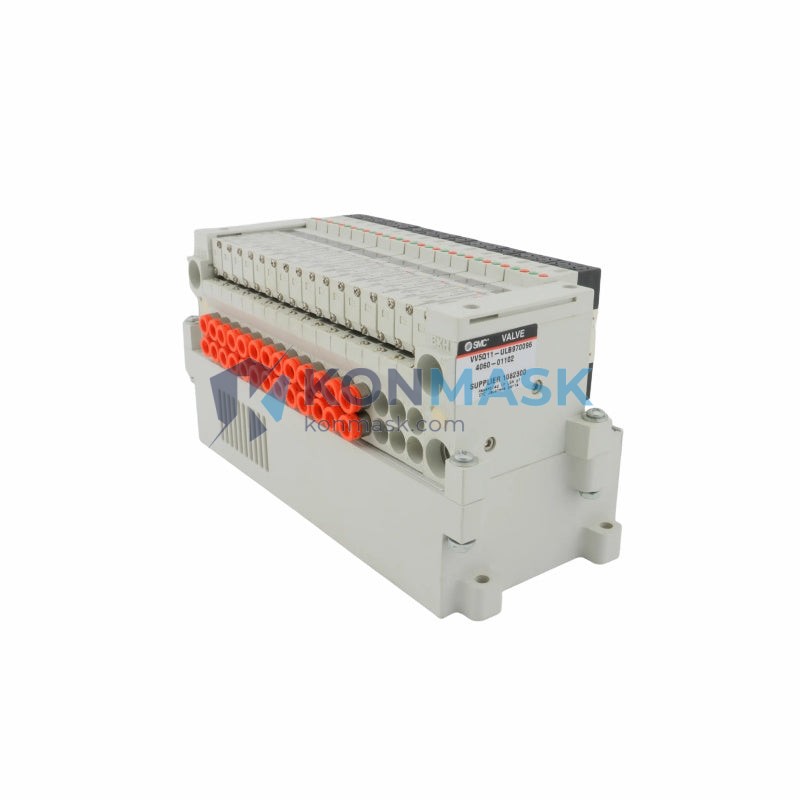

SMC DBL4N00950-0R2-000-S40 Pneumatic Manifold – Precision Fluid Distribution Assembly
When a pneumatic manifold fails on the production floor, the consequences are immediate and costly: actuators lose synchronized pressure, multi-axis motion sequences collapse, and entire automated lines grind to a halt. Unplanned downtime in high-throughput manufacturing environments can cost thousands of dollars per minute — and sourcing an exact-match replacement for a complex, multi-port manifold assembly is rarely straightforward. The SMC DBL4N00950-0R2-000-S40 is the precision-engineered answer to that critical need.
The DBL4N00950-0R2-000-S40 is a multi-station pneumatic manifold assembly from SMC Corporation — the world’s largest pneumatic component manufacturer, holding over 30% of the global market share. This unit is cross-referenced under part numbers 4060-00633, US17276, 102264, 4022.436.2449, and 044895, and is paired with companion manifold 4022.436.1069. It belongs to SMC’s industrial-grade manifold series designed for demanding OEM and MRO applications in automated machinery, where consistent pressure distribution, leak-free porting, and long service life are non-negotiable.
Technical Specifications
- Manufacturer: SMC Corporation
- Primary Part Number: DBL4N00950-0R2-000-S40
- Cross-Reference Numbers: 4060-00633 / US17276 / 102264 / 4022.436.2449 / 044895
- Companion Part: 4022.436.1069
- Product Type: Pneumatic Manifold Assembly
- Weight: 150 g
- Application: Multi-station pneumatic circuit distribution
- Condition: New / Surplus / Refurbished (specify on inquiry)
Note: Additional electrical, pressure, and port specifications are available upon request. We do not publish unverified parameters.
Key Features & Benefits
- Multi-Port Pressure Distribution: Enables simultaneous, balanced pneumatic supply to multiple actuators or valve stations from a single inlet source.
- OEM-Grade Construction: Built to SMC’s exacting tolerances, ensuring drop-in compatibility with existing SMC valve and actuator systems.
- Broad Cross-Reference Coverage: Identified under six part numbers across different procurement systems, simplifying sourcing for MRO and OEM buyers globally.
- Leak-Free Ported Design: Precision-machined manifold body minimizes pressure drop and eliminates micro-leakage that degrades cycle efficiency.
- Compact Assembly Format: Lightweight at 150 g, suitable for space-constrained panel and machine installations.
- Long Service Life: SMC’s industrial-grade materials resist wear, corrosion, and thermal cycling in continuous-duty environments.
Industry & Equipment Applications
- Automotive Manufacturing: Body assembly lines, welding fixtures, and transfer press automation requiring synchronized multi-actuator control.
- Electronics & Semiconductor: Pick-and-place machines, wafer handling systems, and SMT equipment with multi-zone pneumatic circuits.
- Food & Beverage Processing: Filling, capping, and packaging lines where hygienic, reliable pneumatic distribution is critical.
- Pharmaceutical & Medical Device: Cleanroom automation and precision dispensing equipment.
- General Industrial Automation: Robotic end-of-arm tooling, conveyor diverters, and multi-axis gantry systems.
System Integration & Compatible Parts
The DBL4N00950-0R2-000-S40 is designed for seamless integration within SMC pneumatic systems. Compatible and related components include:
- Companion manifold: 4022.436.1069 (supplied as a paired assembly)
- SMC SY-series solenoid valve stations for manifold mounting
- SMC VQ/VQC-series directional control valves
- SMC AF/AW series filter-regulator units for upstream conditioning
- SMC KQ2 push-in fittings for port connections
Contact our technical team to confirm compatibility with your specific machine configuration before ordering.
Our Quality Assurance Process
- Source Verification: All SMC parts are sourced from authorized distributors, certified surplus channels, or directly from OEM decommissioning — never from unverified grey-market suppliers.
- Visual & Dimensional Inspection: Each unit is inspected for physical integrity, port condition, and label/marking authenticity prior to shipment.
- Traceability Documentation: Lot numbers, source records, and inspection reports are maintained and available upon request.
- Secure Packaging: Parts are packed in anti-static, moisture-resistant packaging with foam cushioning to prevent transit damage.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and any specific condition requirements (new, surplus, refurbished).
- Our team will respond within 1 business day with availability confirmation, lead time, and a formal quotation.
- Upon PO confirmation, we arrange shipment via your preferred carrier with full tracking and documentation.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, pneumatic, and motion control components — not a generalist marketplace.
- Hard-to-Find Parts: We stock and source obsolete, long-lead, and discontinued SMC parts that standard distributors cannot supply.
- Global B2B Export Experience: Serving engineering teams, MRO buyers, and OEM procurement departments across North America, Europe, Southeast Asia, and the Middle East.
- Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility checks, and system integration questions before you commit to a purchase.
- Transparent & Responsive: No hidden fees, no bait-and-switch. Clear lead times, honest stock status, and fast quote turnaround.
Frequently Asked Questions
- Q: Is the DBL4N00950-0R2-000-S40 the same as part number 4060-00633?
- A: Yes. 4060-00633, US17276, 102264, 4022.436.2449, and 044895 are all cross-reference numbers for the same SMC pneumatic manifold assembly. They may appear in different OEM BOM systems or regional catalogs.
- Q: What is the companion part 4022.436.1069?
- A: The 4022.436.1069 is a paired manifold section supplied together with the DBL4N00950-0R2-000-S40 as a complete assembly. Please confirm with our team whether you require the full assembly or individual sections.
- Q: Do you offer new and used/refurbished options?
- A: Yes. We can supply new, certified surplus, and professionally refurbished units depending on availability and your budget requirements. Condition is clearly stated in all quotations.
- Q: What is the lead time for this part?
- A: Lead time varies by stock status. In-stock units typically ship within 2–5 business days. For sourced or refurbished units, lead time is 1–3 weeks. Contact us for current availability.
- Q: Can you provide a datasheet or technical drawing?
- A: We will provide all available SMC documentation with your quotation. For proprietary OEM drawings, availability depends on the source channel.
