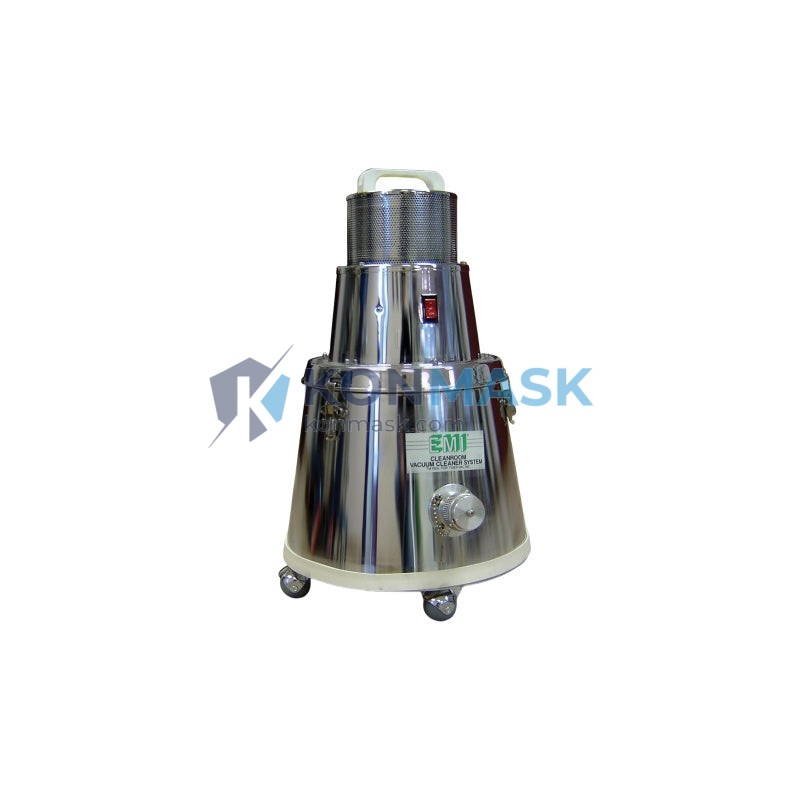

Cleanroom Contamination Control Solution – TIGER-VAC EMI-CWR GV10782H | EMI-CWR Series
Where This Product Is Used
The TIGER-VAC EMI-CWR GV10782H is purpose-built for contamination-sensitive environments where particle control and electrostatic discharge (ESD) protection are non-negotiable. Typical deployment sites include:
- Semiconductor Fabs & Wafer Processing – ISO Class 3–5 cleanrooms requiring sub-micron particle capture during tool maintenance and wafer-handling area cleanup.
- Pharmaceutical & Biotech Manufacturing – GMP-compliant facilities needing validated vacuum equipment for API production zones and filling lines.
- Aerospace & Defense Assembly – Precision component assembly bays where metallic particulate and FOD (Foreign Object Debris) control is mandated.
- Medical Device Manufacturing – ISO 13485-regulated cleanrooms for implantable device and sterile packaging line maintenance.
- Flat Panel Display & Optics Production – Ultra-clean environments where even nanometer-scale particles cause yield loss.
- Research Laboratories – University and national lab cleanrooms supporting MEMS, nanotechnology, and photonics R&D.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | EMI-CWR GV10782H |
| Part Numbers | 1305787-B / 2305634-A |
| Series | EMI-CWR (Cleanroom) |
| Manufacturer | TIGER-VAC |
| Application Class | Cleanroom Vacuum Cleaner |
| Filtration | HEPA / ULPA (application-dependent configuration) |
| ESD Protection | Conductive / anti-static construction |
| Cleanroom Rating | ISO Class 3–5 compatible |
| Construction | Stainless steel & ESD-safe polymer components |
| Certification | CE; meets ISO 14644-1 cleanroom standards |
| Weight | ~150 g (unit component; full system weight varies) |
Contact Konmask for full datasheet and configuration-specific specifications.
Why Engineers Specify This Model
- Dual Part Number Traceability – Cross-referenced as both 1305787-B and 2305634-A, simplifying MRO procurement and BOM reconciliation across legacy and current documentation.
- ESD-Safe Design – Conductive hoses, wands, and housing prevent charge buildup that could damage sensitive wafers, PCBs, or MEMS devices during vacuuming operations.
- HEPA/ULPA Filtration – Captures particles ≥0.3 µm at ≥99.97% efficiency (HEPA) or ≥0.12 µm at ≥99.9995% (ULPA), meeting the most stringent cleanroom exhaust requirements.
- Validated for Cleanroom Re-entry – Equipment is manufactured and packaged in controlled environments, eliminating the need for extensive incoming decontamination.
- Low Particle Emission – Sealed motor and exhaust filtration ensure zero unfiltered exhaust back into the cleanroom atmosphere.
- Proven TIGER-VAC Reliability – TIGER-VAC is a globally recognized specialist in industrial and cleanroom vacuum technology with decades of semiconductor and pharma references.
Complete System Bill of Materials
For a fully operational cleanroom vacuum station, engineers typically specify the following alongside the EMI-CWR GV10782H:
- ESD-safe conductive vacuum hose assembly
- Stainless steel or PTFE-coated wand set
- HEPA or ULPA filter cartridge (replacement set)
- Cleanroom-compatible collection bag or canister liner
- Grounding strap and bonding cable kit
- Wall-mount or mobile cart bracket (facility-dependent)
- Pre-filter stage (for high-particulate maintenance tasks)
Konmask can assist with complete BOM sourcing. Contact our team for a bundled quote.
Compliance & Industry Standards
- ISO 14644-1 – Cleanroom classification and air cleanliness by particle concentration
- IEC 61340-5-1 – ESD protection for electronic devices; relevant to ESD-safe vacuum equipment
- EU GMP Annex 1 – Manufacture of sterile medicinal products (pharmaceutical applications)
- 21 CFR Part 211 – FDA current Good Manufacturing Practice for finished pharmaceuticals
- CE Marking – Conformity with applicable EU health, safety, and environmental protection standards
- ISO 13485 – Quality management systems for medical device manufacturing environments
Quality Assurance & Sourcing
Konmask.com sources the TIGER-VAC EMI-CWR GV10782H through verified industrial distribution channels. Every unit offered is:
- Inspected against OEM part number documentation (1305787-B / 2305634-A)
- Stored in climate-controlled, ESD-protected warehousing
- Shipped with original manufacturer documentation where available
- Backed by Konmask’s sourcing guarantee and post-sale technical support
We do not supply grey-market or counterfeit equipment. All inventory is traceable to authorized supply chains.
How to Source This Part
- Add to Cart – Click the purchase button above for standard stock orders.
- Request a Quote – For volume orders, blanket POs, or project-based procurement, email support@konmask.com.
- Expedited Sourcing – If this unit is not in stock, our team can locate and qualify alternative supply within 3–5 business days.
- Technical Pre-Sales – Call +0086 19859288691 to discuss application fit, filter configuration, and accessory compatibility before ordering.
Application-Specific FAQ
- Q: Is the EMI-CWR GV10782H suitable for ISO Class 5 (Class 100) cleanrooms?
- A: Yes. The EMI-CWR series is designed and validated for ISO Class 3–5 environments. Confirm filter configuration (HEPA vs. ULPA) with your cleanroom qualification engineer based on your specific particle count requirements.
- Q: Can this vacuum be used on live electronic assemblies or powered PCBs?
- A: The ESD-safe construction minimizes discharge risk, but vacuuming live circuits is not recommended without a full ESD risk assessment per IEC 61340-5-1. Always follow your facility’s ESD control program.
- Q: What is the difference between part numbers 1305787-B and 2305634-A?
- A: These are cross-reference part numbers for the same unit — 1305787-B is the original OEM designation and 2305634-A is a superseding or alternate catalog reference. Both identify the identical GV10782H assembly.
- Q: How often should the HEPA filter be replaced?
- A: Filter replacement intervals depend on particulate load and usage frequency. TIGER-VAC recommends inspection after every 40–60 hours of operation in high-particulate environments. Consult the OEM maintenance manual for your specific configuration.
- Q: Does Konmask offer calibration or service documentation?
- A: We can provide available OEM documentation upon request. For calibration services, contact our technical team to discuss options or referrals to authorized TIGER-VAC service centers.
