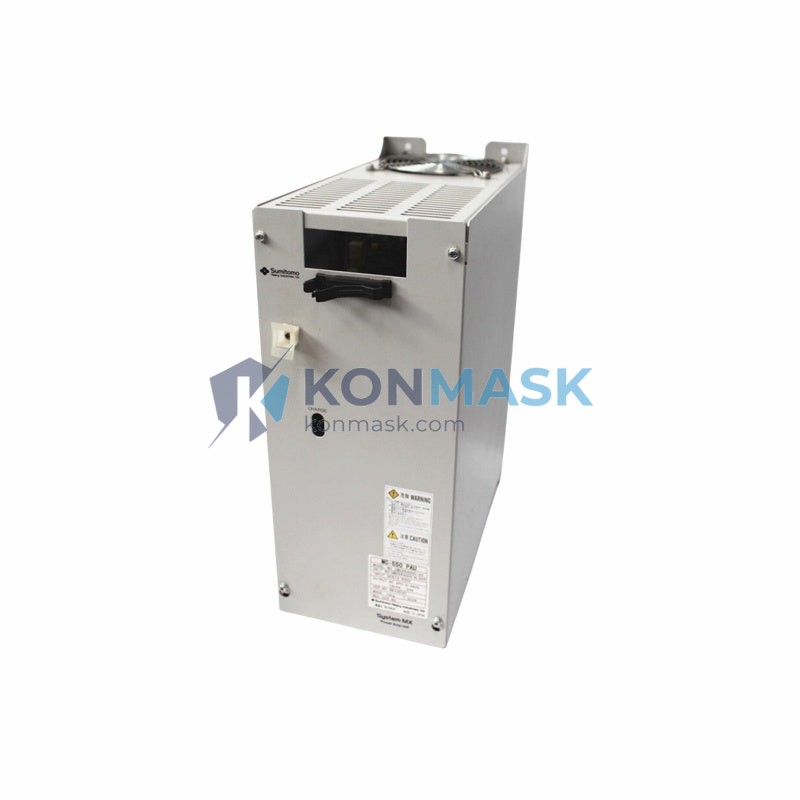

Sumitomo UMC554000-04 Servo Driver | Replacement, Equivalent & Selection Guide
The Sumitomo UMC554000-04 is a high-performance AC servo driver designed for precision motion control in industrial automation systems. This page provides a comprehensive selection guide, compatible replacement models, and technical specifications to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UMC554000-04 |
| Brand | Sumitomo |
| Type | AC Servo Driver |
| Series | UMC Series |
| Input Voltage | AC 200–230V, 3-Phase |
| Output Current | Please refer to official datasheet |
| Control Mode | Position / Speed / Torque |
| Communication Interface | RS-232 / RS-485 / Pulse Train |
| Protection Class | IP20 |
| Weight | Approx. 400 g |
| Certifications | CE, UL (verify with datasheet) |
Compatible Replacement & Equivalent Models
If the UMC554000-04 is discontinued or on extended lead time, the following models may serve as functional equivalents. Always verify electrical and mechanical compatibility before substitution.
| Brand | Model | Notes |
|---|---|---|
| Sumitomo | UMC554000-05 | Upgraded firmware variant — direct replacement candidate |
| Mitsubishi | MR-J4-10A | Similar power class; verify encoder interface |
| Yaskawa | SGDV-R70A01A | Comparable servo drive; check parameter mapping |
| Panasonic | MDDDT3530 | Equivalent capacity; different connector pinout |
| Delta | ASD-A2-0121-M | Budget alternative; verify tuning requirements |
Note: Replacement compatibility must be validated by a qualified engineer. Konmask.com provides sourcing support — contact us for technical consultation.
Why Choose the Original Model
- OEM Precision: Factory-tuned parameters for Sumitomo servo motors ensure optimal performance.
- Proven Reliability: Validated in demanding industrial environments with long MTBF.
- Full Warranty Support: Original units carry manufacturer warranty and traceable serial numbers.
- Seamless Integration: Drop-in compatibility with existing Sumitomo UMC-series systems — no re-engineering required.
- Regulatory Compliance: Meets CE/UL standards for global deployment.
Typical Applications
- CNC machine tool spindle and axis control
- Robotic arm joint actuation
- Packaging and labeling machinery
- Semiconductor wafer handling equipment
- Textile and printing machine drives
- Conveyor and material handling systems
System Compatibility
The UMC554000-04 is designed to operate within the Sumitomo UMC Series servo system ecosystem. Confirm compatibility with:
- Servo Motors: Sumitomo UMC-series AC servo motors (matched by power rating)
- PLCs: Mitsubishi MELSEC, Siemens S7, Omron NJ/NX via pulse or fieldbus interface
- HMIs: Any HMI with RS-232/RS-485 communication support
- Regenerative Resistors: External braking resistor required for high-inertia loads
Selection Guide
Use the following criteria to confirm the UMC554000-04 is the right drive for your application:
- Motor Matching: Confirm rated current and encoder type match your servo motor nameplate.
- Power Supply: Verify 3-phase AC 200–230V availability at the installation site.
- Control Mode: Select position, speed, or torque mode based on your motion profile.
- Communication Protocol: Match the interface (pulse train, RS-485, etc.) to your PLC output type.
- Environmental Rating: IP20 is suitable for control cabinet installation; add enclosure for harsh environments.
- Load Inertia: Calculate inertia ratio; add external regenerative resistor if ratio exceeds drive spec.
Quality Assurance & Sourcing
All units sourced through Konmask.com undergo the following quality process:
- ✅ Visual inspection and label verification against manufacturer records
- ✅ Functional power-on test where applicable
- ✅ Anti-static packaging with humidity indicator cards
- ✅ Traceable documentation (invoice, COO, test report available on request)
- ✅ Secure international shipping with full insurance coverage
We supply new original, refurbished, and surplus stock — clearly labeled and priced accordingly. Minimum order quantity: 1 unit.
How to Order
- Click Add to Cart or Buy Now on this page.
- For bulk orders (>5 units) or urgent requirements, email [email protected] for a dedicated quote.
- Provide your application details for free pre-sales technical consultation.
- Lead time: In-stock units ship within 1–3 business days; sourced units within 7–15 business days.
Replacement & Compatibility FAQ
Q: Can I use a Yaskawa SGDV as a direct replacement for the UMC554000-04?
A: Functionally similar, but parameter re-mapping and wiring adaptation are required. Not a plug-and-play swap.
Q: Is the UMC554000-04 still in production?
A: Contact us to confirm current production status. We maintain surplus and refurbished stock for discontinued models.
Q: What is the warranty on units purchased from Konmask.com?
A: New original units carry the manufacturer warranty. Refurbished units carry a 90-day Konmask warranty.
Q: Can you supply a test report or certificate of origin?
A: Yes — available on request for all orders.
Q: Do you offer technical support for installation and commissioning?
A: Yes, our engineering team provides remote support via email and video call.
