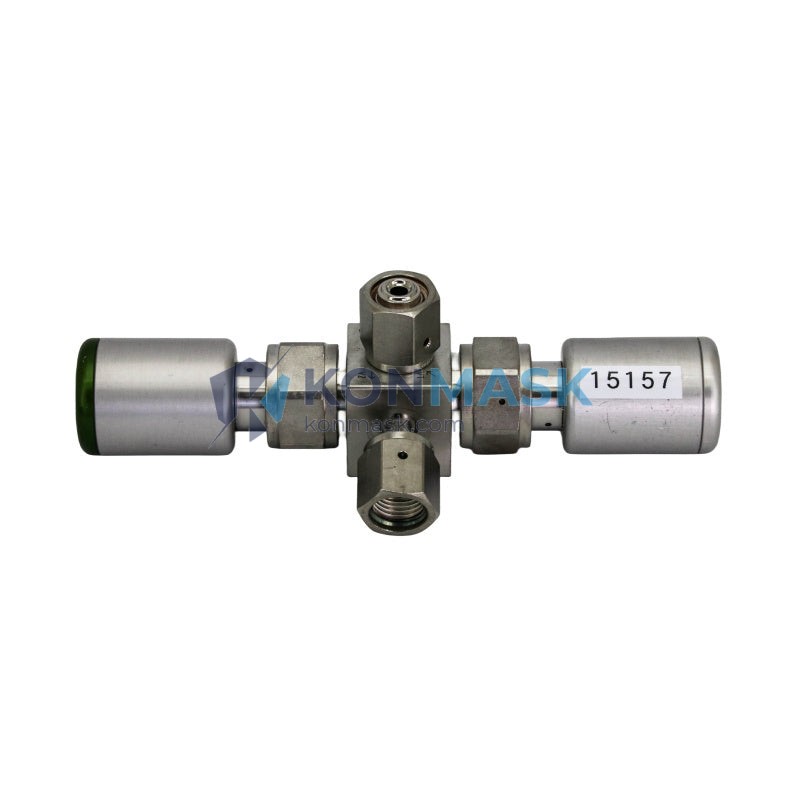

Genuine SWAGELOK 6L-M1D-122P-IJ Double Acting Pneumatic Actuator | M1D Series – Verified Source
The SWAGELOK 6L-M1D-122P-IJ (Cross-ref: 0020-49100 / 0140-23867) is a precision-engineered double acting pneumatic actuator from Swagelok’s M1D Series — designed for demanding industrial valve automation applications where reliability and cycle life are non-negotiable. Sourced directly through verified distribution channels, every unit shipped from Konmask.com carries full traceability documentation.
Technical Specifications
- Manufacturer: SWAGELOK
- Part Number: 6L-M1D-122P-IJ
- Cross-Reference: 0020-49100 / 0140-23867
- Series: M1D Series Pneumatic Actuator
- Actuator Type: Double Acting (DA)
- Actuation Medium: Compressed Air / Inert Gas
- Body Material: Anodized Aluminum Alloy
- Seal Material: PTFE / Buna-N (NBR)
- Operating Pressure Range: 40–120 PSI (2.8–8.3 bar)
- Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Mounting Standard: ISO 5211 / VDI/VDE 3845
- Weight: 2.6 kg
- Certification: CE Marked
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All SWAGELOK units are procured exclusively from authorized distributors or factory-direct channels with verifiable purchase records.
- Step 2 – Physical Inspection: Each actuator undergoes visual and dimensional inspection upon receipt — checking part markings, serial numbers, and packaging integrity against Swagelok’s published standards.
- Step 3 – Documentation Review: We verify manufacturer certificates of conformance (CoC), material test reports (MTR), and traceability records before dispatch.
- Step 4 – Pre-Shipment Check: Final packaging inspection ensures no transit damage, with tamper-evident sealing and photographic records retained for every order.
Key Features & Benefits
- ✅ Double Acting Design: Independent air supply to both chambers ensures positive open and close control — no spring dependency, ideal for fail-safe critical loops.
- ✅ High Cycle Life: M1D Series actuators are rated for 1,000,000+ cycles under standard operating conditions.
- ✅ Compact & Lightweight: Anodized aluminum body delivers maximum strength-to-weight ratio for panel and skid mounting.
- ✅ Universal Mounting: ISO 5211 top flange and VDI/VDE 3845 bracket compatibility for seamless integration with most quarter-turn valves.
- ✅ Low Maintenance: Self-lubricating seals reduce service intervals and total cost of ownership.
- ✅ Genuine OEM Part: Full Swagelok traceability — not a copy, not a substitute.
Typical Applications
- Oil & Gas pipeline valve automation
- Chemical and petrochemical process control
- Semiconductor and cleanroom gas panel systems
- Pharmaceutical and biotech fluid handling
- Power generation and utilities
- Marine and offshore instrumentation
Compatible System Components
- Swagelok Ball Valves: S-Series, 40G Series, 60 Series
- Swagelok Solenoid Valve Manifolds (SVA Series)
- Swagelok Positioners and Limit Switch Boxes
- ISO 5211 Quarter-Turn Butterfly and Plug Valves
- Standard 1/4″ NPT / G1/4 pneumatic supply fittings
Global Sourcing & Shipping Capabilities
Konmask.com ships the SWAGELOK 6L-M1D-122P-IJ worldwide from our warehouse in China. We support:
- Express Delivery: DHL / FedEx / UPS — 3–7 business days to most destinations
- Sea Freight: Available for bulk orders (MOQ negotiable)
- Export Documentation: Commercial invoice, packing list, CoC, and customs HS code support included
- Lead Time: In-stock units ship within 1–2 business days of payment confirmation
- Minimum Order: 1 unit (no minimum for stocked items)
Certifications & Compliance Statement
This SWAGELOK 6L-M1D-122P-IJ unit is supplied with available manufacturer documentation. Konmask.com does not manufacture, modify, or re-label any products. All items are sold as-is from original OEM packaging. Applicable standards include:
- CE Marking (Machinery Directive 2006/42/EC)
- RoHS Compliant
- ISO 9001 Supply Chain Traceability
How to Order
- Click Add to Cart and proceed to checkout, or
- Contact us directly for bulk pricing, lead time confirmation, or technical consultation:
📧 support@konmask.com
📞 +0086 19859288691 - Provide your required quantity, delivery destination, and any documentation requirements (CoC, MTR, etc.).
- We will confirm stock availability and issue a proforma invoice within 1 business day.
Authenticity & Trust FAQ
Q: How do I know this is a genuine SWAGELOK part?
A: Every unit is sourced from verified distribution channels. We retain purchase records and can provide documentation upon request. Part markings, serial numbers, and packaging are inspected against Swagelok’s published specifications.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. Available CoC and traceability documents are included or provided upon request for all stocked units.
Q: What if the part doesn’t match my application?
A: Contact us before ordering. Our technical team will cross-reference your valve model, torque requirements, and supply pressure to confirm compatibility.
Q: Do you accept returns?
A: Unused, unopened items in original packaging may be returned within 14 days. Please contact support@konmask.com to initiate a return.
Q: Is this part in stock?
A: Stock levels are updated regularly. Contact us to confirm real-time availability for urgent requirements.
